New Release
Order Code: S290
ex-gst
inc-gst
$ 350.00
$ 385.00
240V / 10A
1 Year Warranty
Compare
Wishlist
Description

Workshop Sandblasting Cabinet - SB-220

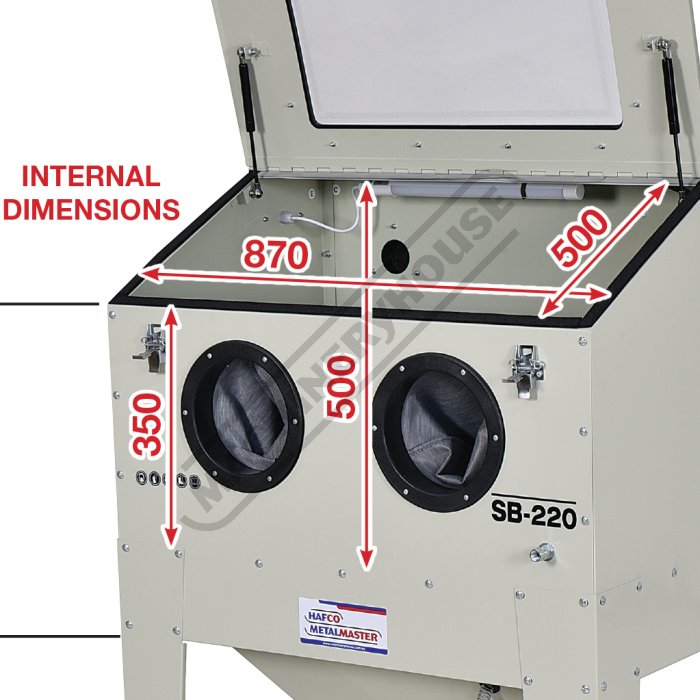

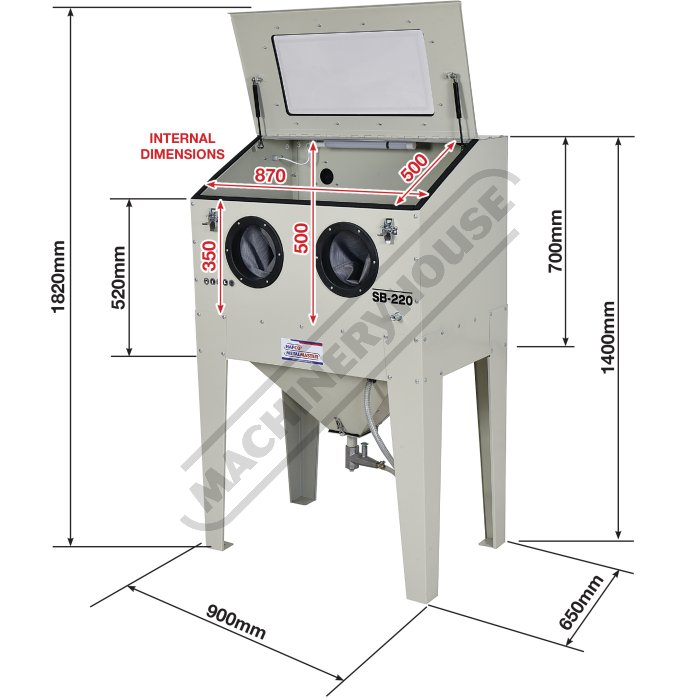

Inside Cabinet 870 x 500 x 350-500mm (L x W x H)
Includes Internal LED Light
Overview
The SB-220 is a great-value, medium-sized workshop sandblasting cabinet designed for practical and reliable everyday use. The top-opening, gas-strut-assisted lid provides smooth, controlled opening and easy access to your workpieces, improving both safety and convenience. A large clear acrylic viewing window combined with an internal LED light ensures clear visibility during operation. A inlet port is fitted as standard, allowing the cabinet to be easily adapted to your existing vacuum or dust extraction system to remove fine dust and airborne particles and maintain a clear working environment. For best results, it can also be paired with the SB-C870 Industrial Sandblasting Dust Cyclone Extractor.

The SB-290 further enhances value with a gravity-feed metering valve that delivers the sandblasting media at the correct ratio, ensuring efficient performance, reduced media waste, and consistent, high-quality blasting results—making it a cost-effective solution for any workshop.
Features
  • Top opening lid for easy access
  • Fitted with a gravity feed metering valve for optimal performance
  • Powder coated steel construction
  • Inlet ready to adapt a filter system at rear of sandblast cabinet
  • Internal LED lighting system
  • Door safety latches
  • Complete with large clear acrylic screen with replacement shields, gloves, gun & ceramic tips

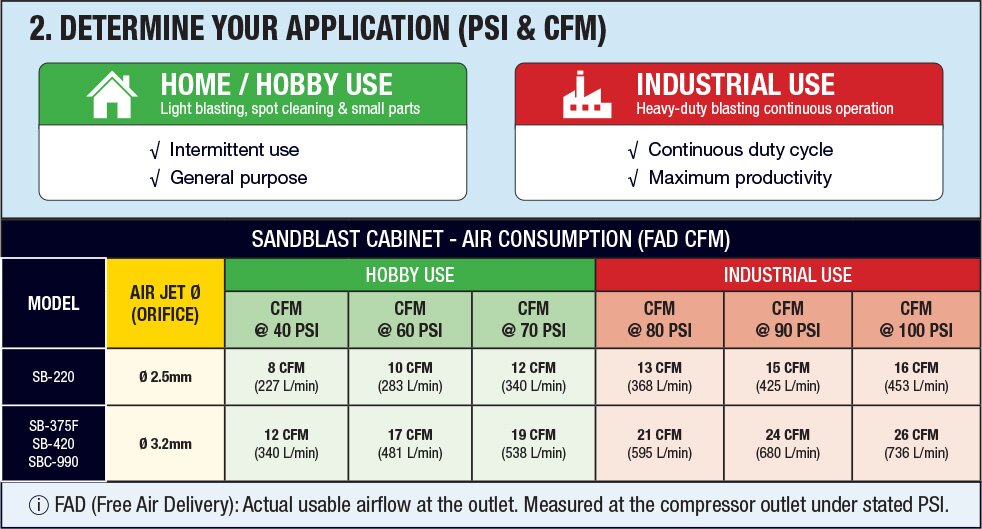

  • Requires compressor delivering minimum 13CFM (368L/min) FAD @ 80 psi
  • Recommended to be used with an optional dust collector system
  • Recommended to use 2 x 25kg abrasive grit

  • Please Note:
  • It is advisable to use an appropriate silastic sealant upon assembling cabinet
  • Regular maintenance to clean dust collector filter bag is required
Includes
  • Ø4mm, Ø5mm, Ø6mm, Ø7mm Ceramic Tips
Optional Accessories
  • SB-C870 - Industrial Sandblasting Dust Cyclone Extractor - 2 Stage Filtration System. Order Code: (S310)
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • (mm)Approx. Inside Cabinet Size (L x W x H)
  • (Type)Internal Light
  • (CFM / Lpm)Recommended (FAD) @ 80psi
  • (mm)Floor Space with Door/Lid Open (L x W x H)
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • S334
  • Compare
  • Wishlist
  • S334
  • SBP-215
  • Ø270 x 520
  • ~
  • 6CFM (170L/Min)
  • 370 x 370 x 705
  • 6.5
  • $270.00
  • $297.00
  • ADD TO CART
  • New Release S290
  • Compare
  • Wishlist
  • S290
  • SB-220
  • 870 x 500 x 350-500
  • LED Light
  • 13 CFM (368 L/min)
  • 900 x 650 x 1820
  • 46.5
  • $350.00
  • $385.00
  • ADD TO CART
  • Package Deal S301S
  • Compare
  • Wishlist
  • S301S
  • SB-375F
  • 910 x 600 x 400-660
  • LED Light
  • 21 CFM (595 L/min)
  • 920 x 1000 x 1920
  • 82.50
  • $1,200.00
  • $1,320.00
  • ADD TO CART
  • S301
  • Compare
  • Wishlist
  • S301
  • SB-375F
  • 910 x 600 x 400-660
  • LED Light
  • 21 CFM (595 L/min)
  • 920 x 1000 x 1920
  • 82.50
  • $1,150.00
  • $1,265.00
  • ADD TO CART
  • S302
  • Compare
  • Wishlist
  • S302
  • SB-420
  • 1200 x 600 x 340-580
  • LED Light
  • 21 CFM (595 L/min)
  • 2390 x 930 x 1900
  • 157
  • $1,690.00
  • $1,859.00
  • ADD TO CART
  • S305
  • Compare
  • Wishlist
  • S305
  • SBC-990
  • 1175 x 885 x 450-810
  • LED Light
  • 21 CFM (595 L/min)
  • 1330 x 1350 x 2180
  • 160
  • $2,350.00
  • $2,585.00
  • ADD TO CART
