IWNC-100SD - Hydraulic Punch & Shear with NC Table - 100 Tonne

Dual Hydraulic Cylinders with Independent Operating Stations
Includes NC Programmable Positioning Table 1000 x 400mm
Overview
The Sunrise Punch & Shears are manufactured in Taiwan, also known as Ironworkers are well recognised in our Australian market for the machines being reliable & durable due to their structurally well manufactured unique design & engineering excellence. Sunrise is ISO-9001 certified by BVQI, and our products meet the CE safety requirements and regulations. Sunrise relentlessly seeks continuous improvement and product development to keep a step ahead of their competitors.

The Semi-Automatic CNC positioning tables from SUNRISE are plate and angle positioning systems with touch-screen interfaces. The CNC positioning table is available as a factory-installed option on any dual-cylinder ironworker or punching machine with a 510mm or larger throat depth. The operation and programming are CNC controlled using a pendant mounted controller featuring simple programming and a virtually indestructible design. The operator simply positions the material against the CNC-controlled X and Y stops and initiates the punch program.

The Windows based PC Controller features a 15″ Touch-Screen, WiFi and all flash-memory based Nexcom computer. The software provided handles a wide variety of programming needs whilst also being simple to operate.

The double cylinder "S/SD" series have two control foot pedals, & separate operations can be safely performed simultaneously without interference. The low pressure setting for tool change provides maximum operation safety. The long punching cylinder stroke & deep throat enable mounting a wide range of special optional equipment. The large punching base with the "T-slot" fixing provide a solid base for securing the punching tooling, as well as a wide range of optional & custom designed tooling.

The hydraulic system & components that drives the shearing beam & punching head is considerably very quiet compared to most other machines and operates efficiently smooth in all modes. The electrical components & DC control circuit are operated at a low 24 volt system & provides full protection & safety with in the separate key locked cabinet.

The Sunrise machines have proven themselves over & over again to provide trouble free service for many years in production and we have references all around Australia to verify our statement.
Features
  • NC programmable positioning table 1000 x 400mm
  • Pendant mounted Windows based PC controller with 15” Touch-Screen
  • DXF import function
  • Pre-programmed patterns: line, array, arc and custom
  • Pattern nesting: combine multiple files
  • Dual hydraulic cylinders allows simultaneous operation without interference

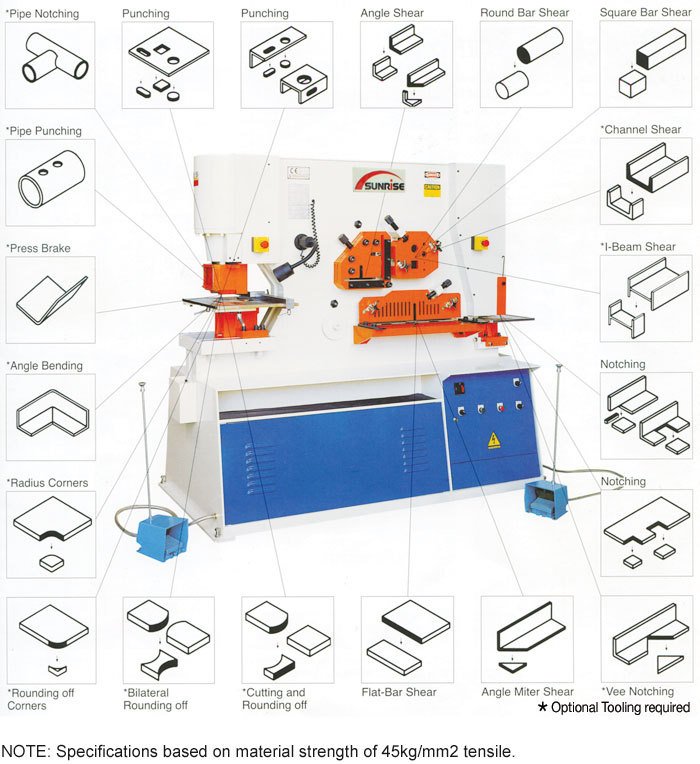

  • Five work stations, Punching, Notching, Plate Shearing, Angle Iron Shearing and Bar Shearing (all stations are guarded)
  • Punching capacity up to 50mm standard
  • Mitre cutting of angle iron
  • Magnetic base halogen lamp
  • Hydraulic system is protected with replaceable filter cartridge
  • Adjustable stroke for faster punching
  • Curved shear blade for minimal job distortion
  • Most cutting blades are four-sided for long life
  • Punch, shear & notching table fitted with stops & guides as standard
  • Two-pedal operation allows two people to work machine to greatly speed up production
  • Adjustable length stop with one-touch electronic backgauge for greater efficiency in repetitious work

  • PUNCHING
  • Large hole punching up to Ø50mm as standard
  • Overhang bolster for punching channel & beam flanges
  • Large ruled support table with removable front section for leg down punching in angle or section
  • Easily adjustable stripper & safety guard

  • Pre-Commissioning:
  • 1. Punch & Shear is run & tested prior delivery
  • 2. Hydraulic oil is included with machine
Includes
  • Full safety guarding at all workstations
  • Tooling to all workstations
  • Punch, Shear & Notch support tables
  • Now with Quick Change Tooling
  • 1 metre adjustable "Auto touch length stop" once the material has pushed the micro-switch stop the hydraulic system is activated to shear work piece
Optional Accessories
  • 1000 x 600mm NC Positioning Table
  • 3000 x 400mm NC Positioning Table
  • Multi Tool Punch System 30-30-30
  • Multi Tool Punch System 30-40-30
  • Oil Tank Cooling System
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • (Tonne)Punching Pressure
  • Punching Table Type

  • (mm)Punching (Diameter x Thickness) - MS
  • (mm)Punching Throat Depth
  • (mm)Punching Maximum Stroke Length
  • (cpm)Punching Cycles (15mm Stroke) - MS
  • (mm)Punching Work Table Height
  • (mm)Flat Bar Shear (W x Thickness) - MS
  • (mm)Flat Bar Shear - Blade Length - MS
  • (mm)Flat Bar Shear Work Table Height
  • (mm)Angle Shear 90º - MS
  • (mm)Angle Shear 45º - MS
  • (mm)Angle Flange Trim
  • (mm)Angle Shear Work Table Height
  • (mm)Round Solid Bar Shear - MS
  • (mm)Square Solid Bar Shear - MS
  • (mm)Solid Bar Shear Work Table Height
  • (mm)Notching - Rectangle - MS
  • (mm)Notching Work Table Height
  • (mm)Multi Vee Die Block
  • (mm)Vee Opening Sizes
  • (T)Max. Tonne Capacity
  • (mm)Bending Work Table Height
  • (kW / hp)Motor Power
  • (V / amp)Voltage / Amperage
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • P170
  • Compare
  • Wishlist
  • P170
  • IW-45M
  • 45
  • Manual with Guides and
    Adjustable Stops
  • Ø22 x 15, Ø40 x 8
  • 175
  • 35
  • 31
  • 970
  • 350 x 8, 180 x 12
  • 360
  • 970
  • 80 x 80 x 8
  • 50 x 50 x 6
  • 75
  • 1120
  • Ø25
  • 25 x 25
  • 1190
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • 3.75 / 5
  • 415
  • 930
  • $10,150.00
  • $11,165.00
  • ADD TO CART
  • P170A
  • Compare
  • Wishlist
  • P170A
  • IW-45M
  • 45
  • Manual with Guides and
    Adjustable Stops
  • Ø22 x 15, Ø40 x 8
  • 175
  • 35
  • 31
  • 970
  • 350 x 8, 180 x 12
  • 360
  • 970
  • 80 x 80 x 8
  • 50 x 50 x 6
  • 75
  • 1120
  • Ø25
  • 25 x 25
  • 1190
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • 2.2 / 3
  • 240 / 20
  • 930
  • $10,950.00
  • $12,045.00
  • ADD TO CART
  • P171
  • Compare
  • Wishlist
  • P171
  • IW-45K
  • 45
  • Manual with Guides and
    Adjustable Stops
  • Ø22 x 15, Ø40 x 8
  • 165
  • 30
  • 37
  • 1050
  • 300 x 10
  • 310
  • 800
  • 75 x 75 x 6
  • ~
  • ~
  • 1000
  • Ø30
  • 25 x 25
  • ~
  • 50.8 x 90 x 7
  • 1050
  • ~
  • ~
  • ~
  • ~
  • 3.75 / 5
  • 415
  • 940
  • $12,590.00
  • $13,849.00
  • ADD TO CART
  • P172
  • Compare
  • Wishlist
  • P172
  • IW-60B
  • 60
  • Manual with Guides and
    Adjustable Stops
  • Ø28 x 15, Ø40 x 11
  • 220
  • 40
  • 34
  • 1050
  • 350 x 15, 210 x 20B
  • 360
  • 805
  • 100 x 100 x 8
  • ~
  • ~
  • 1070
  • Ø40
  • 38 x 38
  • ~
  • ~
  • ~
  • 300 x 60 x 60
  • 30 , 20 , 15, 10
  • 6, 4, 3, 2
  • 1050
  • 5.5 / 7.5
  • 415
  • 1360
  • $17,990.00
  • $19,789.00
  • ADD TO CART
  • P173
  • Compare
  • Wishlist
  • P173
  • IW-60H
  • 60
  • Manual with Guides and
    Adjustable Stops
  • Ø28 x 15, Ø40 x 11
  • 220
  • 55
  • 29
  • 1000
  • 350 x 15, 210 x 20
  • 360
  • 1006
  • 100 x 100 x 13
  • 80 x 80 x 8
  • 100
  • 1236
  • Ø40
  • 38 x 38
  • 1260
  • 50.8 x 90 x 8
  • 1006
  • ~
  • ~
  • ~
  • ~
  • 5.5 / 7.5
  • 415
  • 1600
  • $14,650.00
  • $16,115.00
  • ADD TO CART
  • P174
  • Compare
  • Wishlist
  • P174
  • IW-60S
  • 60
  • Manual with Guides and
    Adjustable Stops
  • Ø22 x 20, Ø50 x 9
  • 310
  • 100
  • 30
  • 1010
  • 350 x 15, 240 x 20
  • 360
  • 910
  • 130 x 130 x 13
  • 65 x 65 x 8
  • 100
  • 1115
  • Ø40
  • 38 x 38
  • 1220
  • 50.8 x 90 x 9
  • 910
  • ~
  • ~
  • ~
  • ~
  • 5.5 / 7.5
  • 415
  • 1950
  • $20,500.00
  • $22,550.00
  • ADD TO CART
  • P174A
  • Compare
  • Wishlist
  • P174A
  • IW-60SD
  • 60
  • Manual with Guides and
    Adjustable Stops
  • Ø22 x 20, Ø50 x 9
  • 510
  • 100
  • 30
  • 1010
  • 350 x 15, 240 x 20
  • 360
  • 910
  • 130 x 130 x 13
  • 65 x 65 x 8
  • 100
  • 1115
  • Ø40
  • 38 x 38
  • 1220
  • 50.8 x 90 x 9
  • 910
  • ~
  • ~
  • ~
  • ~
  • 5.5 / 7.5
  • 415
  • 2380
  • Please Call
  • Please Call
  • ADD TO CART
  • P175
  • Compare
  • Wishlist
  • P175
  • IW-80S
  • 80
  • Manual with Guides and
    Adjustable Stops
  • Ø26 x 22, Ø50 x 12
  • 310
  • 100
  • 29
  • 1050
  • 460 x 15, 300 x 20
  • 465
  • 926
  • 152 x 152 x 13
  • 80 x 80 x 10
  • 100
  • 1165
  • Ø45
  • 45 x 45
  • 1270
  • 50.8 x 90 x 12
  • 926
  • ~
  • ~
  • ~
  • ~
  • 7.5 / 10
  • 415
  • 2360
  • $24,450.00
  • $26,895.00
  • ADD TO CART
  • P175A
  • Compare
  • Wishlist
  • P175A
  • IW-80SD
  • 80
  • Manual with Guides and
    Adjustable Stops
  • Ø26 x 22, Ø50 x 12
  • 510
  • 100
  • 29
  • 1050
  • 460 x 15, 300 x 20
  • 465
  • 926
  • 152 x 152 x 13
  • 80 x 80 x 10
  • 100
  • 1165
  • Ø45
  • 45 x 45
  • 1270
  • 50.8 x 90 x 12
  • 926
  • ~
  • ~
  • ~
  • ~
  • 7.5 / 10
  • 415
  • 2880
  • Please Call
  • Please Call
  • ADD TO CART
  • P175C
  • Compare
  • Wishlist
  • P175C
  • IWNC-80SD
  • 80
  • NC Positioning
    1000 x 400mm (X & Y-Axis)
  • Ø26 x 22, Ø50 x 12
  • 510
  • 100
  • 29
  • ~
  • 460 x 15, 300 x 20
  • 465
  • ~
  • 152 x 152 x 13
  • 80 x 80 x 10
  • ~
  • ~
  • Ø45
  • 45 x 45
  • ~
  • 50.8 x 90 x 12
  • ~
  • ~
  • ~
  • ~
  • ~
  • 7.5 / 10
  • 415
  • 3080
  • Please Call
  • Please Call
  • ADD TO CART
  • Special OrderP176
  • Compare
  • Wishlist
  • P176
  • IW-100S
  • 100
  • Manual with Guides and
    Adjustable Stops
  • Ø28 x 26, Ø50 x 15
  • 310
  • 100
  • 28
  • 1044
  • 610 x 16, 400 x 20
  • 620
  • 954
  • 152 x 152 x 15
  • 80 x 80 x 10
  • 100
  • 1216
  • Ø45
  • 45 x 45
  • 1332
  • 63.5 x 90 x 12
  • 954
  • ~
  • ~
  • ~
  • ~
  • 7.5 / 10
  • 415
  • 3180
  • $28,500.00
  • $31,350.00
  • ADD TO CART
  • P176H
  • Compare
  • Wishlist
  • P176H
  • IW-100SH
  • 100
  • Manual with Guides and
    Adjustable Stops
  • Ø28 x 26, Ø50 x 15
  • 310
  • 100
  • 28
  • ~
  • 610 x 16, 400 x 20
  • 620
  • ~
  • 152 x 152 x 15
  • 80 x 80 x 10
  • ~
  • ~
  • Ø45
  • 45 x 45
  • ~
  • 63.5 x 90 x 12
  • ~
  • ~
  • ~
  • ~
  • ~
  • 7.5 / 10
  • 415
  • 3180
  • $29,750.00
  • $32,725.00
  • ADD TO CART
  • P176A
  • Compare
  • Wishlist
  • P176A
  • IW-100SD
  • 100
  • Manual with Guides and
    Adjustable Stops
  • Ø28 x 26, Ø50 x 15
  • 510
  • 100
  • 28
  • 1044
  • 610 x 16, 400 x 20
  • 620
  • 954
  • 152 x 152 x 15
  • 80 x 80 x 10
  • 100
  • 1216
  • Ø45
  • 45 x 45
  • 1332
  • 63.5 x 90 x 12
  • 954
  • ~
  • ~
  • ~
  • ~
  • 7.5 / 10
  • 415
  • 3700
  • Please Call
  • Please Call
  • ADD TO CART
  • P176C
  • Compare
  • Wishlist
  • P176C
  • IWNC-100SD
  • 100
  • NC Positioning
    1000 x 400mm (X & Y-Axis)
  • Ø28 x 26, Ø50 x 15
  • 510
  • 100
  • 28
  • ~
  • 610 x 16, 400 x 20
  • 620
  • ~
  • 152 x 152 x 15
  • 80 x 80 x 10
  • ~
  • ~
  • Ø45
  • 45 x 45
  • ~
  • 63.5 x 90 x 12
  • ~
  • ~
  • ~
  • ~
  • ~
  • 7.5 / 10
  • 415
  • 3900
  • Please Call
  • Please Call
  • ADD TO CART
  • Special OrderP177
  • Compare
  • Wishlist
  • P177
  • IW-125S
  • 125
  • Manual with Guides and
    Adjustable Stops
  • Ø33 x 27, Ø50 x 18
  • 310
  • 100
  • 28
  • 1069
  • 610 x 18, 400 x 25
  • 620
  • 920
  • 152 x 152 x 18
  • 80 x 80 x 10
  • 100
  • 1185
  • Ø50
  • 50 x 50
  • 1310
  • 63.5 x 90 x 13
  • 920
  • ~
  • ~
  • ~
  • ~
  • 11 / 15
  • 415
  • 3590
  • $34,500.00
  • $37,950.00
  • ADD TO CART
  • P177H
  • Compare
  • Wishlist
  • P177H
  • IW-125SH
  • 125
  • Manual with Guides and
    Adjustable Stops
  • Ø33 x 27, Ø50 x 18
  • 310
  • 100
  • 28
  • ~
  • 610 x 18, 400 x 25
  • 620
  • ~
  • 152 x 152 x 18
  • 80 x 80 x 10
  • ~
  • ~
  • Ø50
  • 50 x 50
  • ~
  • 63.5 x 90 x 13
  • ~
  • ~
  • ~
  • ~
  • ~
  • 11 / 15
  • 415
  • 3590
  • $36,500.00
  • $40,150.00
  • ADD TO CART
  • P177A
  • Compare
  • Wishlist
  • P177A
  • IW-125SD
  • 125
  • Manual with Guides and
    Adjustable Stops
  • Ø33 x 27, Ø50 x 18
  • 510
  • 100
  • 28
  • 1069
  • 610 x 18, 400 x 25
  • 620
  • 920
  • 152 x 152 x 18
  • 80 x 80 x 10
  • 100
  • 1185
  • Ø50
  • 50 x 50
  • 1310
  • 63.5 x 90 x 13
  • 920
  • ~
  • ~
  • ~
  • ~
  • 11 / 15
  • 415
  • 4220
  • Please Call
  • Please Call
  • ADD TO CART
  • P177C
  • Compare
  • Wishlist
  • P177C
  • IWNC-100SD
  • 125
  • NC Positioning
    1000 x 400mm (X & Y-Axis)
  • Ø33 x 27, Ø50 x 18
  • 510
  • 100
  • 28
  • ~
  • 610 x 18, 400 x 25
  • 620
  • ~
  • 152 x 152 x 18
  • 80 x 80 x 10
  • ~
  • ~
  • Ø50
  • 50 x 50
  • ~
  • 63.5 x 90 x 13
  • ~
  • ~
  • ~
  • ~
  • ~
  • 11 / 15
  • 415
  • 4420
  • Please Call
  • Please Call
  • ADD TO CART
  • P178H
  • Compare
  • Wishlist
  • P178H
  • IW-165SDH
  • 165
  • Manual with Guides and
    Adjustable Stops
  • Ø37 x 32, Ø50 x 24
  • 510
  • 100
  • 29
  • ~
  • 760 x 20, 400 x 30
  • 770
  • ~
  • 205 x 205 x 20
  • 80 x 80 x 10
  • ~
  • ~
  • Ø60
  • 60 x 60
  • ~
  • 63.5 x 90 x 16
  • ~
  • ~
  • ~
  • ~
  • ~
  • 15 / 20
  • 415
  • 5250
  • $51,950.00
  • $57,145.00
  • ADD TO CART
