IW-45K - Hydraulic Punch & Shear

45 Tonne
Includes Auto Touch & Cut Systems & 6 Sets of Round Punches & Dies
Overview
Manufactured in Taiwan

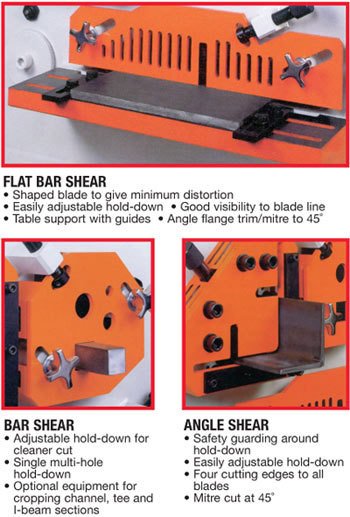

BAR SHEAR
Adjustable hold-down for cleaner cut
Single multi-hole hold-down
Optional equipment for cropping channel, tee and I-beam sections

ANGLE SHEAR
Safety guarding around hold-down
Easily adjustable hold-down
Four cutting edges to all blades
Mitre cut at 45º

FLAT BAR SHEAR
Easily adjustable hold-down
Good visibility to blade line
Table support with guides
Angle flange trim/mitre to 45º
Shaped blade to give minimum distortion
Features
  • Punching capacity up to 40mm standard
  • Power inching for easy job set up
  • Adjustable stroke for faster punching
  • Punch table and shear table both fitted with guides as standard
  • All work stations guarded
  • Most cutting blades are four-sided for long life
  • Adjustable length stop with rule
  • Five work stations, including notcher
  • Fully-filtered hydraulic system
  • Telemecanique electrical components

  • Pre-Commissioning:
  • 1. Punch & Shear is run & tested prior delivery
  • 2. Hydraulic oil is included with machine
Includes
  • 6 sets of round punches & dies:
  • Punches: 20, 22, 24, 26, 28 & 30mm
  • Dies: 20.7, 23.2, 25.2, 27.2, 29.2 & 31.2mm
  • Full safety guarding at all workstations
  • Tooling to all workstations
  • Punch, Shear & Notch support tables
  • 1 metre adjustable "Auto touch length stop" once the material has pushed the micro-switch stop the hydraulic system is activated to shear work piece
Optional Accessories
  • Punch & dies are available in Round, Square, Rectangle & Oblong shapes
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • (Tonne)Punching Pressure
  • Punching Table Type

  • (mm)Punching (Diameter x Thickness)
  • (mm)Punching Throat Depth
  • (mm)Punching Maximum Stroke Length
  • (cpm)Punching Cycles (15mm Stroke) - MS
  • (mm)Punching Work Table Height
  • (mm)Flat Bar Shear (W x Thickness) - MS
  • (mm)Flat Bar Shear - Blade Length - MS
  • (mm)Flat Bar Shear Work Table Height
  • (mm)Angle Shear 90º - MS
  • (mm)Angle Shear 45º - MS
  • (mm)Angle Flange Trim
  • (mm)Angle Shear Work Table Height
  • (mm)Round Solid Bar Shear - MS
  • (mm)Square Solid Bar Shear - MS
  • (mm)Solid Bar Shear Work Table Height
  • (mm)Notching - Rectangle - MS
  • (mm)Notching Work Table Height
  • (kW / hp)Motor Power
  • (V / amp)Voltage / Amperage
  • (cm)Shipping Dimensions (L x W x H)
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • P170
  • Compare
  • Wishlist
  • P170
  • IW-45M
  • 45
  • Manual with Guides and
    Adjustable Stops
  • Ø22 x 15, Ø40 x 8
  • 175
  • 35
  • 31
  • 970
  • 350 x 8, 180 x 12
  • 360
  • 970
  • 80 x 80 x 8
  • 50 x 50 x 6
  • 75
  • 1120
  • Ø25
  • 25 x 25
  • 1190
  • ~
  • ~
  • 3.75 / 5
  • 415
  • 126 x 70 x 145
  • 930
  • $7,850.00
  • $8,635.00
  • ADD TO CART
  • P170A
  • Compare
  • Wishlist
  • P170A
  • IW-45M
  • 45
  • Manual with Guides and
    Adjustable Stops
  • Ø22 x 15, Ø40 x 8
  • 175
  • 35
  • 31
  • 970
  • 350 x 8, 180 x 12
  • 360
  • 970
  • 80 x 80 x 8
  • 50 x 50 x 6
  • 75
  • 1120
  • Ø25
  • 25 x 25
  • 1190
  • ~
  • ~
  • 2.2 / 3
  • 240 / 15
  • 126 x 70 x 145
  • 930
  • $8,650.00
  • $9,515.00
  • ADD TO CART
  • P171
  • Compare
  • Wishlist
  • P171
  • IW-45K
  • 45
  • Manual with Guides and
    Adjustable Stops
  • Ø22 x 15, Ø40 x 8
  • 165
  • 30
  • 37
  • 1050
  • 300 x 10
  • 310
  • 800
  • 75 x 75 x 6
  • ~
  • ~
  • 1000
  • Ø30
  • 25 x 25
  • ~
  • 50.8 x 90 x 7
  • 1050
  • 3.75 / 5
  • 415
  • 130 x 77 x 155
  • 940
  • $9,950.00
  • $10,945.00
  • ADD TO CART
  • P173
  • Compare
  • Wishlist
  • P173
  • IW-60H
  • 60
  • Manual with Guides and
    Adjustable Stops
  • Ø28 x 15, Ø40 x 11
  • 220
  • 55
  • 29
  • 1000
  • 350 x 15, 210 x 20
  • 360
  • 1006
  • 100 x 100 x 13
  • 80 x 80 x 8
  • 100
  • 1236
  • Ø40
  • 38 x 38
  • 1260
  • 50.8 x 90 x 8
  • 1006
  • 5.5 / 7.5
  • 415
  • 146 x 77 x 166
  • 1600
  • $11,600.00
  • $12,760.00
  • ADD TO CART
  • P174
  • Compare
  • Wishlist
  • P174
  • IW-60S
  • 60
  • Manual with Guides and
    Adjustable Stops
  • Ø22 x 20, Ø50 x 9
  • 310
  • 100
  • 30
  • 1010
  • 350 x 15, 240 x 20
  • 360
  • 910
  • 130 x 130 x 13
  • 65 x 65 x 8
  • 100
  • 1115
  • Ø40
  • 38 x 38
  • 1220
  • 50.8 x 90 x 9
  • 910
  • 5.5 / 7.5
  • 415
  • 170 x 80 x 181
  • 1950
  • $15,750.00
  • $17,325.00
  • ADD TO CART
  • P174A
  • Compare
  • Wishlist
  • P174A
  • IW-60SD
  • 60
  • Manual with Guides and
    Adjustable Stops
  • Ø22 x 20, Ø50 x 9
  • 510
  • 100
  • 30
  • 1010
  • 350 x 15, 240 x 20
  • 360
  • 910
  • 130 x 130 x 13
  • 65 x 65 x 8
  • 100
  • 1115
  • Ø40
  • 38 x 38
  • 1220
  • 50.8 x 90 x 9
  • 910
  • 5.5 / 7.5
  • 415
  • 207 x 80 x 181
  • 2380
  • Please Call
  • Please Call
  • ADD TO CART
  • P175
  • Compare
  • Wishlist
  • P175
  • IW-80S
  • 80
  • Manual with Guides and
    Adjustable Stops
  • Ø26 x 22, Ø50 x 12
  • 310
  • 100
  • 29
  • 1050
  • 460 x 15, 300 x 20
  • 465
  • 926
  • 152 x 152 x 13
  • 80 x 80 x 10
  • 100
  • 1165
  • Ø45
  • 45 x 45
  • 1270
  • 50.8 x 90 x 12
  • 926
  • 7.5 / 10
  • 415
  • 183 x 82 x 186
  • 2360
  • $18,350.00
  • $20,185.00
  • ADD TO CART
  • P175A
  • Compare
  • Wishlist
  • P175A
  • IW-80SD
  • 80
  • Manual with Guides and
    Adjustable Stops
  • Ø26 x 22, Ø50 x 12
  • 510
  • 100
  • 29
  • 1050
  • 460 x 15, 300 x 20
  • 465
  • 926
  • 152 x 152 x 13
  • 80 x 80 x 10
  • 100
  • 1165
  • Ø45
  • 45 x 45
  • 1270
  • 50.8 x 90 x 12
  • 926
  • 7.5 / 10
  • 415
  • 222 x 82 x 183
  • 2880
  • Please Call
  • Please Call
  • ADD TO CART
  • P175C
  • Compare
  • Wishlist
  • P175C
  • IWNC-80SD
  • 80
  • NC Positioning
    1000 x 400mm (X & Y-Axis)
  • Ø26 x 22, Ø50 x 12
  • 510
  • 100
  • 29
  • ~
  • 460 x 15, 300 x 20
  • 465
  • ~
  • 152 x 152 x 13
  • 80 x 80 x 10
  • ~
  • ~
  • Ø45
  • 45 x 45
  • ~
  • 50.8 x 90 x 12
  • ~
  • 7.5 / 10
  • 415
  • 205 x 82 x 203
  • 3080
  • $56,500.00
  • $62,150.00
  • ADD TO CART
  • P176
  • Compare
  • Wishlist
  • P176
  • IW-100S
  • 100
  • Manual with Guides and
    Adjustable Stops
  • Ø28 x 26, Ø50 x 15
  • 310
  • 100
  • 28
  • 1044
  • 610 x 16, 400 x 20
  • 620
  • 954
  • 152 x 152 x 15
  • 80 x 80 x 10
  • 100
  • 1216
  • Ø45
  • 45 x 45
  • 1332
  • 63.5 x 90 x 12
  • 954
  • 7.5 / 10
  • 415
  • 211 x 86 x 191
  • 3180
  • $22,250.00
  • $24,475.00
  • ADD TO CART
  • P176H
  • Compare
  • Wishlist
  • P176H
  • IW-100SH
  • 100
  • Manual with Guides and
    Adjustable Stops
  • Ø28 x 26, Ø50 x 15
  • 310
  • 100
  • 28
  • ~
  • 610 x 16, 400 x 20
  • 620
  • ~
  • 152 x 152 x 15
  • 80 x 80 x 10
  • ~
  • ~
  • Ø45
  • 45 x 45
  • ~
  • 63.5 x 90 x 12
  • ~
  • 7.5 / 10
  • 415
  • 211 x 86 x 191
  • 3180
  • $23,500.00
  • $25,850.00
  • ADD TO CART
  • P176A
  • Compare
  • Wishlist
  • P176A
  • IW-100SD
  • 100
  • Manual with Guides and
    Adjustable Stops
  • Ø28 x 26, Ø50 x 15
  • 510
  • 100
  • 28
  • 1044
  • 610 x 16, 400 x 20
  • 620
  • 954
  • 152 x 152 x 15
  • 80 x 80 x 10
  • 100
  • 1216
  • Ø45
  • 45 x 45
  • 1332
  • 63.5 x 90 x 12
  • 954
  • 7.5 / 10
  • 415
  • 246 x 86 x 191
  • 3700
  • Please Call
  • Please Call
  • ADD TO CART
  • P176C
  • Compare
  • Wishlist
  • P176C
  • IWNC-100SD
  • 100
  • NC Positioning
    1000 x 400mm (X & Y-Axis)
  • Ø28 x 26, Ø50 x 15
  • 510
  • 100
  • 28
  • ~
  • 610 x 16, 400 x 20
  • 620
  • ~
  • 152 x 152 x 15
  • 80 x 80 x 10
  • ~
  • ~
  • Ø45
  • 45 x 45
  • ~
  • 63.5 x 90 x 12
  • ~
  • 7.5 / 10
  • 415
  • 205 x 82 x 203
  • 3900
  • Please Call
  • Please Call
  • ADD TO CART
  • P177
  • Compare
  • Wishlist
  • P177
  • IW-125S
  • 125
  • Manual with Guides and
    Adjustable Stops
  • Ø33 x 27, Ø50 x 18
  • 310
  • 100
  • 28
  • 1069
  • 610 x 18, 400 x 25
  • 620
  • 920
  • 152 x 152 x 18
  • 80 x 80 x 10
  • 100
  • 1185
  • Ø50
  • 50 x 50
  • 1310
  • 63.5 x 90 x 13
  • 920
  • 11 / 15
  • 415
  • 217 x 103 x 195
  • 3590
  • $28,250.00
  • $31,075.00
  • ADD TO CART
  • P177H
  • Compare
  • Wishlist
  • P177H
  • IW-125SH
  • 125
  • Manual with Guides and
    Adjustable Stops
  • Ø33 x 27, Ø50 x 18
  • 310
  • 100
  • 28
  • ~
  • 610 x 18, 400 x 25
  • 620
  • ~
  • 152 x 152 x 18
  • 80 x 80 x 10
  • ~
  • ~
  • Ø50
  • 50 x 50
  • ~
  • 63.5 x 90 x 13
  • ~
  • 11 / 15
  • 415
  • 217 x 103 x 195
  • 3590
  • $29,500.00
  • $32,450.00
  • ADD TO CART
  • P177A
  • Compare
  • Wishlist
  • P177A
  • IW-125SD
  • 125
  • Manual with Guides and
    Adjustable Stops
  • Ø33 x 27, Ø50 x 18
  • 510
  • 100
  • 28
  • 1069
  • 610 x 18, 400 x 25
  • 620
  • 920
  • 152 x 152 x 18
  • 80 x 80 x 10
  • 100
  • 1185
  • Ø50
  • 50 x 50
  • 1310
  • 63.5 x 90 x 13
  • 920
  • 11 / 15
  • 415
  • 210 x 192 x 89
  • 4220
  • $33,250.00
  • $36,575.00
  • ADD TO CART
  • P177C
  • Compare
  • Wishlist
  • P177C
  • IWNC-100SD
  • 125
  • NC Positioning
    1000 x 400mm (X & Y-Axis)
  • Ø33 x 27, Ø50 x 18
  • 510
  • 100
  • 28
  • ~
  • 610 x 18, 400 x 25
  • 620
  • ~
  • 152 x 152 x 18
  • 80 x 80 x 10
  • ~
  • ~
  • Ø50
  • 50 x 50
  • ~
  • 63.5 x 90 x 13
  • ~
  • 11 / 15
  • 415
  • 205 x 82 x 203
  • 4420
  • Please Call
  • Please Call
  • ADD TO CART
  • P178H
  • Compare
  • Wishlist
  • P178H
  • IW-165SDH
  • 165
  • Manual with Guides and
    Adjustable Stops
  • Ø7 x 32, Ø50 x 24
  • 510
  • 100
  • 29
  • ~
  • 760 x 20, 400 x 30
  • 770
  • ~
  • 205 x 205 x 20
  • 80 x 80 x 10
  • ~
  • ~
  • Ø60
  • 60 x 60
  • ~
  • 63.5 x 90 x 16
  • ~
  • 15 / 20
  • 415
  • 271 x 107 x 211
  • 5250
  • $38,250.00
  • $42,075.00
  • ADD TO CART
