Order Code: M3000
ex-gst
inc-gst
$ 29.00
$ 31.90
Compare
Wishlist
Description

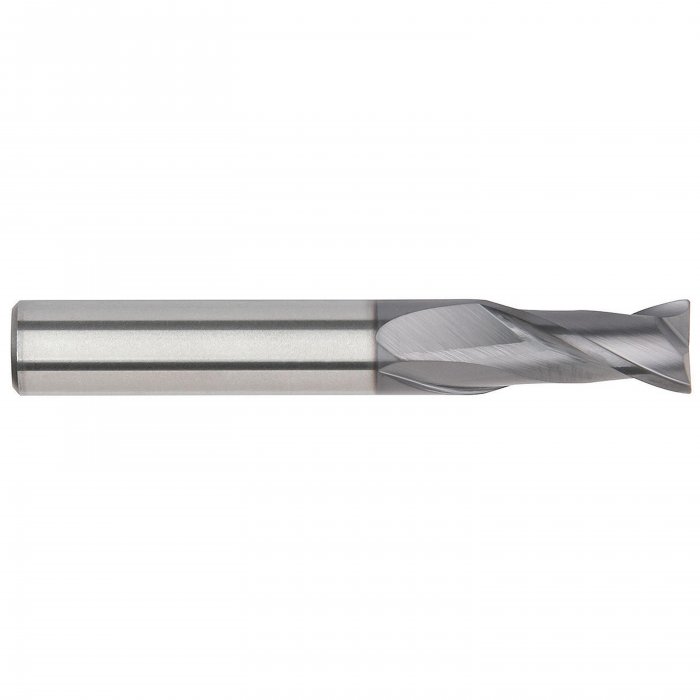

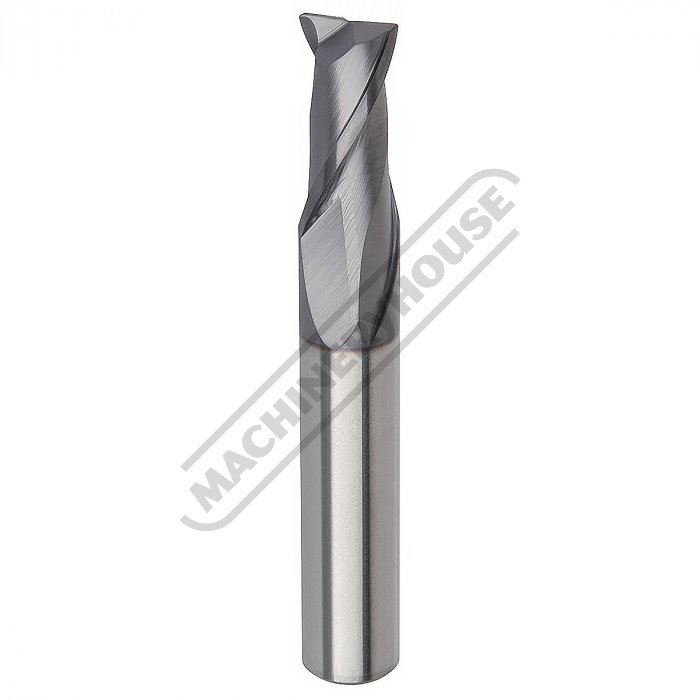

M3000 - 4mm Solid Carbide Slot Drill

GOmill™ General Purpose Plain Shank
2 Flute
Overview
The GOmill™ GP series offers plunging, slotting, and profiling with long tool life
on a wide range of workpiece materials. They are designed to provide high
Metal Removal Rates (MRR) and achieve good surface quality at an excellent
cost-benefi t ratio. A wide range of diameters and lengths are available with
chamfered edge and ball nose as stocked standard.

Uses and Applications
Plunge Milling
Ramping: Blank
Slotting: Square end
Side Milling/Shoulder Milling: Square End
Corner Style: Corner Chamfer
Helix Angle: 30°
Features
  • Solid carbide end mill with stepped parallel shank according to DIN 6527.
  • Solid carbide end mill with excellent cost-benefit ratio.
  • Eccentric relief increases cutting edge stability for long tool life and high surface quality.
  • Eccentric relief eases regrinding and reduces reconditioning cost.
  • Center cutting for plunging and ramping operations.
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • Type
  • Flute
  • Unit of measurement

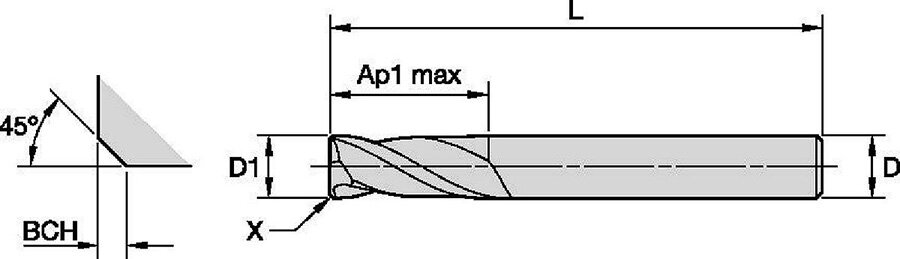

  • Effective Cutting Diameter (D1)
  • Shank (D)
  • 1st Maximum Cutting Depth (Ap1max)
  • Overall Length (L)
  • Corner Chamfer Width (BCH)
  • (ex-gst)Pricing
  • (inc-gst)
  • M3000
  • Compare
  • Wishlist
  • M3000
  • Slot Drill
  • 2
  • Metric
  • 4.0 mm
  • 6.0 mm
  • 8.0 mm
  • 57.0 mm
  • 0.10 mm
  • $29.00
  • $31.90
  • ADD TO CART
  • M3002
  • Compare
  • Wishlist
  • M3002
  • Slot Drill
  • 2
  • Metric
  • 5.0 mm
  • 6.0 mm
  • 10.0 mm
  • 57.0 mm
  • 0.10 mm
  • $29.00
  • $31.90
  • ADD TO CART
  • M3003
  • Compare
  • Wishlist
  • M3003
  • Slot Drill
  • 2
  • Metric
  • 6.0 mm
  • 6.0 mm
  • 10.0 mm
  • 57.0 mm
  • 0.10 mm
  • $29.00
  • $31.90
  • ADD TO CART
  • M3006
  • Compare
  • Wishlist
  • M3006
  • Slot Drill
  • 2
  • Metric
  • 8.0 mm
  • 8.0 mm
  • 16.0 mm
  • 63.0 mm
  • 0.20 mm
  • $35.00
  • $38.50
  • ADD TO CART
  • M3008
  • Compare
  • Wishlist
  • M3008
  • Slot Drill
  • 2
  • Metric
  • 10.0 mm
  • 10.0 mm
  • 19.0 mm
  • 72.0 mm
  • 0.20 mm
  • $42.00
  • $46.20
  • ADD TO CART
  • M3009
  • Compare
  • Wishlist
  • M3009
  • Slot Drill
  • 2
  • Metric
  • 12.0 mm
  • 12.0 mm
  • 22.0 mm
  • 83.0 mm
  • 0.30 mm
  • $62.00
  • $68.20
  • ADD TO CART
  • M3022
  • Compare
  • Wishlist
  • M3022
  • Ball Nose
  • 2
  • Metric
  • 4.0 mm
  • 4.0 mm
  • 8.0 mm
  • 50.0 mm
  • ~
  • $32.00
  • $35.20
  • ADD TO CART
  • M3023
  • Compare
  • Wishlist
  • M3023
  • Ball Nose
  • 2
  • Metric
  • 5.0 mm
  • 5.0 mm
  • 10.0 mm
  • 50.0 mm
  • ~
  • $32.00
  • $35.20
  • ADD TO CART
  • M3024
  • Compare
  • Wishlist
  • M3024
  • Ball Nose
  • 2
  • Metric
  • 6.0 mm
  • 6.0 mm
  • 10.0 mm
  • 57.0 mm
  • ~
  • $32.00
  • $35.20
  • ADD TO CART
  • M3025
  • Compare
  • Wishlist
  • M3025
  • Ball Nose
  • 2
  • Metric
  • 8.0 mm
  • 8.0 mm
  • 16.0 mm
  • 63.0 mm
  • ~
  • $40.00
  • $44.00
  • ADD TO CART
  • M3026
  • Compare
  • Wishlist
  • M3026
  • Ball Nose
  • 2
  • Metric
  • 10.0 mm
  • 10.0 mm
  • 19.0 mm
  • 72.0 mm
  • ~
  • $49.00
  • $53.90
  • ADD TO CART
  • M3027
  • Compare
  • Wishlist
  • M3027
  • Ball Nose
  • 2
  • Metric
  • 12.0 mm
  • 12.0 mm
  • 22.0 mm
  • 83.0 mm
  • ~
  • $75.00
  • $82.50
  • ADD TO CART
  • M3060
  • Compare
  • Wishlist
  • M3060
  • End Mill
  • 4
  • Metric
  • 4.0 mm
  • 6.0 mm
  • 11.0 mm
  • 57.0 mm
  • 0.10 mm
  • $29.00
  • $31.90
  • ADD TO CART
  • M3062
  • Compare
  • Wishlist
  • M3062
  • End Mill
  • 4
  • Metric
  • 5.0 mm
  • 6.0 mm
  • 13.0 mm
  • 57.0 mm
  • 0.10 mm
  • $29.00
  • $31.90
  • ADD TO CART
  • M3063
  • Compare
  • Wishlist
  • M3063
  • End Mill
  • 4
  • Metric
  • 6.0 mm
  • 6.0 mm
  • 10.0 mm
  • 54.0 mm
  • 0.10 mm
  • $29.00
  • $31.90
  • ADD TO CART
  • M3066
  • Compare
  • Wishlist
  • M3066
  • End Mill
  • 4
  • Metric
  • 8.0 mm
  • 8.0 mm
  • 19.0 mm
  • 63.0 mm
  • 0.20 mm
  • $35.00
  • $38.50
  • ADD TO CART
  • M3068
  • Compare
  • Wishlist
  • M3068
  • End Mill
  • 4
  • Metric
  • 10.0 mm
  • 10.0 mm
  • 22.0 mm
  • 72.0 mm
  • 0.20 mm
  • $42.00
  • $46.20
  • ADD TO CART
  • M3069
  • Compare
  • Wishlist
  • M3069
  • End Mill
  • 4
  • Metric
  • 12.0 mm
  • 12.0 mm
  • 26.0 mm
  • 83.0 mm
  • 0.30 mm
  • $62.00
  • $68.20
  • ADD TO CART
