GHD-22A - Industrial Geared Head Drilling Machine

Ø31.5mm Drilling Capacity
Overview
The GHD-22A Industrial Drilling Machine features a 3 Morse Taper spindle geared head rather than a pulley and belt drive system, making adjusting speed faster and simpler.
Using this machine is straightforward, thanks to its large cast table with 14mm T-slots, which rotates 360 º and uses a rack and pinion to adjust its height. Drilling speeds vary from 105 to 2900rpm and, there is a drill depth stop for accurate and repeatable drilling.
Features
  • Ideal for industrial or workshop use
  • Geared head drilling machine with 3 morse taper spindle
  • 8 drilling speeds from 105 - 2900 rpm

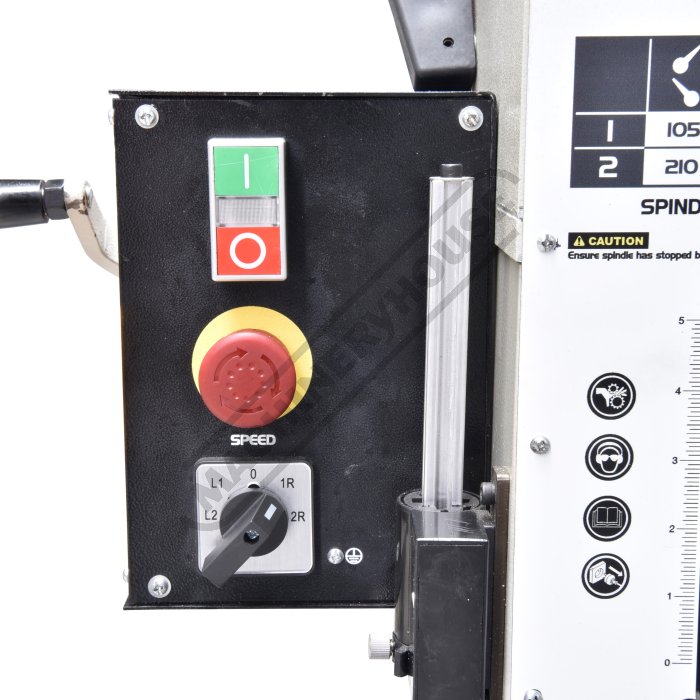

  • High/low with forward & reverse switch
  • Helical cut gears for quiet & smooth operation
  • Interlocked spindle safety guard
  • Rack and pinion wind-up drill head
  • Rack & pinion table height adjustment with locking lever
  • Thick walled column ensuring greater rigidity
  • Drill ejector lever
  • Safety emergency stop/reset switch
  • Table rotates 360º
  • Drilling depth stop setting with scale
  • T slotted work table
Includes
  • 16mm keyed drill chuck and arbor
  • Chuck key to suit
  • Drill drift tool to remove drill chuck or taper shank drills
  • Interlocked spindle safety guard
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • (mm)Drilling Capacity
  • (Metric)Thread Tapping Capacity
  • (MT)Spindle Taper
  • (mm)Spindle Travel
  • (mm)Throat Depth
  • (mm)Quill Diameter
  • (mm)Column Diameter
  • (mm)Spindle To Table
  • (mm)Spindle To Base
  • (Type)Table
  • (mm)Table Size
  • (mm)T-Slot Size
  • (mm/rev)Automatic Quill Feed
  • (Includes)Work Light
  • (Includes)Coolant System
  • (No.)Spindle Speed Steps
  • (rpm)Spindle Speed Range
  • (kW / hp)Motor Power
  • (V / amp)Voltage / Amperage
  • (mm)Full Height
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • D170
  • Compare
  • Wishlist
  • D170
  • GHD-22
  • Ø31.5
  • ~
  • 3
  • 120
  • 255
  • 55
  • 100
  • 830
  • 1240
  • Rectangle
  • 350 x 500
  • 14
  • ~
  • ~
  • ~
  • 8
  • 105 ~ 2900
  • 0.9 / 1.2
  • 415
  • 1800
  • 220
  • $2,850.00
  • $3,135.00
  • ADD TO CART
  • D171
  • Compare
  • Wishlist
  • D171
  • GHD-22A
  • Ø31.5
  • ~
  • 3
  • 125
  • 255
  • 55
  • 100
  • 830
  • 1240
  • Rectangle
  • 350 x 500
  • 14
  • ~
  • ~
  • ~
  • 8
  • 105 ~ 2900
  • 0.9 / 1.2
  • 415
  • 1800
  • 220
  • $2,690.00
  • $2,959.00
  • ADD TO CART
  • D176
  • Compare
  • Wishlist
  • D176
  • GHD-30V
  • Ø31.5
  • M20
  • 3
  • 125
  • 285
  • 62
  • 115
  • 790
  • 1270
  • Rectangle
  • 426 x 400
  • 14
  • 0.06, 0.09, 0.12
  • Yes
  • Yes
  • Variable (3 Steps)
  • 50 ~ 2850
  • 2.2 / 3
  • 240 / 15
  • 1940
  • 344
  • $4,190.00
  • $4,609.00
  • ADD TO CART
  • D177
  • Compare
  • Wishlist
  • D177
  • GHD-32
  • Ø40
  • M16
  • 4
  • 120
  • 273
  • 75
  • 115
  • 720
  • 1175
  • Rectangle
  • 490 x 460
  • 14
  • 0.1, 0.18, 0.26
  • ~
  • Yes
  • 12
  • 95 ~ 3300
  • 1.5 / 2
  • 415
  • 1890
  • 320
  • $3,390.00
  • $3,729.00
  • ADD TO CART
  • D1325
  • Compare
  • Wishlist
  • D1325
  • GHD-38B
  • Ø40
  • M24
  • 4
  • 180
  • 350
  • 75
  • 150
  • 770
  • 1320
  • Square
  • 560 x 560
  • 16
  • 0.1, 0.2
  • Yes
  • Yes
  • 18
  • 50 ~ 1450
  • 1.5 / 2
  • 415
  • 2220
  • 615
  • $4,790.00
  • $5,269.00
  • ADD TO CART
  • D174
  • Compare
  • Wishlist
  • D174
  • GHD-45G
  • Ø45
  • M35
  • 4
  • 180
  • 350
  • 70
  • 150
  • 70 ~ 730
  • 1210
  • Square
  • 530 x 530
  • 18
  • 0.1, 0.15, 0.2
  • Yes
  • Yes
  • 8
  • 90 ~ 1520
  • 2.2 / 3
  • 415
  • 2445
  • 670
  • $5,190.00
  • $5,709.00
  • ADD TO CART
  • D175
  • Compare
  • Wishlist
  • D175
  • GHD-55G
  • Ø50
  • M42
  • 4
  • 180
  • 405
  • 88
  • 200
  • 130 ~ 750
  • 1300
  • Square
  • 600 x 600
  • 18
  • 0.1, 0.15, 0.2
  • Yes
  • Yes
  • 16
  • 45 ~ 2000
  • 2.8 / 3.7
  • 415
  • 2500
  • 930
  • $8,990.00
  • $9,889.00
  • ADD TO CART
