T4-MT4 - Reversible Tapping Chuck - Adjustable Clutch
Include 3MT & 4MT Arbours
M8 - M20
T0051 of 3
Full Kit2 of 3
Blow Mold Case3 of 3
Order Code: T005
ex-gst
inc-gst
$
520.00
$
572.00
1 Year Warranty
Description
T4-MT4 - Reversible Tapping Chuck - Adjustable Clutch
Include 3MT & 4MT Arbours
M8 - M20
Features
- Pre-select torque drive to prevent tap breakage and allow for blind hole tapping
- Tension and compression feature compensates between rate of feed applied and thread pitch
- Suitable for right and left hand, vertical and horizontal tapping
- Fast tap reversal. Re-entry cushioning eliminates cross threading
- Clutch Torque Setting:
- 1 - 12 Nm
- 2 - 20 Nm
- 3 - 60 Nm
- 4 - 110 Nm
- Please Note: M20 tap requires a 14mm Shank
Includes
- MT3 & MT4 arbors - threaded end
- 2 x Collet chuck spanners
- 2 x Rubber flex collets
- 2 x allen keys
Compare Product Range
Specifications
| ORDER CODE | T005 |
|---|---|
| MODEL | T4-MT4 |
| Arbor Mount | Threaded |
| (MT)Taper | 3 & 4 |
| (mm)Tapping Range | 8 - 20 |
| (mm)Tapping Shank Size | 6.3 - 14 |

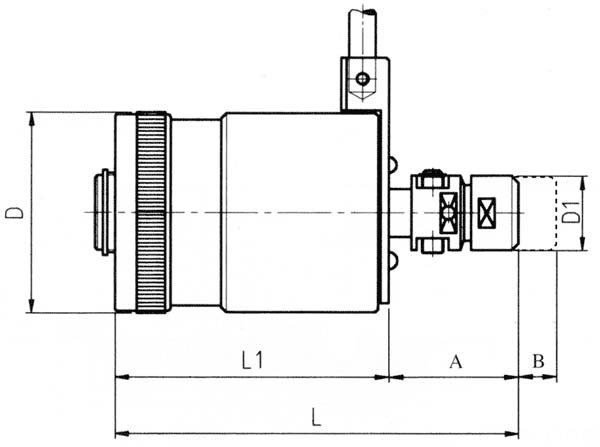

| (mm)D | 90 |
| (mm)D1 | 38 |
| (mm)L | 195 |
| (mm)L1 | 134 |
| (mm)A | 62 |
| (mm)B | 20 |
| (kg)Nett Weight | 6.8 |
