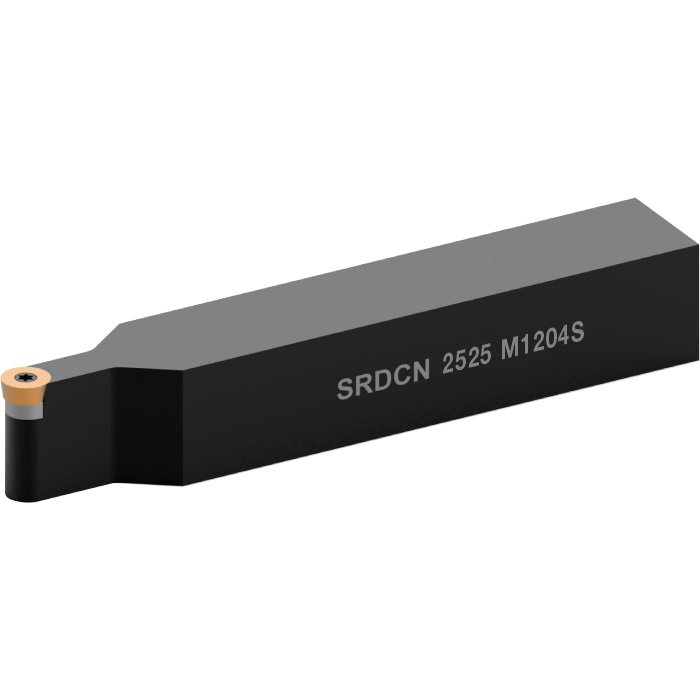

Round / Positive - Turning Tool Holder - SRDCN-2525 M1204S

Quality Tool Holder ISO Standard to suit Tungsten Carbide Indexable Inserts 12mm Round/Button.

NOTE: Inserts not included with tool holders

Use insert RCMT1204MO KCP25C (L0527)
Use insert RCGT1204MO HP K313 (L0528)
SHIM SMR-1203 (aka the SEAT) (L5230)
SHIM SCREW SN535 (L5225)
INSERT SCREW CS35115 (L5226)
Screw Dimensions M3.5 x 0.6 pitch x 11.5mm long
SHIM SCREW WRENCH LW035 (L5227)
SCREW TORX KEY FT-15 (L538)

Please note the ‘SHIM SCREW’ is installed with ‘SHIM SCREW WRENCH’ SN535 and once installed the INSERT is then held into place via the INSERT SCREW CS35115 which then screws into the SHIM SCREW (if shim breakage occurs both screws should be replaced)
