QLD Schools / TAFE - WL-46A - Electronic Variable Speed Wood Lathe

Ø462mm Swing x 1194mm Between Centres
Electronic Variable Speed 100 ~ 3200rpm & Heavy Duty Cast Iron Legs
Overview
The WL-46A is built to a high standard and capable of turning a 462mm diameter bowl over the bed and the bed is long enough to turn a 1194mm table leg or spindle. All the major castings are made up of thick section cast iron which gives a very solid feel to the lathe and guarantees a vibration-free experience in most applications.

Power is provided by a 1.5kW / 2hp motor driving the spindle through a pair of pulleys and controlled by a variable speed control situated at front of the head. The low speed range provides plenty of torque for the big turning jobs whilst the high speed range allows the necessary adequate speeds for smaller components that's required for finishing.

The front panel of the head has a digital rpm speed indicator, a safety on/off switch, a forward & reversing switch and an access panel for changing the belt pulley positions. Includes four prong drive centre, revolving tail centre, tool rest & faceplate.
Features
  • Cast iron construction, bed, head and tailstock
  • Electronic variable speed (100-3200rpm) with a digital readout
  • Headstock is free to slide along the length of the bed
  • Forward & reversing spindle direction switch
  • 1.5kW / 2hp 240V motor
  • Dust proof magnetic switch
  • Heavy duty cast iron legs

  • Fitted with Additional Safety Electrics:
  • Raised red (DOL) emergency stop switch
  • Additional raised red emergency stop switch fitted to tailstock end
  • Test and tag certificate on 240V lead
Includes
  • Stand
  • Drive Centre
  • Live Centre
  • 150mm Faceplate
  • 355mm Toolrest
  • Tailstock
  • Face Plate (W290C)
  • Scroll Chuck 100mm (W370)
  • Scroll Chuck Accessory Kit (W375)
  • M30x3.5mm Scroll Chuck Insert (W366)

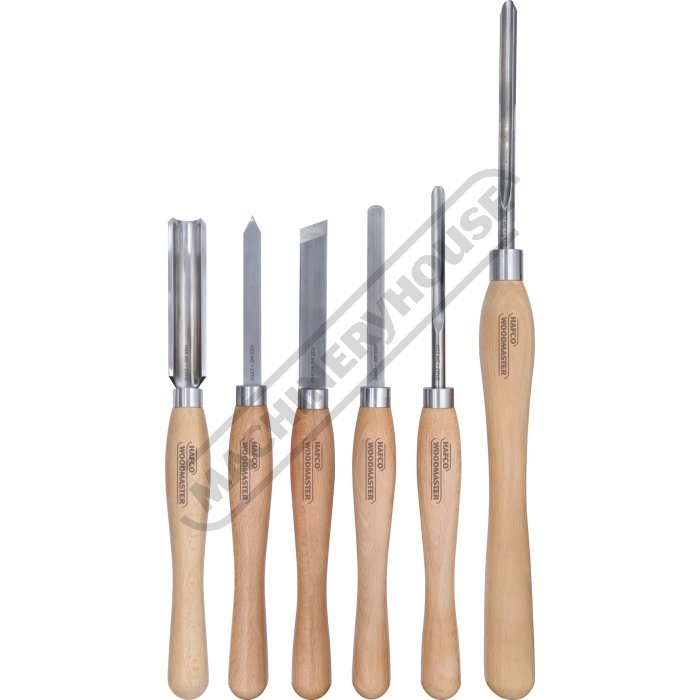

  • HSS Wood Turning Tools (W3036)
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • NSW Contract No.
  • QLD Contract No.
  • MODEL
  • (mm)Swing Over Bed
  • (mm)Between Centres
  • (MT)Spindle Taper
  • (mm)Spindle Thread
  • (rpm)Spindle Speeds
  • (kW / hp)Motor Power
  • (V / amp)Voltage / Amperage
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • K8840
  • Compare
  • Wishlist
  • K8840
  • ~
  • QLD Item No. 4.2
  • Schools / TAFE WL-520A
  • 520
  • 910
  • 2
  • M30 x 3.5
  • Variable 50 - 3890
  • 1.5 / 2
  • 240 / 10
  • 392
  • Please Call
  • Please Call
  • ADD TO CART
  • K8120
  • Compare
  • Wishlist
  • K8120
  • ~
  • ~
  • Schools / TAFE WL-520A
  • 520
  • 910
  • 2
  • M30 x 3.5
  • Variable 50 - 3890
  • 1.5 / 2
  • 240 / 10
  • 330
  • Please Call
  • Please Call
  • ADD TO CART
  • K8841
  • Compare
  • Wishlist
  • K8841
  • ~
  • WL-46A
  • Schools / TAFE WL-46A
  • 462
  • 1194
  • 2
  • M30 x 3.5
  • Variable 100 - 3200
  • 1.5 / 2
  • 240 / 10
  • 228
  • Please Call
  • Please Call
  • ADD TO CART
