MYNX 5400 6500 7500 & 9500 - CNC Vertical Machining Centre Series Details
I8012
1 of 9

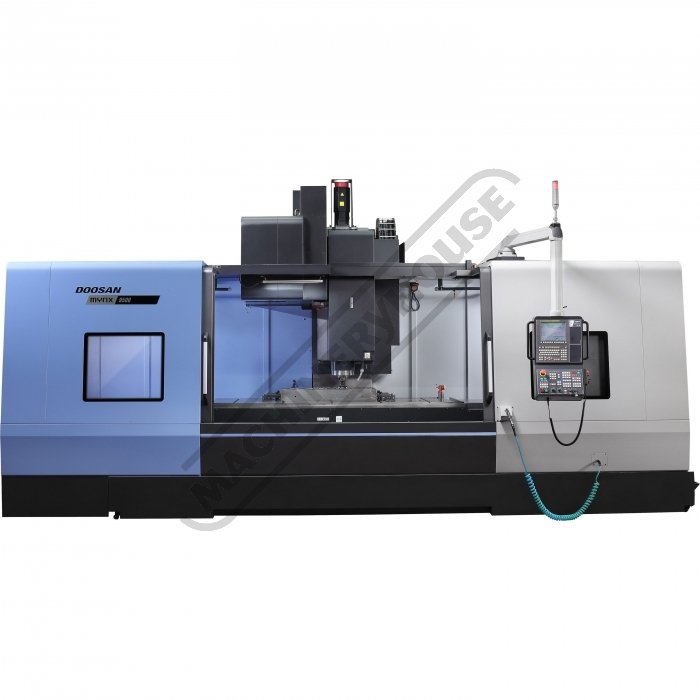

Mynx 9500
3 of 9
Mynx 9500 Front Open
4 of 9
Mynx 5400 Side Open
5 of 9
Mynx 7500 Side Open
6 of 9
Mynx 9500 Frame
7 of 9
Mynx 9500 Screw Conveyor
8 of 9
Mynx 6500 Milling
9 of 9
Order Code: I8012
Please Call
1 Year Warranty
Made in South Korea
Description
MYNX 5400 6500 7500 & 9500 - CNC Vertical Machining Centre Series Details
Features
- Portable MPG
- Internal Chip Conveyor
- Coolant System
- Fully Enclosed Guarding with Door Interlocks
- Work Light
- Operator Training
- In House Service and Support Australia Wide
Optional Accessories
- Rotary 4th Axes
- External Chip Conveyors
- Oil Skimmer
- High Pressure Through Spindle Coolant
- Spindle Oil Cooler
- Gearbox Driven Spindle
- Spindle Air Blast
- Automatic Tool Setters
- Workpiece Spindle Probing
- 40 Tool ATC
- Auto Power Off
- Manual & Hydraulic Lines for Clamping
- Robot and Automation Interfaces
- Special Workholding
- Doosan Machine Tools changes its name to DN Solutions
- Read more at: dn-solutions announcement
Compare Product Range
Specifications
| ORDER CODE | I8012 |
|---|---|
| MODEL | MYNX 5400/6500/ 7500/9500 |
| (mm)X Travel | 1020-2500 |
| (mm)Y Travel | 540-950 |
| (mm)Z Travel | 530-850 |
| (mm)Table Size | 1200x540 - 2500x950 |
| (kg)Table Capacity | 800-3500 |
| (mm)Spindle - Table | 150-200 plus Z Travel |
| Spindle Taper | BT40 - BT50 Big Plus |
| (rpm)Spindle Speed | 6,000-12,000 |
| (kW)Spindle Motor | 15-22 |
| (m/min)Rapid Traverse | 24-30 |
| Guideways | Box Guide Way |
| (No.)Tool Arm Type | 24-30 |
| Control | Doosan Fanuc I Series |
| Programming | EZI Guide I Conversational |
No products to compare. This is the only product in this category. Looking for it's specifications?
