HPF-50 Industrial Hydraulic Press - 50 Tonne - QLD Schools / TAFE
QLD Contract
Includes Adjustable Sliding Cylinder Ram, Foot & Hand Operated Pump, Table Winch, Pressure Gauge & Bending Vee Blocks
K8762
1 of 27
Robot Welded Frame
4 of 27
Hydraulic hand pump
5 of 27

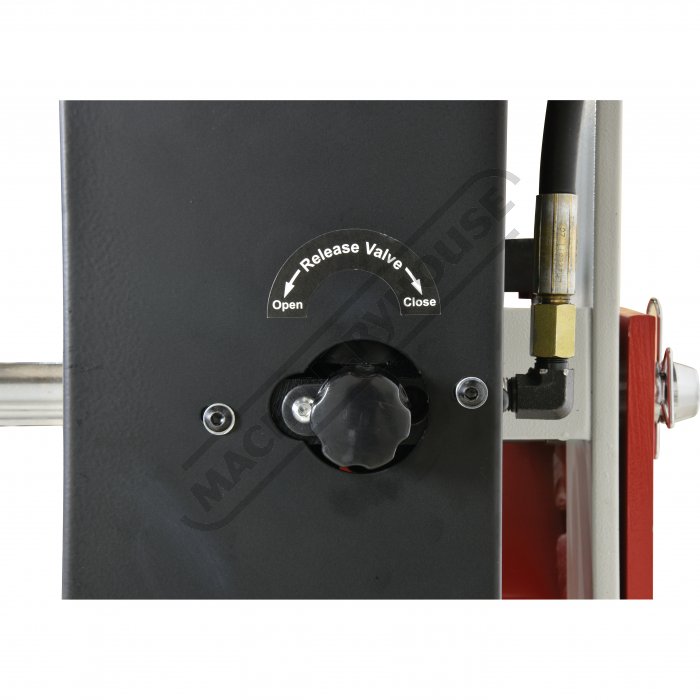

Realease valve for hydraulic pump
6 of 27
Enclosed hydraulic
7 of 27

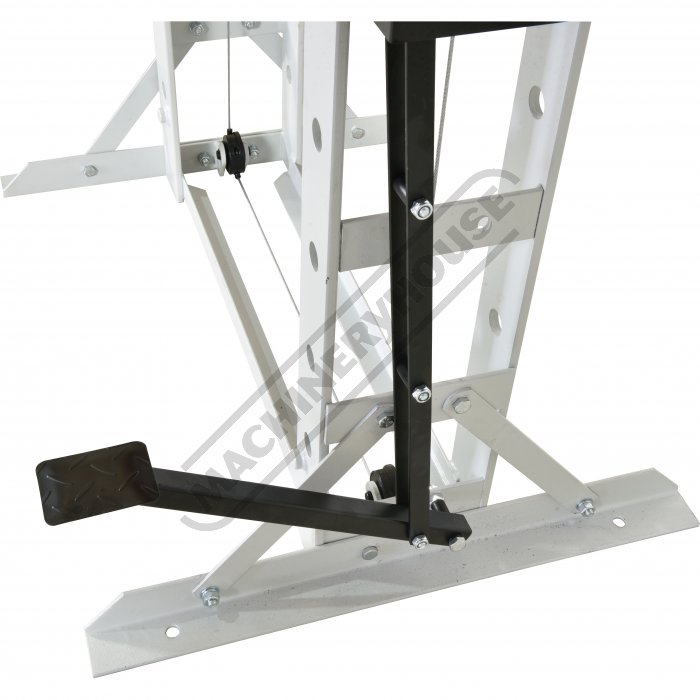

Foot pedal for hydraulic pump
8 of 27
Table Winch Height Adjustment
9 of 27
Winch Cable Support
10 of 27
Metric imperial pressure gauge
11 of 27
Table Pins With Safety Clips
12 of 27
Dual Purpose Pressing Blocks
13 of 27
Horizontal Sliding Ram
14 of 27
Ram Top With Bearing Slide
15 of 27
Sliding Ram With Handle
16 of 27
Includes Removable Protective Ram Cap
17 of 27
Front view
18 of 27
Left view
19 of 27
Rear view
20 of 27
Right side view
21 of 27
Left side view
22 of 27
Dimensions
23 of 27
P030 PDS 2B Bush Driver Set
24 of 27
P031 PDS 3BS Bearing Race Seal Driver Set
25 of 27
P455 PBA 60 Pressbrake Attachment Suits Hydraulic Presses
26 of 27
P1401 PPK 20 Steel Press Pin Driver Set 11 piece
27 of 27
Discontinued
Order Code: K8762
1 Year Warranty
Description
HPF-50 Industrial Hydraulic Press - 50 Tonne - QLD Schools / TAFE
QLD Contract
Includes Adjustable Sliding Cylinder Ram, Foot & Hand Operated Pump, Table Winch, Pressure Gauge & Bending Vee Blocks
Features
- Ideal for removing and installing - Bushing, Ball-joints, Bearings, Gears, Pulleys, etc
- Foot or hand operated pump
- Heavy duty steel construction with robotic fully welded frame
- Two speed hydraulic system
- Hydraulics assembled in a temperature controlled clean room for maximum quality
- Hydraulics individually factory tested prior to shipping.
- Adjustable sliding head up to 240mm travel between the vertical post
- Table height adjusting winch included
- Metric / imperial pressure gauge included
- OPTIONAL SAFETY FEATURES
- PGM-50 - Hydraulic Press Guard (P1405)
Includes
- Complete with vee blocks
Compare Product Range
Specifications
| ORDER CODE | P152 |
|---|---|
| MODEL | HPF-50 |
| (Tonne)Capacity | 50 |
| (Yes / No)Sliding Ram | Yes |
| (mm)Width Between Front Posts | 730 |
| (mm)Width Between Side Posts | 205 |
| (mm)Ram To Table (Max.) | 1050 |
| (mm)Cylinder Stroke | 200 |
| (mm)Ram Diameter | Ø75 |
| (mm)Piston Diameter | Ø100 |
| (mm)Floor Space (W x D x H) | 1360 x 800 x 1900 |
| (kg)Nett Weight | 340 |
- Compare:
- Wishlist:
- ORDER CODE
- NSW DOE Item No.
- QLD DOE Item No.
- MODEL
- (Tonne)Capacity
- (Yes / No)Sliding Ram
- (mm)Width Between Front Posts
- (mm)Width Between Side Posts
- (mm)Ram To Table (Max.)
- (mm)Cylinder Stroke
- (mm)Ram Diameter
- (mm)Piston Diameter
- (mm)Floor Space (W x D x H)
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
-
-
Compare
-
Wishlist
- K8410
- 27
- ~
- School / TAFE HDP-35
- 35
- Yes
- 790
- 208
- 730
- 130
- Ø80
- Ø125
- 950 x 700 x 1800
- 358
- Please Call
- Please Call
- ADD TO CART
-
-
Compare
-
Wishlist
- K8411
- 27
- ~
- School / TAFE HPM-30
- 30
- Yes
- 535
- 138
- 1035
- 155
- Ø70
- Ø80
- 950 x 700 x 1800
- 200
- Please Call
- Please Call
- ADD TO CART
-
-
Compare
-
Wishlist
- K8412
- 27
- ~
- School / TAFE HPF-50
- 50
- Yes
- 730
- 205
- 1050
- 200
- Ø75
- Ø100
- 1360 x 800 x 1900
- 340
- Please Call
- Please Call
- ADD TO CART
-
-
Compare
-
Wishlist
- K8760
- ~
- 15
- School / TAFE HDP-35
- 35
- Yes
- 790
- 208
- 730
- 130
- Ø80
- Ø125
- 1170 x 850 x 1870
- 358
- Please Call
- Please Call
- ADD TO CART
- Discontinued
-
Compare
-
Wishlist
- P152
- ~
- ~
- HPF-50
- 50
- Yes
- 730
- 205
- 1050
- 200
- Ø75
- Ø100
- 1360 x 800 x 1900
- 340
- N/A
- N/A
- ENQUIRE
