RPD20 Medium Duty Radial Arm Drill - Hare & Forbes Machineryhouse

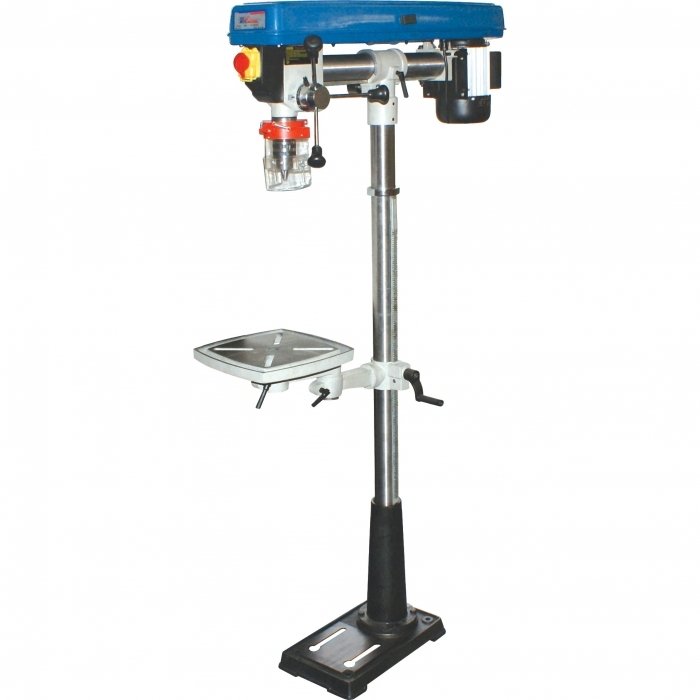

Ø13mm Drill Capacity with 2MT Spindle Taper

D154 1 of 15

Side View 2 of 15

Radial Arm Horizontal Movement and Angle Setting 3 of 15

Magnetic Switch 4 of 15

Chuck Key Mounted to side of Head 5 of 15

Slotted Base 6 of 15

Slotted Square Table 7 of 15

Table Height Adjustment Handle 8 of 15

Table Position Locks 9 of 15

Quill Lever 10 of 15

Quill Depth Setting 11 of 15

Adjustable Safety Chuck Guard with Flip Up Screen 12 of 15

Speed Chart 13 of 15

Drill Size to Material Chart 14 of 15

Left Side View 15 of 15

Description

Table Rotates 360º

Ø13mm Drill Capacity with 2MT Spindle Taper

Specifications

ORDER CODE	D154
MODEL	RPD-20
Type - Bench / Pedestal	Pedestal
Duty Type	Medium-Duty
(mm)Drilling Diameter Capacity	Ø13
(MT)Spindle Taper	2
(mm)Spindle Travel	80
(mm)Throat Depth	440
(mm)Quill Diameter	40
(mm)Collar Diameter	55
(mm)Column Diameter	60
(mm)Spindle To Table	700
(mm)Spindle To Base	1235
Table Shape	Square
(mm)Table Size	290
Drive Belt Type	A Section
(No.)Spindle Speed Steps	5
(rpm)Spindle Speed Range	580 - 2550
(kW / hp)Motor Power	0.562 / 0.75
(V / amp)Voltage / Amperage	240 / 10
(mm)Overall Height	1660
(kg)Nett Weight	68
