M14 x 1.25mm HSS Spiral Flute Tap
Metric Extra Fine Pitch
T8421
1 of 1
Order Code: T8421
Description
M14 x 1.25mm HSS Spiral Flute Tap
Metric Extra Fine Pitch
Overview

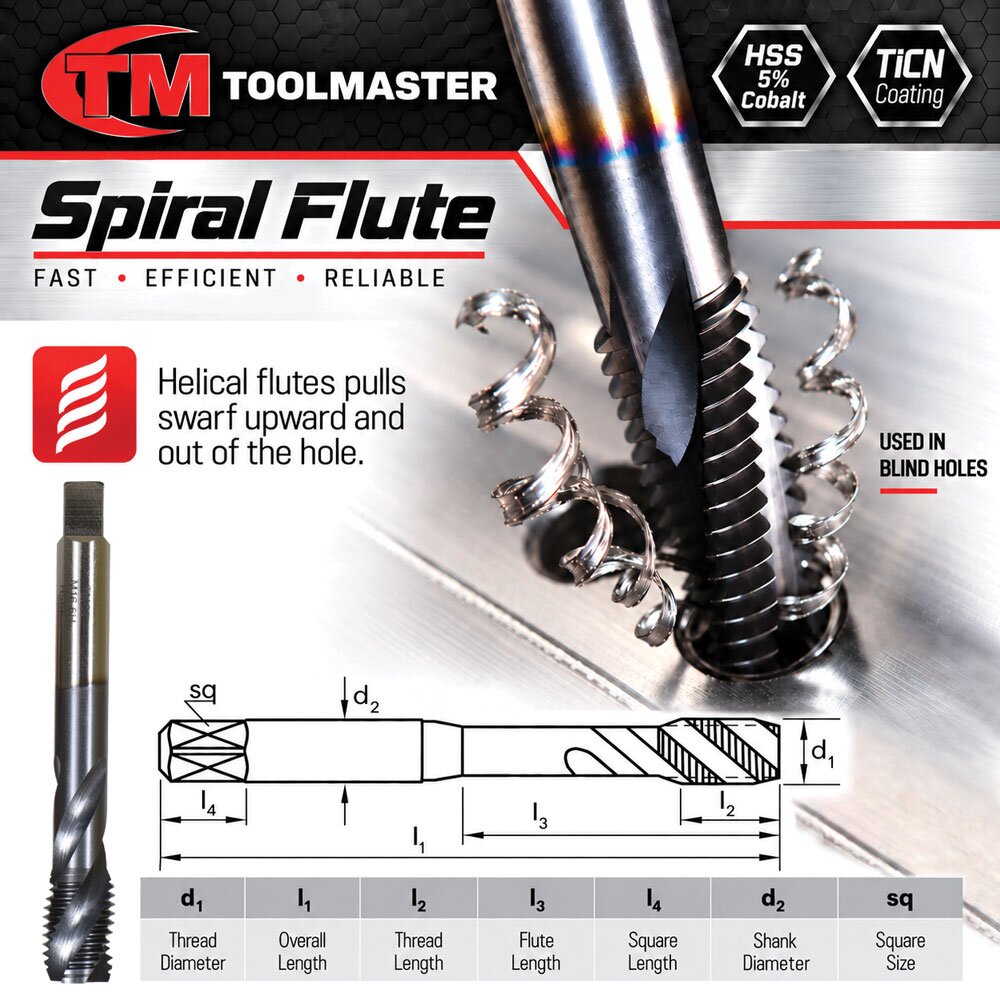

Spiral flute taps feature a spiral fluted design rather than conventional straight flutes. The spiral flutes assist in ejecting chips upward & out of the tapped hole & are commonly used in blind hole applications when threads are required close to the bottom of the hole.
Features
- M35 High Speed Steel with 5% cobalt
- TiCN Coating for increased wear resistance
- Precision ground thread
- DIN 371 Standard
Compare Product Range
Specifications
| ORDER CODE | T8421 |
|---|---|
| Size | M14 |
| Pitch | 1.25mm |
| Pitch Type | Metric Extra Fine |
| Flute Type | Spiral |
| Thread Form | Metric |
| Max Cut Depth | 2.5 x D |
| Nut Tolerance | ISO 2 / 6H |
| Standard | DIN 374 |
