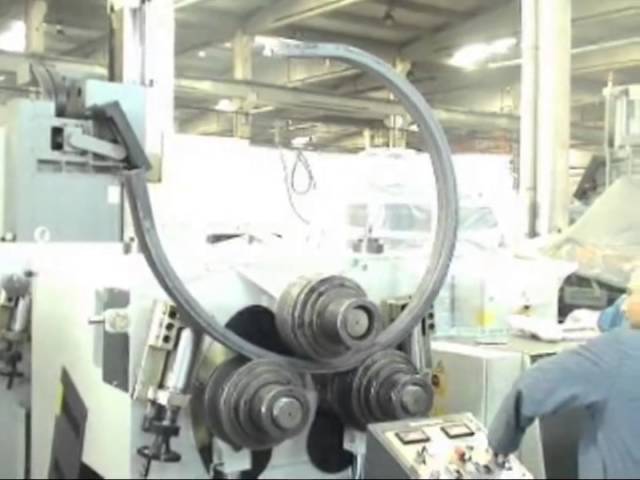

HPK-100NC - Hydraulic Section & Pipe Rolling Machine
100 x 100 x 12mm Angle Capacity
Includes 3-Axis 7.7" Easy View Control, Hydraulic Prebend Rolls & Side Guide Rollers
S758C
1 of 32
Front View
8 of 32
Left View
9 of 32
Top View - Right Side
10 of 32
Roving Foot Pedal Controller
11 of 32
Control Panel
12 of 32
NC Control Main Screen
13 of 32
NC Control Manual Mode Screen
14 of 32
NC Control Auto Screen
15 of 32
NC Control Semi Auto Screen
16 of 32
NC Control User Screen
17 of 32
NC Control Program Screen
18 of 32
NC Control Time & Date Screen
19 of 32
NC Control SAHINLER Screen
20 of 32
NC Control HPK Information Screen
21 of 32
2-Axis Hydraulic Right Lateral Angle Guide Rollers
22 of 32
2-Axis Hydraulic Left Lateral Angle Guide Rollers
23 of 32
Hydraulic Lateral Angle Guide Roller - Left Side
24 of 32
2-Axis Hydraulic Lateral Angle Guide Roller - Right Side
25 of 32
Material Length Reference Proximity Switch
26 of 32
Pneumatic Positioning Material Length Encoder
27 of 32
Air Pressure Regulator & Oil Lubricator
28 of 32
Hydraulic Pressure Adjustment Dial
29 of 32
Pressure Gauges
30 of 32
Oil Sight Glass
31 of 32
Control Panel Lead Connection
32 of 32
Order Code: S758C
ex-gst
inc-gst
$
54,500.00
$
59,950.00
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Made in Turkey
Description
HPK-100NC - Hydraulic Section & Pipe Rolling Machine
100 x 100 x 12mm Angle Capacity
Includes 3-Axis 7.7" Easy View Control, Hydraulic Prebend Rolls & Side Guide Rollers
Overview
NC panel provides you to control an axis on manual, automatic or semi automatic mode, X & Y Axis can be moved by control buttons, X-Axis = rotation of left & right drive rollers and Y-Axis = up & down position of the top roller. NC control unit has store up to 500 programs with 200 lines on each program. The storage capacity can be increased to 10000 programs with the use of a USB flash memory stick.
Features
- NC 3-Axis easy view 7.7" control panel
- Rolls are hardened & made from high quality steel
- 3 axis lateral angle guide rollers (2 axis hydraulic operated via pendant)
- Drive shafts are hardened and ground with double taper roller bearing support
- Machine can be set up in horizontal or vertical working position
- Roving foot pedal control with emergency stop
- Hydraulic lateral angle guide rolls
- Three rollers are powered
- European quality
Includes
- Includes standard rolls
- Independently adjustable hydraulic bottom rollers for pre-bend
- 3-Axis hydraulic lateral angle guide rollers
Compare Product Range
Specifications
| ORDER CODE | S758C |
|---|---|
| MODEL | HPK-100NC |
| (Qty)Powered Driven Rolls | 3 |
| (Type)Bending Rolls | Hydraulic - Left & Right |
| (mm)Top Roll Shaft Diameter (Ø) | 100 |
| (mm)Lower Roll Shaft Diameter (Ø) | 100 |
| (mm)Top Roll Diameter (Ø) | 315 |
| (mm)Lower Roll Diameter (Ø) | 315 |
| (mm)Flat Bar Edge Capacity - MS (size / Ø) | 100 x 20 / 800 |
| (mm)Flat Bar Capacity - MS (size / Ø) | 200 x 30 / 1200 |
| (mm)Square Bar Solid Capacity - MS (size / Ø) | 60 x 60 / 750 |
| (mm)Rectangle Tube Capacity - MS (size / Ø) | 100 x 40 x 4 / 1300* |
| (mm)Square Tube Capacity - MS (size / Ø) | 80 x 50 x 5 / 1500* |
| (mm)Round Bar Solid Capacity - MS (size / Ø) | Ø75 / 800* |
| (mm)Round Tube Capacity - MS (size / Ø) | Ø125 x 2.5 / 1400* |
| (inch / mm)Round Pipe Capacity - MS (size / Ø) | Ø4" x 6.02mm / 1000mm* |
| (mm)Angle Capacity - MS (size / Ø) | 100 x 100 x 12 / 1000 |
| (kW / hp)Motor Power | 7.5 / 10 |
| (V / amp)Voltage / Amperage | 415 |
| (mm)Dimensions (L x W x H) | 2000 x 1450 x 1700 |
| (No / Yes*)Note: Requires Additional Tooling | Yes* |
| (kg)Nett Weight | 3650 |
- Compare:
- Wishlist:
- ORDER CODE
- MODEL
- (Qty)Powered Driven Rolls
- (Type)Bending Rolls
- (mm)Top Roll Shaft Diameter (Ø)
- (mm)Lower Roll Shaft Diameter (Ø)
- (mm)Top Roll Diameter (Ø)
- (mm)Lower Roll Diameter (Ø)
- (mm)Flat Bar Edge Capacity - MS (size / Ø)
- (mm)Flat Bar Capacity - MS (size / Ø)
- (mm)Square Bar Solid Capacity - MS (size / Ø)
- (mm)Rectangle Tube Capacity - MS (size / Ø)
- (mm)Square Tube Capacity - MS (size / Ø)
- (mm)Round Bar Solid Capacity - MS (size / Ø)
- (mm)Round Tube Capacity - MS (size / Ø)
- (inch / mm)Round Pipe Capacity - MS (size / Ø)
- (mm)Angle Capacity - MS (size / Ø)
- (kW / hp)Motor Power
- (V / amp)Voltage / Amperage
- (mm)Dimensions (L x W x H)
- (No / Yes*)Note: Requires Additional Tooling
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
-
Compare
-
Wishlist
- S680
- RR-5G
- 2 x Manual
- Manual Bottom Right
- ~
- ~
- ~
- ~
- ~
- 25 x 3 / 125
- ~
- ~
- ~
- Ø5 / 125
- ~
- ~
- ~
- ~
- ~
- 360 x 190 x 180
- No
- 6
- $100.00
- $110.00
- ADD TO CART
-
Compare
-
Wishlist
- S6805
- RR-6
- 2 x Manual
- Manual Bottom Right
- ~
- ~
- ~
- ~
- ~
- 40 x 6 /
- ~
- ~
- ~
- Ø10
- ~
- ~
- ~
- ~
- ~
- 200 x 200 x 310 (without handle)
- No
- 15.2
- $230.00
- $253.00
- ADD TO CART
-
Compare
-
Wishlist
- S681
- RR-10
- 2 x Manual
- Manual Top
- ~
- ~
- 98
- ~
- 30 x 10 / 500 - (20 x 5 / 190)
- 50 x 10 / 400 - (20 x 5 / 160)
- 20 x 20 / 500 - (10 x 10 / 160)
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 500 x 480 x 680
- No
- 185
- $1,590.00
- $1,749.00
- ADD TO CART
-
Compare
-
Wishlist
- S682
- RR-24
- 2
- Manual Top
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 50 x 50 x 1.6 / 1000
- ~
- Ø76 x 2 / 1520
- ~
- ~
- 1.1 / 1.5
- 240 / 10
- 740 x 630 x 1030
- No
- 287
- $2,250.00
- $2,475.00
- ADD TO CART
-
Compare
-
Wishlist
- S745
- PK-35F
- 2
- Manual Top
- 50
- 50
- 155
- 155
- 60 x 10 / 500
- 100 x 15 / 450
- 35 x 35 / 900
- 50 x 40 x 3 / 1200*
- 50 x 50 x 3 / 1700*
- Ø35 / 600*
- Ø70 x 2 / 1000*
- Ø2" x 2.9mm / 1000mm*
- 50 x 50 x 5 / 1000 mm*
- 1.5 / 2
- 240 / 10
- 750 x 1000 x 1400
- Yes* (S7455 for angle capacity)
- 400
- $6,150.00
- $6,765.00
- ADD TO CART
-
Compare
-
Wishlist
- S749
- HPK-45
- 2
- Manual Top
- 50
- 50
- 155
- 155
- 60 x 10 / 500
- 100 x 15 / 450
- 35 x 35 / 900
- 50 x 40 x 3 / 1200*
- 50 x 50 x 3 / 1700*
- Ø35 / 600*
- Ø70 x 2 / 1000*
- Ø2" x 2.9mm / 1000mm*
- 50 x 50 x 5 / 1000 mm*
- 1.5 / 2
- 415
- 90 x 1360 x 1450
- Yes* (S7455 for angle capacity)
- 400
- $8,990.00
- $9,889.00
- ADD TO CART
- Limited Stock
-
Compare
-
Wishlist
- S7401
- HK-50A
- 2
- Hydraulic Top
- 50
- 50
- 155
- ~
- 60 x 10 / 500
- 100 x 15 / 450
- 35 x 35 / 900
- 50 x 40 x 3 / 1200*
- 50 x 50 x 3 / 1700*
- Ø35 / 600*
- Ø70 x 2 / 1000*
- Ø2" x 2.9mm / 1000mm*
- 50 x 50 x 5 / 1000*
- 1.5 / 2
- 415
- 750 x 900 x 1550
- Yes*
- 490
- $7,390.00
- $8,129.00
- ADD TO CART
- Back In Stock Soon
-
Compare
-
Wishlist
- S750
- HPK-50
- 3
- Hydraulic Top
- 50
- 50
- 152
- 162
- 60 x 10 / 600
- 100 x 15 / 600
- 35 x 35 / 600
- 70 x 30 x 3 / 1500*
- 50 x 50 x 3 / 1600*
- Ø35 / 600*
- Ø70 x 2 / 1200*
- Ø2" x 2.9mm / 1000mm*
- 50 x 50 x 6 / 600
- 1.1 / 1.5
- 415
- 810 x 950 x 1500
- Yes*
- 500
- $11,750.00
- $12,925.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- S754
- HPK-65
- 3
- Hydraulic - Left & Right
- ~
- ~
- 180
- ~
- 60 x 10 / 500
- 80 x 20 / 500
- 32 x 32 / 400
- 50 x 25 x 3 / 450*
- 45 x 45 x 3 / 600*
- Ø35 / 350*
- Ø60 x 2 / 600*
- Ø2" x 3.91mm / 400mm*
- 60 x 60 x 6 / 650
- 3 / 4
- 415
- 1200 x 850 x 1200
- Yes*
- 1000
- $19,500.00
- $21,450.00
- ADD TO CART
-
Compare
-
Wishlist
- S756
- HPK-80
- 3
- Hydraulic - Left & Right
- 80
- 70
- 245
- ~
- 80 x 20 / 800
- 125 x 25 / 600
- 45 x 45 / 500
- 80 x 25 x 3 / 800*
- 70 x 70 x 3 / 1300*
- Ø50 / 500*
- Ø100 x 2.5 / 1200*
- Ø3" x 5.48mm / 800mm*
- 80 x 80 x 8 / 800
- 4 / 5.3
- 415
- 1450 x 1000 x 1400
- Yes*
- 1700
- $24,500.00
- $26,950.00
- ADD TO CART
-
Compare
-
Wishlist
- S756C
- HPK-80NC
- 3
- Hydraulic - Left & Right
- 80
- 70
- 245
- 245
- 80 x 20 / 800
- 125 x 25 / 600
- 45 x 45 / 500
- 80 x 25 x 3 / 800*
- 70 x 70 x 3 / 1300*
- Ø50 / 500*
- Ø100 x 2.5 / 1200*
- Ø3" x 5.48mm / 800mm*
- 80 x 80 x 8 / 800
- 4 / 5.3
- 415
- 1450 x 1000 x 1400
- Yes*
- 1700
- $36,250.00
- $39,875.00
- ADD TO CART
-
Compare
-
Wishlist
- S758C
- HPK-100NC
- 3
- Hydraulic - Left & Right
- 100
- 100
- 315
- 315
- 100 x 20 / 800
- 200 x 30 / 1200
- 60 x 60 / 750
- 100 x 40 x 4 / 1300*
- 80 x 50 x 5 / 1500*
- Ø75 / 800*
- Ø125 x 2.5 / 1400*
- Ø4" x 6.02mm / 1000mm*
- 100 x 100 x 12 / 1000
- 7.5 / 10
- 415
- 2000 x 1450 x 1700
- Yes*
- 3650
- $54,500.00
- $59,950.00
- ADD TO CART
