PHM940HD Power Hammer + Masterclass Combo - Hare & Forbes Machineryhouse

Home Automotive & Restoration Tools Planishing & Power Hammers S2287T

PHM-940HD - Power Hammer + Masterclass Combo

FIRST TIME IN ADELAIDE & MELBOURNE!

Learn from EXPERTS and take home your own Power Hammer

AUS 1 of 31

S228 Power Hammer 2 of 31

Class Photo 3 of 31

MotorRetros Vaughn Ryan 4 of 31

MotorRetros Georgio Rimi 5 of 31

MotorRetros Georgio Rimi 6 of 31

Class 19 7 of 31

Sosa Metalworks FINAL 4.00 01 28 16 8 of 31

LR54364 9 of 31

S2287T 10 of 31

Machine Only 11 of 31

Die Holder and Power Box 12 of 31

Power and Speed Contol 13 of 31

Foot Control 14 of 31

Quick Change Tooling 15 of 31

Wide Feet with Anchor Holes 16 of 31

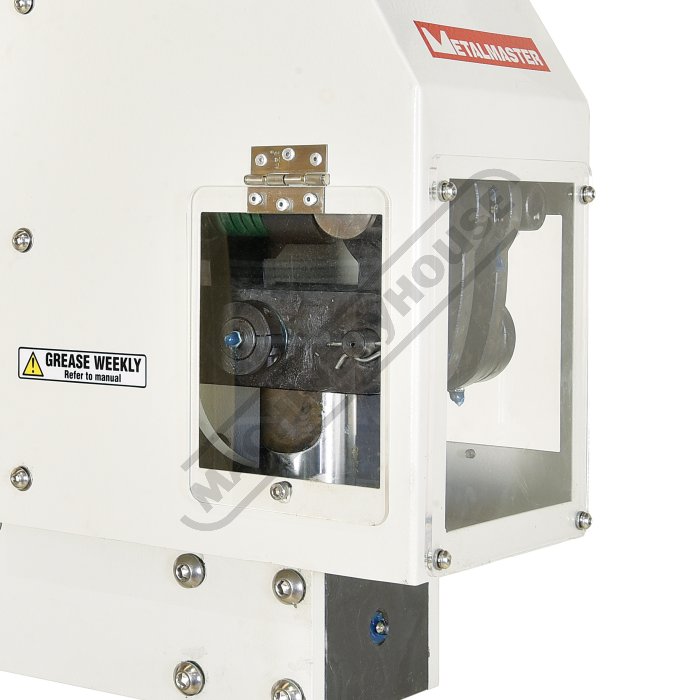

Clear Viewing Window for Adjustment Settings 17 of 31

Stroke Adjustment Hand Wheel 18 of 31

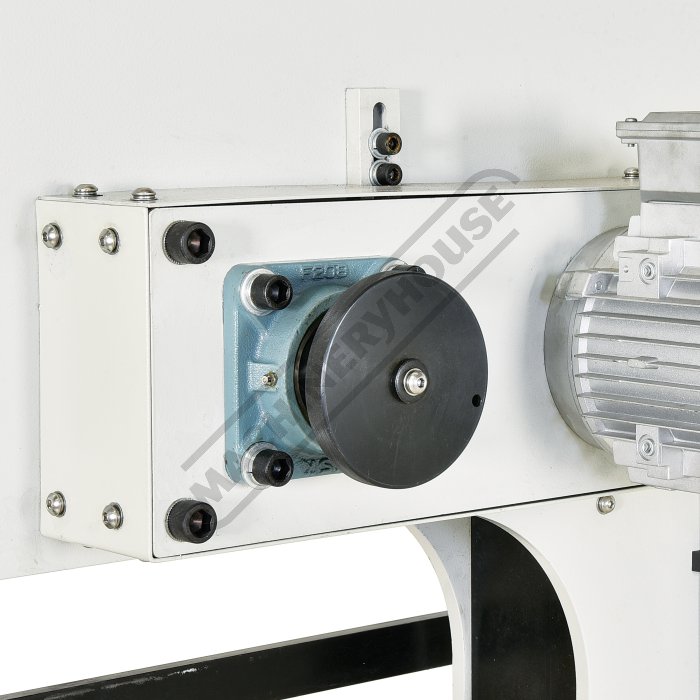

Top Tool Adjustment Hand Wheel 19 of 31

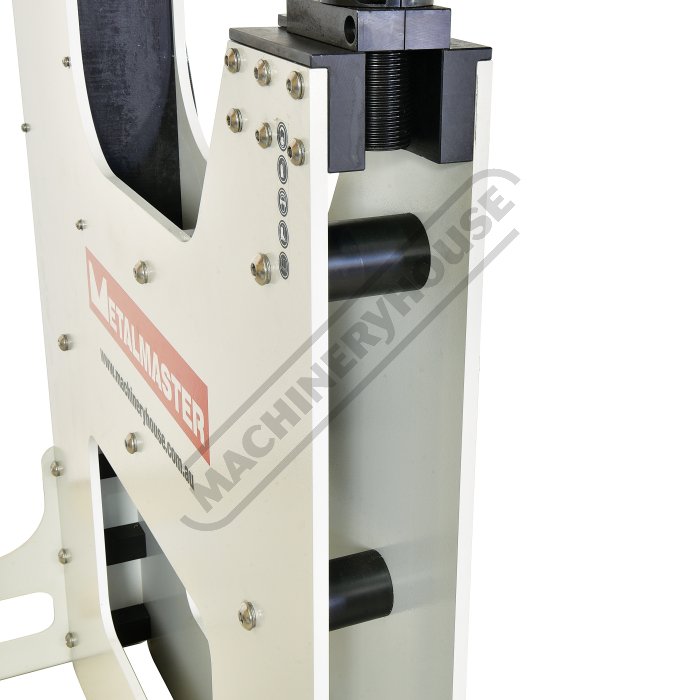

14mm Thick Steel Frame 20 of 31

Stop Adjustable Depth Positions 21 of 31

Adjustable Back Stop 22 of 31

Round Roller Guide 23 of 31

Included Springs 24 of 31

Included Tools 25 of 31

Custom Die Holders 26 of 31

Die Holders 27 of 31

Included Dies and Holders 28 of 31

Side View 29 of 31

Front View 30 of 31

Right Side 31 of 31

METALMASTER

Order Code: S2287T

ex-gst

inc-gst

^$ 10,450.00

^$ 11,495.00

240V / 10A
1 Year Warranty

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Downloads

Description

PHM-940HD - Power Hammer + Masterclass Combo

FIRST TIME IN ADELAIDE & MELBOURNE!

Learn from EXPERTS and take home your own Power Hammer

Overview

For the first time, our Metal Shaping Masterclasses are going National!

Learn from Sydney based Master Coach Builders, Vaughn Ryan and Georgio Rimi from MotoRRetro.

Over the two days you will be hands on, using your own METALMASTER Power Hammers, and learn how to shrink, stretch, dome, edge turn, bead and form louvers. You will also have access to our Shrinker Stretchers, English Wheels and Planishing Hammers.

“This course transformed my motorcycle building. The skills I acquired have enabled me to create parts I’m truly proud of.” Dan at Café Racer Garage

Location:
Hare & Forbes Store - Adelaide: 14th & 15th March
Unit 11/20 Cheltenham Parade, Woodville, SA, 5011

Hare & Forbes Store - Melbourne: 4th & 5th April
4 Abbotts Road, Dandenong South, VIC, 3175

Hare & Forbes Store - Brisbane: 25th & 26th July
625 Boundary Rd, Coopers Plains, QLD, 4108

Hare & Forbes Store - Perth: 8th & 9th August
11 Valentine Street, Kewdale, WA ,6105

Includes

Two full day masterclass, held on a Friday and Saturday
S2287 - PHM-940HD Power Hammer

1 x Set of Universal Die Holders - 16mm opening (22mm square shank)
1 x Set of Louvre Dies (22mm square shank)
1 x Set of Thumbnail Shrinking Dies (22mm square shank)
1 x Linear Stretching Die (22mm square shank)

1 x Set of 1/4" Beading Dies (22mm square shank)
1 x Set of 3/8" Beading Dies (22mm square shank)
1 x Set of 1/2" Beading Dies (22mm square shank)

1 x Steel Upper Die (22mm square shank)

1 x Set of Round Die Holders - Ø30 x 20mm (22mm square shank)
1 x Set of 3.1" Doming Dies (Ø30 x 20mm round shank)
1 x Steel Lower Die - 3/4" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 7/8" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 1" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 1-1/8" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 1-1/2" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 1-7/8" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 2" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 3" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 4" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 5" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 6" Radius x 1/16" Radius Edge (Ø30 x 20mm round shank)
1 x Steel Lower Die - 6" Radius x 1/4" Radius Edge (Ø30 x 20mm round shank)
1 x Steel Lower Die - 8" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 14-1/2" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 24" Radius (Ø30 x 20mm round shank)
1 x Steel Lower Die - 36" Radius (Ø30 x 20mm round shank)

1 x Nylon Upper Die (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 3/4" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 7/8" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 1-1/8" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 1-1/2" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 1-7/8" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 4" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 5" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 6" Radius x 1/16" Radius Edge (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 6" Radius x 1/4" Radius Edge (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 8" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 14-1/2" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 24" Radius (Ø30 x 20mm round shank)
1 x Nylon Lower Die - 36" Radius (Ø30 x 20mm round shank)

Terms and Conditions:
A $1,000 non-refundable deposit is required for the Power Hammer and class package.
The METALMASTER Power Hammer you purchase will be used throughout the masterclass and must be taken home with you on the last day of the course.
Payment for all classes and Power Hammer packages is due 14 days before the class begins.

Optional Accessories

The MetalMaster PHM-560MK2 and PHM-760HD are available, should you choose a different Power Hammer.

Specifications

Compare Product Range

Specifications

ORDER CODE	S2287
MODEL	PHM-760HD
(Type)Machine	Power Hammer
(mm / Gauge)Mild Steel - Capacity	2.0 / 12
(mm / Gauge)Aluminium - Capacity	3.0 / 8
(mm)Throat Depth	940
(BPM)Speed - blows per minute	0 - 960 (Variable)
(kW / hp)Motor Power	3 / 4
(V / amp)Voltage / Amperage	240 / 15
(kg)Nett Weight	970
