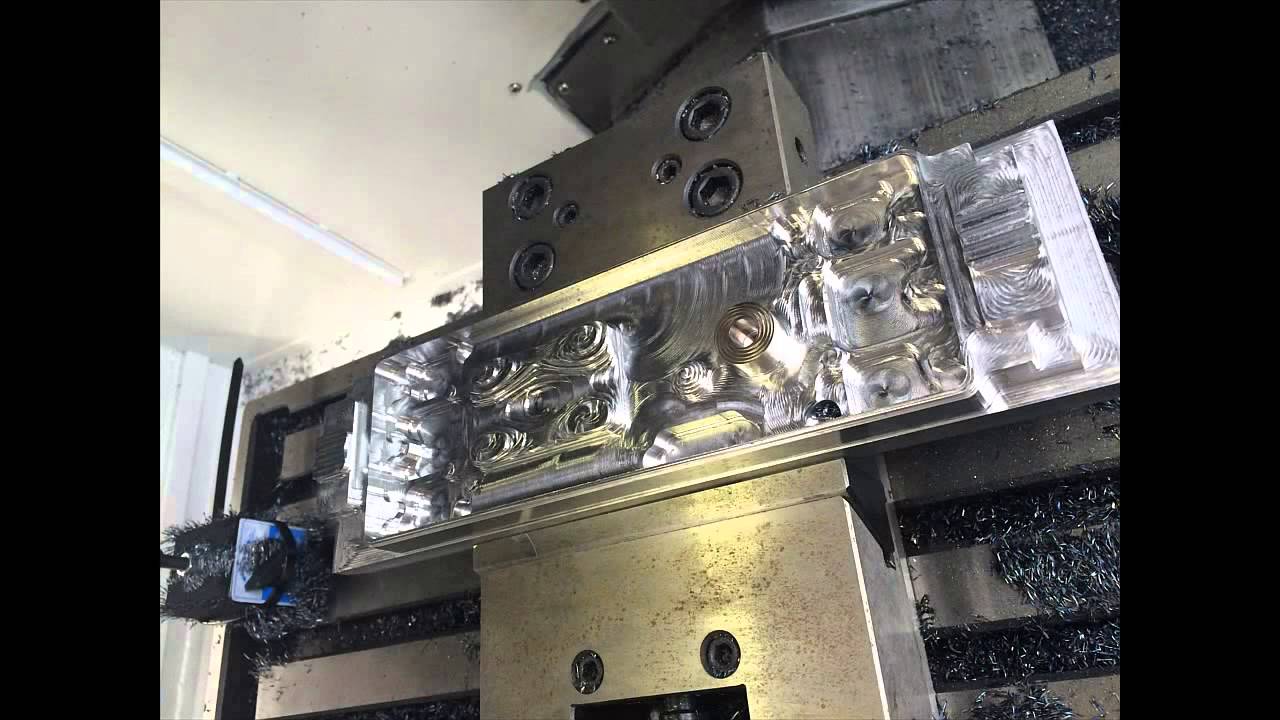

What can you machine on your Optimum? see what XM2 Aerial are doing 2 of 13

Optimum Optimill F80 with Edgecam waveform Roughing 3 of 13

Right View 4 of 13

Front View 5 of 13

Siemens Controller 6 of 13

Portable MPG 7 of 13

LED Fixed Light 8 of 13

Front View Close Up 9 of 13

Bed Side View 10 of 13

Tool Changer 11 of 13

Spindle-Coolant 12 of 13

Storage Draw 13 of 13

Description Specifications Compare Accessories Downloads

Description

Optimum CNC Machining Center - F80TC OPTi-Mill

(X) 450mm (Y) 260mm (Z) 450mm

Siemens 808D Advanced

Overview

Designed and Engineered in Germany the OPTIMUM CNC range is a market leader in Europe and is now available in Australia through Hare and Forbes Machinery House. Offering exceptional value for money the OPTIMUM range can have you set up for in house CNC machining at a fraction of the financial outlay previously required.

Features

Siemens 808AD CNC control
Travel X 450mm, Y 260mm , Z 450mm
Table Size 800mm x 260mm
Table load capacity 200kg
BT40 - 10,000rpm Spindle
12 tool automatic tool change
3-Axis linear guide-ways
Axis servo motor control
Flood coolant system
High output LED work light
Full CE Safety enclosure with Safety PLC
Central lubrication unit

Optional Accessories

Delivery & installations
Training packages in Hare & Forbes Tech Centre
BT40 tooling, vices, clamp kits, cutters

Specifications

Compare Product Range

Specifications

ORDER CODE	M9051
MODEL	F80TC
(mm)Travel (X Axis)	450
(mm)Travel (Y Axis)	260
(mm)Travel (Z Axis)	450
(m/min)Rapid Traverse (X, Y, Z Axis)	30
(Nm)Motor Torque (X & Y Axis)	6
(Nm)Motor Torque (Z Axis)	11
(~)Table T Slot (size/distance/number)	16mm / 50mm / 5
(mm)Position Accuracy	0.01
(Pockets)Automatic toolchanger	12
Spindle Taper	BT40
(rpm)Spindle Speed Range	10000
(Nm)Spindle Motor Torque	24Nm
(kW / hp)Motor Power	3.7 / 5
(V / amp)Voltage / Amperage	415
(mm)Dimensions	1940 x 1700 x 2200
(kg)Nett Weight	2500
