QLD Schools / TAFE - WL-52 Long Bed Wood Lathe Variable Speed
520mm Swing x 910mm Between Centres
QLD Contract Item No. 4.2
K8840
1 of 22
Bowl Turning Attachment
2 of 22
Dust Chute Attachment
3 of 22
Dust Hood Attahment Close Up
4 of 22
Dust Hood
5 of 22
Visible Check Speed Selection
6 of 22
Flip Up Guard for Quick Belt Speed Change
7 of 22
Tool Rest
8 of 22
24 Position Indexing
9 of 22
Main Spindle with Drive Spur
10 of 22
Spindle Hand Brake Wheel
11 of 22
Variabe Spindle Speed Dial with Digital Readout Display
12 of 22
Motor Belt Tension Handle
13 of 22
Tailstock
14 of 22
Bowl Turning Attachment
15 of 22

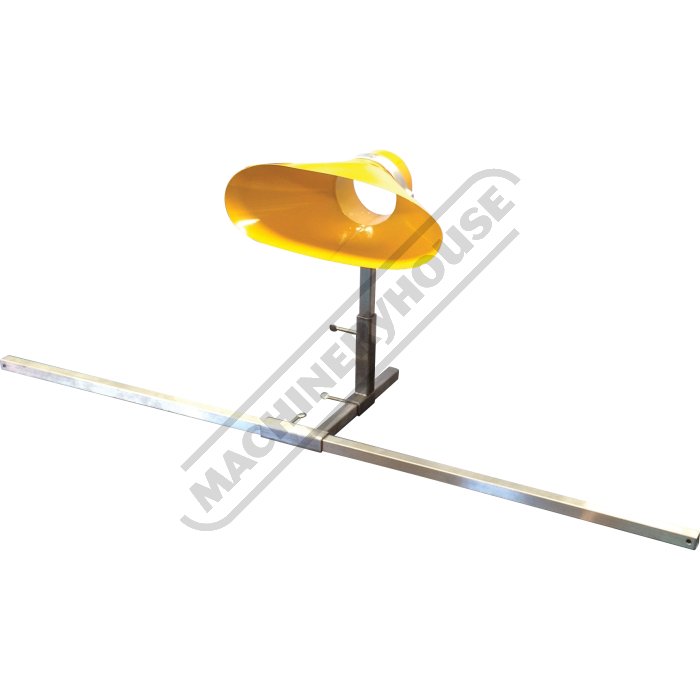

W290D Dust Chute with Adjustable Brackets 100mm
16 of 22

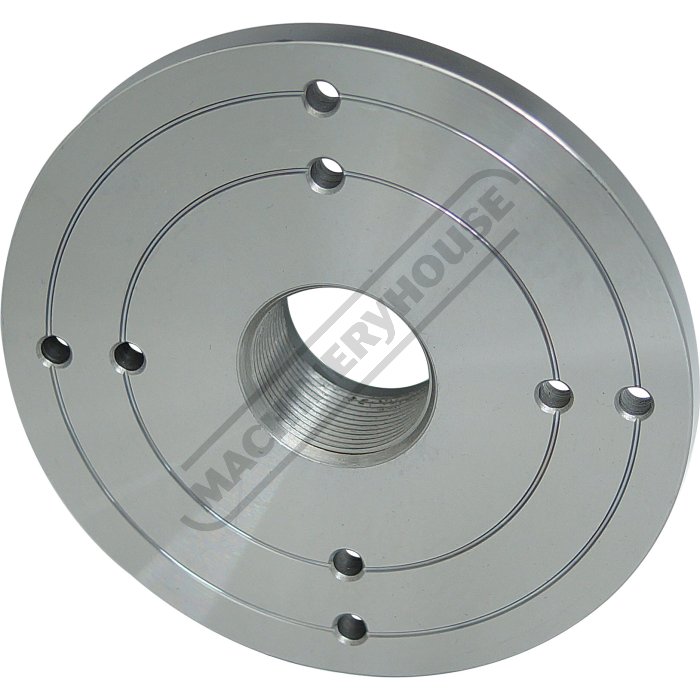

W298 FP 150 Face Plate 150mm
17 of 22

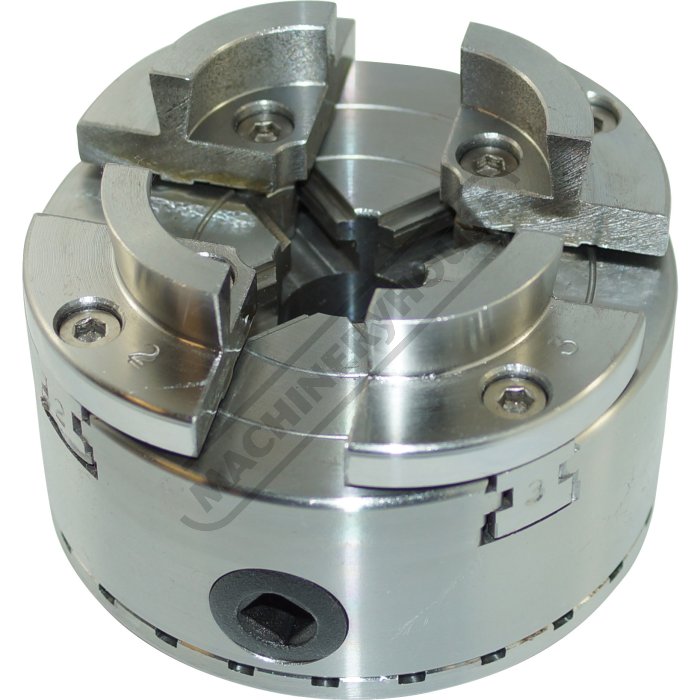

W370 WSC 100 Scroll Chuck
18 of 22

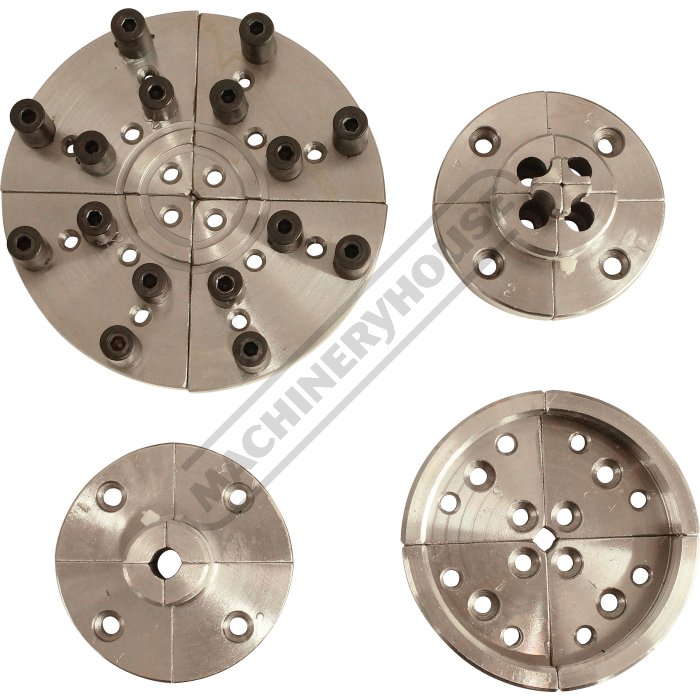

W375 WSC KIT Scroll Chuck Accessory Kit
19 of 22

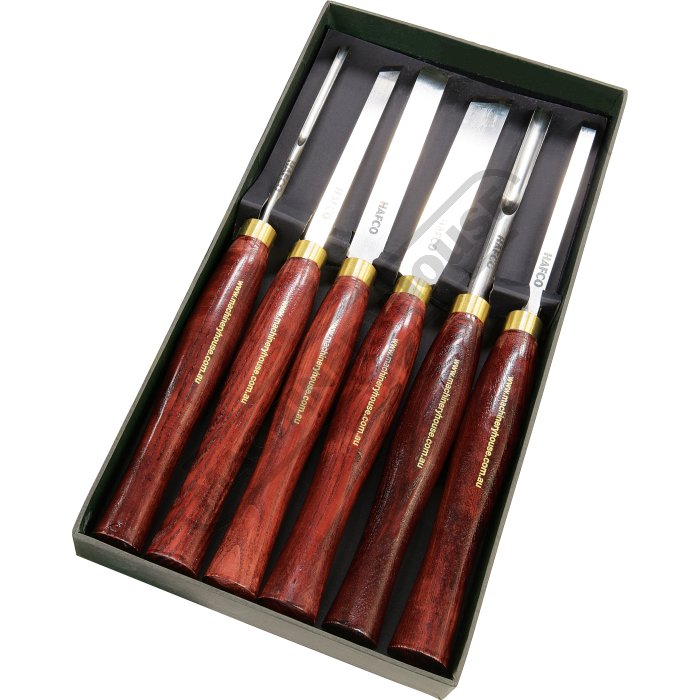

W3036 CHS6P HSS Turning Tool Set
20 of 22

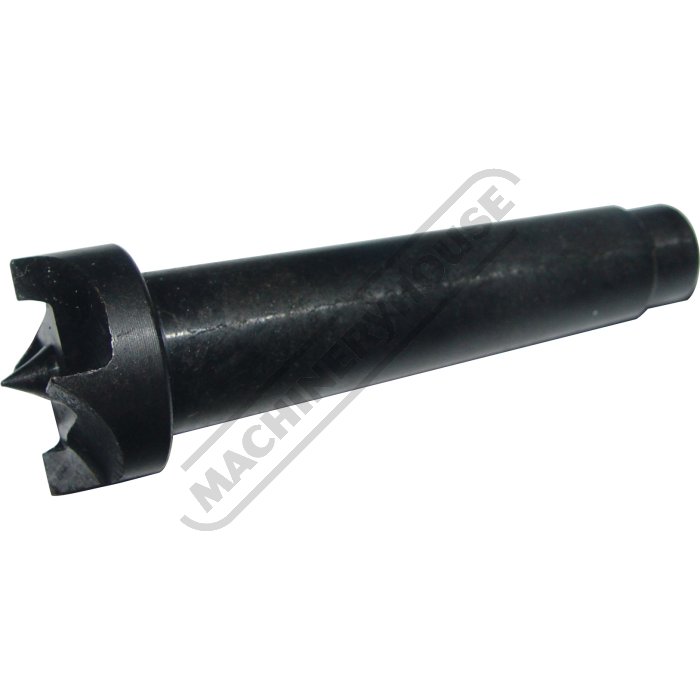

WC023 Drive Centre 2MT
21 of 22

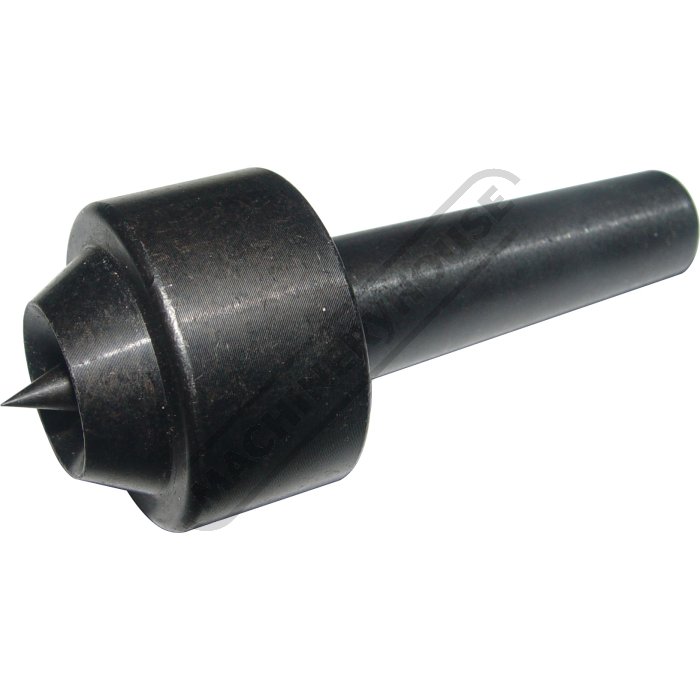

WC037 61 Live Centre 2MT
22 of 22
Order Code: K8840
Description
QLD Schools / TAFE - WL-52 Long Bed Wood Lathe Variable Speed
520mm Swing x 910mm Between Centres
QLD Contract Item No. 4.2
Features
- Electronic variable speed 50-3890rpm
- Digital readout display for spindle speeds
- Heavy duty vibration absorbing cast iron construction
- Finely ground bed for reduced friction
- Heavy duty steel cabinet stand
- Versatile 24 position indexing
- Rear polished hand wheel brake
- 1.5kW / 2hp 240V inverter motor
- 520mm swing over bed
- 910mm distance between centres
- 2MT tailstock & headstock spindle taper
- 4 large QUATRO design headstock bearings
- Spindle lock for easy removal of chucks
- 100mm tailstock spindle travel
- 30mm x (3.5mm pitch) spindle
- Magnetic switch with raised emergency stop button
- Hole through spindle 15mm
- 720mm Max. bowl diameter on outboard turning
- Ram travel 100mm
- Spindle speed ranges 50-510, 90-910, 170-1740, 290-2900, 390-3890rpm
- Swing over toolrest base 416mm
Includes
- Faceplate
- Drive & live centres
- Tool rest
- Stand
- Dust Chute Attachment
- (W370) WSC-100 Scroll Chuck
- (W375) WSC-KIT Scroll Chuck Accessory Kit
- (W298) FP-150 - Face Plate - Ø150mm
- (W3036) CHS6P HSS Turning Tool Set
- (WC023) Drive Centre 2MT
- (WC037) #61 - Live Centre 2MT
- (W290D) Dust Chute with Adjustable Brackets - 100mm
Compare Product Range
Specifications
| ORDER CODE | K8840 |
|---|---|
| QLD Contract No. | QLD Item No. 4.2 |
| MODEL | Schools / TAFE WL-520A |
| (mm)Swing Over Bed | 520 |
| (mm)Between Centres | 910 |
| (MT)Spindle Taper | 2 |
| (mm)Spindle Thread | M30 x 3.5 |
| (rpm)Spindle Speeds | Variable 50 - 3890 |
| (kW / hp)Motor Power | 1.5 / 2 |
| (V / amp)Voltage / Amperage | 240 / 10 |
| (kg)Nett Weight | 392 |
