QLD Schools / TAFE - RAZOR™ ARC 180 - Multi-Function DC TIG & MMA (ARC) Inverter Tig Welder

10-180A
QLD School contract
Overview
We for many years have been working in close consultation with the education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.

The Razorweld ARC180 is an inverter-based welding machine produced using the latest in IGBT technology. This machine is reliable, robust and stacked with features that you can expect from a quality welder. The DC MMA welding capability delivers a smooth and incredibly stable arc allowing easy welding with electrodes producing high quality welds including cast Iron, stainless and low hydrogen. The Razorweld ARC180 is equipped with DC TIG Lift Arc function, connection of the 17V TIG torch allows quality DC TIG welding of steel, stainless steel, bronze and copper. The Lift Arc function is superb and delivers perfect arc ignition every time without any sticking of the tungsten electrode to the work piece, a remarkably smooth stable arc produces high quality TIG welds.

The Razorweld ARC180 is an exceptional machine that is suitable for a wide range of applications including light industrial use, site welding, farming, along with repair and maintenance applications. The Razorweld Arc180 is packaged in a tough Military Style PVC carry case with your choice of MMA option accessories or MMA/TIG option accessories. The-ARC180 gives you the best of both worlds great portability, with the power to get the job done. Built to our specification and manufactured in compliance to AS/NZ60974.1
Features
  • Latest IGBT inverter technology
  • MMA (stick electrode)
  • Hot start (improves electrode starting)
  • VRD (Voltage Reduction Device)
  • Arc Force:(boosts current to prevent electrode extinguishing)
  • Excellent arc stability with all electrodes

  • DC TIG
  • Lift Arc ignition:(prevents tungsten sticking during arc ignition)
  • Ultra smooth DC TIG welding current
  • Thermal overload protection
  • Generator compatible:(recommend 9.0 KVA minimum)
  • Tolerant to variable power supplies

  • 3 years warranty on power source
Includes

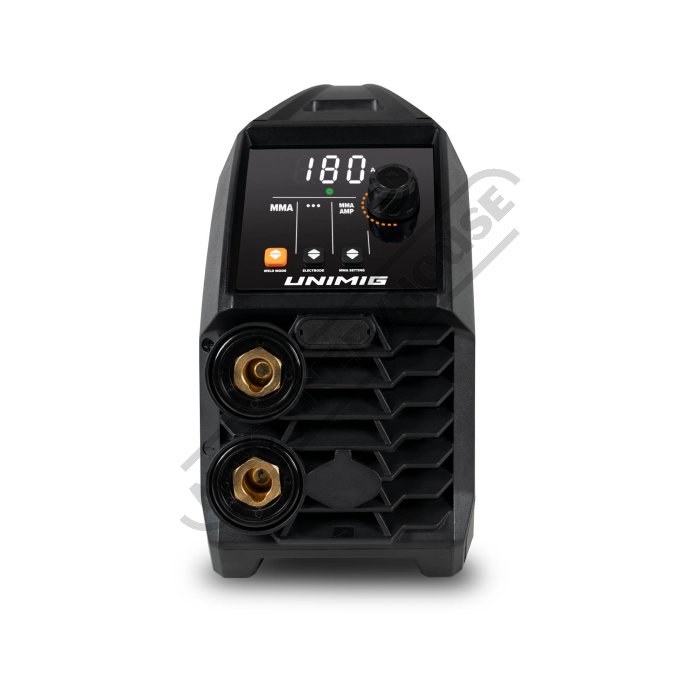

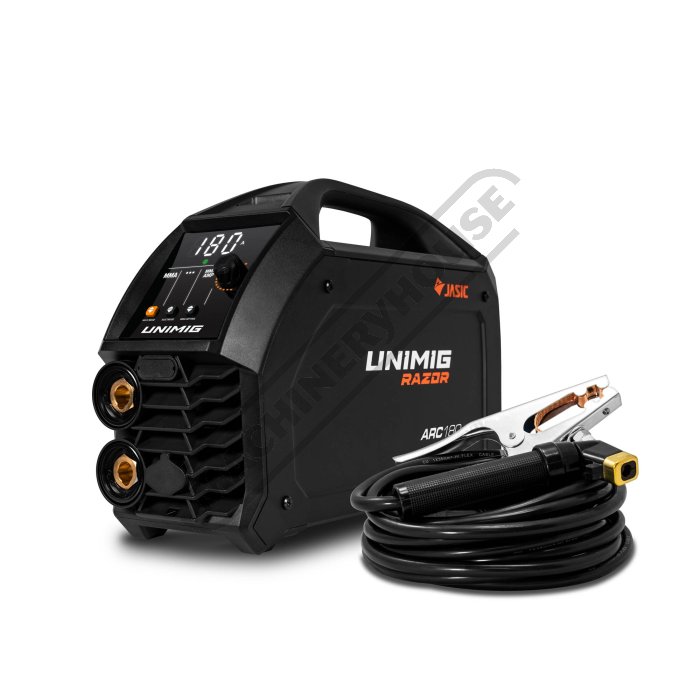

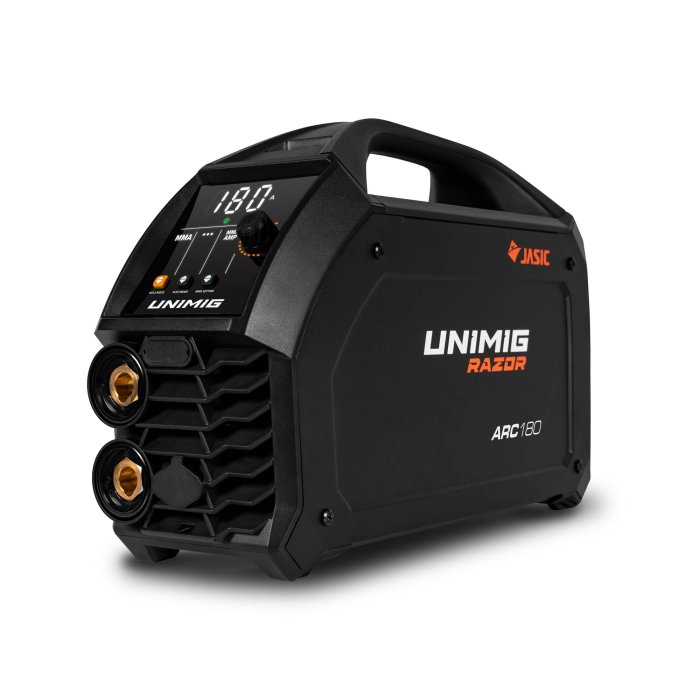

  • RAZOR™ ARC 180 - Multi-Function DC TIG & MMA (ARC) Inverter Tig Welder
  • Earth Lead & Arc Lead 16mm x 4M
  • Carry Case

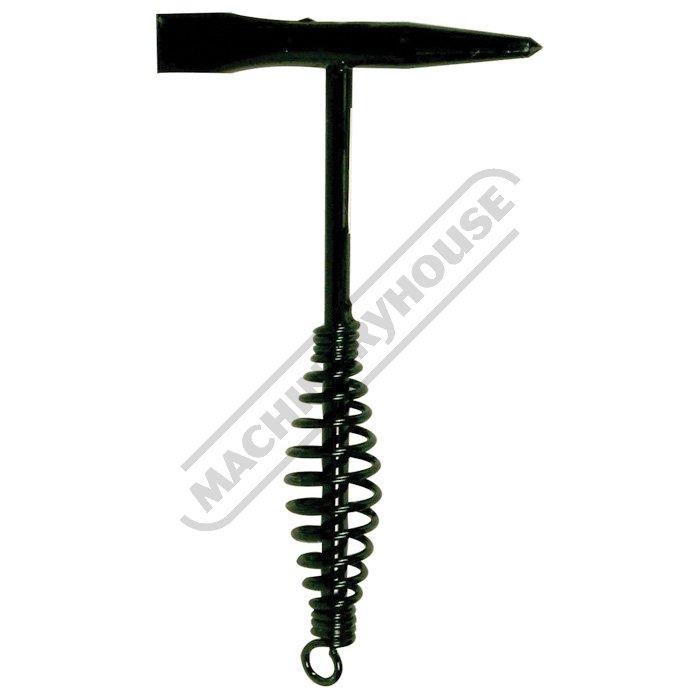

  • Chipping hammer

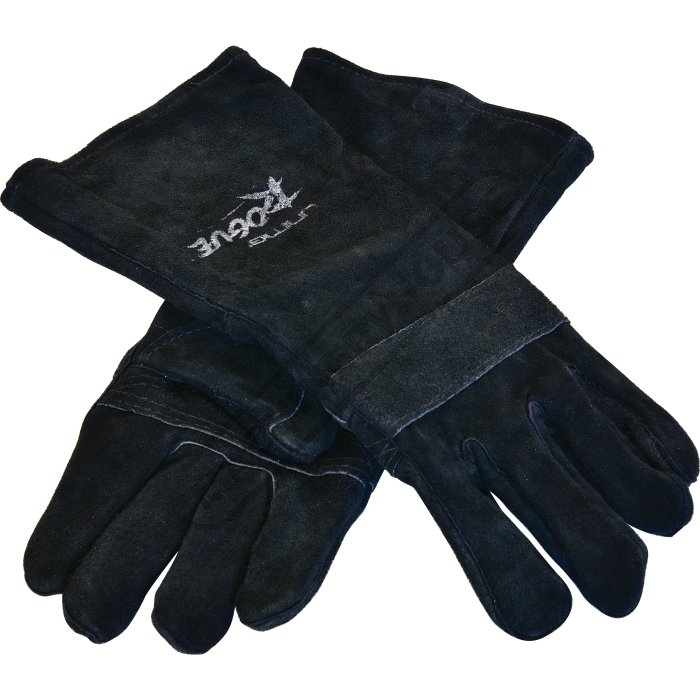

  • Leather Welding Gloves

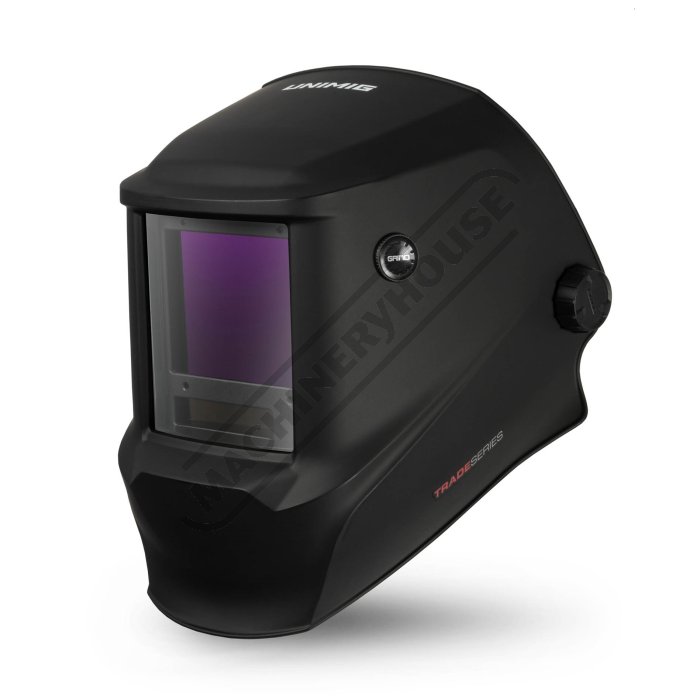

  • Trade Series Welding Helmet
Optional Accessories
  • Argon Gas Regulator with Bobbin Flowmeter
  • 17V TIG Welding Torch
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • NSW Contract No.
  • QLD Contract No.
  • MODEL

  • (V / amp)Voltage
  • (% @ amp)Rated Duty Cycle In 10 Min (TIG) 40ºc
  • (% @ amp)Rated Duty Cycle In 10 Min (MMA) 40ºc
  • (amp)Rated Output Current
  • (mm)Weldable Stick Electrode
  • Hot Start
  • Anti Sticking
  • Arc Force
  • TIG Ignition
  • (mm)Dimensions
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • K8765
  • Compare
  • Wishlist
  • K8434
  • ~
  • QLD School contract
  • NSW Schools / TAFE
    RAZOR™ ARC 180
  • 240 / 15
  • 50% @ 180
  • 20% @ 180
  • 10 - 180
  • 4
  • Yes
  • Yes
  • Yes
  • Lift Arc
  • 313 x 130 x 250
  • 4.7
  • Please Call
  • Please Call
  • ADD TO CART
  • K8434
  • Compare
  • Wishlist
  • K8434
  • NSW Item No.46A
  • ~
  • NSW Schools / TAFE
    RAZOR™ ARC 180
  • 240 / 15
  • 50% @ 180
  • 20% @ 180
  • 10 - 180
  • 4
  • Yes
  • Yes
  • Yes
  • Lift Arc
  • 313 x 130 x 250
  • 4.7
  • Please Call
  • Please Call
  • ADD TO CART
  • K8778
  • Compare
  • Wishlist
  • K8778
  • ~
  • QLD School contract
  • QLD Schools / TAFE
    RAZOR™ 200 AC/DC
  • 240 / 15
  • 5 @ 200
  • 20% @ 160
  • 5-200
  • 2.5-4.0mm
  • ~
  • ~
  • ~
  • High Frequency
  • 500×170×340mm
  • 11.7
  • Please Call
  • Please Call
  • ADD TO CART
