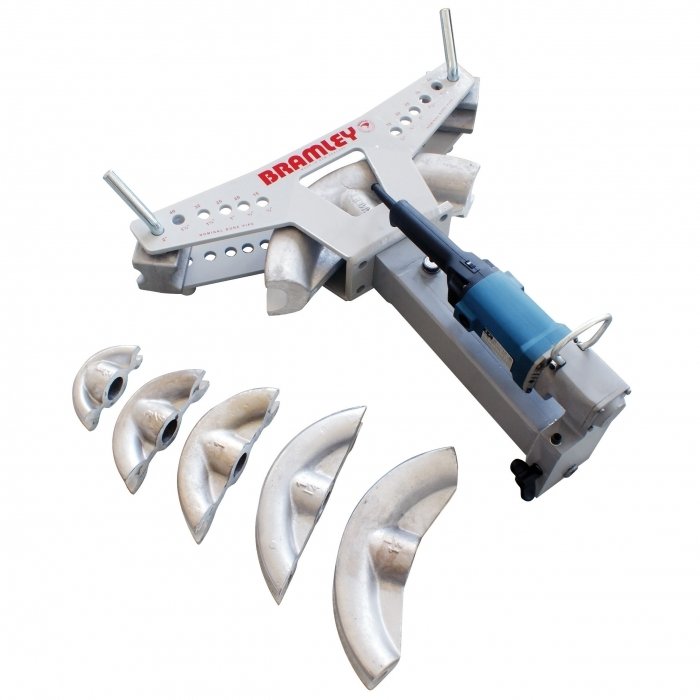

Electric Hydraulic Pipe Bender - PB2-E
Ø1/2 - Ø2" NB Pipe Capacity
Includes Ø1/2", Ø3/4", Ø1", Ø1-1/4", Ø1-1/2", Ø2" Cast Aluminium Formers
K8764
1 of 3

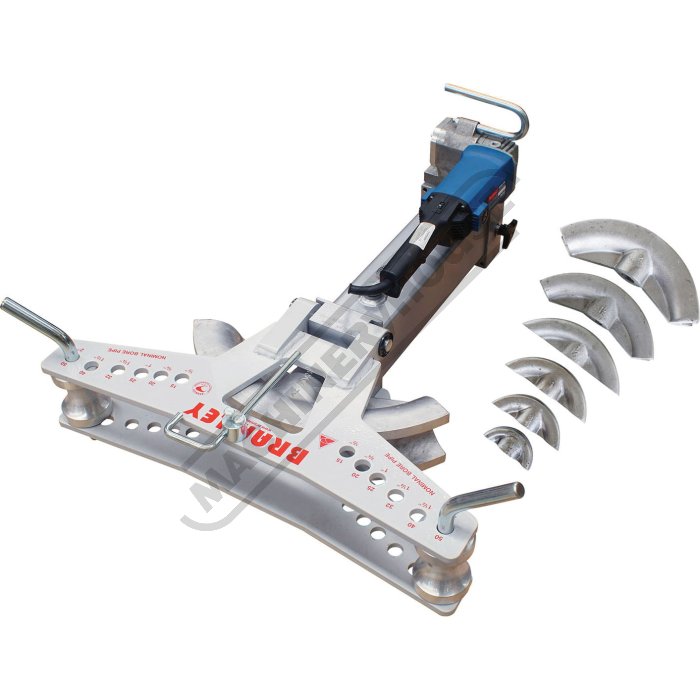

Angle 2
2 of 3

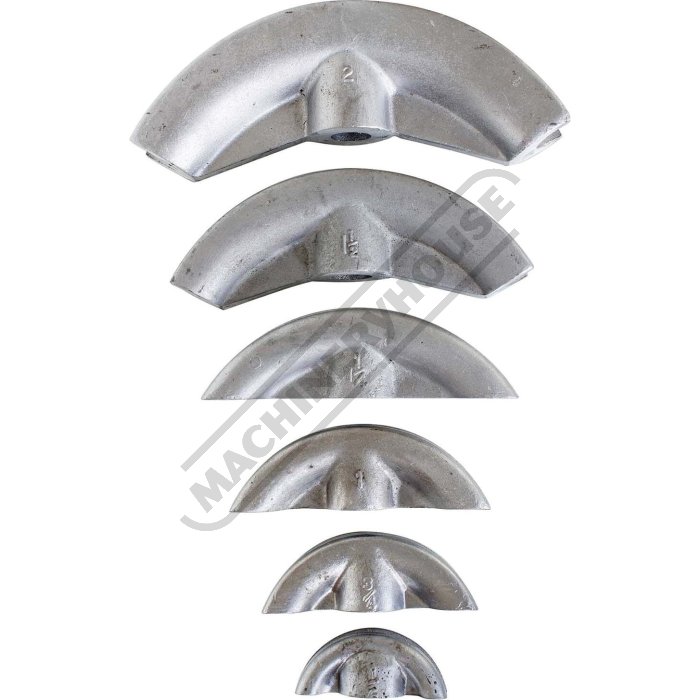

Formers
3 of 3
Order Code: K8764
Description
Electric Hydraulic Pipe Bender - PB2-E
Ø1/2 - Ø2" NB Pipe Capacity
Includes Ø1/2", Ø3/4", Ø1", Ø1-1/4", Ø1-1/2", Ø2" Cast Aluminium Formers
Features
- Easy and simple operation, connect direct into 240V power
- Light weight aluminium alloy formers with large angle of arc to support pipe during bending
- Enclosed, maintenance-free mono-block hydraulic system with automatic piston return
- High thrust hydraulic pump with 150kN (15T) piston rating for high speed operation
- Powerful 240V compact motor for efficiency with portability
- Quick & easy to adjust guide pins to suit pipe
- Bends pipe up to a maximum of 90º
- The ram spigot hole on BRAMLEY formers is 38mm. This can be bushed to suit smaller ram diameters
- Complete with six pipe formers ( 1/2” to 2” N.B.), two bobbins (support rollers) & pins
Includes
- Cast Aluminium Pipe Formers:
- Ø1/2" has 75mm centreline radius
- Ø3/4" has 105mm centreline radius
- Ø1" has 140mm centreline radius
- Ø1-1/4" has 175mm centreline radius
- Ø1-1/2" has 200mm centreline radius
- Ø2" has 240mm centreline radius
Compare Product Range
Specifications
| ORDER CODE | K8764 |
|---|---|
| MODEL | PB2-E |
| Capacity | Ø1/2 - Ø2" NB |
| (No.)Number of Formers | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
| (mm)Spigot Size | 38 |
