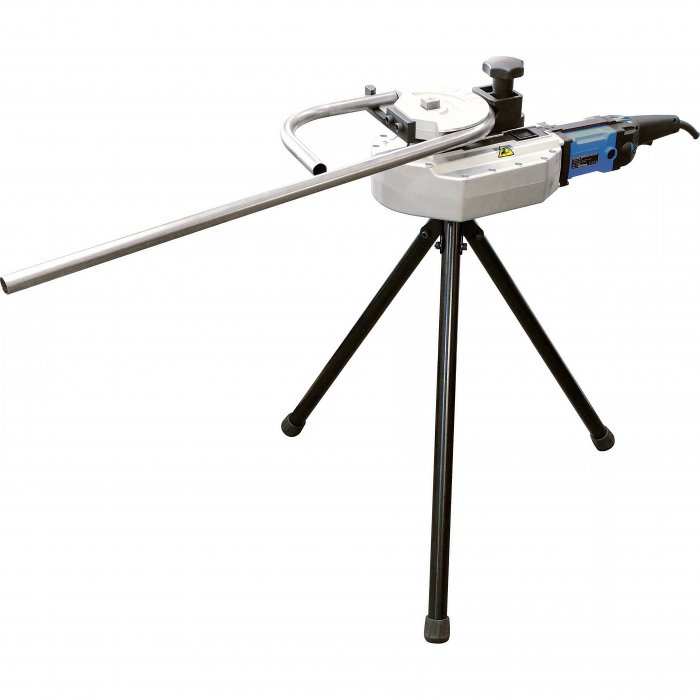

Tube Bender - Electric - DB-32
Ø15.87 - Ø31.75mm Round Tube Capacity
Includes Ø15.87, Ø19.05, Ø22.22, Ø25.4 & Ø31.75mm Aluminium Tube Formers
K8793
1 of 12

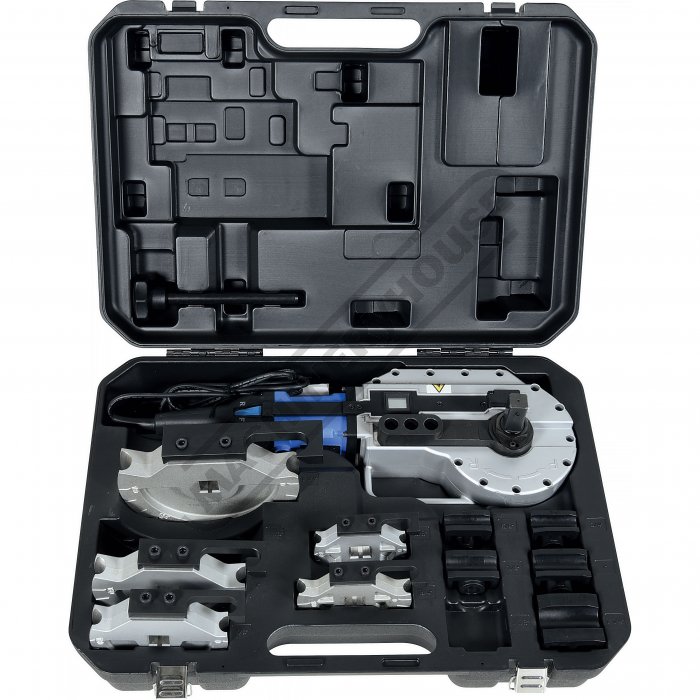

Plastic Carry Case
4 of 12

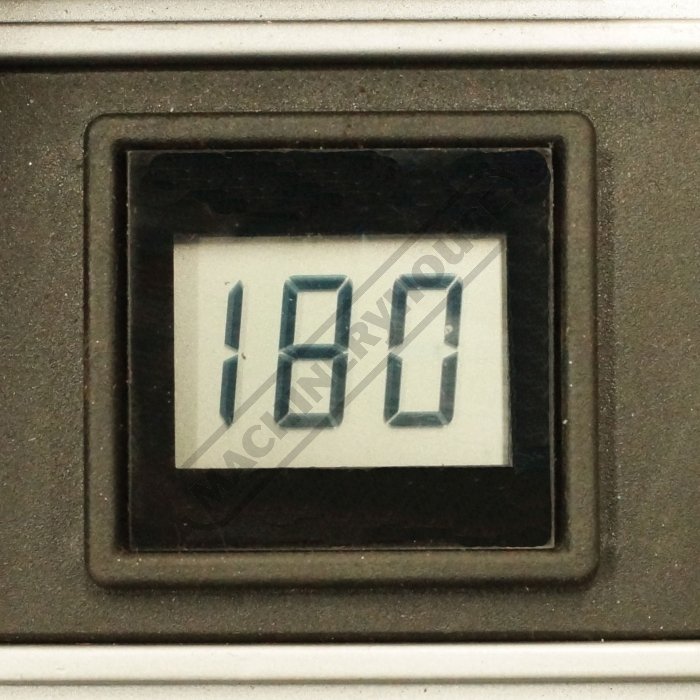

Digital Readout Angle 0~180º
5 of 12

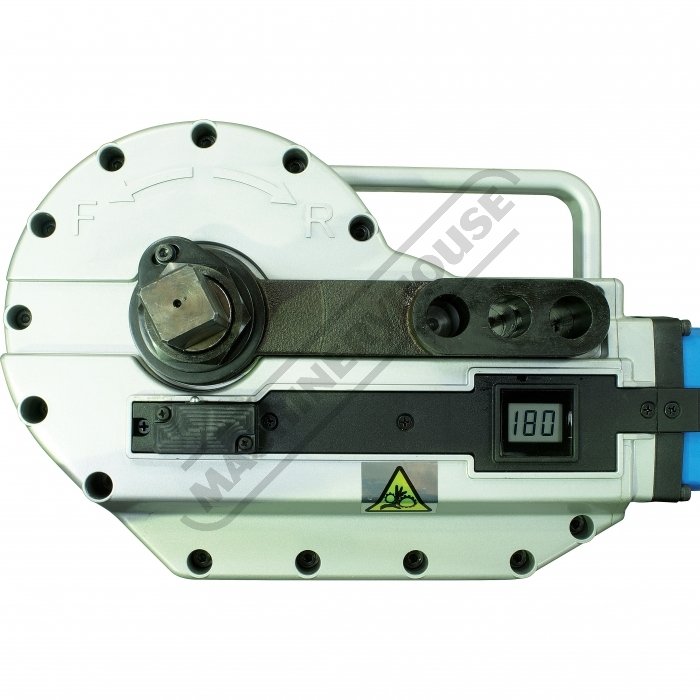

Main Body Top View
6 of 12

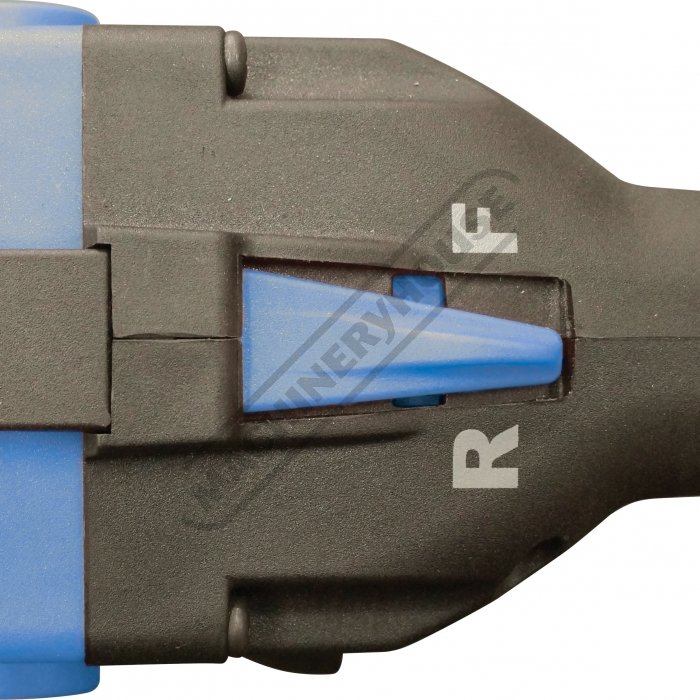

Forward Reverse Switch
7 of 12

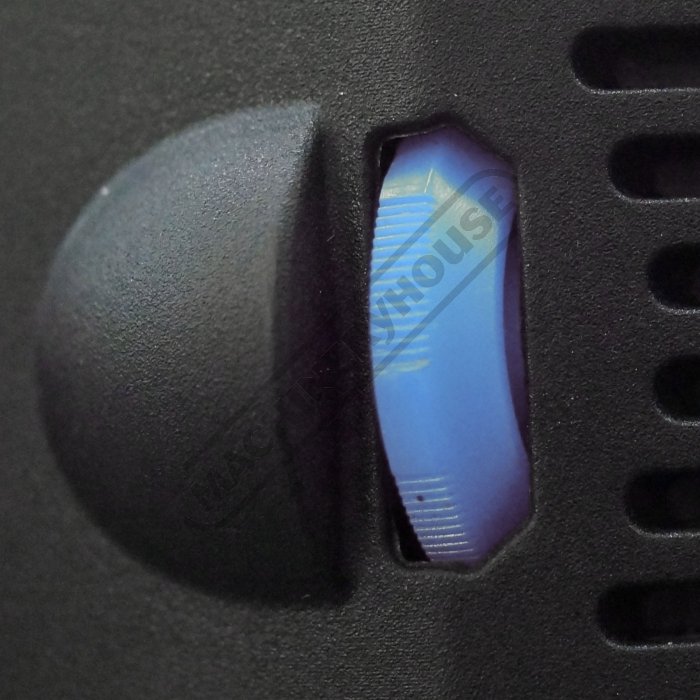

Bend Angle Setting Dial For Digital Readout
8 of 12

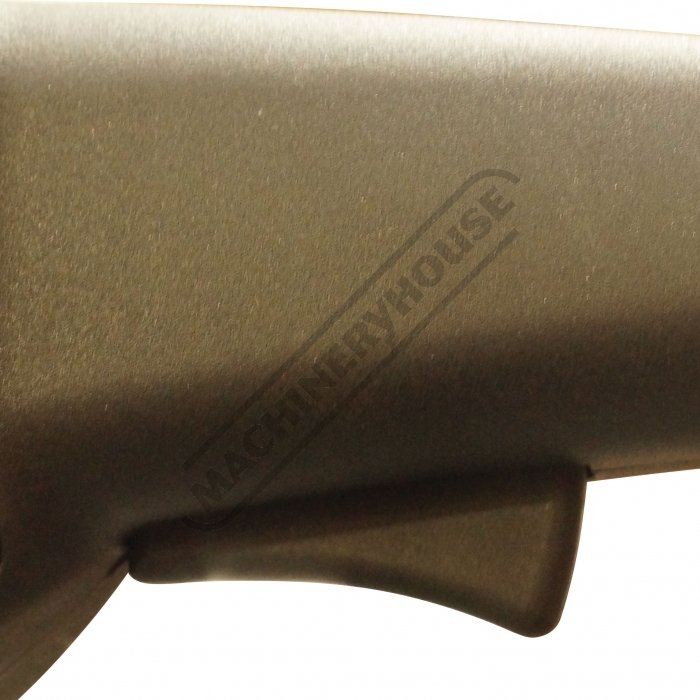

Bending Trigger Switch
9 of 12

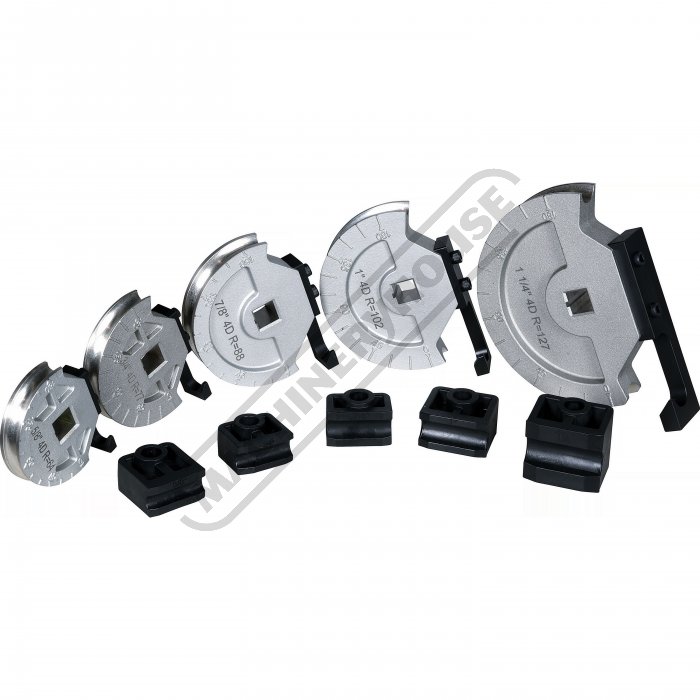

Formers-Follower Dies
10 of 12

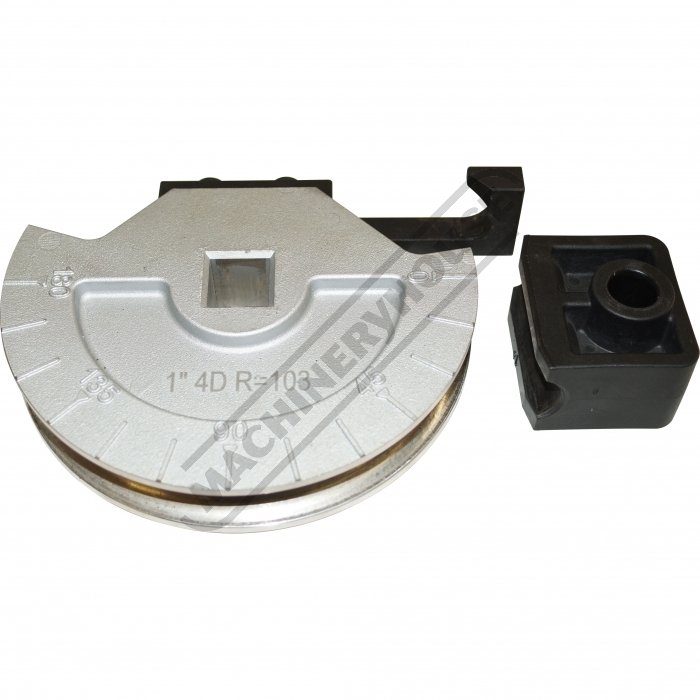

1" Inch Former & Follower Die
11 of 12

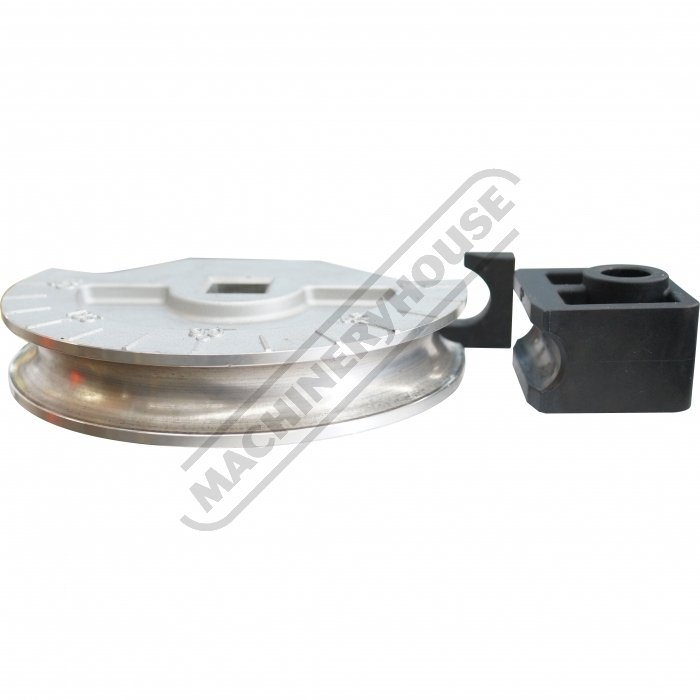

Former & Follower Die Side View
12 of 12
Order Code: K8793
Please Call
240V / 10A
1 Year Warranty
1 Year Warranty
Made in Taiwan
Description
Tube Bender - Electric - DB-32
Ø15.87 - Ø31.75mm Round Tube Capacity
Includes Ø15.87, Ø19.05, Ø22.22, Ø25.4 & Ø31.75mm Aluminium Tube Formers
Overview
Manufactured in Taiwan
A versatile, powerful and portable tube-bending system for site use or pre-fabrication of pre-set angle
The DB-32 includes a digital display readout for dialling in the bend angle required and is use on the following material tube types; Steel, copper, plastic-coated copper, coated soft steel, aluminium. Universal applications for plumbing, heating, refrigeration, air conditioning and general industry.
A versatile, powerful and portable tube-bending system for site use or pre-fabrication of pre-set angle
The DB-32 includes a digital display readout for dialling in the bend angle required and is use on the following material tube types; Steel, copper, plastic-coated copper, coated soft steel, aluminium. Universal applications for plumbing, heating, refrigeration, air conditioning and general industry.
Features
- Complete with 5 Aluminium round tube formers (Ø15.87, Ø19.05, Ø22.22, Ø25.4 & Ø31.75mm OD)
- Digital readout display 0-180º for repetitive bends
- Automatic stop at pre-selected angle
- High reduction transmission for increased torque
- Patented low-friction guide shoe
- Forward & reverse switch
- 1.7kW 240V motor
- Aluminium Round Tube Formers Capacities:
- Ø15.87, Ø19.05, Ø22.22, Ø25.4mm OD - 2.0mm mild steel wall & 1.6mm stainless steel wall thickness
- * Ø31.75mm OD - 1.6mm mild steel wall & 1.2mm stainless steel wall thickness
Includes
- Aluminium Round Tube Formers:
- Ø15.87mm OD x 68mm Centreline radius
- Ø19.05mm OD x 80mm Centreline radius
- Ø22.22mm OD x 92mm Centreline radius
- Ø25.4mm OD x 103mm Centreline radius
- Ø31.75mm OD x 130mm Centreline radius
- Three leg stand
- Plastic carry case
Compare Product Range
Specifications
| ORDER CODE | K8793 |
|---|---|
| MODEL | DB-32 |
| Capacity | Ø15.87 - Ø31.75mm |
| (No.)Number of Formers | 15.87, 19.05, 22.22, 25.4 & 31.75 OD Round |
