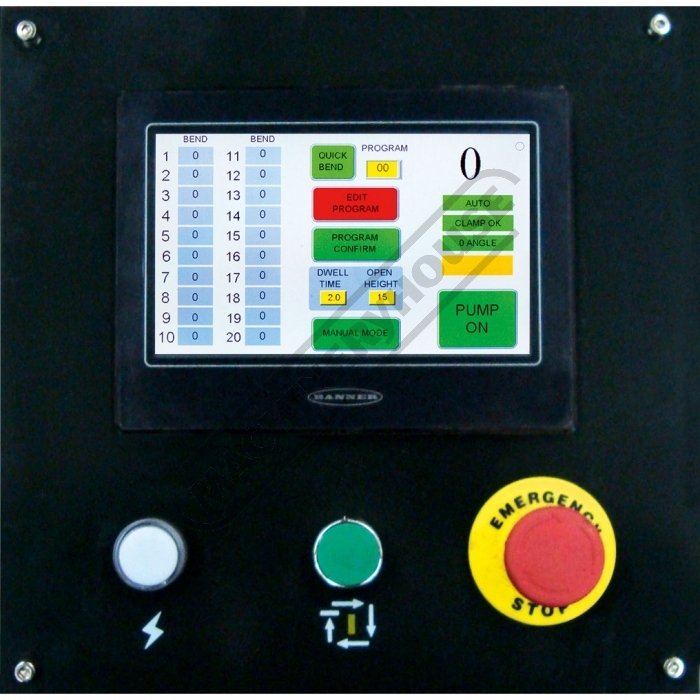

NC Ezytouch Control Panel 2 of 13

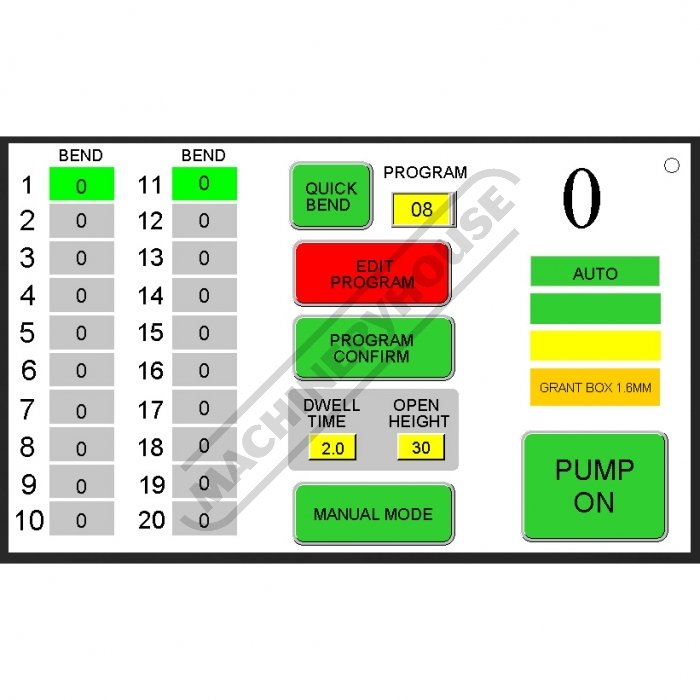

NC Ezytouch Program Page 3 of 13

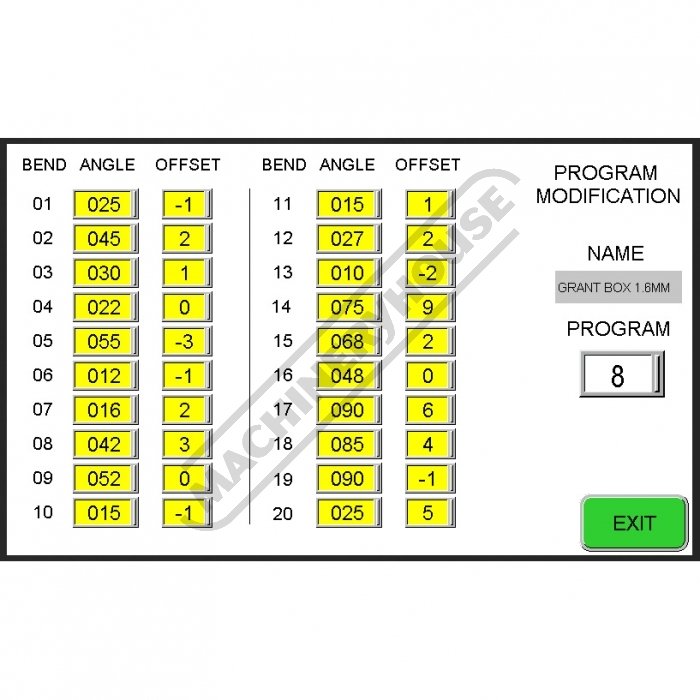

NC Ezytouch Program Edit 4 of 13

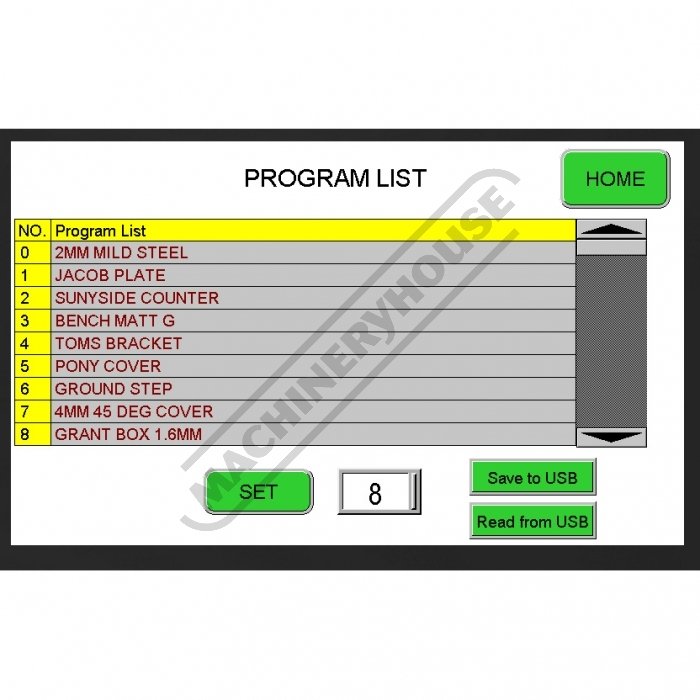

NC Ezytouch Program List 5 of 13

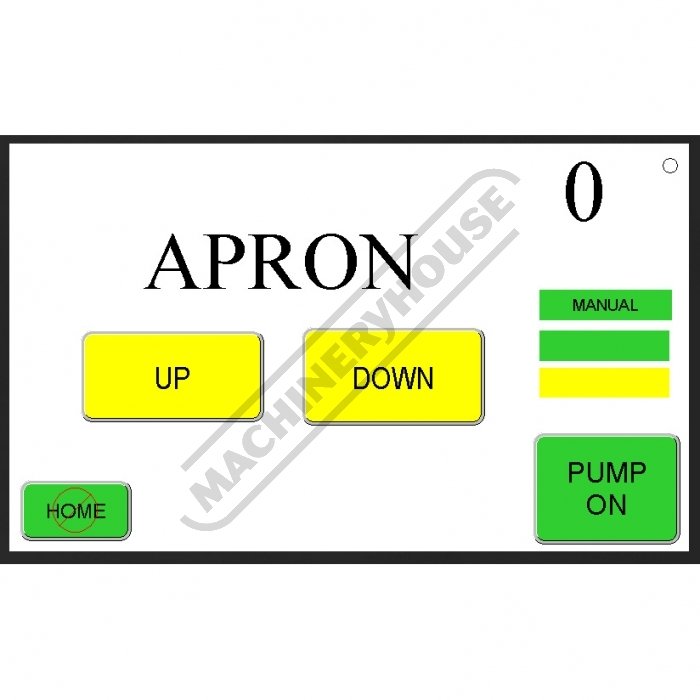

NC Ezytouch Manual Program 6 of 13

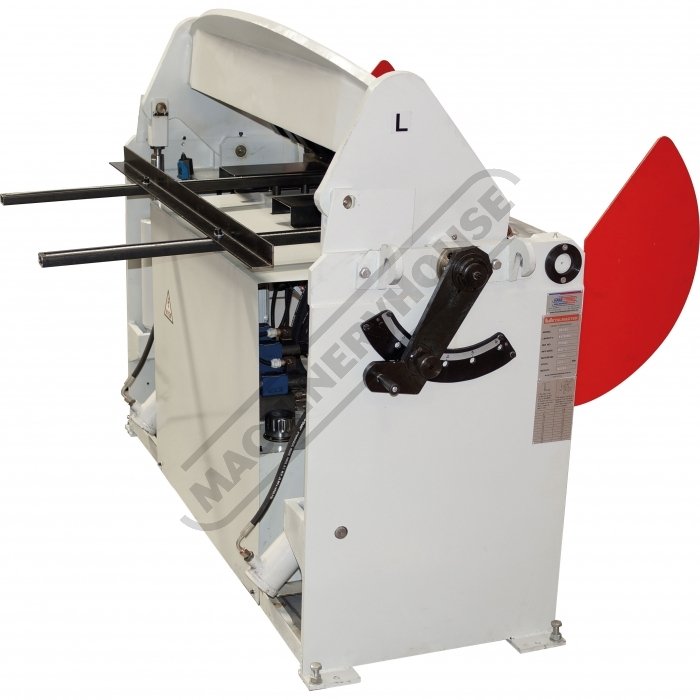

Rear Side View 7 of 13

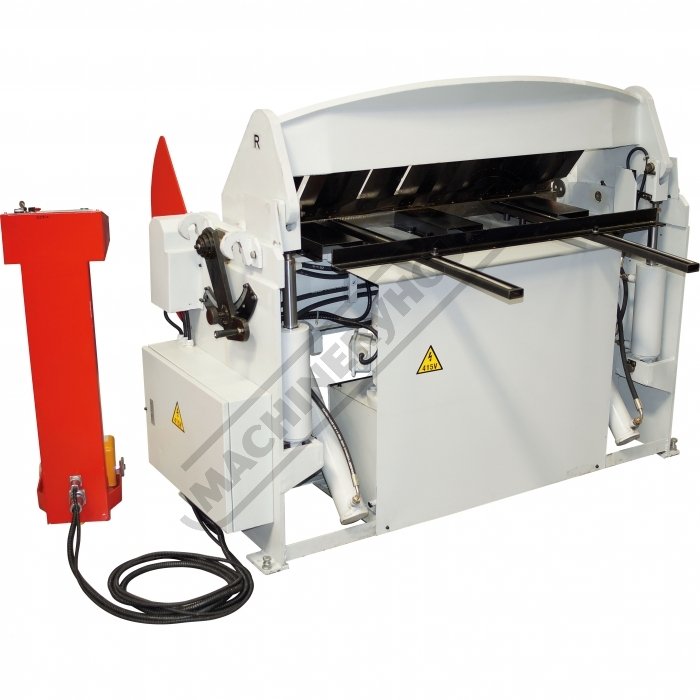

Rear View 8 of 13

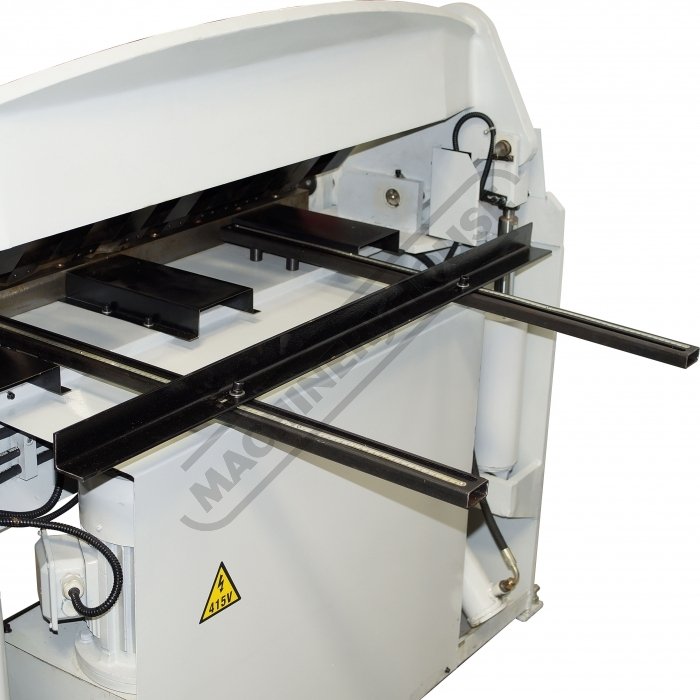

Rear Back Gauge 9 of 13

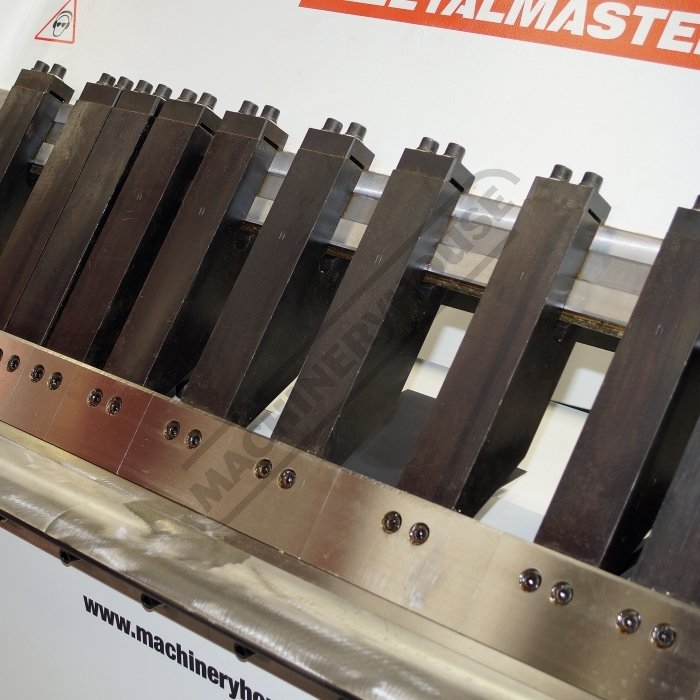

Removeable Fingers 10 of 13

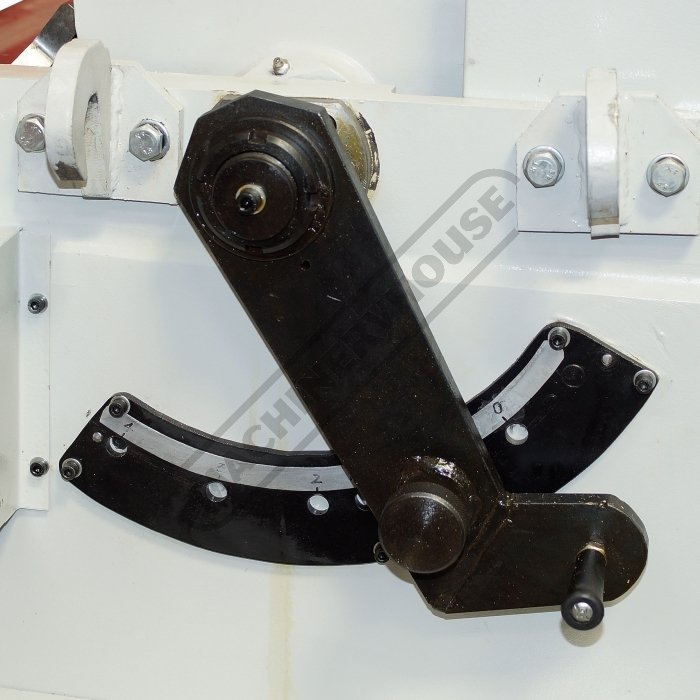

Rapid Blade Adjustment for Material Thickness 11 of 13

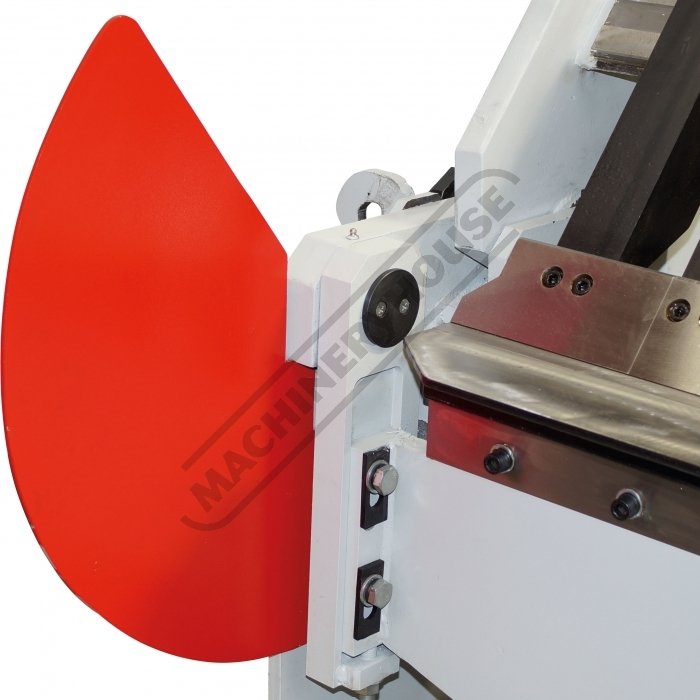

Apron Safety Guard 12 of 13

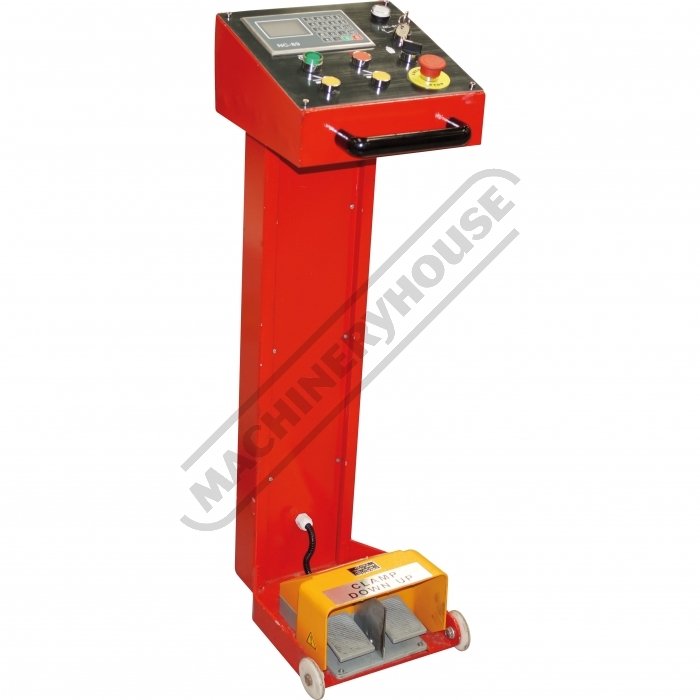

Foot Control 13 of 13

Description Specifications Compare Accessories Downloads

Description

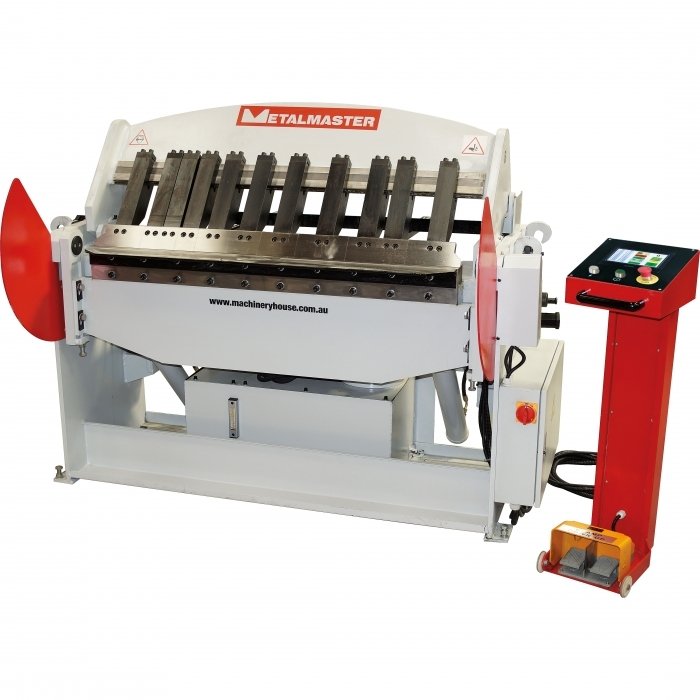

Hydraulic NC Panbrake - Ezy Touch Screen Control - PB-440T

1300 x 4mm Mild Steel Bending Capacity

Programmable Angle Controller

Overview

The most recent edition to the Metalmaster Hydraulic NC Panbrake range now comes complete with a 7" colour touch screen control panel. The beauty of this Ezy-Touch screen design is it can store a massive 99 programs with 20 bend angles per program, and each bend angle allows you to fine-tune the material bend compensation. This feature simply removes the guess work out and takes bending to the next level to achieve accuracy & repeatability every time. Another unique attribute built-in is a quick action head allowing adjusting for the different material thickness from 1mm to 4mm

The welded frame is constructed from heavy gauge steel for superior strength & minimal flex when operating under full capacity with extreme load. Metalmaster have thought outside the box when designing & manufacturing this machine as they have also made the clamp fingers extra long so you can bend up deep boxes or pans.

Features

1300mm x 4mm bending capacity
Ezy-Touch NC Touch Screen Control features 99 programs, each program has up to 20 bends & each bend has material compensation. It also incorporates a quick bend function for jobbing work
Auto cycle: after clamping bottom beam will bend to pre-set angle and return, head unclamps to set position
Ezy-Touch NC programmable opening height & bending dwell timer ensures consistent bending angle
Quick action rapid head adjustment to optimise bend radius on 1-4mm material thickness
Heavy duty steel fabricated construction
Roving foot pedal incorporates control panel for maximum flexibility
High quality components ensure reliable performance for years of continuous operation
Extended fingers allows bending of pans or boxes to a depth of 230mm
Includes an adjustable rear manual backgauge, also adjustable for tapered material
Mild steel capacity is rated on hot rolled material with 250MPA
