Order Code: K8722

Please Call
415V / (NO PLUG)
1 Year Warranty
Description

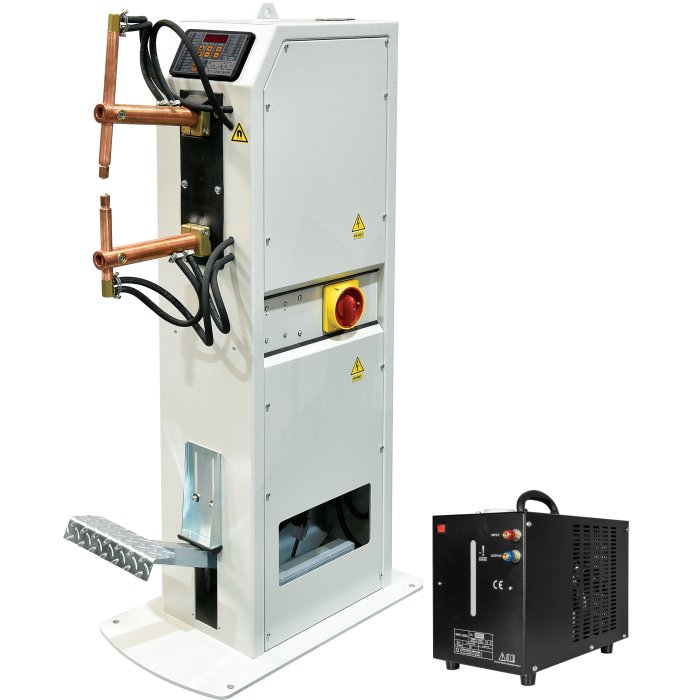

QLD Schools / TAFE - TECNA 4643-25 Pedestal Spot Welder & Water Cooling Unit

25 kVA
QLD Contract Item No. 7
Overview
We for many years have been working in close consultation with the education departments to ensure the most suitable equipment is provided to our schools and TAFE, not only does it comply with the departments stringent safety requirements but is built to last the distance. That's why we consider our company to be a specialist when it comes to supplying quality Wood Work and Metal Working Machinery for Public or Private Schools, TAFE Colleges and Trade Training Centres in all states of Australia.
Features
  • Arms adjustable in length allowing a better working flexibility
  • Chrome-copper electrode-holders for long life and heavy duty service, designed for straight and angled fitting
  • Adjustable electrode stroke
  • Epoxy resin coated transformer
  • Water-cooled transformer, arms and electrodes
  • Microprocessor control unit TECNA TE101
  • Adjustable electrode force; a micro switch starts the welding cycle when the desired pre-set value is reached
  • The foot pedal is adjustable in length

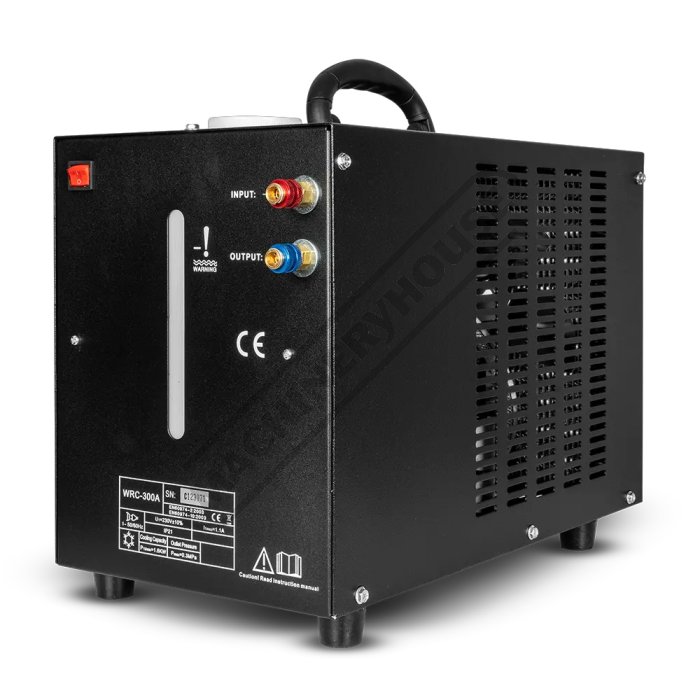

  • UTJRWC-1 8 Litre Water Cooling Unit:
  • This universal water cooler removes heat from your TIG welder torch and can be used with any welder that incorporates water cooling
  • Stainless steel pump and shafts, corrosion free
  • Heat resistant motor improves cooling
  • No priming required, quick fill in & drain out
  • Universal and can be used with any welder
  • Carry handle for portability and convenience
  • Water level gauge on front of unit
  • Ø200mm fan on steel tube radiator
  • Design to recycled water back into cooler unit
  • Uses ordinary tap water but better with distilled
Includes
  • 25kVA, 4643-25 - Pedestal Spot Welder (415V)
  • UTJRWC-1 8 Litre Water Cooling Unit
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • NSW Contract No.
  • QLD Contract No.
  • MODEL

  • Part Number
  • Type
  • (mm)Maximum Thickness
  • (kVA)Nominal Power
  • (kVA)Max. Welding Power
  • (V)Secondary No Load Voltage
  • Functions
  • (amp)Main Fuse
  • (mm)Throat Depth (Min/Max)
  • (mm)Arms Gap
  • (V / amp)Voltage / Amperage
  • (mm)Dimensions
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • K8433
  • Compare
  • Wishlist
  • K8433
  • NSW Item No.51A
  • ~
  • NSW School / TAFE
    ART 7900
  • ~
  • Manual
  • 2 + 2
  • 50% @ 2kVA
  • 13
  • 2.3
  • Timer
  • 16
  • 125
  • 96
  • 240 / 15
  • 430 x 100 x 250
  • 10
  • Please Call
  • Please Call
  • ADD TO CART
  • K8437
  • Compare
  • Wishlist
  • K8437
  • NSW Item No.51B
  • ~
  • NSW School / TAFE
    TECNA-4640-16
  • 4640-16
  • Manual
  • 2.5 + 2.5
  • 50% @ 16kVA
  • 35
  • 3.4
  • ~
  • 32
  • 230-550
  • 225
  • 415
  • 300 x 750 x 1200
  • 135
  • Please Call
  • Please Call
  • ADD TO CART
  • K8720
  • Compare
  • Wishlist
  • K8720
  • ~
  • QLD Item No. 6
  • School / TAFE ART 7900

  • ~
  • Manual
  • 2 + 2
  • 50% @ 2kVA
  • 13
  • 2.3
  • Timer
  • 16
  • 125
  • 96
  • 240 / 15
  • 430 x 100 x 250
  • 10
  • Please Call
  • Please Call
  • ADD TO CART
  • K8721
  • Compare
  • Wishlist
  • K8721
  • ~
  • QLD Item No. 7
  • School / TAFE
    TECNA-4640-16
  • 4640-16
  • Manual
  • 2.5 + 2.5
  • 50% @ 16kVA
  • 35
  • 3.4
  • ~
  • 32
  • 230-550
  • 225
  • 415
  • 300 x 750 x 1500
  • 135
  • Please Call
  • Please Call
  • ADD TO CART
  • K8722
  • Compare
  • Wishlist
  • K8722
  • ~
  • QLD Item No. 7
  • School / TAFE
    TECNA-4643-25
  • 4643-25
  • Manual
  • 3 + 3
  • 50% @ 25kVA
  • 62
  • 4.6
  • ~
  • 50
  • 230-550
  • 220
  • 415
  • 300 x 750 x 1500
  • 145
  • Please Call
  • Please Call
  • ADD TO CART
  • K8724
  • Compare
  • Wishlist
  • K8724
  • ~
  • QLD Item
  • School / TAFE
    4648
  • 4648-25
  • Pneumatic
  • 3 + 3
  • 50% @ 25kVA
  • 68
  • ~
  • ~
  • ~
  • 230-550
  • 220
  • 415
  • 300 x 750 x 1500
  • 143
  • Please Call
  • Please Call
  • ADD TO CART
