RAZOR™ ARC 140 DC TIG & MMA (ARC) Inverter Welder NSW Schools / TAFE

Description Specifications Compare Accessories Related Downloads

Description

RAZOR™ ARC 140 - DC TIG & MMA (ARC) Inverter Welder - NSW Schools / TAFE

10-140A

NSW Contract Item No.46A Alternative

Overview

HD Backlit Interface
This next generation interface panel is bright and easy to read in any environment.

10A Plug
A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.

DC Lift Arc TIG
Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.

Smart Fan
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.

Advanced MMA Features
This machine features Anti-Stick technology, as well as adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.

Built to our specification and manufactured in compliance to AS/NZ60974.1

Features

Latest IGBT inverter technology
MMA (stick electrode)
Hot start (improves electrode starting)
VRD (Voltage Reduction Device)
Arc Force (boosts current to prevent electrode extinguishing)
Excellent arc stability with all electrodes

DC TIG:
Lift Arc ignition (prevents tungsten sticking during arc ignition)
Ultra smooth DC TIG welding current
Thermal overload protection
Generator compatible (recommend 7.0 KVA minimum)
Tolerant to variable power supplies

UNIMIG is pleased to offer a 5-year warranty on the RAZOR ARC 140*.
Built to our specification and manufactured in compliance to AS/NZ60974.1

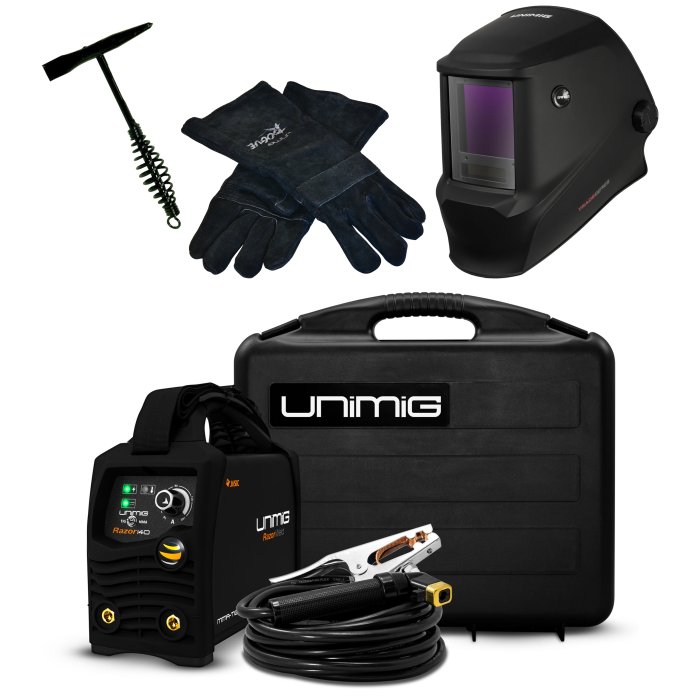

Includes

RAZOR™ ARC 140
10amp Plug Fitted Standard
4M ARC Welding lead set 10-25mm Dinse style connectors
PVC carry case
Auto Welding Helmet

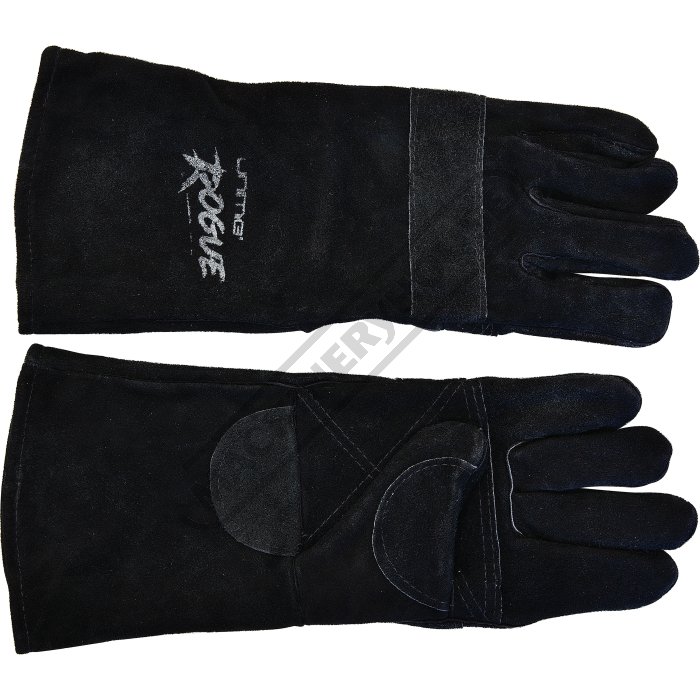

Professional Leather Welding Gloves
HD Chipping Hammer with Spring Grip

Optional Accessories

Argon Gas Regulator with Bobbin Flowmeter
17V TIG Welding Torch

Specifications

Compare Product Range

Specifications

ORDER CODE	K8441
MODEL	NSW Schools / TAFE RAZOR™ ARC 140
(V / amp)Voltage	240V / 10
(% @ amp)Rated Duty Cycle In 10 Min (TIG) 40ºc	35%@140
(% @ amp)Rated Duty Cycle In 10 Min (MMA) 40ºc	15%@140
(amp)Rated Output Current	10 - 140
(mm)Weldable Stick Electrode	3
Hot Start	Yes
Anti Sticking	Yes
Arc Force	Yes
TIG Ignition	Lift Arc
(mm)Dimensions	313 x 250 x 130
(kg)Nett Weight	4.7
