HF-42 - Portable Magnetic Drill
Includes 13mm Drill Chuck & Adaptor
Ø42mm Drill Capacity - Manual Feed
D9509
1 of 8
Side View & Control panel
2 of 8

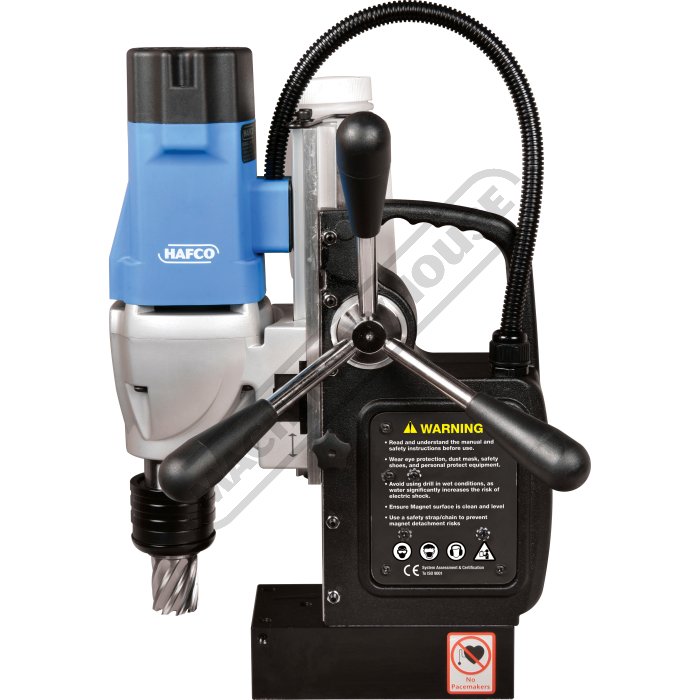

Feed Handle
3 of 8
Quick Release Chuck (Cutter Not Included)
4 of 8
Coolant Bottle
5 of 8
Carry Handle
6 of 8
Case
7 of 8
Tooling and Parts
8 of 8
New Release
Order Code: D9509
ex-gst
inc-gst
$
1,050.00
$
1,155.00
240V / 10A
1 Year Warranty
1 Year Warranty
Made in Taiwan
Description
HF-42 - Portable Magnetic Drill
Includes 13mm Drill Chuck & Adaptor
Ø42mm Drill Capacity - Manual Feed
Overview
Manufactured in Taiwan
Hafco Magnetic base drills are designed to meet productivity & safety expectations
On-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs.
NOTE: Shown with optional broach cutter
Hafco Magnetic base drills are designed to meet productivity & safety expectations
On-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs.
NOTE: Shown with optional broach cutter
Features
- Compact design with heavy duty magnet
- Quick release chuck for broach cutters
- Drills up to 42mm diameter through 50mm plate
- Motor height adjustment allows for greater range of accessory compatibility
- Gravity feed coolant system
- Includes 13mm drill chuck & adaptor to use twist drills
- CE approved
Includes
- Quick release chuck for broach cutters
- 13mm drill chuck and adaptor
- Coolant tank kit
- Safety chain
- Blow mould plastic case
Compare Product Range
Specifications
| ORDER CODE | D9509 |
|---|---|
| MODEL | HF-42 |
| Feed | Manual |
| (mm)Drilling Capacity Range - Manual | 12 - 42 |
| (mm)Maximum Thickness | 50 |
| (mm)Suits Cutter Shank Size | 19 |
| (No.)Number of Drilling Speeds | 1 |
| (rpm)Full Load Drilling Speeds | 270 |
| (rpm)No Load Drilling Speeds | 450 |
| (kg/f)Magnetic Holding Power | 1733 |
| (kW / hp)Motor Power | 1.1 / 1.46 |
| (V / amp)Voltage / Amperage | 240 / 10 |
| (kg)Machine Weight Only | 12.6 |
| (kg)Nett Weight | 17.5 |
You may also like
- Compare:
- Wishlist:
- ORDER CODE
- MODEL
- Feed
- (mm)Drilling Capacity Range - Manual
- (mm)Drilling Capacity Range - Auto Feed
- (mm)Height Adjustment
- (mm)Stroke
- (mm)Maximum Thickness
- (mm)Suits Cutter Shank Size
- (No.)Number of Drilling Speeds
- (rpm)Full Load Drilling Speeds
- (rpm)No Load Drilling Speeds
- (kg/f)Magnetic Holding Power
- (kW / hp)Motor Power
- (V / amp)Voltage / Amperage
- (kg)Machine Weight Only
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
-
Compare
-
Wishlist
- D9506
- HFLP-35
- Manual
- 12 - 35
- ~
- ~
- ~
- 35
- 19
- 1
- 390
- 650
- 1500
- 1.1 / 1.46
- 240 / 10
- 10
- 14
- $990.00
- $1,089.00
- ADD TO CART
- New Release
-
Compare
-
Wishlist
- D9509
- HF-42
- Manual
- 12 - 42
- ~
- ~
- ~
- 50
- 19
- 1
- 270
- 450
- 1733
- 1.1 / 1.46
- 240 / 10
- 12.6
- 17.5
- $1,050.00
- $1,155.00
- ADD TO CART
-
Compare
-
Wishlist
- D9508
- HF-50
- Manual
- 12 - 50
- ~
- ~
- ~
- 50
- 19
- 2
- 180 / 270
- 300 / 450
- 1733
- 1.1 / 1.46
- 240 / 10
- 14
- 17.5
- $1,180.00
- $1,298.00
- ADD TO CART
-
Compare
-
Wishlist
- D9507
- HF-750
- Manual
- 12 - 75
- ~
- ~
- ~
- 50
- 19
- 4
- 90 / 120 / 180 / 230
- 150 / 200 / 300 / 380
- 3263
- 1.8 / 2.4
- 240 / 10
- 24.8
- 31
- $2,090.00
- $2,299.00
- ADD TO CART
- Limited Stock
-
