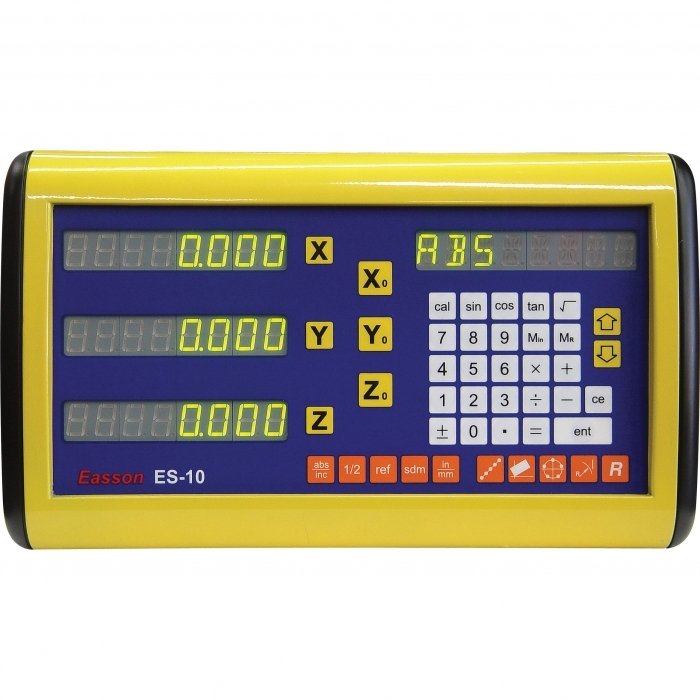

ES10 SERIES DIGITAL READOUT SYSTEMS

EASSON - Always committed to Quality, Technology & Innovation

Easson GS series Glass Grating Linear Transducer

- Robust design - totally sealed
- State-of-the-art electronics
- Highly durable switching membrane
- High noise immunity and designed to EMC specifications
- Ultra low temperature rise transformers
- Packed with performance features

Double Seal Designed Scales

- The plastic seals of the transducer use an innovative material
- to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lip geometry offer low slide resistance.

- 100% Laser Calibration
- All glass grating transducers are individually inspected and calibrated by our in-house laser calibrator to ensure accuracy complies 100% with the specifications.

- Advanced Optical Measuring System
- The slide carrier of the GS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
- The glass grating slide-ways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.


ES10 SERIES READOUT BASIC FUNCTIONS
Clear Zero
Centring
In/mm Display
Co-ordinate Entry
ABS/INC
Power Off Memory
199 Sub Datum
Ref Memory
