D766 600mm Easson Digital Readout Scale - Hare & Forbes Machineryhouse

Home Measuring Equipment Digital Readouts & Scales Digital Readout Scales D766

1µm Resolution

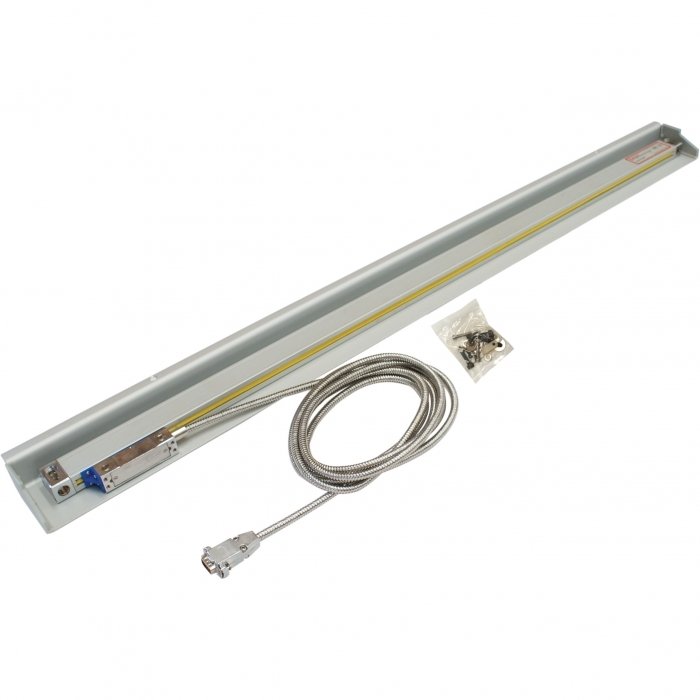

D766 1 of 6

DSub9 Male Plug 2 of 6

Dsub9 Wiring Diagram 3 of 6

DIY Installation 4 of 6

Parts 5 of 6

Close Up 6 of 6

Discontinued

Order Code: D766

1 Year Warranty

Compare

Wishlist

Description

GS11 High Accuracy Scale

1µm Resolution

Easson GS series Glass Grating Linear Transducer: EASSON - Always committed to Quality, Technology & Innovation

DOUBLE SEAL DESIGNED SCALES:
The plastic seals of the transducer use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lip geometry offer low slide resistance.

100% LASER CALIBRATION:
All glass grating transducers are individually inspected and calibrated by our in-house laser calibrator to ensure accuracy complies 100% with the specifications.

ADVANCED OPTICAL MEASURING SYSTEM:
The slide carrier of the GS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
The glass grating slide-ways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.

D.I.Y. INSTALLATION:
An easy-to-follow D.I.Y. Installation Manual is supplied with each system, complete with illustrations and mounting brackets.

Specifications
