3 Jaw Chucks - Camlock C747

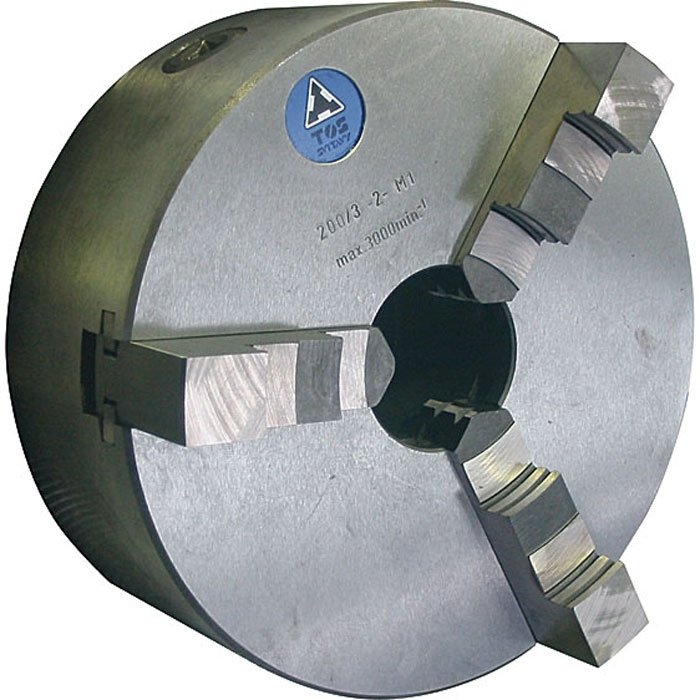

315/ 3-2 - 3 Jaw Self Centring Lathe Chuck

Ø315mm
D1-8 Camlock Mount
C747 1 of 2
Rear View 2 of 2
TOS
Discontinued
Order Code: C747
1 Year Warranty
Sorry, this Product is no longer available
Click Here To View All 3 Jaw Chucks - Camlock
Compare
Wishlist
Print
Description
Description

315/ 3-2 - 3 Jaw Self Centring Lathe Chuck

Ø315mm
D1-8 Camlock Mount
Overview
PLEASE NOTE: Shop Soiled Stock Only

Direct mount design with camlock pins
Manufactured in the Czech Republic
Features
  • The chuck body is manufactured from SG (Spheroidal Graphite) cast iron with the remaining parts manufactured from high strength heat-treated steel. This design feature ensures long service life and maintains high accuracy during use
  • All chucks are supplied with a set of one-piece (IUS type) outside jaws and inside jaws, mounting screws and chuck key
  • Available in two types of mount - Back Plate Mount and Camlock Mount
Includes
  • Outside jaws
  • Inside jaws
  • Chuck key

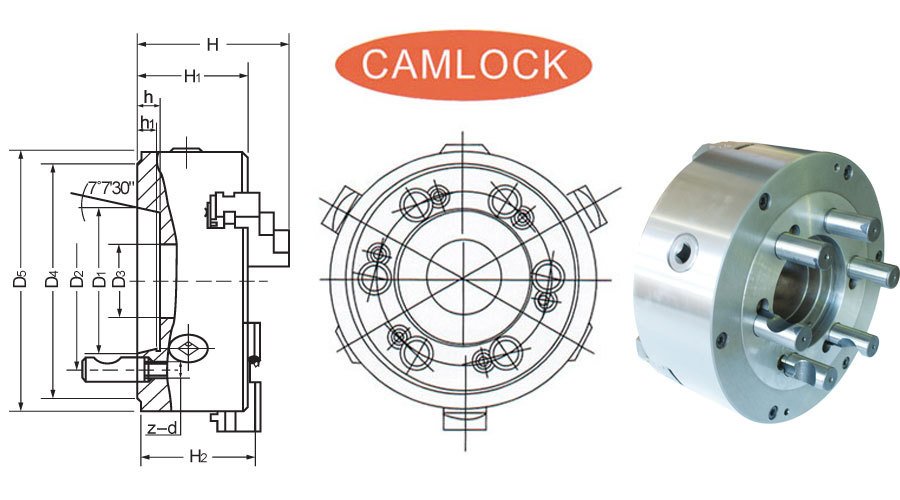

Specifications
Downloads
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • (mm)Chuck Size
  • Camlock
  • (mm)Outside Jaw
  • (mm)Inside Jaw
  • (rpm)Speed
  • (mm)D1
  • (mm)D2
  • (mm)D3
  • (mm)H
  • (mm)H1
  • (mm)h
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • On SaleC260
  • Compare
  • Wishlist
  • C260
  • Ø160
  • D1-4
  • 3 - 55
  • 55 - 145
  • 2500
  • 130
  • 142
  • 40
  • 95
  • 65
  • 5
  • 9
  • $226.36
  • $249.00
  • ADD TO CART
  • On SaleC7064
  • Compare
  • Wishlist
  • C7064
  • Ø160
  • D1-4
  • 3 - 64
  • 50 - 160
  • 3000
  • 63.52
  • 82.6
  • 42
  • 105.5
  • 81.5
  • 13
  • 10
  • $530.00
  • $583.00
  • ADD TO CART
  • On SaleC262
  • Compare
  • Wishlist
  • C262
  • Ø200
  • D1-4
  • 4 - 85
  • 65 - 200
  • 2000
  • 63.52
  • 180
  • 50
  • 109
  • 75
  • 5
  • 18
  • $308.18
  • $339.00
  • ADD TO CART
  • On SaleC2625
  • Compare
  • Wishlist
  • C2625
  • Ø200
  • D1-5
  • 4 - 85
  • 65 - 200
  • 2000
  • 165
  • 104.8
  • 50
  • 109
  • 75
  • 5
  • 18.5
  • $308.18
  • $339.00
  • ADD TO CART
  • On SaleC263
  • Compare
  • Wishlist
  • C263
  • Ø250
  • D1-6
  • 6 - 110
  • 90 - 250
  • 1600
  • 106.3
  • 133.4
  • 80
  • 120
  • 80
  • 5
  • 26
  • $390.00
  • $429.00
  • ADD TO CART
  • On SaleC264
  • Compare
  • Wishlist
  • C264
  • Ø250
  • D1-8
  • 6 - 110
  • 90 - 250
  • 1600
  • 206
  • 226
  • 80
  • 120
  • 80
  • 5
  • 33
  • $444.55
  • $489.00
  • ADD TO CART
  • On SaleC269
  • Compare
  • Wishlist
  • C269
  • Ø315
  • D1-8
  • 11.5 - 165
  • 110 - 320
  • 1200
  • 260
  • 285
  • 100
  • 136
  • 90
  • 6
  • 60
  • $800.00
  • $880.00
  • ADD TO CART
  • DiscontinuedZ01757
  • Compare
  • Wishlist
  • Z01757
  • Ø315
  • D1-8
  • ~
  • ~
  • 1800
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • 50
  • N/A
  • N/A
  • ENQUIRE
  • On SaleC2695
  • Compare
  • Wishlist
  • C2695
  • Ø400
  • D1-8
  • 11.5 - 210
  • 110 - 400
  • 1000
  • 139.72
  • 171.4
  • 130
  • 191.5
  • 118
  • 18
  • 81
  • $1,150.00
  • $1,265.00
  • ADD TO CART
  • On SaleC270
  • Compare
  • Wishlist
  • C270
  • Ø400
  • D1-11
  • 11.5 - 210
  • 110 - 400
  • 1000
  • 196.87
  • 235
  • 135
  • 191.5
  • 118
  • 18
  • 90
  • $1,150.00
  • $1,265.00
  • ADD TO CART
  • On SaleC2706
  • Compare
  • Wishlist
  • C2706
  • Ø500
  • D1-11
  • 11.5 - 210
  • 150 - 500
  • 800
  • 196.87
  • 235
  • 190
  • 222
  • 135
  • 20
  • 155
  • $1,800.00
  • $1,980.00
  • ADD TO CART
  • DiscontinuedC747
  • Compare
  • Wishlist
  • C747
  • Ø315
  • D1-8
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • N/A
  • N/A
  • ENQUIRE
