Lathe Chucks - 4 Jaw - Independant - Camlock C7192

4 Jaw Independent Lathe Chuck - P14-500/D1-11

Ø500mm
D1-11 Camlock Mount
C7192 C7192 1 of 3
Rear View Rear View 2 of 3
Included Accessories Included Accessories 3 of 3
C7192
Rear View
Included Accessories
GATOR
Discontinued
Order Code: C7192
1 Year Warranty
Sorry, this Product is no longer available
Click Here To View All Lathe Chucks - 4 Jaw - Independant - Camlock
Compare
Wishlist
Print
Description
Description

4 Jaw Independent Lathe Chuck - P14-500/D1-11

Ø500mm
D1-11 Camlock Mount
Overview
The "P" series chucks are to German standards and feature jaws that are individually adjustable, allowing firm gripping of odd shaped items. The semi steel chuck has jaws manufactured from hardened high quality alloy steel. Thrust bearings and operating screws made of case hardened steel.
Supplied with CAMLOCK PINS, 1 set of jaws and wrench.
Manufactured to DIN55029
Features
  • German design
Specifications
Downloads
Compare Product Range Compare Selected

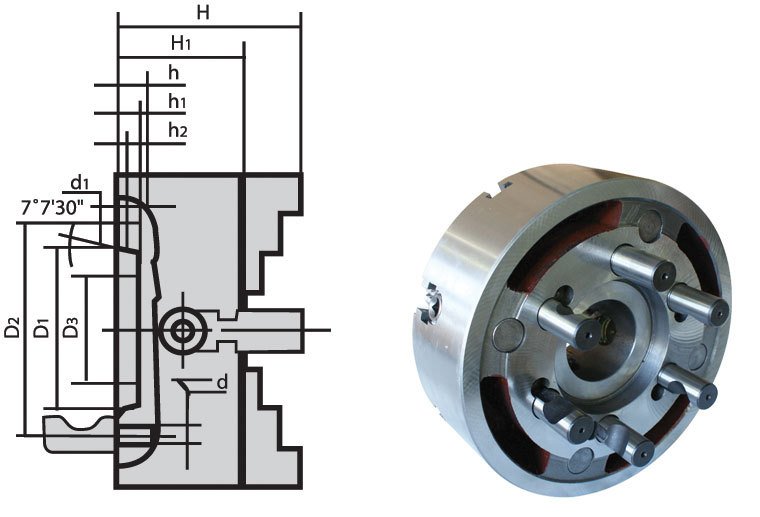

  • 4 Jaw Independent Lathe Chuck - P14-500/D1-11 diagram
  • Compare:
  • Wishlist:
  • ORDER CODE
  • (mm)Chuck Size
  • Camlock
  • (rpm)Speed
  • (mm)D1
  • (mm)D2
  • (mm)D3
  • (mm)H1
  • (mm)h
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • 4 Jaw Independent Lathe Chuck K72-200/D1-4
  • Compare
  • Wishlist
  • C252
  • Ø200
  • D1-4
  • 2000
  • 82.5
  • 104.8
  • 56
  • 75
  • 12
  • 15
  • $260.00
  • $286.00
  • ADD TO CART
  • 4 Jaw Independent Lathe Chuck K72-200/D1-5
  • Compare
  • Wishlist
  • C253
  • Ø200
  • D1-5
  • 2000
  • 82.5
  • 104.8
  • 56
  • 75
  • 12
  • 17.5
  • $260.00
  • $286.00
  • ADD TO CART
  • 4 Jaw Independent Lathe Chuck K72-250/D1-6
  • Compare
  • Wishlist
  • C256
  • Ø250
  • D1-6
  • 1800
  • 106.38
  • 133.4
  • 75
  • 80
  • 13
  • 23
  • $370.00
  • $407.00
  • ADD TO CART
  • 4 Jaw Independent Lathe Chuck K72-320/D1-8
  • Compare
  • Wishlist
  • C256A
  • Ø320
  • D1-8
  • 1200
  • 139.7
  • 171.4
  • 95
  • 90
  • 14
  • 40.5
  • $590.00
  • $649.00
  • ADD TO CART
  • 4 Jaw Independent Lathe Chuck K72-400/D1-8
  • Compare
  • Wishlist
  • C273
  • Ø400
  • D1-8
  • 1000
  • 139.7
  • 171.4
  • 125
  • 95
  • 14
  • 78
  • $850.00
  • $935.00
  • ADD TO CART
  • 4 Jaw Independent Lathe Chuck K72-400/D1-11
  • Compare
  • Wishlist
  • C271
  • Ø400
  • D1-11
  • 1000
  • 196.8
  • 235
  • 125
  • 95
  • 16
  • 72
  • $850.00
  • $935.00
  • ADD TO CART
  • 4 Jaw Independent Lathe Chuck K72-500/D1-11
  • Compare
  • Wishlist
  • C274
  • Ø500
  • D1-11
  • 800
  • 196.8
  • 235
  • 160
  • 106
  • 16
  • 124
  • $1,250.00
  • $1,375.00
  • ADD TO CART
  • 4 Jaw Independent Lathe Chuck K72-630/D1-11
  • Compare
  • Wishlist
  • C275
  • Ø630
  • D1-11
  • 600
  • 196.8
  • 235
  • 180
  • 118
  • 16
  • 216
  • $1,990.00
  • $2,189.00
  • ADD TO CART
  • Discontinued 4 Jaw Independent Lathe Chuck P14-500/D1-11
  • Compare
  • Wishlist
  • C7192
  • Ø500
  • D1-11
  • 500
  • 196.8
  • 235
  • 125
  • 120
  • ~
  • 135
  • N/A
  • N/A
  • ENQUIRE
