C0801 - 3MT Live Centre Extended Point
4500rpm, 350kg Load Capacity
C0801
1 of 1
Discontinued
Order Code: C0801
1 Year Warranty
Description

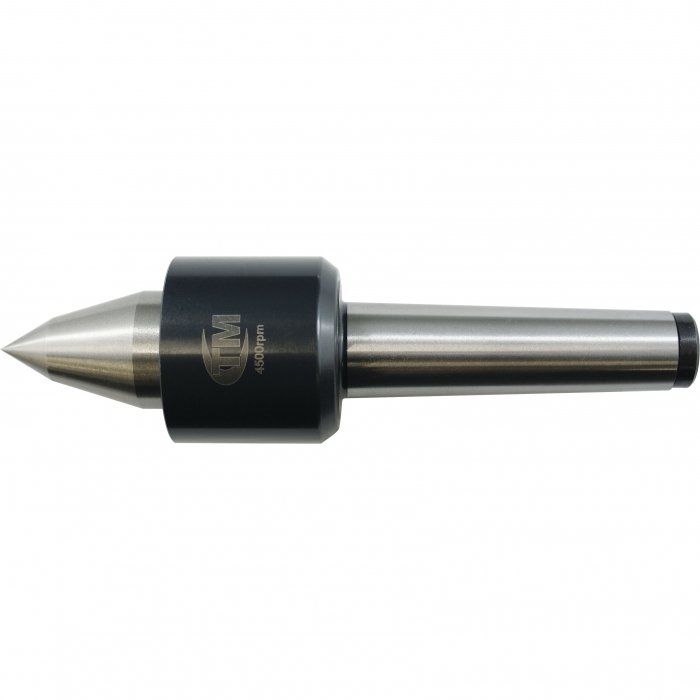

C0801 - 3MT Live Centre Extended Point
4500rpm, 350kg Load Capacity
Overview
Toolmaster live centre's are fitted with needle, thrust and ball bearings suitable for high speed CNC turning with medium to heavy loads.
The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability.
The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability.
Features
- 60º Extended point Angle
- Maximum speed 4500rpm
- Maximum load 350kg
- Accuracy 0.005mm
Compare Product Range
Specifications
| ORDER CODE | C0801 |
|---|---|
| (MT)Taper | 3MT |
| Point Type | Extended |
| (rpm)Maximum Speed | 4500 |
| (kg)Maximum Load Capacity | 350 |

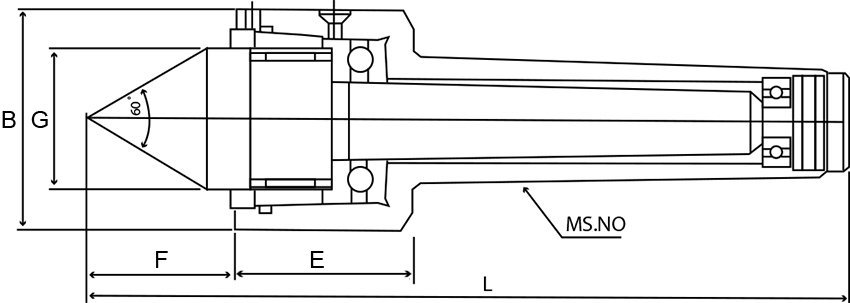

| (deg)Angle θ | 60 |
| (mm)B | 47 |
| (mm)E | 58 |
| (mm)F | 35 |
| (mm)G | 30 |
| (mm)L | 165.5 |
| (kg)Nett Weight | 1 |
