C0741 - 4MT Live Centre Hi-Speed
4000rpm, 1300kg Load Capacity
C0741
1 of 1
Discontinued
Order Code: C0741
1 Year Warranty
Description

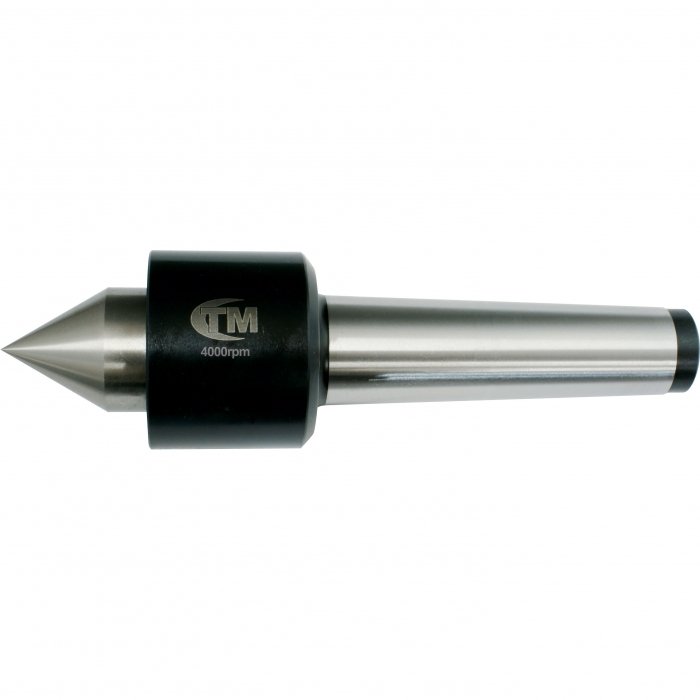

C0741 - 4MT Live Centre Hi-Speed
4000rpm, 1300kg Load Capacity
Overview
Toolmaster live centre's are fitted with needle, thrust and ball bearings suitable for high speed CNC turning with medium to heavy loads.
The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability.
The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability.
Features
- 60º Standard point Angle
- Maximum speed 4000rpm
- Maximum load 1300kg
- Accuracy 0.005mm
Compare Product Range
Specifications
| ORDER CODE | C0741 |
|---|---|
| (MT)Taper | 4MT |
| Point Type | Standard |
| (rpm)Maximum Speed | 4000 |
| (kg)Maximum Load Capacity | 1300 |

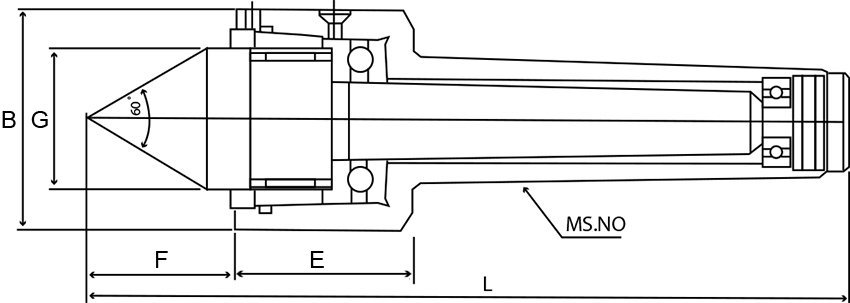

| (mm)B | 55 |
| (mm)E | 46 |
| (mm)F | 43 |
| (mm)G | 35 |
| (mm)L | 198 |
| (kg)Nett Weight | 1.37 |
