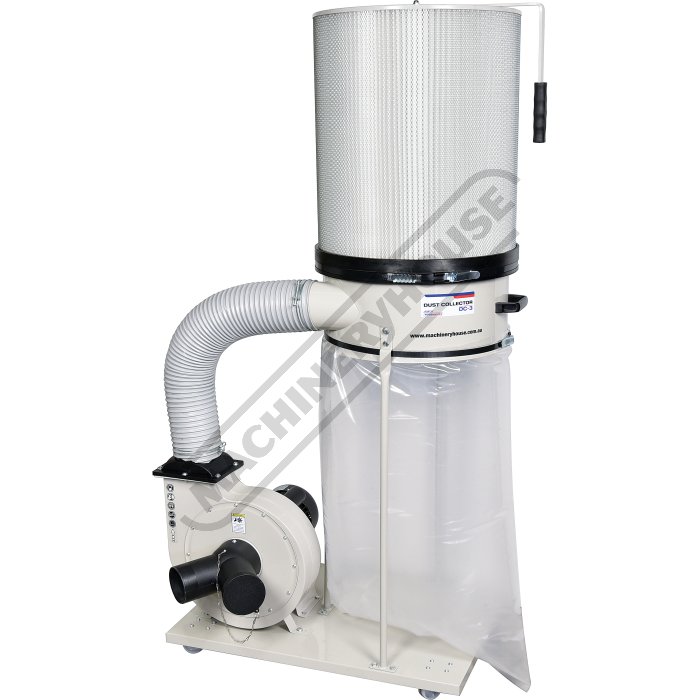

Dust Collector
  • 1 of 15
  • 2 of 15
    Front View
  • 3 of 15
    Left View
  • 4 of 15
    Rear View
  • 5 of 15
    Low View
  • 6 of 15
    100mm Twin Inlets
  • 7 of 15
    Quick Action Clamps Top and Bottom Bags
  • 8 of 15
    Quick Action Clamps
  • 9 of 15
    Bottom Bag Quick Action Clamp
  • 10 of 15
    Top Bag Support Arm
  • 11 of 15
    4 Swivel Wheels
  • 12 of 15
    Push Handle
  • 13 of 15
    Emergency Stop Switch
  • 14 of 15
    On Off Switch
  • 15 of 15
    2hp 240V Motor
Order Code: W394
DC-3 - Dust Collector (240V)
1200cfm - LPHV System
Dust Collector
Airflow (CFM)
LPHV - Low Pressure High Volume (Yes / No)
HPLV - High Pressure Low Volume (Yes / No)
Inlets / Diameter (No. / mm)
2 x Ø100
Motor Power (kW / hp)
1.5 / 2
Voltage (V / amp)
240 / 10
Floor Space (W x D x H) (mm)
1000 x 700 x 1950
Shipping Dimensions (L x W x H) (mm)
910 x 580 x 570
Nett Weight (kg)
LPHV = Low Pressure High Volume System

The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically. The fine filtration efficiency can be improved somewhat by fitting a filter cartridge instead of the bag.
  • 1200cfm air flow suction
  • Portable on wheels
  • Ø100mm twin inlets
  • Quick-action clamps
  • 5 Micron fine filter bag
  • 1.5kW / 2hp 240V motor

Product Brochure
Instruction Manual
1.46 MB
