MD-160A - Stepped Moveable Hardened Jaw - 160mm
#10930160
V35621 of 1
Limited Stock
Order Code: V3562
ex-gst
inc-gst
$
470.00
$
517.00
Only Available From: Sydney (Additional Freight Charges May Apply)
1 Year Warranty
Made in Taiwan
Description
MD-160A - Stepped Moveable Hardened Jaw - 160mm
#10930160
Overview
Additional stepped stationary jaw designed to be used when thin work is to be held.
Features
- Hardened and Ground to HRC52º-55º
- Easy to change
Compare Product Range

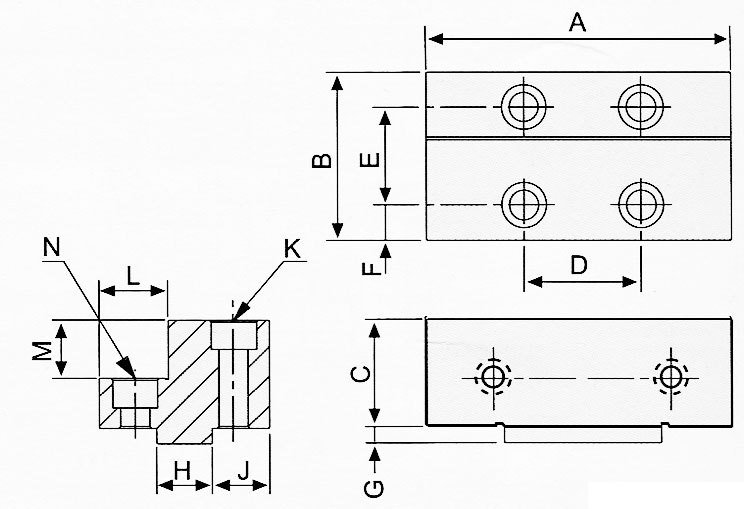

Specifications
| ORDER CODE | V3562 |
|---|---|
| MODEL | MD-160A |
| Type | Step Jaw - Moveable |
| (mm)A | 160 |
| (mm)B | 86 |
| (mm)C | 55 |
| (mm)D | 60 |
| (mm)E | 50 |
| (mm)F | 18 |
| (mm)G | 8.5 |
| (mm)H | 28 |
| (mm)J | 29 |
| (mm)K | M14 x 65 Long |
| (mm)L | 35 |
| (mm)M | 30 |
| (mm)N | M14 x 30 Long |
| (kg)Nett Weight | 4.2 |
- Compare:
- Wishlist:
- ORDER CODE
- MODEL
- Type
- (mm)A
- (mm)B
- (mm)C
- (mm)D
- (mm)E
- (mm)F
- (mm)G
- (mm)H
- (mm)J
- (mm)K
- (mm)L
- (mm)M
- (mm)N
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
- On Sale
-
Compare
-
Wishlist
- V3196
- SJ-100V
- Step Jaws
- 60
- 100
- 22
- 48
- 15
- M10 x 20 Long
- 43
- 5
- ~
- 5
- 10
- ~
- ~
- 3
- $100.00
- $110.00
- ADD TO CART
-
Compare
-
Wishlist
- V3197
- SJ-130V
- Step Jaws
- 90
- 130
- 25
- 55
- 15
- M10 x 20 Long
- 50
- 5
- ~
- 5
- 10
- ~
- ~
- 3
- $230.00
- $253.00
- ADD TO CART
-
Compare
-
Wishlist
- V3202
- PJ-130V
- Standard Jaws
- 90
- 130
- 25
- 55
- 15
- M10 x 20 Long
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 3
- $125.00
- $137.50
- ADD TO CART
-
Compare
-
Wishlist
- V3203
- PJ-160V
- Standard Jaws
- 90
- 160
- 25
- 58
- 15
- M10 x 20 Long
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 4
- $140.00
- $154.00
- ADD TO CART
-
Compare
-
Wishlist
- V3204
- LJ-160V
- End Mount Jaws
- 90
- 160
- 25
- 73
- 23
- M10 x 20 Long
- M14 x 55 Long
- ~
- ~
- ~
- ~
- ~
- ~
- 3
- $250.00
- $275.00
- ADD TO CART
-
Compare
-
Wishlist
- V3218
- LJ-200V
- End Mount Jaws
- 120
- 200
- 28
- 88
- 30
- M12 x 35 Long
- M16 x 65 Long
- ~
- ~
- ~
- ~
- ~
- ~
- 3
- $270.00
- $297.00
- ADD TO CART
-
Compare
-
Wishlist
- V3211
- RJ-130V
- Serrated Jaws
- 90
- 130
- 25
- 55
- 15
- M10 x 20 Long
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 3
- $170.00
- $187.00
- ADD TO CART
-
Compare
-
Wishlist
- V3212
- RJ-160V
- Serrated Jaws
- 90
- 160
- 25
- 58
- 15
- M10 x 20 Long
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 4
- $190.00
- $209.00
- ADD TO CART
-
Compare
-
Wishlist
- V3213
- RJ-200V
- Serrated Jaws
- 120
- 200
- 28
- 63
- 18
- M12 x 25 Long
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 4
- $270.00
- $297.00
- ADD TO CART
-
Compare
-
Wishlist
- V3208
- CJ-160
- Vee Jaw - Single
- 90
- 160
- 25
- 58
- 30
- 55
- 12
- 25
- ~
- ~
- M10 x 16 Long
- ~
- ~
- 3
- $240.00
- $264.00
- ADD TO CART
-
Compare
-
Wishlist
- V3209
- CJ-200
- Vee Jaw - Single
- 120
- 200
- 28
- 63
- 36
- 70
- 12
- 30
- ~
- ~
- M12 x 16 Long
- ~
- ~
- 3
- $270.00
- $297.00
- ADD TO CART
- Limited Stock
-
Compare
-
Wishlist
- V3561
- MC-160A
- Step Jaw - Fixed
- 160
- 86
- 55
- 124
- 50
- 18
- 8
- 28
- 29
- M14 x 65 Long
- 35
- 30
- M14 x 30 Long
- 4.2
- $470.00
- $517.00
- ADD TO CART
- Limited Stock
-
Compare
-
Wishlist
- V3562
- MD-160A
- Step Jaw - Moveable
- 160
- 86
- 55
- 60
- 50
- 18
- 8.5
- 28
- 29
- M14 x 65 Long
- 35
- 30
- M14 x 30 Long
- 4.2
- $470.00
- $517.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- V3581
- MC-200A
- Step Jaw - Fixed
- 200
- 100
- 60
- 150
- 62
- 19
- 9.5
- 28
- 36
- M16 x 70 Long
- 38
- 30
- M16 x 40 Long
- 7
- $180.00
- $198.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- V3582
- MD-200A
- Step Jaw - Moveable
- 200
- 97
- 60
- 74
- 59
- 19
- 9.5
- 28
- 34.5
- M16 x 70 Long
- 38
- 30
- M16 x 40 Long
- 7
- $180.00
- $198.00
- ADD TO CART
