Motorised Plate Curving Rolls - PR-252A
2550 x 2.5mm Mild Steel Capacity
Motorised Up/Down Rear Roll, DRO Control Panel & Initial Pinch Design
S806
1 of 16

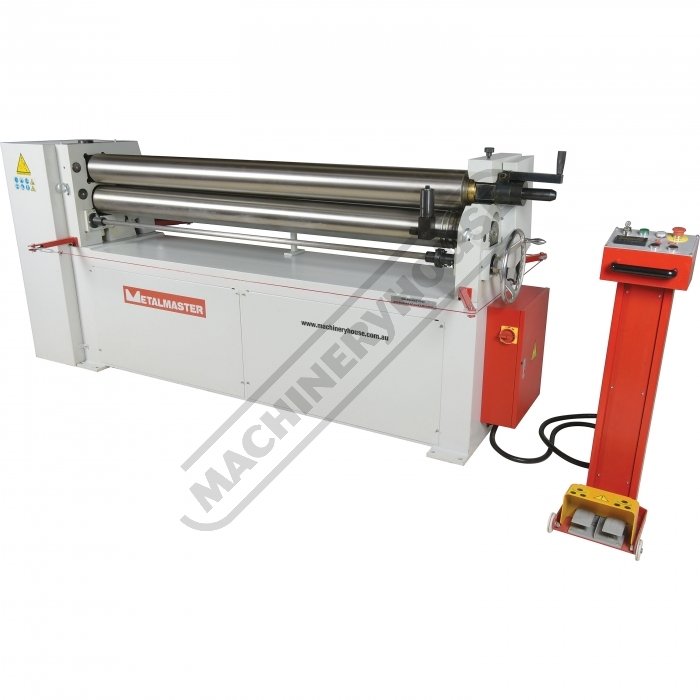

Right View
2 of 16
Rear View
3 of 16

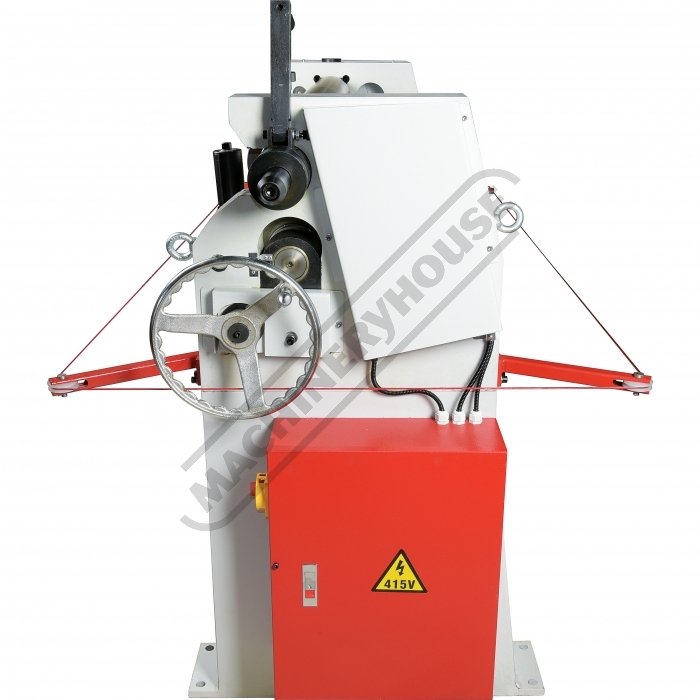

Side View
4 of 16
Swing Out Top Roller Hand Shot
5 of 16
Control Panel
6 of 16
Swing Out Top Roller Handle
7 of 16
Top Swing Out Roller Micro Switch
8 of 16
Hand Wheel For Material Thickness Adjustment
9 of 16
Wire Groove Rolls
10 of 16
Motorised Up and Down Rear Curving Roller Left Side
11 of 16

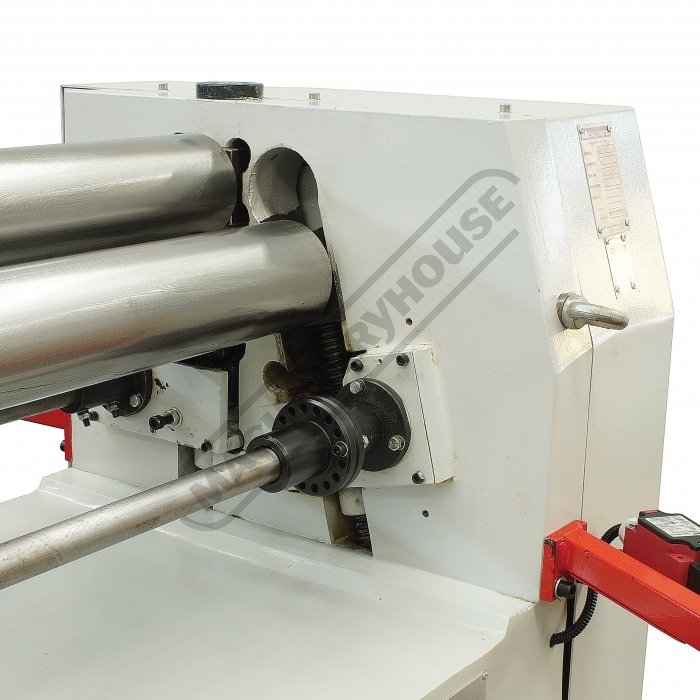

Motorised Up and Down Rear Curving Roller Right Side
12 of 16
Conical Bending Guide Roller
13 of 16
Foot Control
14 of 16
Safety Wire Interlock System
15 of 16
Isolation Switch
16 of 16
Discontinued
Order Code: S806
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Description
Motorised Plate Curving Rolls - PR-252A
2550 x 2.5mm Mild Steel Capacity
Motorised Up/Down Rear Roll, DRO Control Panel & Initial Pinch Design
Features
- Initial pinch rolls with pre-bending
- Motorised up & down rear curving roll enables quick & easy pre-bending
- Digital readout display on rear curving roll position
- Mobile foot pedal control with digital readout display
- Two rolls are powered by reduction gearbox drive system
- Swing out top roller enables cone or cylinder to be removed
- Safety wire interlock system with emergency shut-off
- Rolls include wiring grooves
- Includes a conical bending guide roller
- Mild steel capacity is rated on hot rolled material with 250MPA
Compare Product Range
Specifications
| ORDER CODE | S806 |
|---|---|
| MODEL | PR-252A |
| Curving System Type | Initial Pinch |
| (mm)Curving Material Length | 2550 |
| (mm)Curving Plate Thickness - Mild Steel | 2.5 |
| (mm)Minimum Rolling Diameter | 225 |
| (mm)Roll Diameter | 150 |
| (kW / hp)Motor Power | 2.2 / 3 |
| (V / amp)Voltage / Amperage | 415 |
| (mm)Dimensions (LxWxH) | 3080 x 740 x 1200 |
| (kg)Nett Weight | 1875 |
