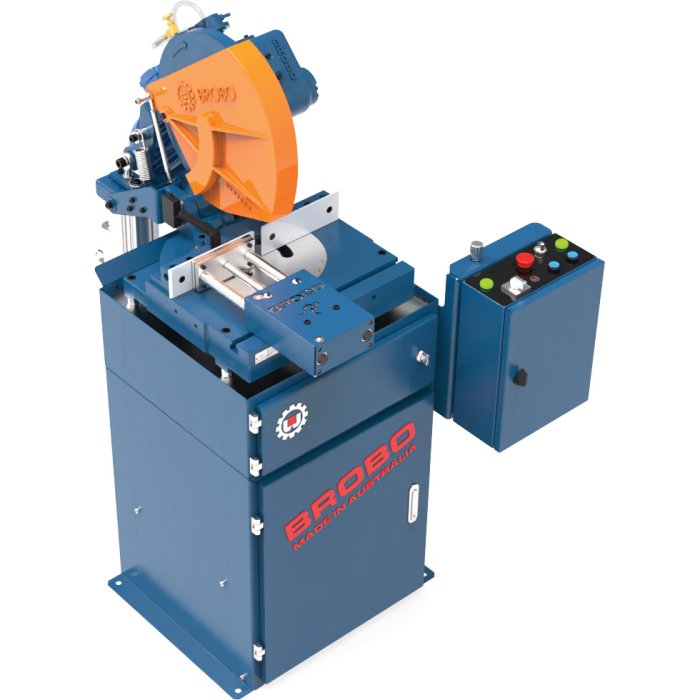

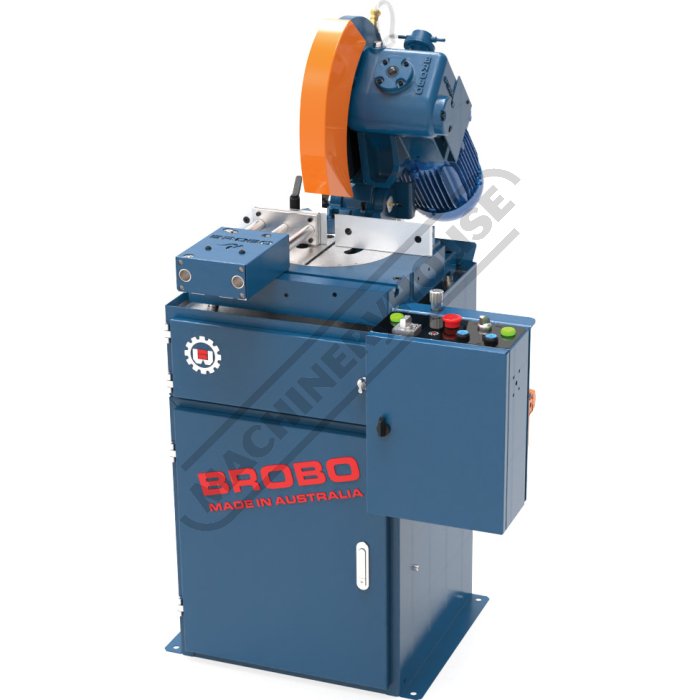

SA400 - Semi-Automatic Ferrous Cutting Cold Saw
135 x 100mm Rectangle Capacity
Ø400mm Blade, Twin Pneumatic Vice Clamps, Variable Blade Speed 20~100rpm
S1201
1 of 2
Order Code: S1201
ex-gst
inc-gst
$
16,900.00
$
18,590.00
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Made in Australia
Description
SA400 - Semi-Automatic Ferrous Cutting Cold Saw
135 x 100mm Rectangle Capacity
Ø400mm Blade, Twin Pneumatic Vice Clamps, Variable Blade Speed 20~100rpm
Overview
Features a smart, computerised actuation motor that alleviates the repetitious cutting process without compromising cutting capabilities and features of the ferrous saw range. With the ability to adjust the speed of the saw blade, this machine is ideal for working with a variety of materials at varying levels of thickness. This allows for clean, precise cuts without the risk of burning or overheating the material, variable speed reduces blade wear, extending the life of the saw blade.
Features
- 20 – 100 RPM Variable Speed
- Mitering locking device stops at 45° left, straight 90°, and 45° right
- Fully integrated coolant system provided on all machines
- Spindle and drive unit immersed in oil solution and enclosed within gearbox housing for smooth performance and reduced machine wear.
- Every unit is provided with a high speed steel blade for general purpose cutting of ferrous solid and tube profiles
- Industrial lead-screw unit incorporated with a smart actuation motor which automates the cutting cycle for the operator
- Smart auto-detect of the cut piece size resulting in shortest stroke possible & fast cut times
- Auto feed speed adjustment through sections of varying thicknesses resulting in minimum blade wear
- Saw overload detection with feed modulation and reverse for safer operation
- Dual Brobo air-pneumatic vice clamps accommodate for a range of metal profiles ferrous solids and tube sections
- Brobolube standard lubricator
Compare Product Range
Specifications
| ORDER CODE | S1201 |
|---|---|
| MODEL | SA400 |
| Cutting Head Action | Semi-Automatic |
| Operation Type | Swivel - Dual Mitre |
| (mm)Round Capacity @ 90º / 45º | 130 / 120 |
| (mm)Square Capacity @ 90º / 45º | 110 / 95 |
| (mm)Rectangle Capacity @ 90º / 45º (WxH) | 135 x 100 / 95 x 100 |
| (mm)Blade Size - Diametre. x Bore (Ø) | 400 x 40 |
| Vice Clamping Fixture | Pneumatic Vices |
| Coolant System | Yes |
| (mm)Table Working Height (with Stand) | 968 |
| (rpm)Blade Speed | Variable 20~100 |
| (kW / hp)Motor Power | 2.2 / 3 |
| (V / amp)Voltage / Amperage | 415 |
| (kg)Nett Weight | 280 |
