34-226 - Dial Bore Gauge
50-160mm
Q226
1 of 1
Order Code: Q226
ex-gst
inc-gst
$
190.00
$
209.00
1 Year Warranty
Description

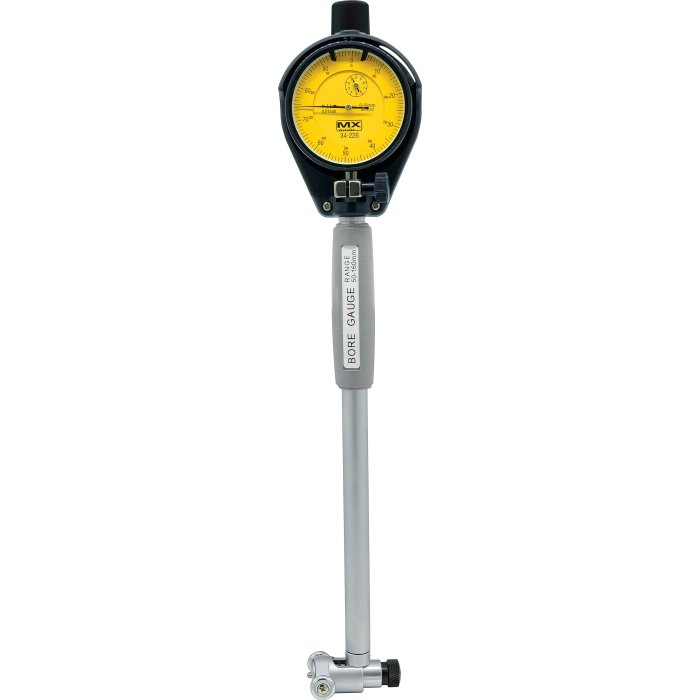

34-226 - Dial Bore Gauge
50-160mm
Features
- Suitable for the inspection of deep internal diameters

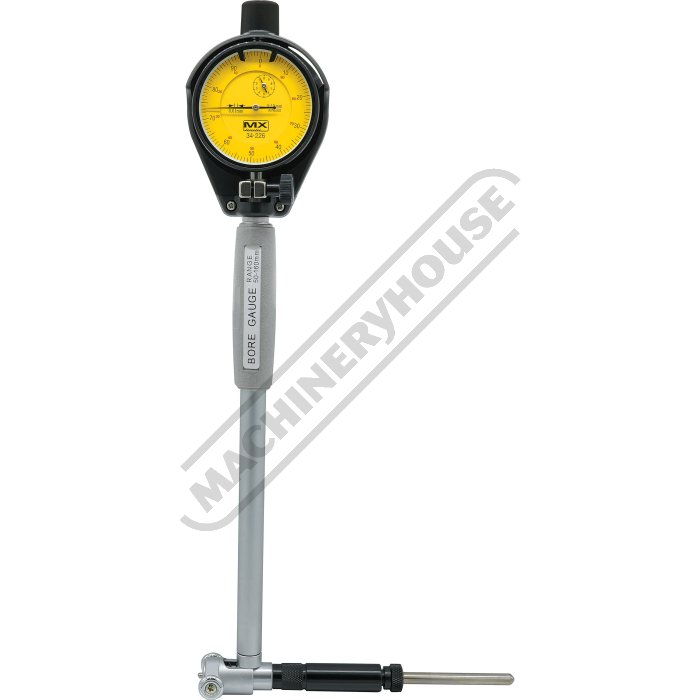

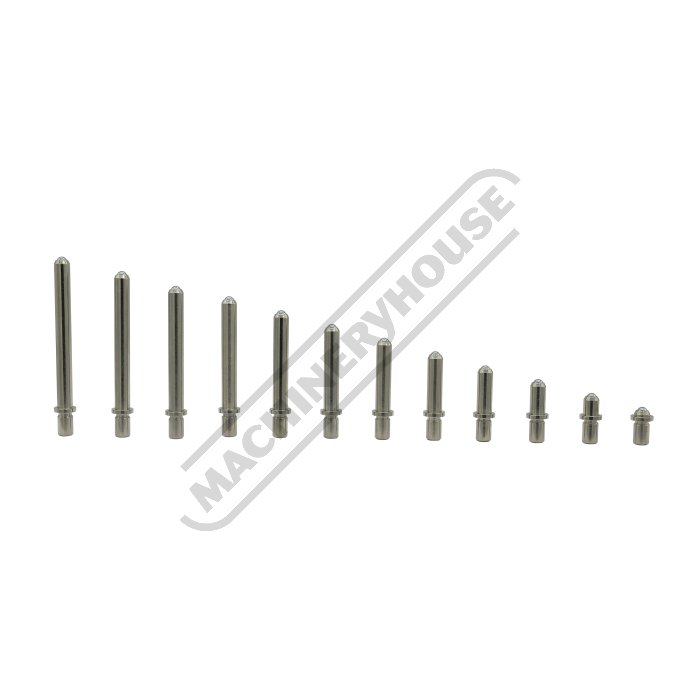

- Moveable anvil on one side with interchangeable insert type anvils on the other side (above 35mm)
- Self aligning mechanism by centering plate
- Easy anvil replacement

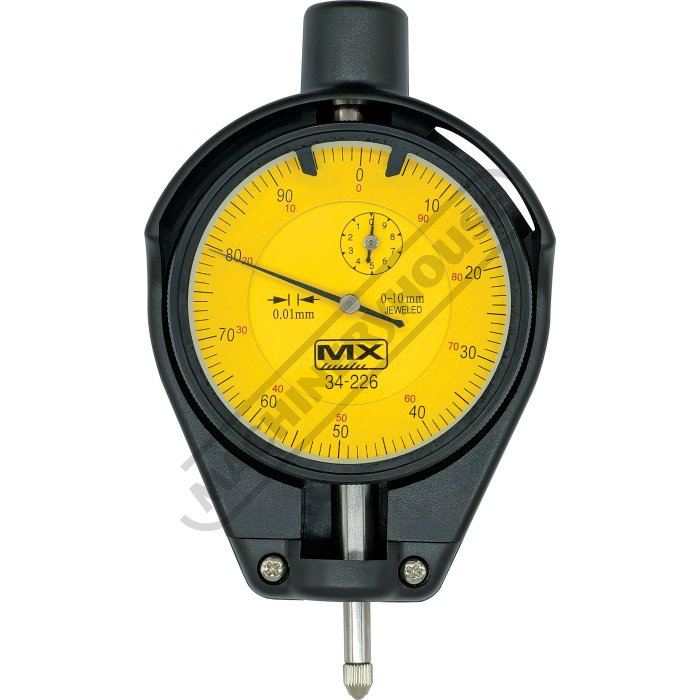

- Dial face cover supplied
- Suits dal indicator stem 8mm
- For imperial reading or data output the 34-220 can be used instead of the dial indicator supplied
Compare Product Range
Specifications
| ORDER CODE | Q226 |
|---|---|
| (mm / inch)Range | 50 - 160mm |
| (mm)Accuracy | 0.01mm |
| (mm / inch)Readable Depth | 150mm |
| (No.)Anvils | 12 |
| (No.)Spacers | 4 |
You may also like
- Compare:
- Wishlist:
- ORDER CODE
- (mm / inch)Range
- (mm)Accuracy
- (mm / inch)Readable Depth
- (No.)Anvils
- (No.)Spacers
- (ex-gst)Pricing
- (inc-gst)
-
Compare
-
Wishlist
- Q226
- 50 - 160mm
- 0.01mm
- 150mm
- 12
- 4
- $190.00
- $209.00
- ADD TO CART
-
Compare
-
Wishlist
- Q2265
- 2 - 6"
- 0.001"
- 6"
- 11
- 4
- $200.00
- $220.00
- ADD TO CART
-
Compare
-
Wishlist
- Q229
- 18 - 35mm
- 0.01mm
- 125mm
- 9
- ~
- $210.00
- $231.00
- ADD TO CART
-
Compare
-
Wishlist
- Q230
- 35 - 50mm
- 0.01mm
- 125mm
- 4
- 4
- $210.00
- $231.00
- ADD TO CART
