Punch & Dies - Shaped P6033

P6033 - 11.2 x 26.2mm Slotted Die

Hi -Grade Tool Steel Imported From Japan

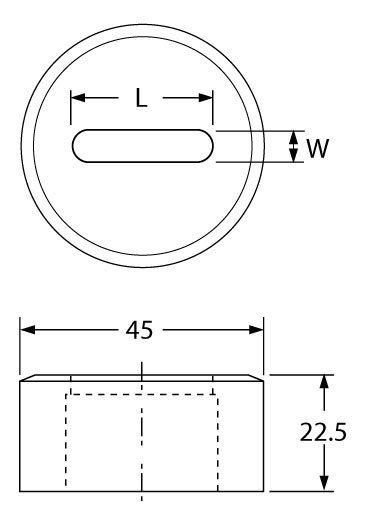

Ø45mm Outside Body Diameter
P6033 1 of 2
Bottom View 2 of 2
SUNRISE
On Sale - Limited Stock
Order Code: P6033
ex-gst
inc-gst
$ 100.00
$ 110.00
$ 80.00
$ 88.00
Only Available From: Melbourne (Additional Freight Charges May Apply)
Made in Taiwan
1
Add to Cart
Enquire
Price Match
Compare
Wishlist
Print
Delivery & Pickup Availabilities
Description
Description

P6033 - 11.2 x 26.2mm Slotted Die

Hi -Grade Tool Steel Imported From Japan
Ø45mm Outside Body Diameter
Overview
Punch and Dies are Manufactured by Sunrise in Taiwan using Hi -Grade Tool Steel imported from Japan.
The manufacturing process involves machining via hi tech CNC machines lathes & mills, vacuum heat treatment with multiple tempering at high temperatures before a final quality inspection/testing process all of which ensures an accurate, precise, durable & stable product.
Features
  • PLEASE NOTE FOLLOWING RECOMMENDATIONS WHEN SELECTING DIE CLEARANCE:

  • Material Thickness - 2 ~ 4mm = Die Clearance 0.2mm
  • Material Thickness - 4 ~ 9.5mm = Die Clearance 0.7mm
  • Material Thickness - 10 ~ 14.5mm = Die Clearance 1.2mm
  • Material Thickness - 15 ~ 19.5mm = Die Clearance 1.7mm
  • Material Thickness - 20 ~ 24mm = Die Clearance 2.2mm
Optional Accessories
  • Please Note: Slotted die requires a Die Adaptor Sleeve (PP705) & Spacer Ring (PP0016) to fit on current Sunrise machines
Specifications
Downloads
You may also like
P6031 - 10 x 25mm Slotted Punch
Hi -Grade Tool Steel Imported From JapanØ30mm Locating Diameter
SUNRISE
Code: P6031
ex-gst
inc-gst
$ 120.00
$ 132.00
Add to Cart
#BS1 - DIE REDUCING BUSH
60MM X 45MMSuits: IW-45M + other models

Code: PP705
ex-gst
inc-gst
$ 84.00
$ 92.40
Add to Cart
#BSR0201A - DIE RING SPACER
10mm x 60mmSuits: + other models

Code: PP0016
ex-gst
inc-gst
$ 36.75
$ 40.43
Add to Cart
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • Shape - Type
  • (mm)Square or Slot Hole Size (W x L)
  • (mm)Punch Locating Diameter x Length
  • (mm)Die Outside Body Diameter x Height
  • (ex-gst)Pricing
  • (inc-gst)
  • P6001
  • Compare
  • Wishlist
  • P6001
  • Square Punch - SP1
  • 8 x 8
  • Ø30 x 70mm
  • ~
  • $100.00
  • $110.00
  • ADD TO CART
  • P6002
  • Compare
  • Wishlist
  • P6002
  • Square Die - SD1
  • 8.7 x 8.7
  • ~
  • Ø45 x 22.5mm
  • $120.00
  • $132.00
  • ADD TO CART
  • P6005
  • Compare
  • Wishlist
  • P6005
  • Slotted Punch - 0P1
  • 8 x 20
  • Ø30 x 70mm
  • ~
  • $120.00
  • $132.00
  • ADD TO CART
  • P6006
  • Compare
  • Wishlist
  • P6006
  • Slotted Die - 0D1
  • 8.7 x 20.7
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • P6011
  • Compare
  • Wishlist
  • P6011
  • Slotted Punch - 0P1
  • 8 x 30
  • Ø30 x 70mm
  • ~
  • $120.00
  • $132.00
  • ADD TO CART
  • P6012
  • Compare
  • Wishlist
  • P6012
  • Slotted Die - 0D1
  • 8.7 x 30.7
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • On Sale - Limited StockP6013
  • Compare
  • Wishlist
  • P6013
  • Slotted Die - 0D2
  • 9.2 x 31.2
  • ~
  • Ø60 x 32mm
  • $103.64
  • $114.00
  • ADD TO CART
  • P6021
  • Compare
  • Wishlist
  • P6021
  • Square Punch - SP1
  • 10 x 10
  • Ø30 x 70mm
  • ~
  • $100.00
  • $110.00
  • ADD TO CART
  • P6022
  • Compare
  • Wishlist
  • P6022
  • Square Die - SD1
  • 10.7 x 10.7
  • ~
  • Ø45 x 22.5mm
  • $120.00
  • $132.00
  • ADD TO CART
  • P6025
  • Compare
  • Wishlist
  • P6025
  • Slotted Punch - 0P1
  • 10 x 20
  • Ø30 x 70mm
  • ~
  • $120.00
  • $132.00
  • ADD TO CART
  • P6026
  • Compare
  • Wishlist
  • P6026
  • Slotted Die - 0D1
  • 10.7 x 20.7
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • P6031
  • Compare
  • Wishlist
  • P6031
  • Slotted Punch - 0P1
  • 10 x 25
  • Ø30 x 70mm
  • ~
  • $120.00
  • $132.00
  • ADD TO CART
  • P6032
  • Compare
  • Wishlist
  • P6032
  • Slotted Die - 0D1
  • 10.7 x 25.7
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • On Sale - Limited StockP6033
  • Compare
  • Wishlist
  • P6033
  • Slotted Die - 0D1
  • 11.2 x 26.2
  • ~
  • Ø45 x 22.5mm
  • $80.00
  • $88.00
  • ADD TO CART
  • Back In Stock SoonP6037
  • Compare
  • Wishlist
  • P6037
  • Slotted Punch - 0P1
  • 10 x 30
  • Ø30 x 70mm
  • ~
  • $120.00
  • $132.00
  • ADD TO CART
  • P6038
  • Compare
  • Wishlist
  • P6038
  • Slotted Die - 0D1
  • 10.7 x 30.7
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • P6039
  • Compare
  • Wishlist
  • P6039
  • Slotted Die - 0D2
  • 11.2 x 31.2
  • ~
  • Ø60 x 32mm
  • Please Call
  • Please Call
  • ADD TO CART
  • P6051
  • Compare
  • Wishlist
  • P6051
  • Square Punch - SP1
  • 12 x 12
  • Ø30 x 70mm
  • ~
  • $100.00
  • $110.00
  • ADD TO CART
  • P6052
  • Compare
  • Wishlist
  • P6052
  • Square Die - SD1
  • 12.7 x 12.7
  • ~
  • Ø45 x 22.5mm
  • $120.00
  • $132.00
  • ADD TO CART
  • On Sale - Limited StockP6057
  • Compare
  • Wishlist
  • P6057
  • Slotted Die - 0D1
  • 13.2 x 17.2
  • ~
  • Ø45 x 22.5mm
  • $80.00
  • $88.00
  • ADD TO CART
  • P6061
  • Compare
  • Wishlist
  • P6061
  • Slotted Punch - 0P1
  • 12 x 20
  • Ø30 x 70mm
  • ~
  • $120.00
  • $132.00
  • ADD TO CART
  • P6062
  • Compare
  • Wishlist
  • P6062
  • Slotted Die - 0D1
  • 12.7 x 20.7
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • P6067
  • Compare
  • Wishlist
  • P6067
  • Slotted Punch - 0P1
  • 12 x 25
  • Ø30 x 70mm
  • ~
  • $120.00
  • $132.00
  • ADD TO CART
  • P6068
  • Compare
  • Wishlist
  • P6068
  • Slotted Die - 0D1
  • 12.7 x 25.7
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • P6073
  • Compare
  • Wishlist
  • P6073
  • Slotted Punch - 0P1
  • 12 x 30
  • Ø30 x 70mm
  • ~
  • $120.00
  • $132.00
  • ADD TO CART
  • P6074
  • Compare
  • Wishlist
  • P6074
  • Slotted Die - 0D1
  • 12.7 x 30.7
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • Special OrderP6075
  • Compare
  • Wishlist
  • P6075
  • Slotted Die - 0D2
  • 13.2 x 31.2
  • ~
  • Ø60 x 32mm
  • $115.00
  • $126.50
  • ADD TO CART
  • P6095
  • Compare
  • Wishlist
  • P6095
  • Slotted Punch - 0P1
  • 14 x 25
  • Ø30 x 70mm
  • ~
  • $120.00
  • $132.00
  • ADD TO CART
  • P6096
  • Compare
  • Wishlist
  • P6096
  • Slotted Die - 0D1
  • 14.7 x 25.7
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • P6097
  • Compare
  • Wishlist
  • P6097
  • Slotted Die - 0D1
  • 15.2 x 26.2
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • P6101
  • Compare
  • Wishlist
  • P6101
  • Slotted Punch - 0P1
  • 14 x 30
  • Ø30 x 70mm
  • ~
  • $120.00
  • $132.00
  • ADD TO CART
  • P6102
  • Compare
  • Wishlist
  • P6102
  • Slotted Die - 0D1
  • 14.7 x 30.7
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • P6103
  • Compare
  • Wishlist
  • P6103
  • Slotted Die - 0D2
  • 15.2 x 31.2
  • ~
  • Ø60 x 32mm
  • $130.00
  • $143.00
  • ADD TO CART
  • P6125
  • Compare
  • Wishlist
  • P6125
  • Slotted Punch - 0P1
  • 16 x 25
  • Ø30 x 70mm
  • ~
  • $120.00
  • $132.00
  • ADD TO CART
  • P6126
  • Compare
  • Wishlist
  • P6126
  • Slotted Die - 0D1
  • 16.7 x 25.7
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • P6127
  • Compare
  • Wishlist
  • P6127
  • Slotted Die - 0D1
  • 17.2 x 26.2
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • P6131
  • Compare
  • Wishlist
  • P6131
  • Slotted Punch - 0P1
  • 16 x 30
  • Ø30 x 70mm
  • ~
  • $120.00
  • $132.00
  • ADD TO CART
  • P6132
  • Compare
  • Wishlist
  • P6132
  • Slotted Die - 0D1
  • 16.7 x 30.7
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • P6133
  • Compare
  • Wishlist
  • P6133
  • Slotted Die - 0D2
  • 17.2 x 31.2
  • ~
  • Ø60 x 32mm
  • $130.00
  • $143.00
  • ADD TO CART
  • P6137
  • Compare
  • Wishlist
  • P6137
  • Slotted Punch - 0P2
  • 16 x 40
  • Ø40 x 70mm
  • ~
  • $150.00
  • $165.00
  • ADD TO CART
  • Back In Stock SoonP6138
  • Compare
  • Wishlist
  • P6138
  • Slotted Die - 0D2
  • 16.7 x 40.7
  • ~
  • Ø60 x 32mm
  • $130.00
  • $143.00
  • ADD TO CART
  • P6139
  • Compare
  • Wishlist
  • P6139
  • Slotted Die - 0D3
  • 17.2 x 41.2
  • ~
  • Ø80 x 40mm
  • $200.00
  • $220.00
  • ADD TO CART
  • P6155
  • Compare
  • Wishlist
  • P6155
  • Slotted Punch - 0P1
  • 18 x 25
  • Ø30 x 70mm
  • ~
  • $120.00
  • $132.00
  • ADD TO CART
  • P6156
  • Compare
  • Wishlist
  • P6156
  • Slotted Die - 0D1
  • 18.7 x 25.7
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • P6157
  • Compare
  • Wishlist
  • P6157
  • Slotted Die - 0D1
  • 19.2 x 26.2
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • P6161
  • Compare
  • Wishlist
  • P6161
  • Slotted Punch - 0P1
  • 18 x 30
  • Ø30 x 70mm
  • ~
  • $120.00
  • $132.00
  • ADD TO CART
  • P6162
  • Compare
  • Wishlist
  • P6162
  • Slotted Die - 0D1
  • 18.7 x 30.7
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • P6163
  • Compare
  • Wishlist
  • P6163
  • Slotted Die - 0D2
  • 19.2 x 31.2
  • ~
  • Ø60 x 32mm
  • $130.00
  • $143.00
  • ADD TO CART
  • P6167
  • Compare
  • Wishlist
  • P6167
  • Slotted Punch - 0P2
  • 18 x 40
  • Ø40 x 70mm
  • ~
  • $150.00
  • $165.00
  • ADD TO CART
  • P6168
  • Compare
  • Wishlist
  • P6168
  • Slotted Die - 0D2
  • 18.7 x 40.7
  • ~
  • Ø60 x 32mm
  • $130.00
  • $143.00
  • ADD TO CART
  • P6169
  • Compare
  • Wishlist
  • P6169
  • Slotted Die - 0D3
  • 19.2 x 41.2
  • ~
  • Ø80 x 40mm
  • $200.00
  • $220.00
  • ADD TO CART
  • P6185
  • Compare
  • Wishlist
  • P6185
  • Slotted Punch - 0P1
  • 20 x 30
  • Ø30 x 70mm
  • ~
  • $120.00
  • $132.00
  • ADD TO CART
  • P6186
  • Compare
  • Wishlist
  • P6186
  • Slotted Die - 0D1
  • 20.7 x 30.7
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • P6187
  • Compare
  • Wishlist
  • P6187
  • Slotted Die - 0D2
  • 21.2 x 31.2
  • ~
  • Ø60 x 32mm
  • $130.00
  • $143.00
  • ADD TO CART
  • P6205
  • Compare
  • Wishlist
  • P6205
  • Slotted Punch - 0P1
  • 22 x 30
  • Ø30 x 70mm
  • ~
  • $120.00
  • $132.00
  • ADD TO CART
  • P6206
  • Compare
  • Wishlist
  • P6206
  • Slotted Die - 0D1
  • 22.7 x 30.7
  • ~
  • Ø45 x 22.5mm
  • $100.00
  • $110.00
  • ADD TO CART
  • P6207
  • Compare
  • Wishlist
  • P6207
  • Slotted Die - 0D2
  • 23.2 x 31.2
  • ~
  • Ø60 x 32mm
  • $130.00
  • $143.00
  • ADD TO CART
  • P6211
  • Compare
  • Wishlist
  • P6211
  • Slotted Punch - 0P2
  • 22 x 40
  • Ø40 x 70mm
  • ~
  • $150.00
  • $165.00
  • ADD TO CART
  • P6212
  • Compare
  • Wishlist
  • P6212
  • Slotted Die - 0D2
  • 22.7 x 40.7
  • ~
  • Ø60 x 32mm
  • $130.00
  • $143.00
  • ADD TO CART
  • Back In Stock SoonP6213
  • Compare
  • Wishlist
  • P6213
  • Slotted Die - 0D3
  • 23.2 x 41.2
  • ~
  • Ø80 x 40mm
  • $200.00
  • $220.00
  • ADD TO CART
Quality Products Guaranteed
Learn more...
Service & Support
Learn more...
Next Day Delivery
Learn more...
Australian Owned since 1930
Learn more...
Instagram Facebook Youtube
Visa Mastercard Paypal Zip

© 2024 Hare & Forbes Pty Ltd. All rights reserved. ABN 96000286957
