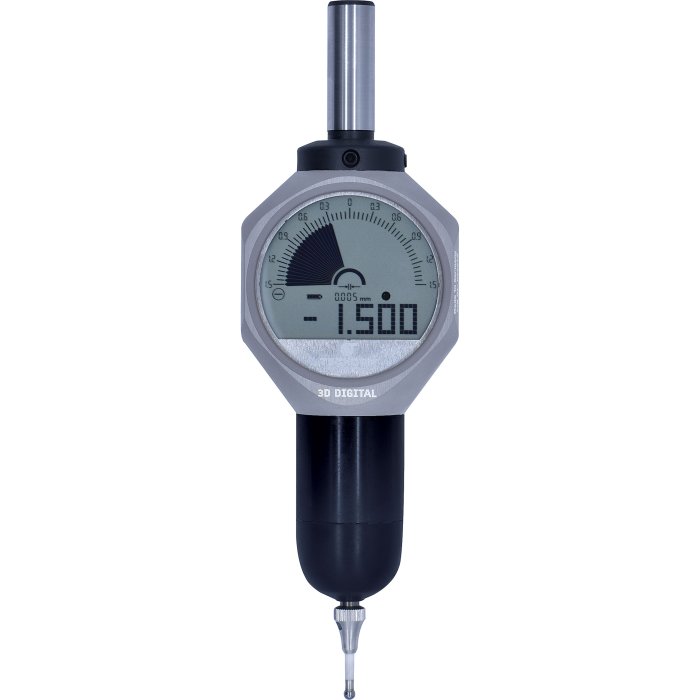

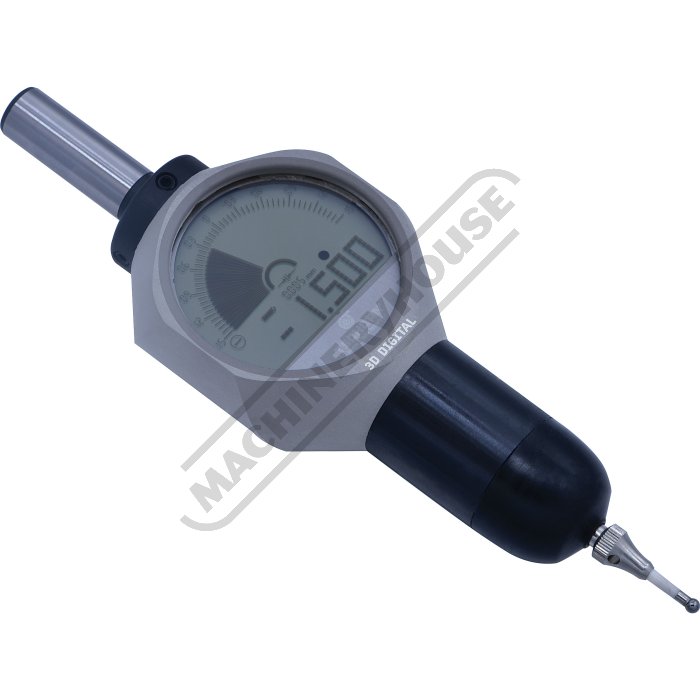

Tschorn Universal 3D Digital Tester - 3D DIGITAL

IP67
Made In Germany
Overview
Digital & analogue on one display!

A real revolution! The groundbreaking new 3D Taster 3D Digital presents itself as a fusion of the best qualities of two worlds by combining both digital and analogue reading. This unique combination opens up completely new dimensions in precision measurement and user-friendliness.

The digital display with its clear numbers enables uncomplicated and precise reading at a glance. This is particularly advantageous when exact values are important. At the same time, however, we know that the eye can have trouble following rapidly changing digital displays. This is where the analogue display of the 3D Digital comes into play: The moving indicator offers visual stability that makes it possible to understand changes precisely and reliably. This ensures that the measurement results can be read reliably in every situation.

In addition to the analogue display, the 3D Tester 3D Digital uses clever LED integration. This LED has different colours to indicate the status of the probing process. A glance at the LED gives instant feedback on the progress of the process, helping to avoid collisions and unwanted defects. This automatic warning by the LED not only protects the workpiece but also the 3D Tester 3D Digital from damage and repairs.

With the 3D Digital, determining workpiece zero points and length dimensions becomes a quick and effortless process in all axis directions (X/Y/Z). Whether you're aligning your workpiece on a mill, lathe, or other machining centre, the precision and ease of use of this probe will help you achieve optimal alignment. This not only saves time, but also ensures the highest quality of your machining results.

Warning: This product contains button or coin batteries which are hazardous if swallowed and are to be kept away from children.
Features
  • Reliable reading thanks to the digital and analog gauge on one screen
  • Repeatability +/- 0,01 mm
  • IP67 waterproof

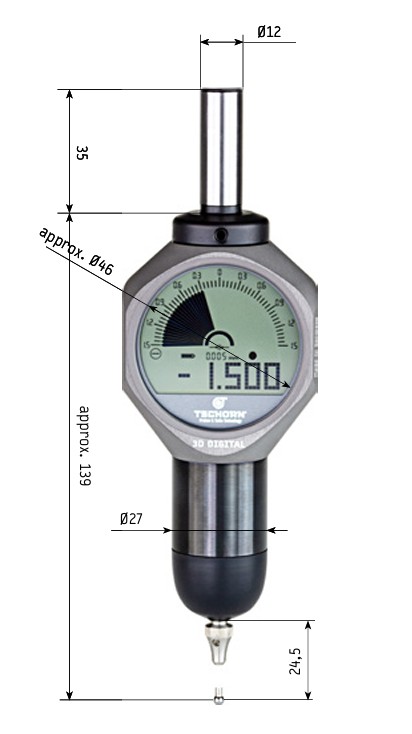

  • Ø12mm Shank
  • 139mm Length without clamping shank
  • Includes serial number and test certificate
  • Automatic switch-off to save battery
Includes
  • Includes CR2450 Lithium battery
Tschorn Universal 3D Digital Tester - 3D DIGITAL overview
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • Type
  • (mm)Accuracy
  • Shank Diameter
  • (mm)Tip Diameter
  • (mm)Length without clamping shank
  • Overall Length
  • (mm)D
  • (mm)d2
  • (mm)L
  • (mm)l1
  • (mm)l2
  • Battery
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • On Sale Centre and Edge Finder
  • Compare
  • Wishlist
  • M692
  • M692
  • Centre & Edge Finder
  • 0.005
  • ~
  • ~
  • ~
  • ~
  • Ø9.52mm ( 3/8")
  • 5
  • 76
  • 21
  • 10
  • ~
  • 0.1kg
  • $13.64
  • $15.00
  • ADD TO CART
  • On Sale Centre and Edge Finder SME-420
  • Compare
  • Wishlist
  • M6925
  • SME-420
  • Centre & Edge Finder
  • 0.005
  • ~
  • ~
  • ~
  • ~
  • 20
  • 10
  • 88
  • ~
  • 8
  • ~
  • 0.05kg
  • $33.64
  • $37.00
  • ADD TO CART
  • On Sale Touch Point Sensor TPS-20
  • Compare
  • Wishlist
  • M690
  • TPS-20
  • Touch Point Sensor
  • 0.005
  • ~
  • ~
  • ~
  • ~
  • 20
  • 10
  • 156
  • 76
  • 32
  • A23
  • 0.3kg
  • $71.82
  • $79.00
  • ADD TO CART
  • On Sale - New Release MX-3DT - Universal 3D Tester 52-530
  • Compare
  • Wishlist
  • Q530
  • MX-3DT
  • Universal 3D Tester
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • 1.5kg
  • $544.55
  • $599.00
  • ADD TO CART
  • On Sale - New Release Tschorn Universal 3D Digital Tester 3D DIGITAL
  • Compare
  • Wishlist
  • M6955
  • 3D Digital
  • 3D Tester
  • 0.01
  • 12
  • Ø3
  • 139
  • 174
  • ~
  • ~
  • ~
  • ~
  • ~
  • CR2450
  • 0.5kg
  • $790.00
  • $869.00
  • ADD TO CART

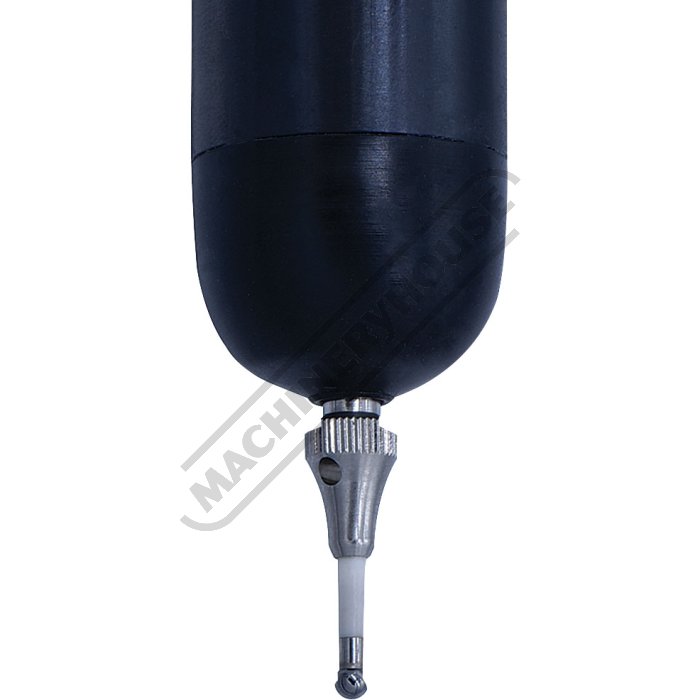

  • On Sale 3D Tester Replacement Probe Tip - Ceramic Stem
  • Compare
  • Wishlist
  • M695A
  • TM-3DT
  • Stylus - Standard Tip
  • ~
  • ~
  • Ø3
  • ~
  • 27
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • $63.64
  • $70.00
  • ADD TO CART
  • On Sale 3D Tester Replacement Probe Tip - Ceramic Stem
  • Compare
  • Wishlist
  • M695B
  • TM-3DT
  • Stylus - Extended Tip
  • ~
  • ~
  • Ø6
  • ~
  • 62
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • $90.00
  • $99.00
  • ADD TO CART
  • On Sale - New Release 3D Tester Replacement Probe Tip - Special
  • Compare
  • Wishlist
  • M695C
  • ~
  • Special Tip
  • ~
  • ~
  • Ø56
  • ~
  • 62
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • $317.27
  • $349.00
  • ADD TO CART
  • On Sale HAIMER Universal 3D Tester EL-3D
  • Compare
  • Wishlist
  • M694
  • EL-3D
  • 3D Taster
  • 0.01
  • 20
  • Ø4
  • 113
  • 163
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • 1.24kg
  • $990.00
  • $1,089.00
  • ADD TO CART
  • On Sale Replacement Stylus - 27.5mm Standard Tip EL-3D
  • Compare
  • Wishlist
  • M694B
  • EL-3D
  • Stylus - Standard Tip
  • ~
  • ~
  • Ø4
  • ~
  • 27.5
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • $99.09
  • $109.00
  • ADD TO CART
