Order Code: L78122

Please Call
1 Year Warranty
Description

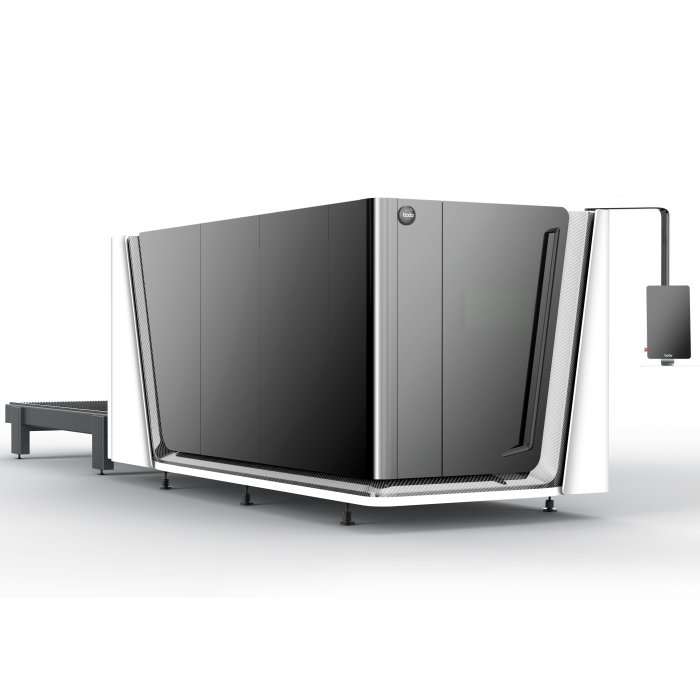

BODOR C3 CE 12kW - Sheet Fiber Laser Cutting

3048 x 1524mm Table
Includes Automatic Sheet Exchange Tables
Overview
The Bodor C series brings a new level of productivity to the field of metal processing. Designed for high efficiency and cost-effectiveness, it meets the demands of modern production. Its advanced technology combined with economic benefits offers an ideal cutting solution for businesses of all sizes, excelling in precision, speed, and cost control. Durable construction and advanced materials extend the machine's life, reducing repair and maintenance costs.Its comprehensive design and laser protective glass ensure maximum safety for operators.
C series is fast and cost-effective, making it an essential tool for metal cutting in various industries.
Features
  • Visual collision avoidance - Our intelligent visual collision avoidance technology is able to detect motions and signal warnings to prevent possible collisions. You can select either high or low sensitivity modes to ensure operator's safety, no longer worrying about safety issues
  • Active obstacle avoidance system - BodorGenius, Bodor’s intelligent laser head, uses sensors and algorithms to detect potential obstacles like tilting parts and automatically avoids a potential collision. It largely ensures the stability as well as operating efficiency in the cutting process.
  • One-click processing Set - up your tasks ahead of time and let C series do the rest. Once the operation begins, C series will automatically complete edge searching, range checking, and cutting one after another. With C series, you can finish batch production easily without any repetitive procedures.
  • Anti-burning mineral casting - Bodor's newly developed anti-burning casting material provides numerous advantages in slag removal, operations, and modular design. When in use, material residue automatically separates from the anti-burning plate, largely lowering maintenance costs and offering better durability. Its lightweight structure as well makes it easy to replace.
  • Lightning piercing - The technology offers rapid, precise piercing with reduced time. It features monitored processes for efficiency, automatic focus adjustment for seamless piercing, and integration with Bodor Genius. This enables quick piercing in sync with the cutting head's movement, optimizing operations for medium-thick plates without additional time or motion.
  • Intelligent remnant layout - To achieve maximum material utilization, all you need to do is uploading pictures of the remnant to the control system with your mobile phone. C series is able to automatically finish positioning as well as nesting. The higher the percentage of utilization, the more economical the process. Enjoy the benefits of significantly increased cost savings.
  • Auto Focus - Applicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.
  • Nesting software - Auto nest up to 50 individual parts, ensuring maximum efficiency and less waste.
Includes
  • Bodor’s Genius: cutting head with programmable motorised lens and Collision Protection
  • Bodor Power: is the backbone of any laser cutting system, and BodorPower takes it to the next level. This original laser source is the key to Bodor’s high power processing (up to 60kW). It ensures longer lifespans, safer operations, and superior cutting results of every Bodor cutting machine.
  • BodorThinker: serves as the intelligent core of Bodor’s laser cutting solutions. This control system integrates seamlessly with MES and ERP systems, facilitating automated production process management and information exchange through standardised communication protocols.
  • Full Class one laser safety enclosure with door interlocks
  • Cutting view camera
  • 21" LCD Touch screen
  • Local Service and Support
  • Oxygen & Nitrogen Regulators with hoses
  • *12 month warranty on machine parts & labor
  • Commissioning & Testing Included (Metro Areas)
  • Comprehensive Operator Training Included (Metro Areas)
  • *Five year factory warranty on - Bodor Thinker Control System, Bodor Power Laser Source, Bodor Genius Laser Head.
Optional Accessories
  • MMF-6L - Laser Fume Extraction 7.5kW (W2724)
  • Laser Scanning Cutting
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • (Type)MODEL
  • (kW)Laser Power
  • (mm)Cutting Table Capacity
  • Tube Size Range
  • (G)Max acceleration
  • (mm)Positioning accuracy
  • (mm)Repeatability
  • (m/min)Compound Rapid speed
  • Laser Type
  • Laser Source
  • Laser Head
  • Control System
  • Transfer Table - Motorised
  • (kg)Max. Load Capacity Per Table
  • Active Obstacle Avoidance
  • One-Click Processing
  • Visual Collision Avoidance
  • Intelligent Remnant Layout
  • Lightning Piercing
  • High Speed Cutting Expert Database
  • Auto Focus Laser Head
  • Automatic Nozzle Change
  • Anti-Burning Mineral Casting Plate
  • Nesting Software
  • (Type)Drawing File
  • Bevel Cutting
  • (kg)Nett Weight
  • (mm)Machine Size
  • (ex-gst)Pricing
  • (inc-gst)
  • L78120
  • Compare
  • Wishlist
  • L78120
  • C Series C3-3kW
  • 3
  • 3048 x 1524
  • ~
  • 1.5
  • ±0.05
  • ±0.03
  • 110
  • Fiber Laser
  • BodorPower
  • BodorGenius
  • BodorThinker
  • Yes
  • 911
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • No
  • Yes
  • Yes -Compatible with Tekla
  • G Code, DXF, DWG
  • No
  • 4800
  • 9392 x 2232 x 2307
  • $127,950.00
  • $140,745.00
  • ADD TO CART
  • L78121
  • Compare
  • Wishlist
  • L78121
  • C series C3-6kW
  • 6
  • 3048 x 1524
  • ~
  • 1.5
  • ±0.05
  • ±0.03
  • 110
  • Fiber Laser
  • BodorPower
  • BodorGenius
  • BodorThinker
  • Yes
  • 911
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • No
  • Yes
  • Yes -Compatible with Tekla
  • G Code, DXF ,DWG
  • No
  • 4800
  • 9392 x 2232 x 2307
  • $148,450.00
  • $163,295.00
  • ADD TO CART
  • L78122
  • Compare
  • Wishlist
  • L78122
  • C series C3-12kW
  • 12
  • 3048 x 1524
  • ~
  • 1.5
  • ±0.05
  • ±0.03
  • 110
  • Fiber Laser
  • BodorPower
  • BodorGenius
  • BodorThinker
  • Yes
  • 1095
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • No
  • Yes
  • Yes -Compatible with Tekla
  • G Code, DXF ,DWG
  • No
  • 4800
  • 9392 x 2232 x 2307
  • Please Call
  • Please Call
  • ADD TO CART
  • L78140
  • Compare
  • Wishlist
  • L78140
  • C Series C4-3kW
  • 3
  • 4000 x 2000
  • ~
  • 1.5
  • ±0.05
  • ±0.03
  • 110
  • Fiber Laser
  • BodorPower
  • BodorGenius
  • BodorThinker
  • Yes
  • 1570
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • No
  • Yes
  • Yes -Compatible with Tekla
  • G Code, DXF, DWG
  • No
  • 7400
  • 11388 x 3235 x 2311
  • Please Call
  • Please Call
  • ADD TO CART
  • L78141
  • Compare
  • Wishlist
  • L78141
  • C Series C4-6kW
  • 6
  • 4000 x 2000
  • ~
  • 1.5
  • ±0.05
  • ±0.03
  • 110
  • Fiber Laser
  • BodorPower
  • BodorGenius
  • BodorThinker
  • Yes
  • 1570
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • No
  • Yes
  • Yes -Compatible with Tekla
  • G Code, DXF, DWG
  • No
  • 7400
  • 11388 x 3235 x 2311
  • Please Call
  • Please Call
  • ADD TO CART
  • L78142
  • Compare
  • Wishlist
  • L78142
  • C Series C4-12kW
  • 12
  • 4000 x 2000
  • ~
  • 1.5
  • ±0.05
  • ±0.03
  • 110
  • Fiber Laser
  • BodorPower
  • BodorGenius
  • BodorThinker
  • Yes
  • 1886
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • No
  • Yes
  • Yes -Compatible with Tekla
  • G Code, DXF, DWG
  • No
  • 7400
  • 11388 x 3235 x 2311
  • Please Call
  • Please Call
  • ADD TO CART
  • L78161
  • Compare
  • Wishlist
  • L78161
  • C Series C6-6kW
  • 6
  • 6100 x 2500
  • ~
  • 1.5
  • ±0.05
  • ±0.03
  • 110
  • Fiber Laser
  • BodorPower
  • BodorGenius
  • BodorThinker
  • Yes
  • 2995
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • No
  • Yes
  • Yes -Compatible with Tekla
  • G Code, DXF, DWG
  • No
  • 13500
  • 15500 x 3880 x 2440mm
  • Please Call
  • Please Call
  • ADD TO CART
  • L78162
  • Compare
  • Wishlist
  • L78162
  • C Series C6-12kW
  • 12
  • 6100 x 2500
  • ~
  • 1.5
  • ±0.05
  • ±0.03
  • 110
  • Fiber Laser
  • BodorPower
  • BodorGenius
  • BodorThinker
  • Yes
  • 3595
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • No
  • Yes
  • Yes -Compatible with Tekla
  • G Code, DXF, DWG
  • No
  • 13500
  • 15500 x 3880 x 2440mm
  • Please Call
  • Please Call
  • ADD TO CART
