Description

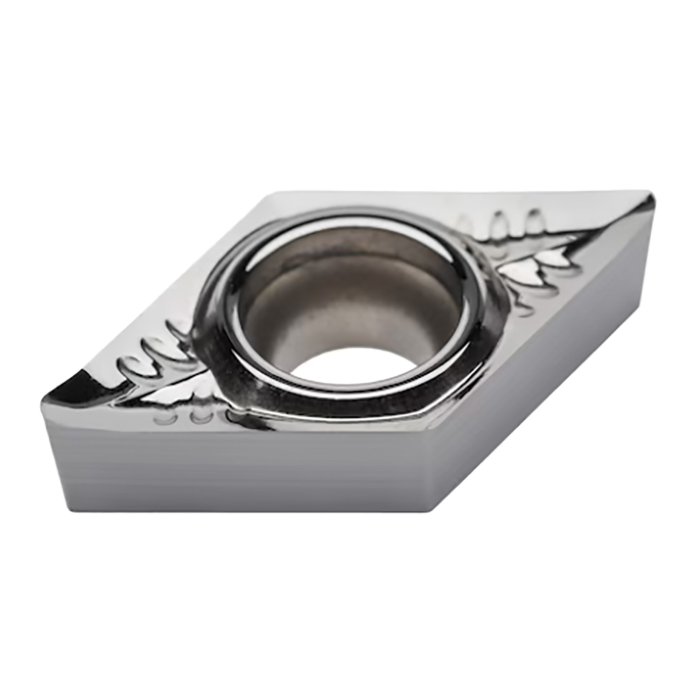

ALUMINIUM Insert - Turning - DCGT 070202 AK H01

Grade H01 - Aluminium

10 Inserts Per Pack

Overview

H01 Grade - Aluminium

The H01 AK insert is designed for high-performance machining of aluminium and other non-ferrous materials. Its premium PVD-coated carbide grade provides excellent wear resistance, smooth chip flow and superior surface finishes. Ideal for roughing, semi-finishing and finishing operations, it also performs well on nylon and plastics.

The "AK" indicates a high-positive, light-feed chipbreaker designed to achieve excellent finishes and prevent built-up edges.

Insert is used on our L670 Micro Lathe

Features

Exceptional quality and precision.
Premium PVD-coated insert on a highly deformation-resistant unalloyed substrate for extended tool life.
Optimised high-positive cutting geometry ensures smooth cutting action, reduced cutting forces and excellent chip control
Specifically designed for high-performance turning of aluminium. Also suitable for machining nylon, plastics and timber
Supplied in a pack of x 10 inserts

Specifications

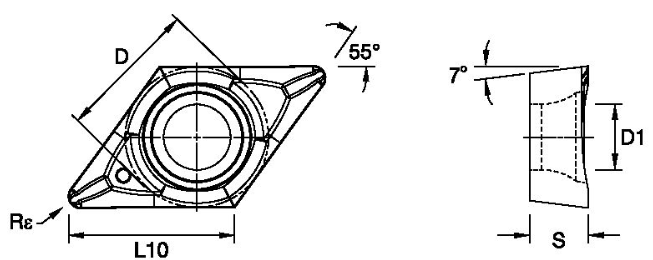

Enlarge Diagram Compare Product Range

Specifications

ORDER CODE	L6701
MODEL	DCGT 070202 AK
Grade	H01
Application	Aluminium
(Qty)Pieces in Set	10
(mm)[D] Insert IC Size (Inscribed Circle)	6.35
(mm)[D1] Insert Hole Size	2.8
(mm)[L10] Insert Cutting Edge Length	7.7
(mm)[S] Insert Thickness	2.38
(mm)[Rε] Corner Radius	0.2
(Deg)Relief Angle	7°
(Style)Insert shape	Rhombic Diamond
