Description

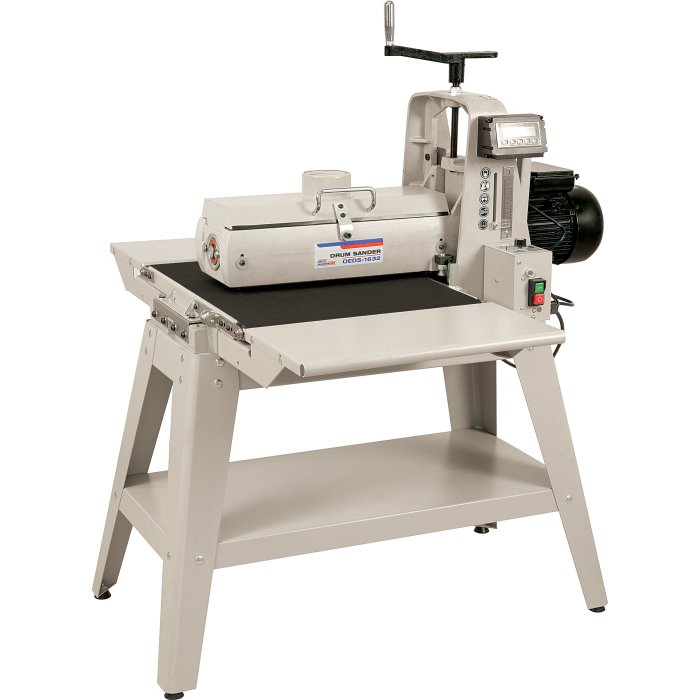

Open End Drum Sander - OEDS-1632

406mm Single Pass & 812mm Double Pass Capacity

Includes Stand

Overview

This heavy-duty Open End Drum Sander is designed for accurate, consistent sanding of timber panels and boards. The open-ended design allows workpieces up to 812mm wide to be sanded in two passes, while the rigid cast iron frame ensures stability and parallel sanding.

Powered by a 1.5hp induction motor, the dynamically balanced aluminium sanding drum delivers smooth operation and effective heat dissipation. A variable speed conveyor belt and digital height display provide precise control over the sanding process.

Features

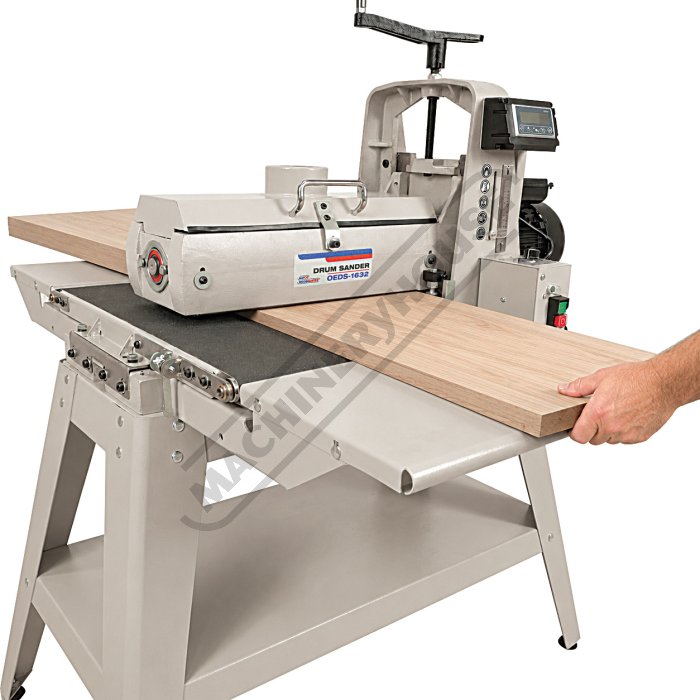

Open-ended design allows sanding up to 812mm wide in two passes

Adjustable sanding thickness from 1mm to 100mm

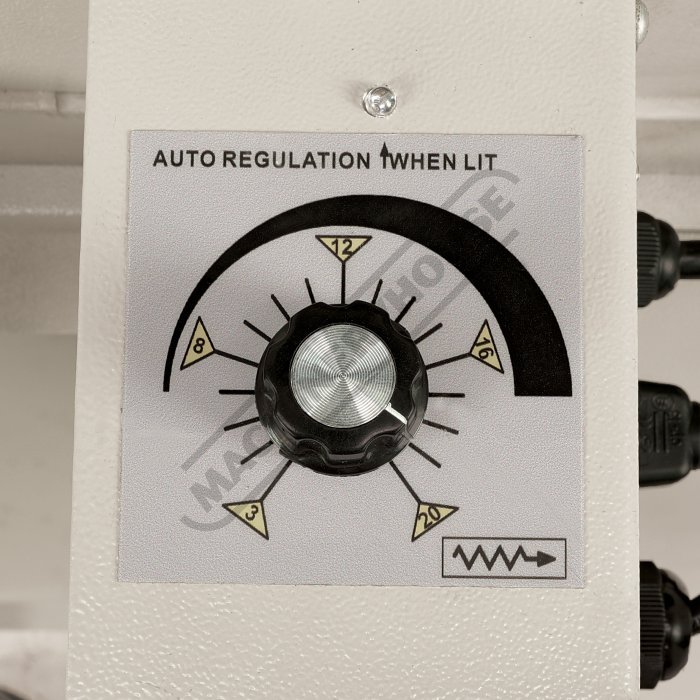

Variable speed conveyor belt for controlled feeding

Rigid cast iron frame for accurate, parallel sanding

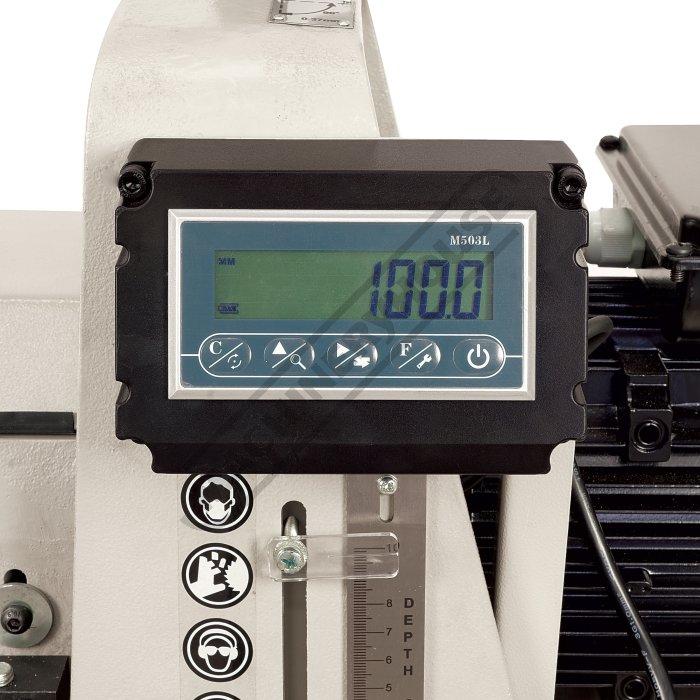

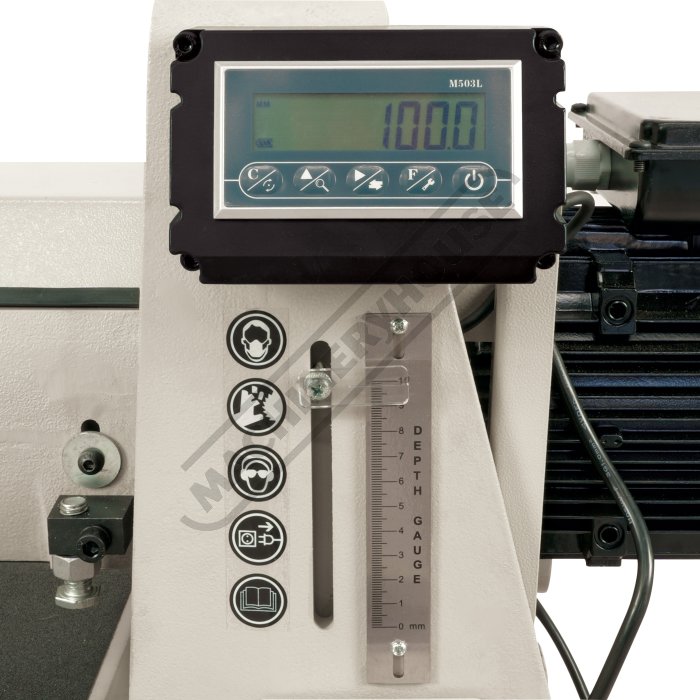

Digital height display for precise adjustment

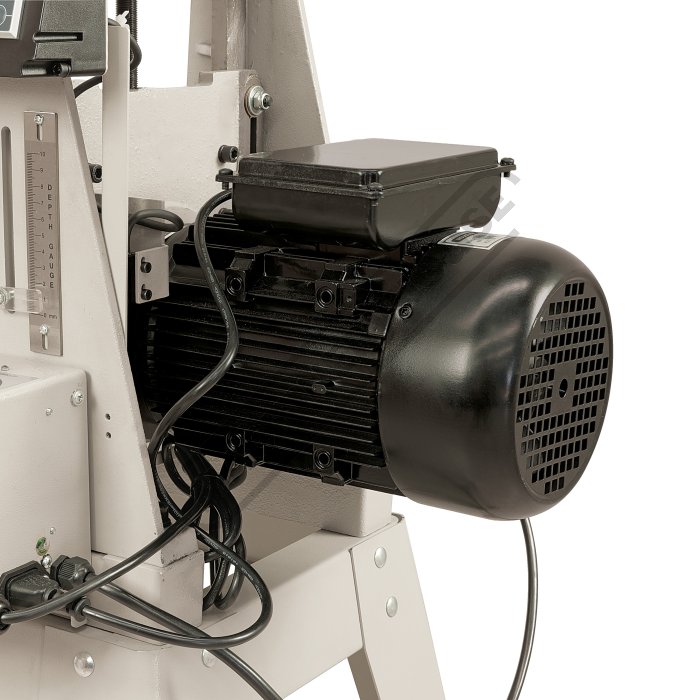

Powerful 1.5hp induction motor

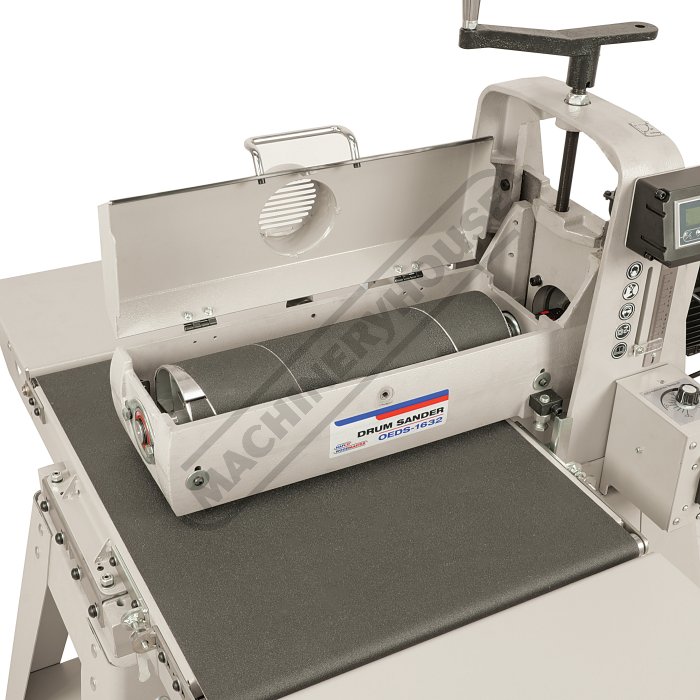

Dynamically balanced extruded aluminium drum for smooth operation and heat dissipation

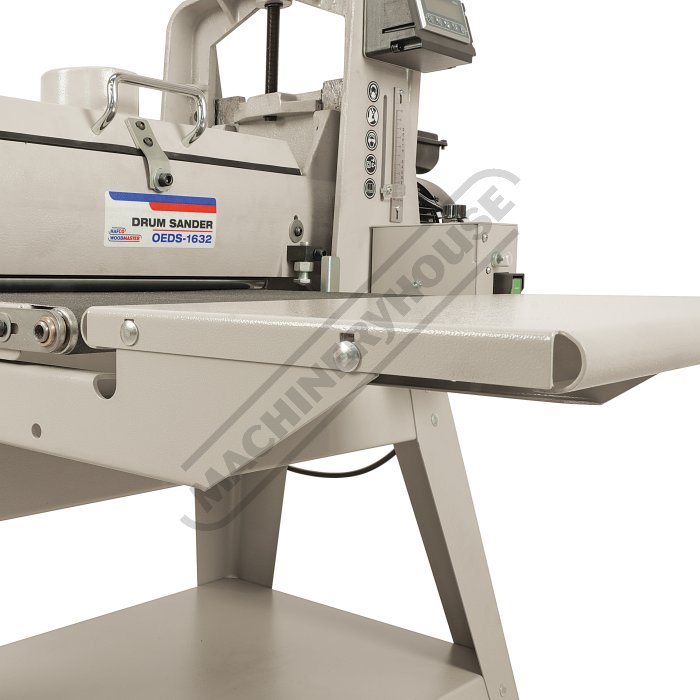

In-feed and out-feed extensions included

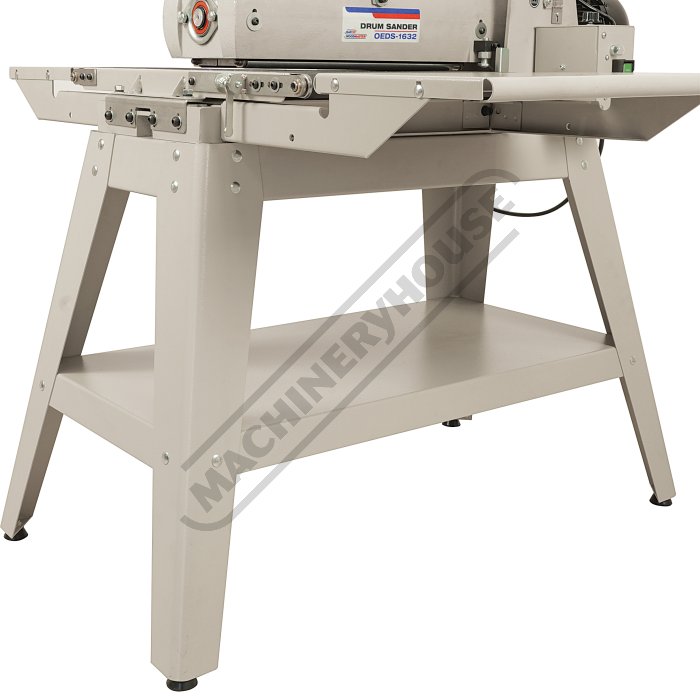

Robust open-leg steel stand supplied as standard

Specifications

Compare Product Range

Specifications

ORDER CODE	L126
MODEL	OEDS-1632
(m/min)Variable Table Feed Speed	0-3
(rpm)Sanding Drum Speed	1245
(mm)Belt Size	1920 x 97
(mm)Drum Diameter	125
(mm)Drum Length	406
(mm)Maximum Material Width	812
(mm)Maximum Material Thickness	100
(mm)Minimum Material Thickness	0.8
(Qty x mm)Dust Collector Port Diameter	1 x 100
(kW / hp)Feed Motor Power	120W / ~
(kW / hp)Motor Power	1.1 / 1.5
(V / amp)Voltage / Amperage	240

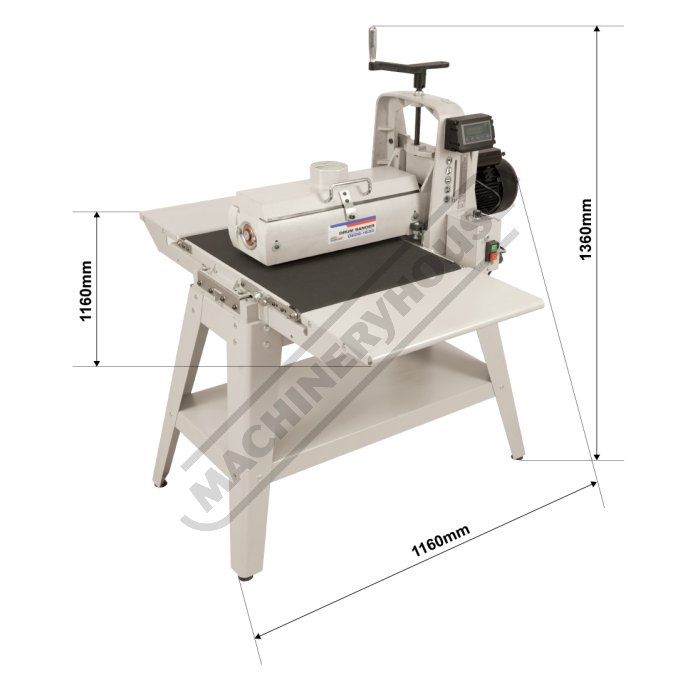

(mm)Floor Space (W x D x H)	1160 x 1160 x 1360
(kg)Nett Weight	131
