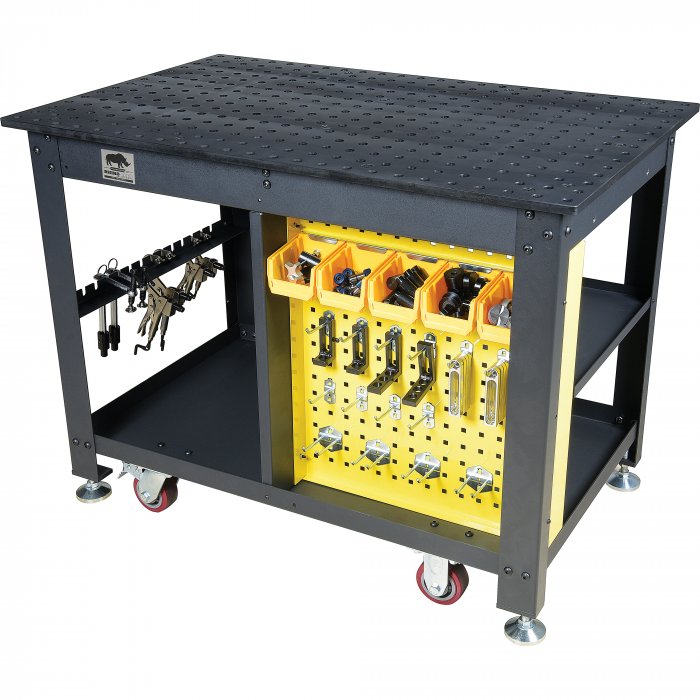

The Rhino Cart Mobile Fixturing Station (W07705) 2 of 47

TDQ612075-K1 - Rhino Cart Mobile Fixturing Station (W07705) 3 of 47

The Rhino Cart - Ball Lock Bolts (W07705) 4 of 47

The Rhino Cart - Locating Pins (W07705) 5 of 47

The Rhino Cart - Inserta Pliers (W07705) 6 of 47

The Rhino Cart - Inserta Pliers with V Pad (W07705) 7 of 47

The Rhino Cart - Inserta Clamps (W07705) 8 of 47

The Rhino Cart - Inserta Clamp with V Pad (W07705) 9 of 47

The Rhino Cart - Magnetic V Pads (W07705) 10 of 47

The Rhino Cart - Side Clamp (W07705) 11 of 47

The Rhino Cart - Tall Stops (W07705) 12 of 47

The Rhino Cart - V Block & Spacer (W07705) 13 of 47

The Rhino Cart - D Stop Bars with V Blocks (W07705) 14 of 47

The Rhino Cart - Magnetic Rest Button (W07705) 15 of 47

The Rhino Cart - Right Angle Bracket (W07705) 16 of 47

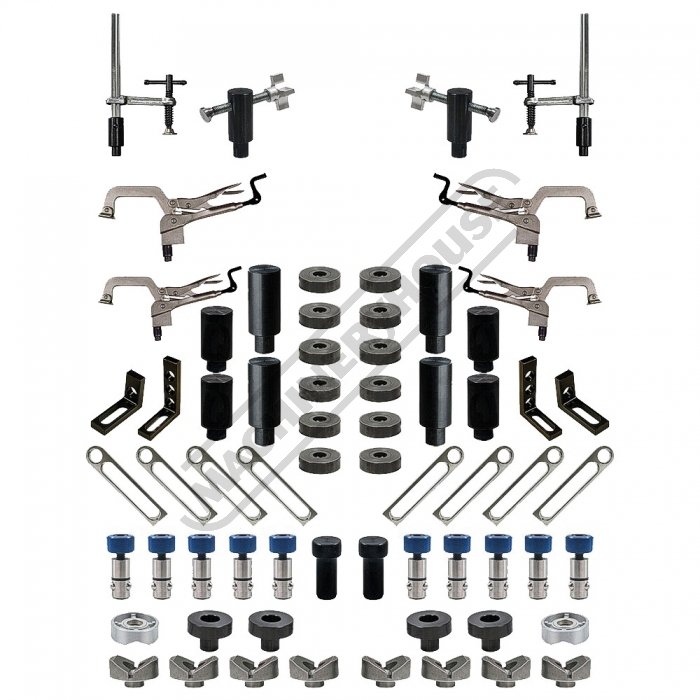

Accessories Included 17 of 47

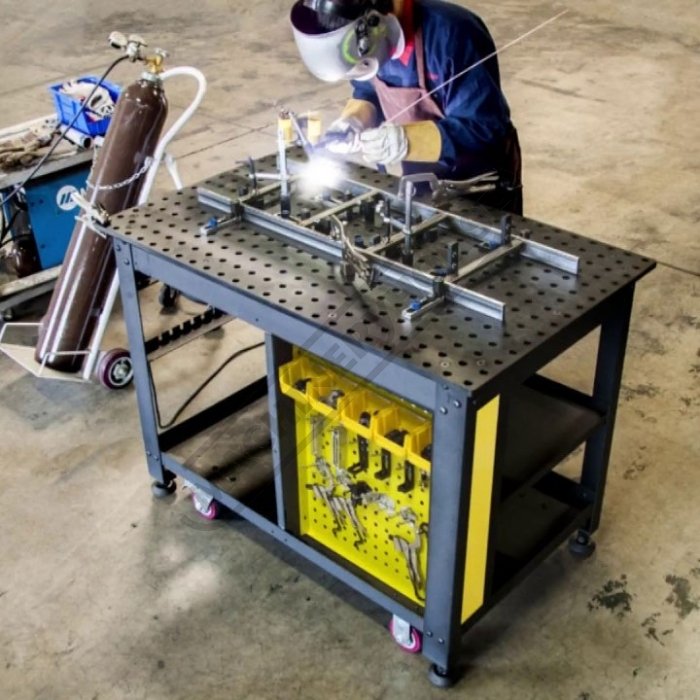

Shown In Use 18 of 47

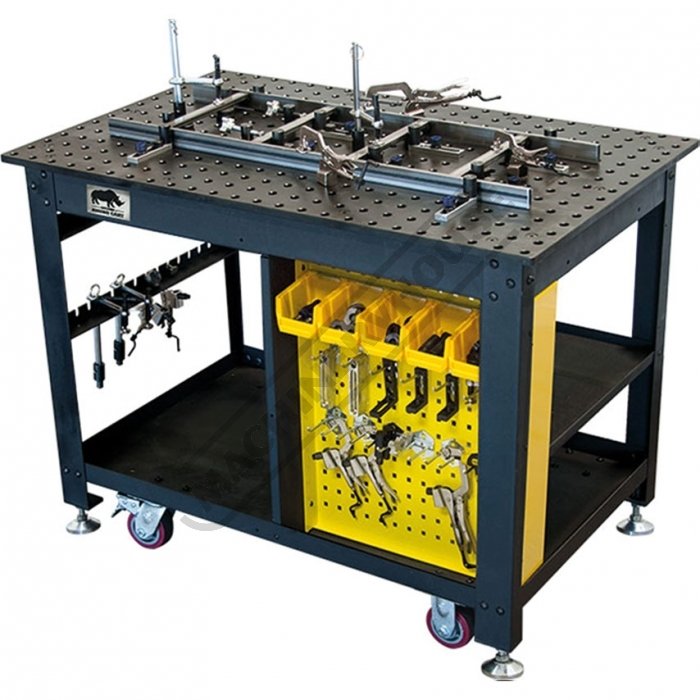

Shown with Accessories 19 of 47

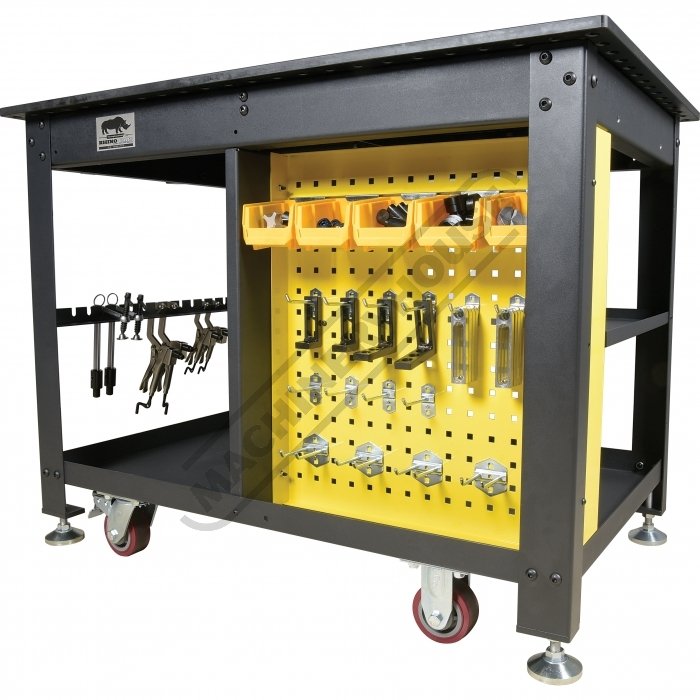

Right Low View 20 of 47

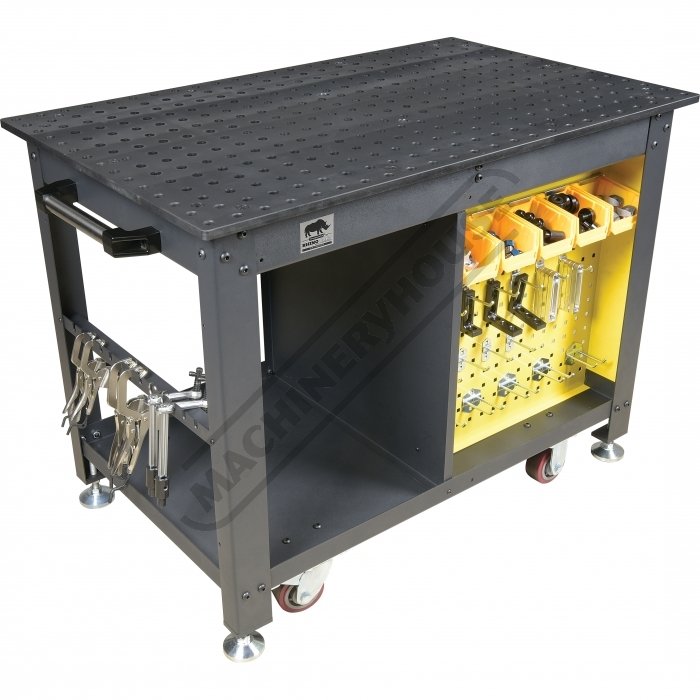

Left View 21 of 47

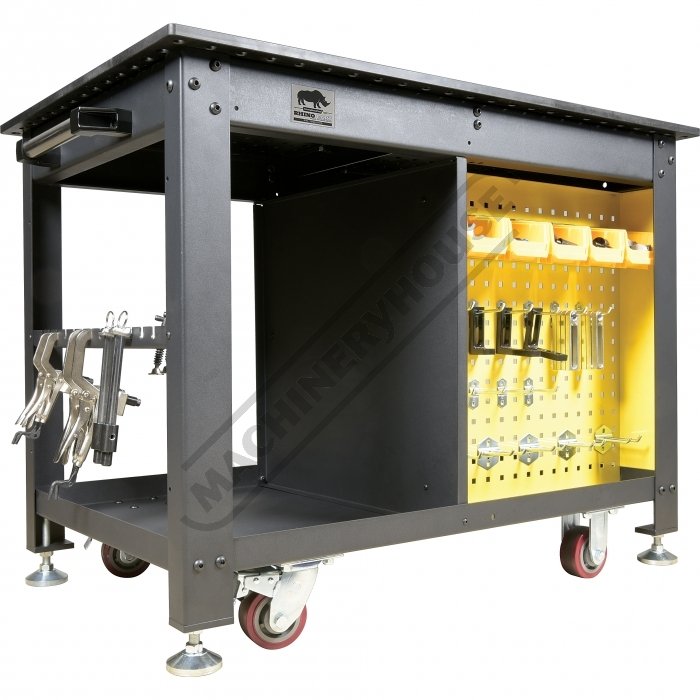

Left Low View 22 of 47

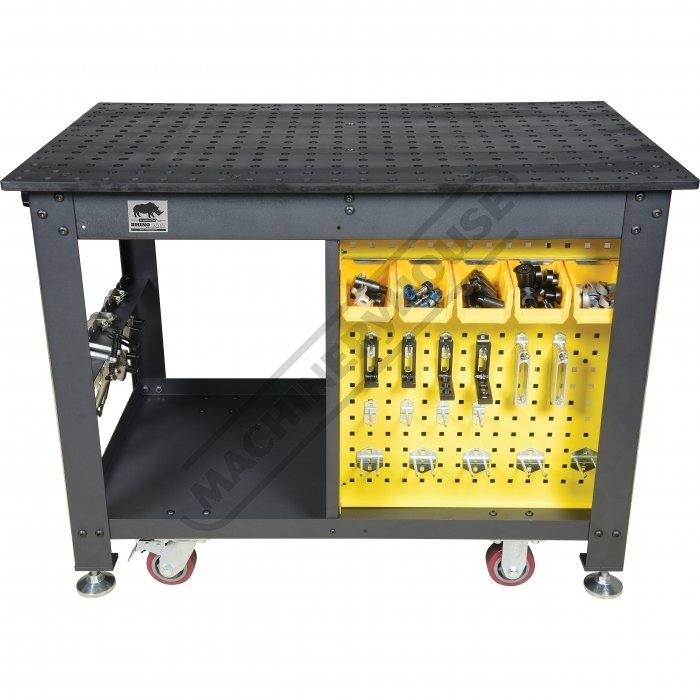

Front View 23 of 47

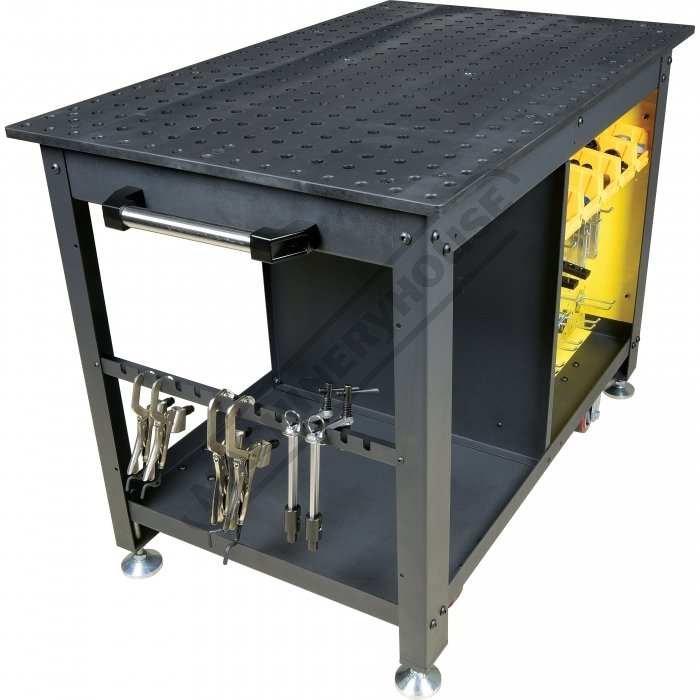

Left Side View 24 of 47

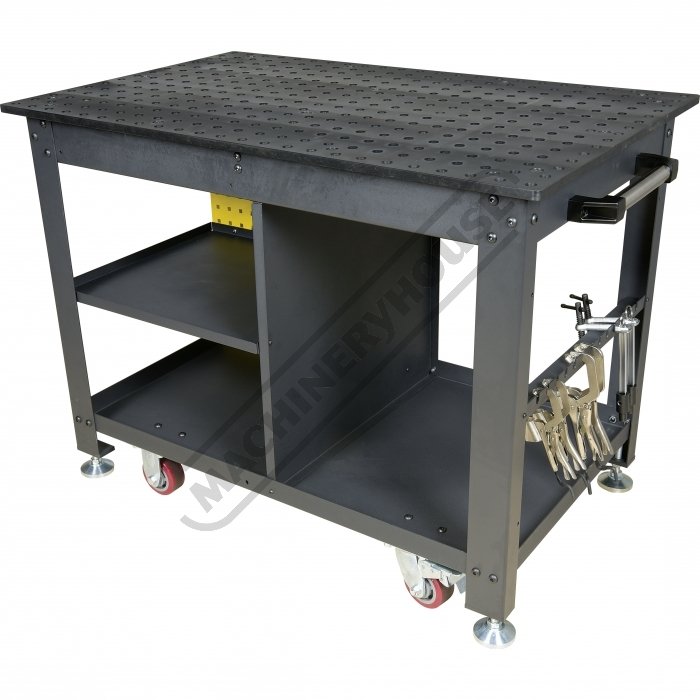

Rear Right View 25 of 47

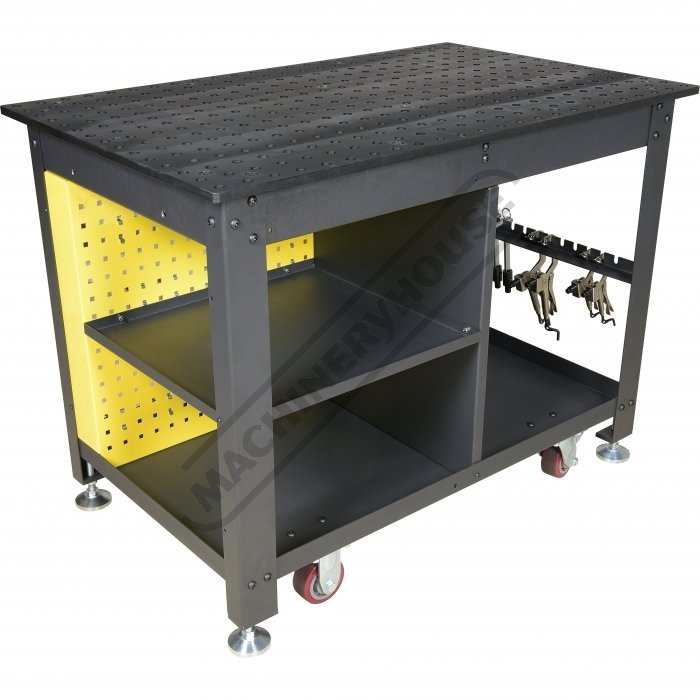

Rear Left View 26 of 47

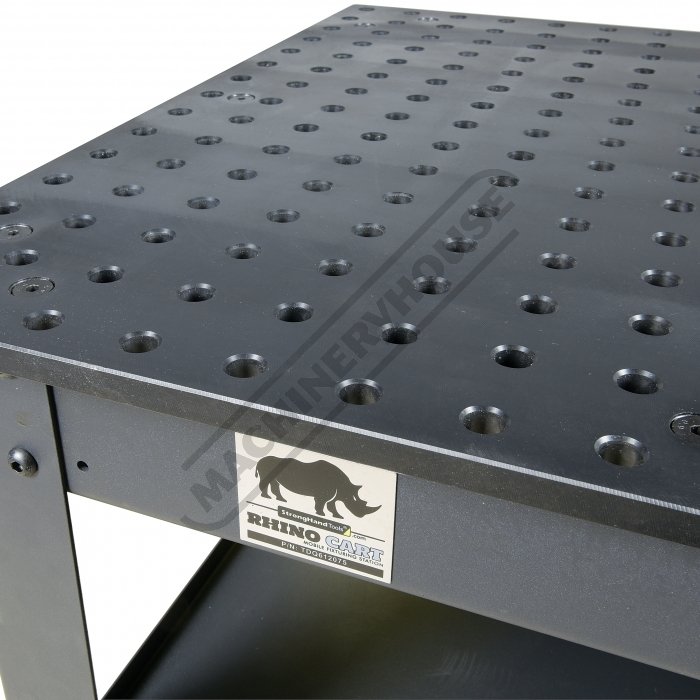

Nitrided and Black Oxide Table Plate is Reversable 27 of 47

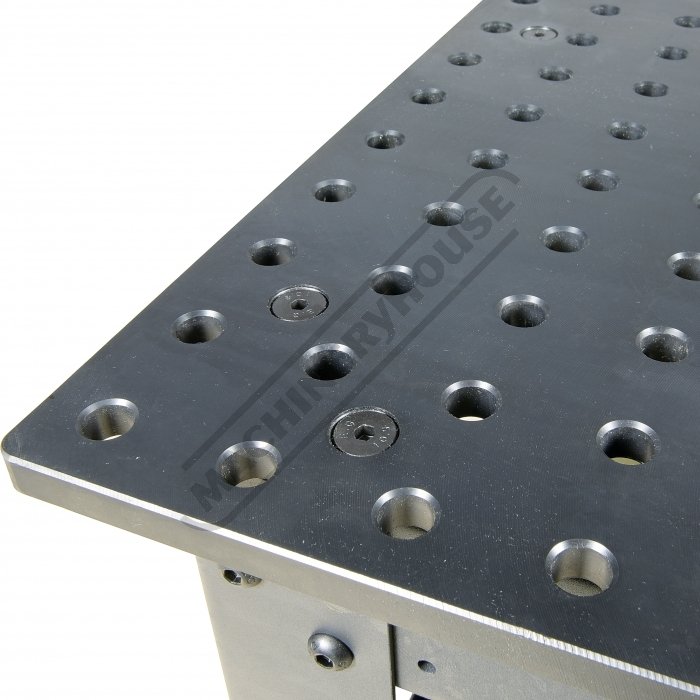

16mm Thick Table Top 28 of 47

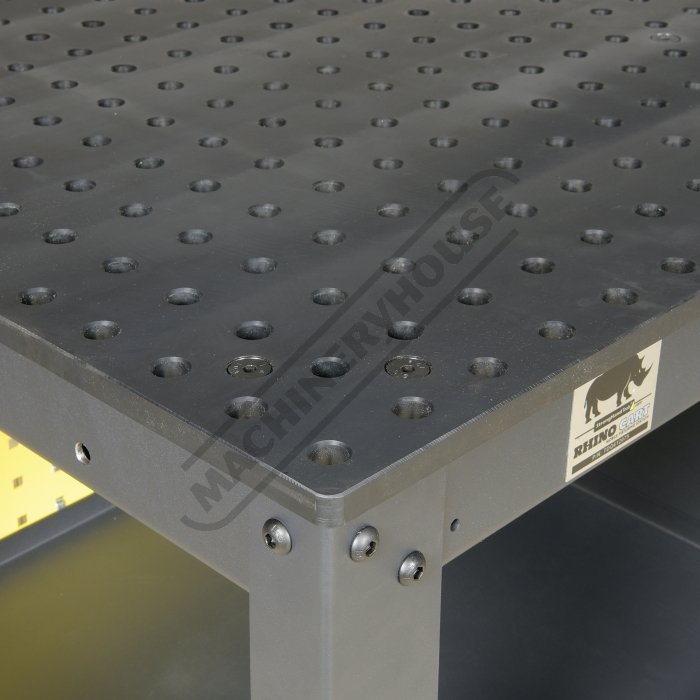

16mm Hole Diameter Table Top 29 of 47

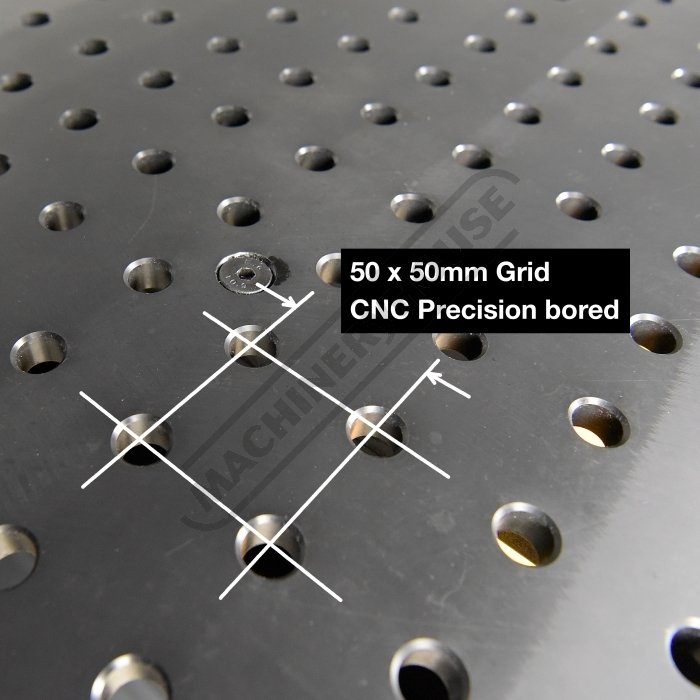

50 x 50mm Grid Pattern 30 of 47

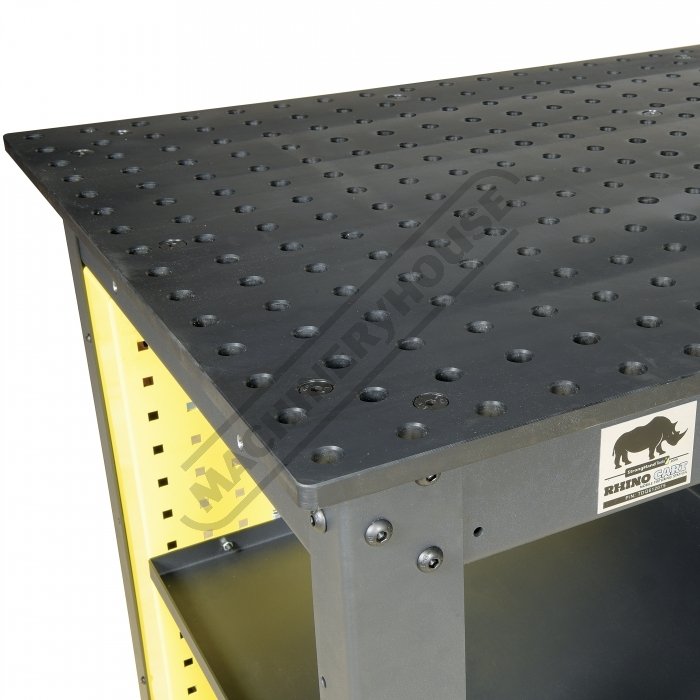

910mm Table Top Height 31 of 47

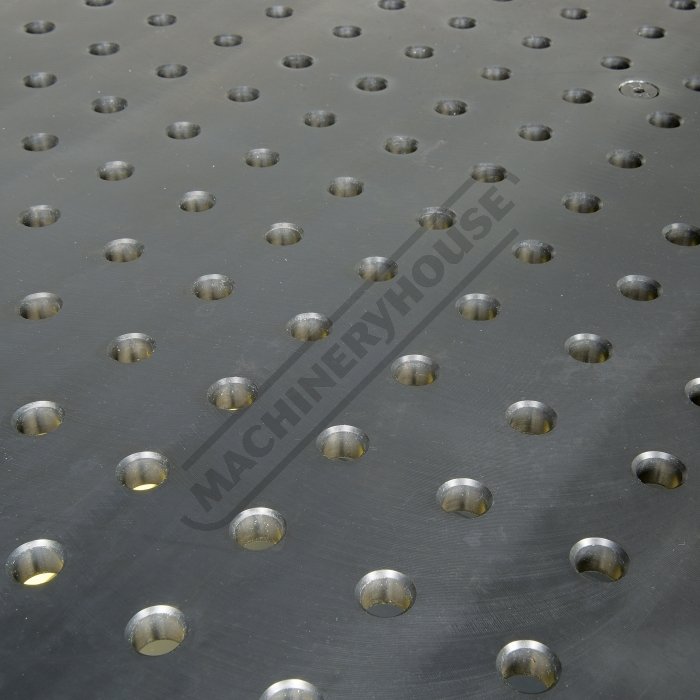

Weld Spatter Rust and Scratch Resistant 32 of 47

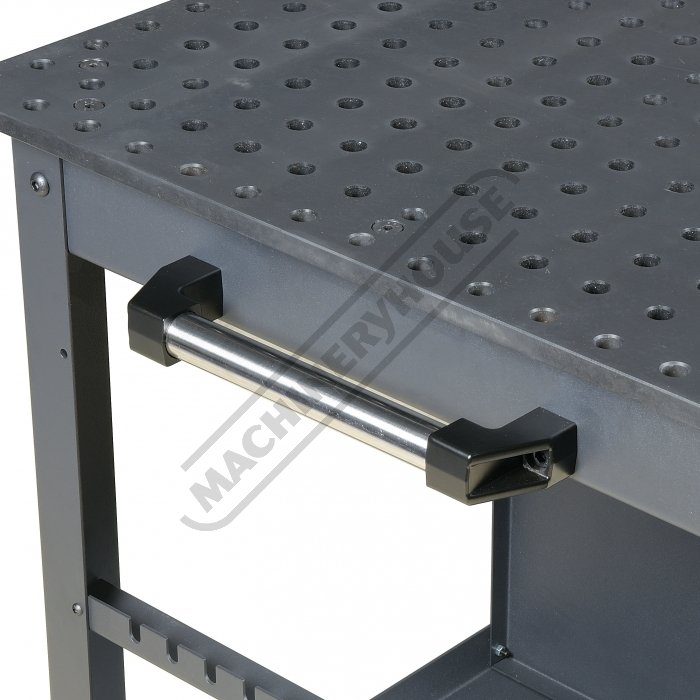

Push Handle 33 of 47

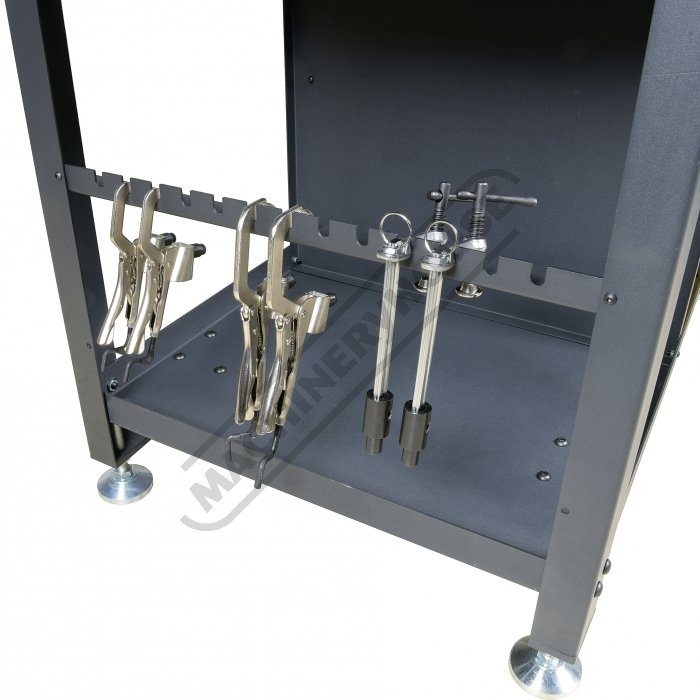

Storage Rack for Clamps 34 of 47

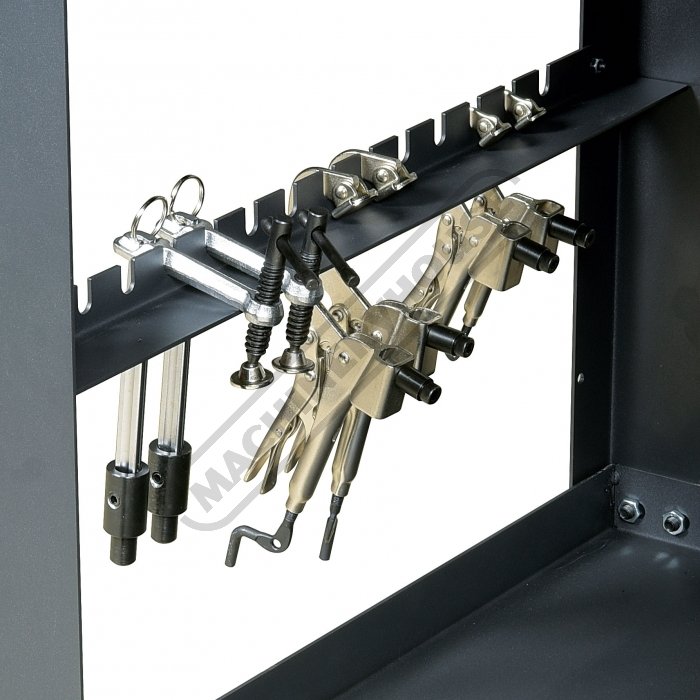

Storage Rack for Clamps Rear View 35 of 47

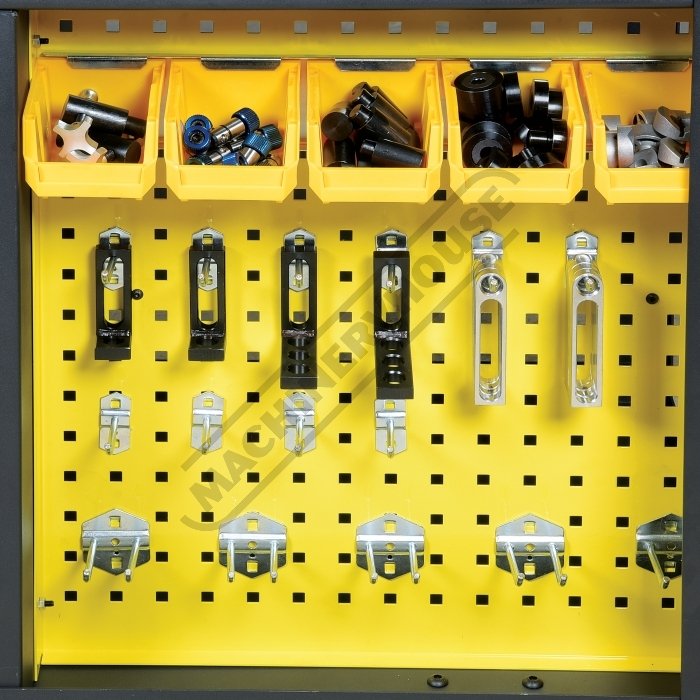

Pegbaord with Accessories 36 of 47

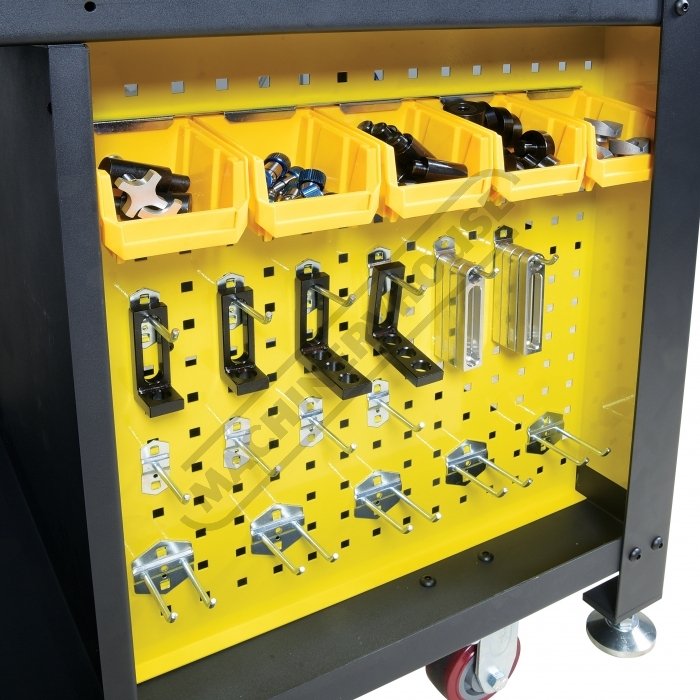

Pegboard Panel for Storing Clamps and Accessories 37 of 47

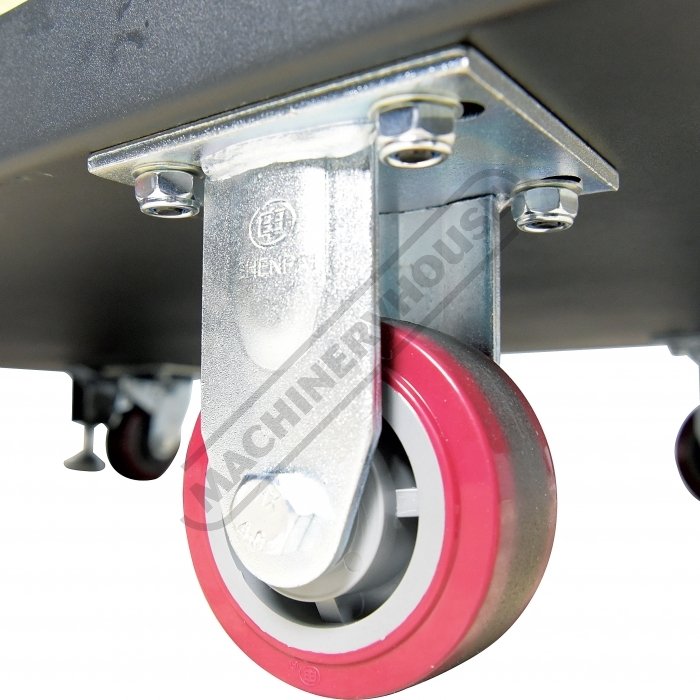

2 x Fixed Caster Wheels 38 of 47

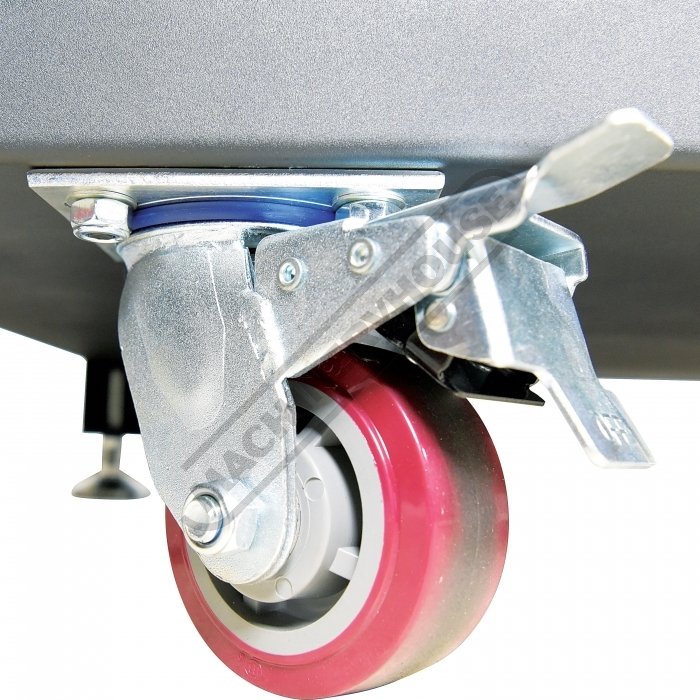

2 x Swivel Brake Caster Wheels 39 of 47

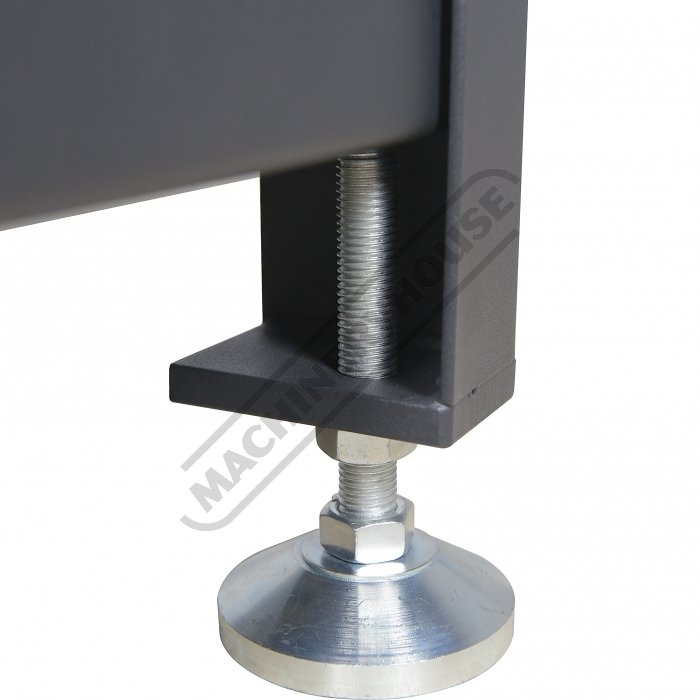

Leveling Feet 40 of 47

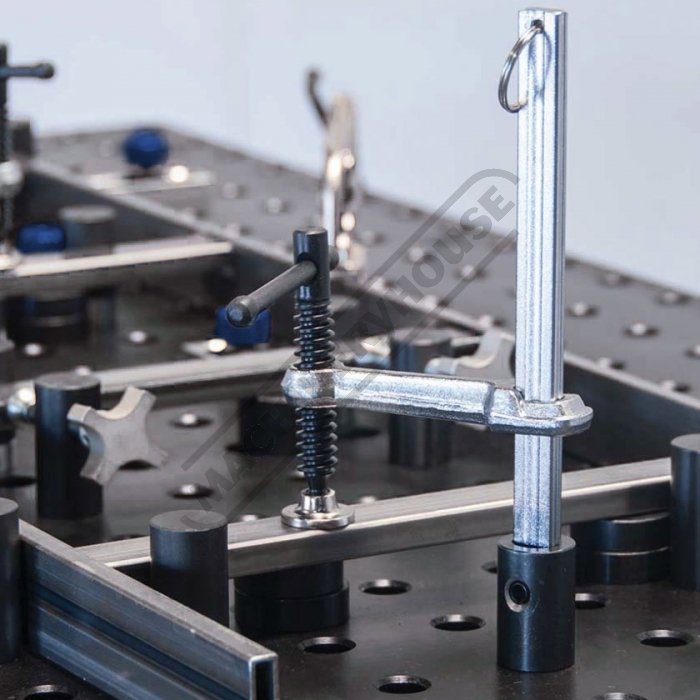

Inserta Clamp 41 of 47

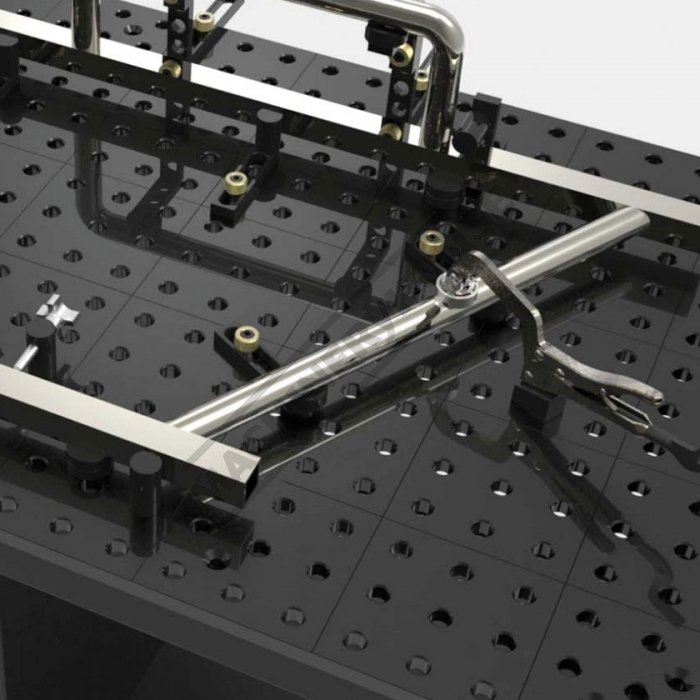

Inserta Pliers 42 of 47

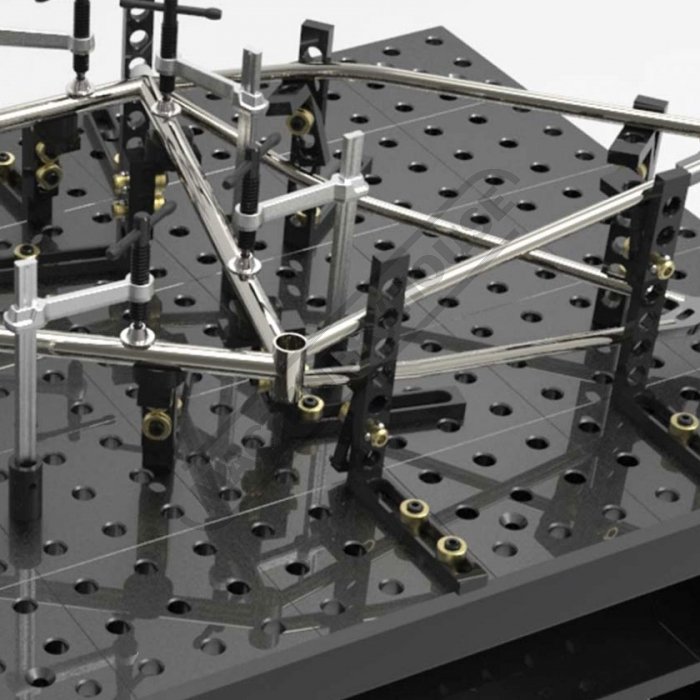

Right Angle Brackets 43 of 47

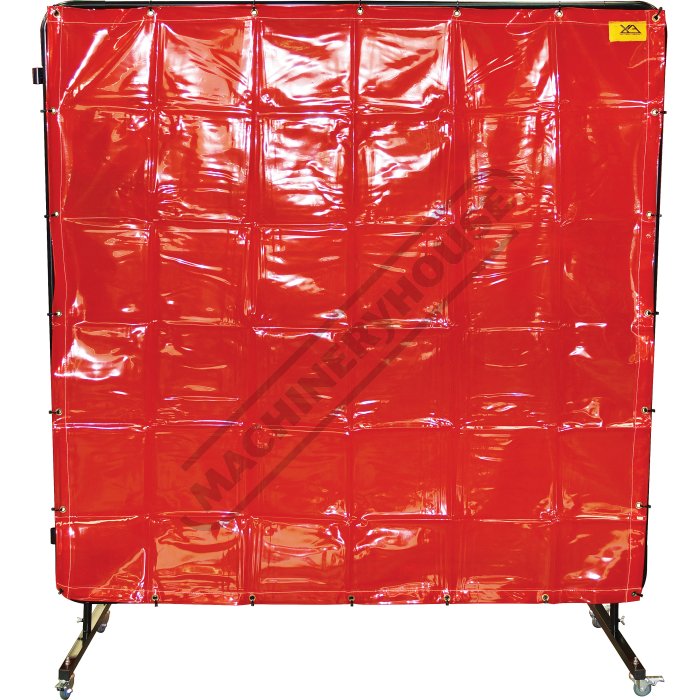

W225 Welding Curtain 44 of 47

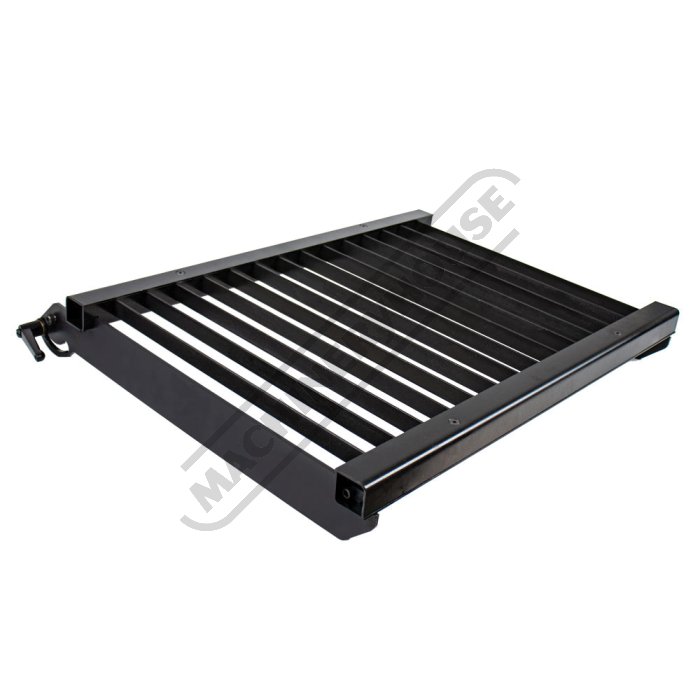

W07757 Plasma Cutting Tray TPL3021 45 of 47

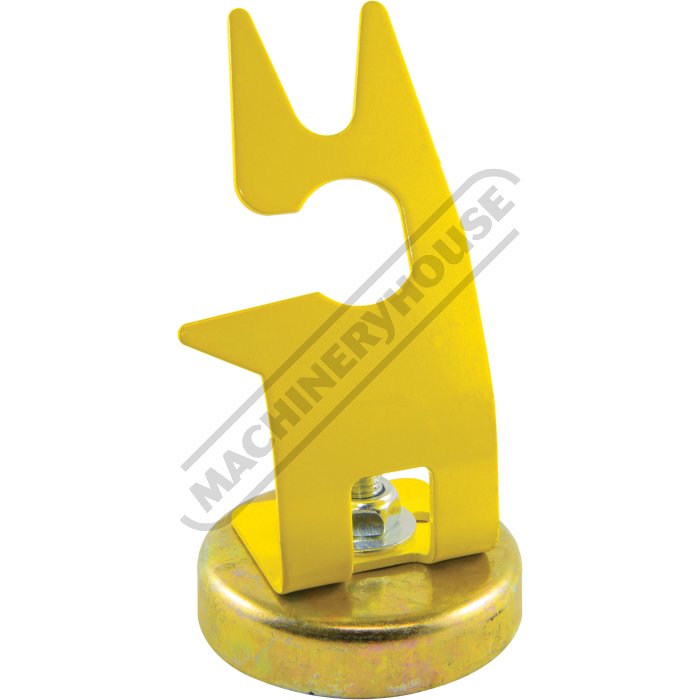

W10361 Magnetic TIG Torch Rest TTH 1 46 of 47

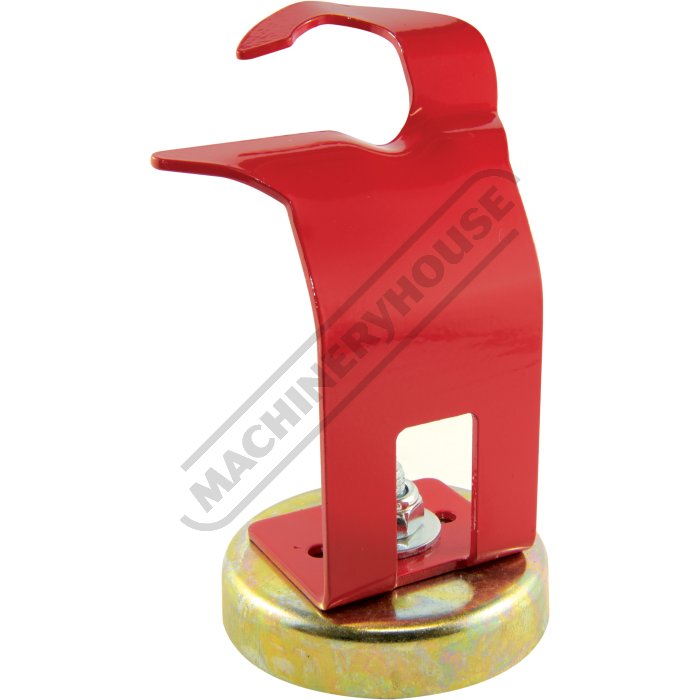

W10362 Magnetic MIG Torch Rest MTH 1 47 of 47

STRONG HAND TOOLS

Back In Stock Soon

Order Code: K8863

Please Call

1 Year Warranty

Add to Cart

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

66 Piece - Rhino Cart Mobile Fixturing Station - TDQ612075

1200 x 750 x 910mm (LxWxH)

Ø16mm Holes

Overview

The Rhino Cart Mobile Fixturing Station is a turnkey system for fixturing and clamping in welding and fabrication. Clamp and fixture at any point on the reversible, flat, nitrided (heat treated) 1200 x 750mm tabletop for accuracy in all of your setups.

Accurately fit-up and hold work pieces for tacking and welding with the Rhino Cart package, including: The Rhino Cart Welding Table + 66 piece Fixture Kit. Rhino Package Part No.: TDQ612075-K1

16mm thick steel plate reversible tabletop with nitrided black oxide protective finish for wear, rust and weld spatter resistance. Accurately position parts in CNC precision bored 16mm diameter holes in 50 x 50mm spacing pattern

Features

Tabletop Life: Nitrided and black oxide table plate is reversible. Weld spatter, rust and scratch resistant.
Tabletop Size: 1200 x 750mm
Tabletop Thickness: 16mm
Hole Diameter: Ø16mm
Grid Pattern: 50 x 50mm
Table Height: 910mm
Static Loading Capacity: 700kg
Package Net Weight: 195kg
2 x fixed & 2 x swivel brake caster wheels
Levelling feet for mobile or stationary use
Rhino shelves, racks and pegboard keep your fixing tools organised and within easy reach!

Includes

1 x TDQ612075 - 1200 x 750 x 910mm Welding table cart

10 x T65055 - Ball lock bolt, adjustable range: 24 ~ 28mm
2 x T64201 - Ø16mm locating pin
2 x PT07K - Inserta pliers, 60mm opening, Max. 50mm reach
2 x PT09K - Inserta pliers, 85mm opening, Max. 75mm reach
2 x UDN6150 - Inserta clamp, 150mm opening, 83mm reach, 16 x 8mm (D Rail), T-handle
2 x T64217 - Magnetic top V pads for inserta pliers and inserta clamps
2 x TCX6210 - Side clamp, 38mm stroke
4 x T64203 - Stop, Ø25 x 38mm
4 x T64205 - Stop, Ø25 x 50mm
8 x T64216 - V-Block, Ø40 x 23mm
4 x T64211 - V-Block spacer, Ø40 x 27mm
8 x T60630 - D-Stop bar, 120 x 25 x 11.5mm

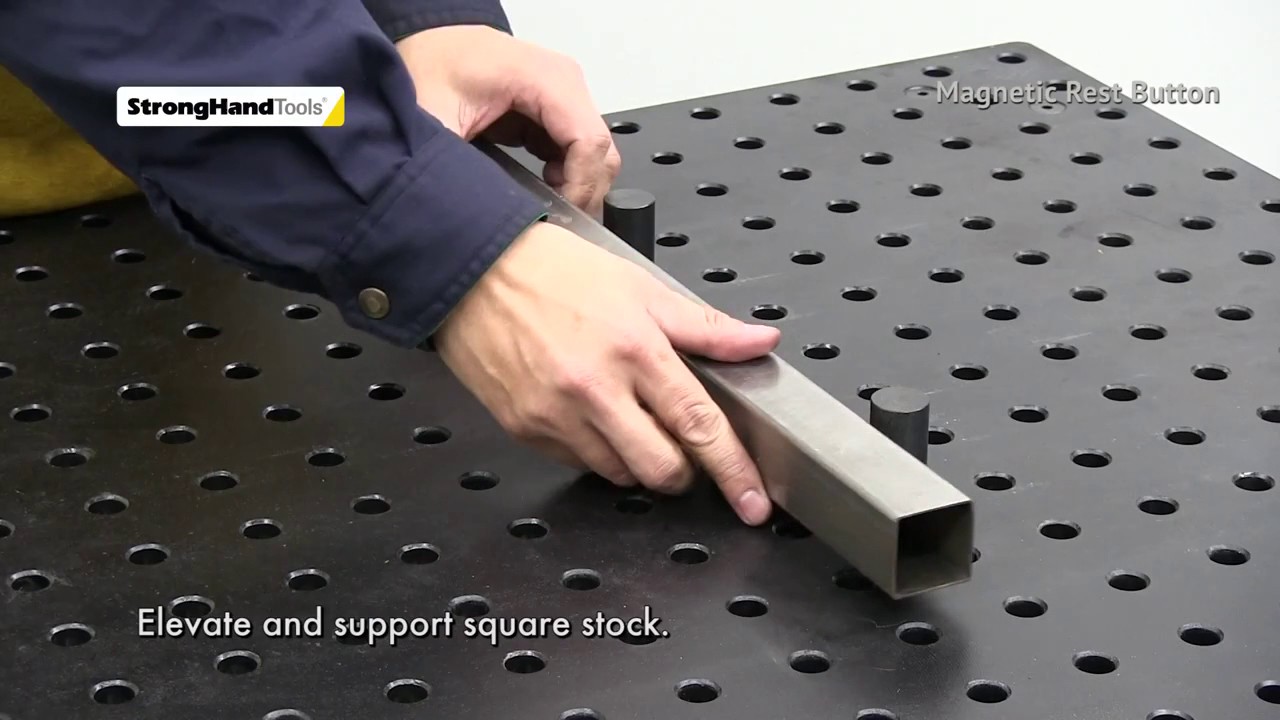

12 x T50737 - Magnetic rest button, Ø40 x 11.5mm
2 x T60304 - Right angle bracket, 41 x 91 x 30mm
2 x T60305 - Right angle bracket, 91 x 91 x 30mm
