Discontinued
Order Code: E082
Description

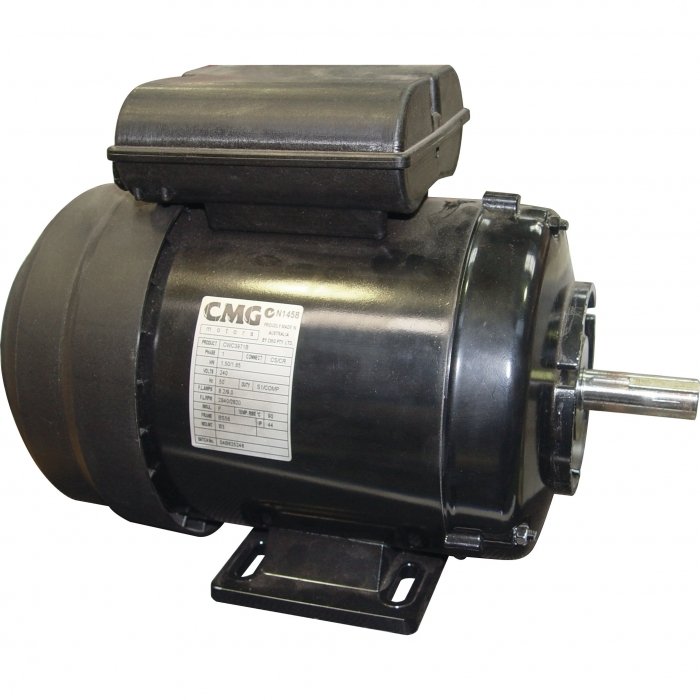

2.2HP Electric Motor - CWTC3971B

2800rpm, Ø19.05mm (3/4") Shaft
Overview
The popular CMG General Purpose series motor is a strong performer, ideally suited for most general applications. The series is designed to suit domestic, commercial and industrial applications. With no wiring necessary, it is simple and convenient to use.
Features
  • High starting torque CSCR winding design
  • 240V motor
  • TEFC - (Totally enclosed fan cooled)
  • IP44 protection against dust and water ingress
  • Heavy Duty rolled steel case with B56 base
  • Manual reset thermal overload protection
  • 240V single phase with 2 metre flex & plug standard
  • Reversible motor
  • Foot mounted
2.2HP Electric Motor - CWTC3971B overview
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • (kW / hp)Motor Power
  • (rpm)Speed
  • (mm)Shaft Diameter
  • (Yes / No)Reversible Motor
  • (Yes / No)Fan Cooled
  • (V)Voltage
  • Amps Required
  • Input Power Supply Connection
  • (ex-gst)Pricing
  • (inc-gst)
  • On Sale 1HP Electric Motor EM1-14
  • Compare
  • Wishlist
  • E040
  • EM1-14
  • 0.75 / 1
  • 1440
  • Ø15.87 (5/8")
  • Yes
  • Yes
  • 240
  • 10
  • Includes Plug & Lead
  • $235.45
  • $259.00
  • ADD TO CART
  • On Sale 2HP Electric Motor EM2-14
  • Compare
  • Wishlist
  • E092
  • EM2-14
  • 1.5 / 2
  • 1440
  • Ø19
  • Yes
  • Yes
  • 240
  • 10
  • Includes Plug & Lead
  • $326.36
  • $359.00
  • ADD TO CART
  • On Sale 2.5HP Electric Motor EM25-28
  • Compare
  • Wishlist
  • E084
  • EM25-28
  • 1.875 / 2.5
  • 2800
  • Ø19
  • Yes
  • Yes
  • 240
  • 15
  • Includes Plug & Lead
  • $290.00
  • $319.00
  • ADD TO CART
  • On Sale 3HP Electric Motor EM3-28
  • Compare
  • Wishlist
  • E112
  • EM3-28
  • 2.25 / 3
  • 2800
  • Ø19
  • Yes
  • Yes
  • 240
  • 15
  • Includes Plug & Lead
  • $308.18
  • $339.00
  • ADD TO CART
  • Order In MOTOR 2 HP #6
  • Compare
  • Wishlist
  • LK083
  • ~
  • 2
  • 1400
  • 24
  • ~
  • Yes
  • 240
  • 10
  • ~
  • N/A
  • N/A
  • ENQUIRE
  • Discontinued MOTOR 1.5HP 1400RPM 240V #106
  • Compare
  • Wishlist
  • 2MD1106
  • ~
  • 1.5
  • 1400
  • 19
  • ~
  • Yes
  • 240
  • 6.8
  • ~
  • N/A
  • N/A
  • ENQUIRE
  • Discontinued MOTOR 2HP 240V 8.8 AMP #106
  • Compare
  • Wishlist
  • 5MD9106
  • ~
  • 1.5
  • 1400
  • 19
  • ~
  • Yes
  • 240
  • 8.8
  • ~
  • N/A
  • N/A
  • ENQUIRE
  • Discontinued MOTOR 240V #2
  • Compare
  • Wishlist
  • 1HB002
  •
  •
  •
  •
  •
  •
  •
  • ~
  •
  • N/A
  • N/A
  • ENQUIRE
  • Discontinued 2.2HP Electric Motor CWTC3971B
  • Compare
  • Wishlist
  • E082
  • CWTC3971B
  • 1.65 / 2.2
  • 2800
  • Ø19.05 (3/4")
  • Yes
  • Yes
  • 240
  • 15
  • Includes Lead Only
  • N/A
  • N/A
  • ENQUIRE
