P14-400/D1-11 - 4 Jaw Independent Lathe Chuck
Ø400mm
D1-11 Camlock Mount
C71911 of 4
Front View2 of 4
Camlock Mount3 of 4
Included Accessories4 of 4
On Sale - Limited Stock
Order Code: C7191
ex-gst
inc-gst
$
1,250.00
$
1,375.00
$
1,061.82
$
1,168.00
Only Available From: Sydney (Additional Freight Charges May Apply)
1 Year Warranty
Description
P14-400/D1-11 - 4 Jaw Independent Lathe Chuck
Ø400mm
D1-11 Camlock Mount
Overview
The "P" series chucks are to German standards and feature jaws that are individually adjustable, allowing firm gripping of odd shaped items. The semi steel chuck has jaws manufactured from hardened high quality alloy steel. Thrust bearings and operating screws made of case hardened steel.
Supplied with CAMLOCK PINS, 1 set of jaws and wrench.
Manufactured to DIN55029
Supplied with CAMLOCK PINS, 1 set of jaws and wrench.
Manufactured to DIN55029
Features
- German design
Compare Product Range

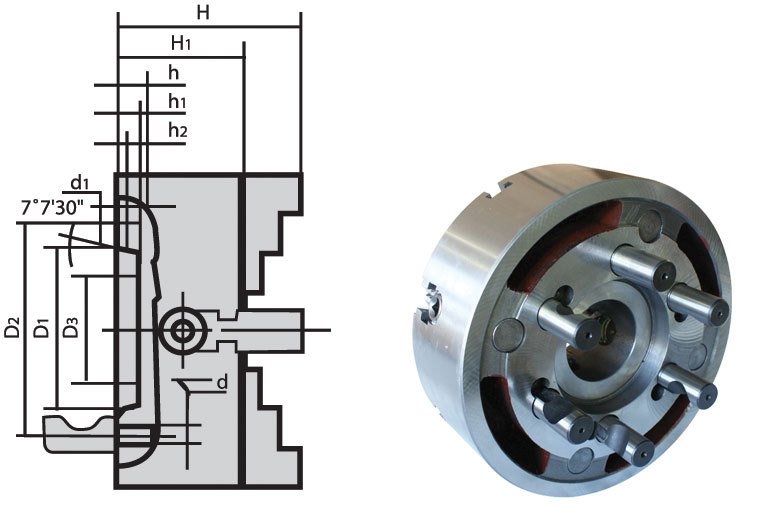

Specifications
| ORDER CODE | C7191 |
|---|---|
| (mm)Chuck Size | Ø400 |
| Camlock | D1-11 |
| (rpm)Speed | 800 |
| (mm)D1 | 196.8 |
| (mm)D2 | 235 |
| (mm)D3 | 100 |
| (mm)H1 | 105 |
| (kg)Nett Weight | 80 |
Packaging
| Box | Length (m) | Width (m) | Height (m) | Gross Weight (kg) |
|---|---|---|---|---|
| 1 | 0.300 | 0.310 | 0.200 | 80.00 |
- Compare:
- Wishlist:
- ORDER CODE
- (mm)Chuck Size
- Camlock
- (rpm)Speed
- (mm)D1
- (mm)D2
- (mm)D3
- (mm)H1
- (mm)h
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
-
Compare
-
Wishlist
- C252
- Ø200
- D1-4
- 2100
- 82.5
- 104.8
- 56
- 75
- 12
- 15
- $320.00
- $352.00
- ADD TO CART
-
Compare
-
Wishlist
- C253
- Ø200
- D1-5
- 2100
- 82.5
- 104.8
- 56
- 75
- 12
- 17.5
- $320.00
- $352.00
- ADD TO CART
-
Compare
-
Wishlist
- C256
- Ø250
- D1-6
- 1800
- 106.38
- 133.4
- 75
- 80
- 13
- 23
- $420.00
- $462.00
- ADD TO CART
-
Compare
-
Wishlist
- C7188
- Ø315
- D1-8
- 1200
- 139.72
- 171.4
- 80
- 95
- ~
- 40
- $990.00
- $1,089.00
- ADD TO CART
-
Compare
-
Wishlist
- C256A
- Ø320
- D1-8
- 1400
- 139.7
- 171.4
- 95
- 90
- 14
- 40.5
- $570.00
- $627.00
- ADD TO CART
-
Compare
-
Wishlist
- C273
- Ø400
- D1-8
- 950
- 139.7
- 171.4
- 125
- 95
- 14
- 78
- $790.00
- $869.00
- ADD TO CART
-
Compare
-
Wishlist
- C271
- Ø400
- D1-11
- 950
- 196.8
- 235
- 125
- 95
- 16
- 72
- $790.00
- $869.00
- ADD TO CART
- On Sale - Limited Stock
-
Compare
-
Wishlist
- C7191
- Ø400
- D1-11
- 800
- 196.8
- 235
- 100
- 105
- ~
- 80
- $1,061.82
- $1,168.00
- ADD TO CART
-
Compare
-
Wishlist
- C274
- Ø500
- D1-11
- ~
- 196.8
- 235
- 160
- 106
- 16
- 124
- $1,150.00
- $1,265.00
- ADD TO CART
-
Compare
-
Wishlist
- C275
- Ø630
- D1-11
- ~
- 196.8
- 235
- 180
- 118
- 16
- 216
- $1,990.00
- $2,189.00
- ADD TO CART
- On Sale - Limited Stock
-
Compare
-
Wishlist
- C7193
- Ø630
- D1-11
- 400
- 196.8
- 235
- 160
- 140
- ~
- 217
- $2,950.00
- $3,245.00
- ADD TO CART
