New Release
Order Code: C7003
ex-gst
inc-gst
$ 630.00
$ 693.00
1 Year Warranty
Made in Taiwan
Compare
Wishlist
Description

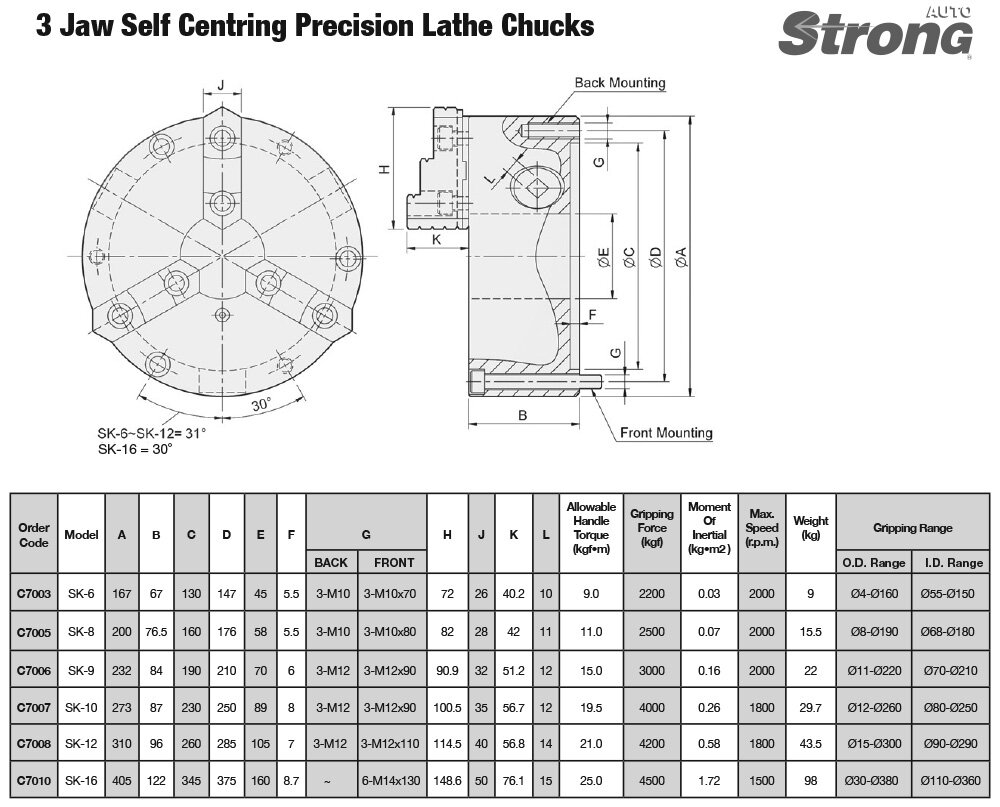

SK-6 - High Precision 3 Jaw Self Centering Lathe Chuck

Ø167mm
Front or Rear Back Plate Mount
Overview
Auto Strong are one of the world’s leading manufacturers of lathe chucks. The SK Series are manufactured in Taiwan with a high precision gripping accuracy of 0.03mm and with a Meehanite casting body they are suitable for high-speed applications.
Features
  • 3 Jaw self centering lathe chuck
  • High precision gripping accuracy of 0.03mm (0.0012”) T.I.R
  • 2 Piece hard jaws could be used as internal jaws and external jaws
  • Meehanite chuck body suitable for high speed (Max. 2000rpm)
  • Plain back suitable for front or rear back plate mounting
  • Optional bolt on soft jaws are available
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • Model
  • (mm)Chuck Size
  • (mm)Bore / Through Hole Size
  • Mounting Type
  • (mm)Gripping Range OD
  • (mm)Gripping Range ID
  • (rpm)Max Speed Rating
  • (Kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • New ReleaseC7005
  • Compare
  • Wishlist
  • C7005
  • SK-8
  • Ø200
  • Ø58
  • Back Plate
  • Ø8 - 190
  • Ø68 - 180
  • 2000
  • 16
  • $790.00
  • $869.00
  • ADD TO CART
  • New ReleaseC7008
  • Compare
  • Wishlist
  • C7008
  • SK12
  • Ø310
  • Ø105
  • Back Plate
  • Ø15 - 300
  • Ø90 - 290
  • 1800
  • 46
  • $1,750.00
  • $1,925.00
  • ADD TO CART
  • New ReleaseC7006
  • Compare
  • Wishlist
  • C7006
  • SK-9
  • Ø232
  • Ø70
  • Back Plate
  • Ø11 - 220
  • Ø70 - 210
  • 2000
  • 24
  • $930.00
  • $1,023.00
  • ADD TO CART
  • New ReleaseC7003
  • Compare
  • Wishlist
  • C7003
  • SK-6
  • Ø167
  • Ø45
  • Back Plate
  • Ø4 - 160
  • Ø55 - 150
  • 2000
  • 9
  • $630.00
  • $693.00
  • ADD TO CART
  • New ReleaseC7007
  • Compare
  • Wishlist
  • C7007
  • SK10
  • Ø273
  • Ø89
  • Back Plate
  • Ø12 - 260
  • Ø80 - 250
  • 1800
  • 32
  • $1,250.00
  • $1,375.00
  • ADD TO CART
