Order Code: C5400
ex-gst
inc-gst
$ 18,950.00
$ 20,845.00
$ 18,450.00
$ 20,295.00
415V / (NO PLUG)
1 Year Warranty
Description

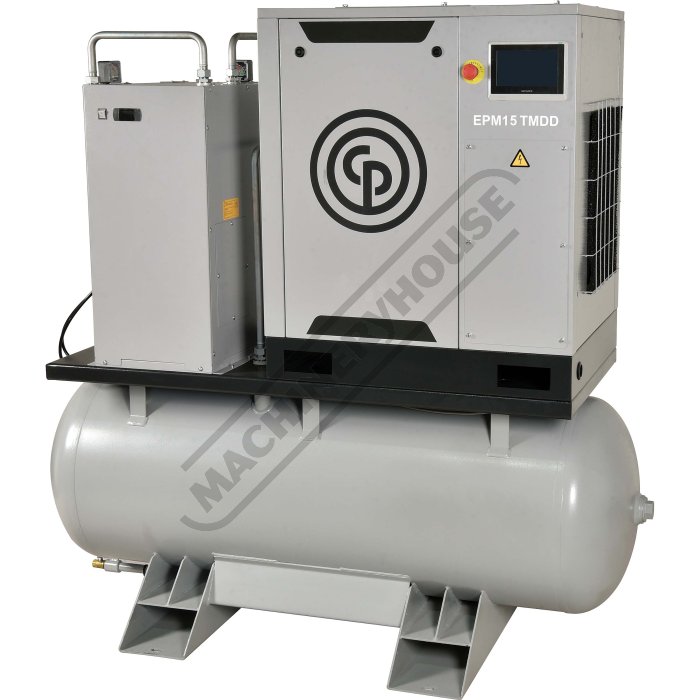

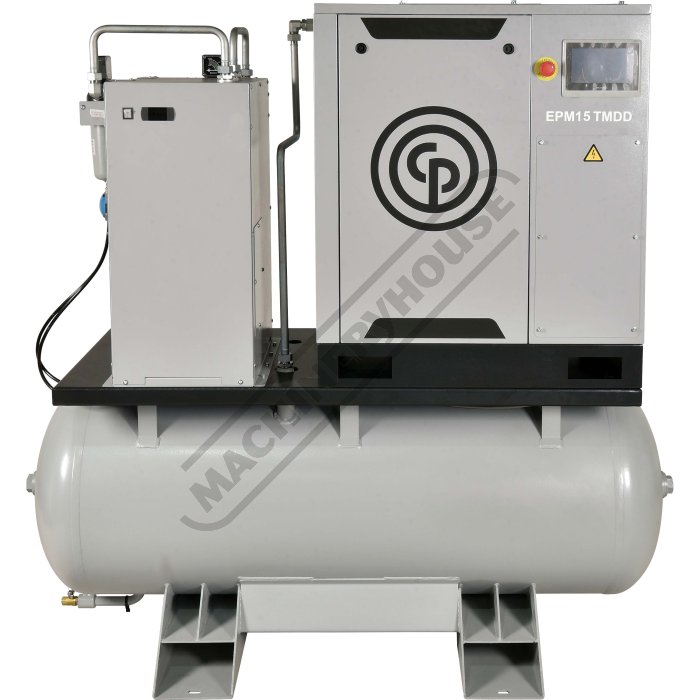

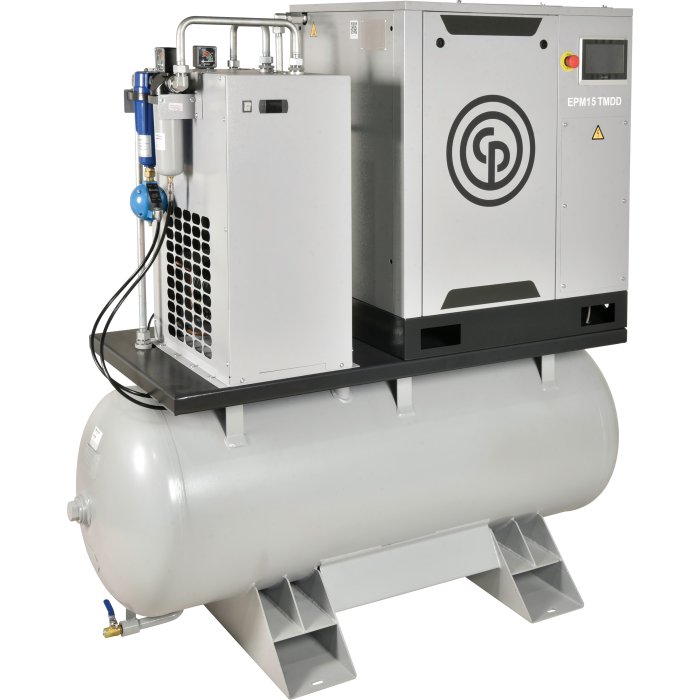

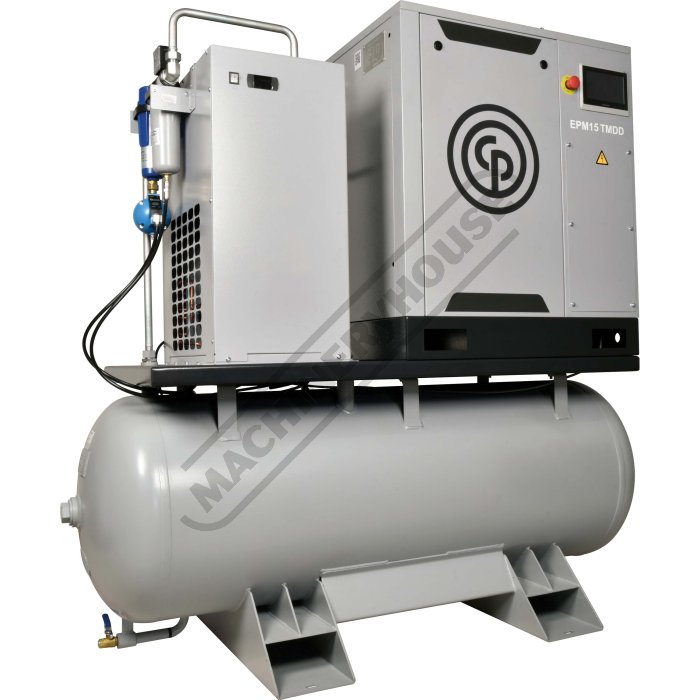

High Pressure Rotary Screw Compressor for Fiber Laser Cutting - EPM 15

Direct Drive, Variable Speed, Permanent Magnet 15kW motor
15.5 BAR - 1.4 m3/min
Overview
Born for laser cutting applications!

EPM-15 VARIABLE SPEED HIGH PRESSURE COMPRESSOR is designed for 3kW Laser cutting with 15.5 BAR - 1.4 m3/min of compressed air.

In the process of laser cutting, the compressed air plays a key role in promoting combustion and heat dissipation while blowing the molten liquid away from the material and protecting the lens.

The EPM Series of Laser air compressors are designed to supply the higher pressures required to operate laser cutting machines as a suitable alternative to using Oxygen and Nitrogen bottle packs.
Features
  • All-in-one air solution with a Compact design for easy installation specifically for laser cutting applications
  • Latest Variable Speed Drive technology allows for the compressor to start and stop under full system pressure while reducing energy usage and increasing efficiency.

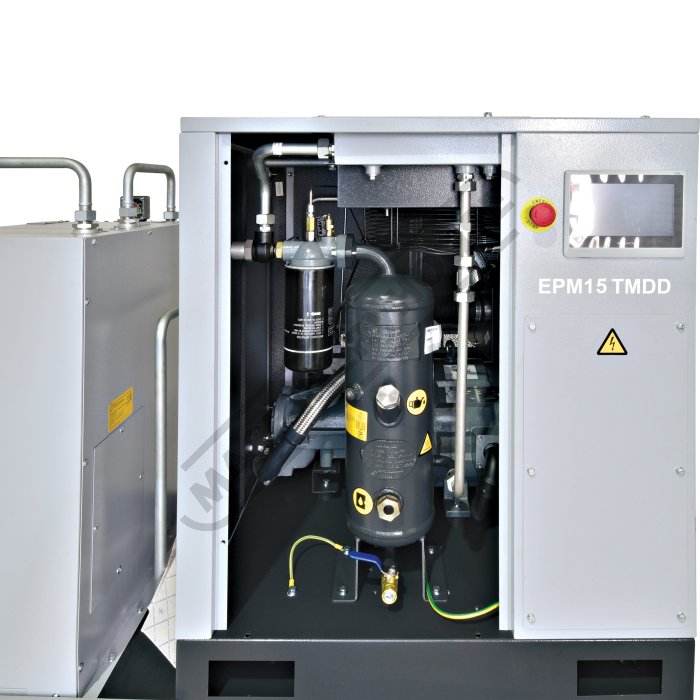

  • 15Kw Oil Cooled Permanent Magnet Motor, generating less heat and friction compared to Induction motors resulting in higher efficiency and increased power density enabling a greater power output.

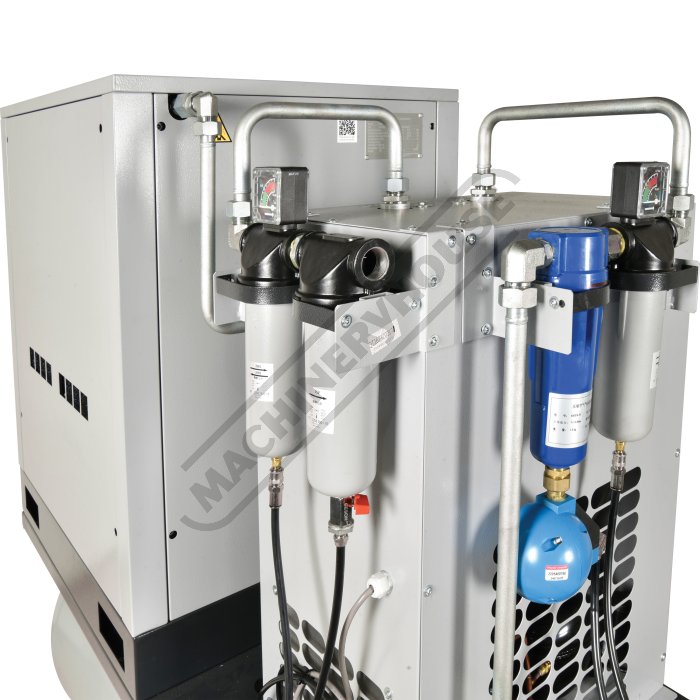

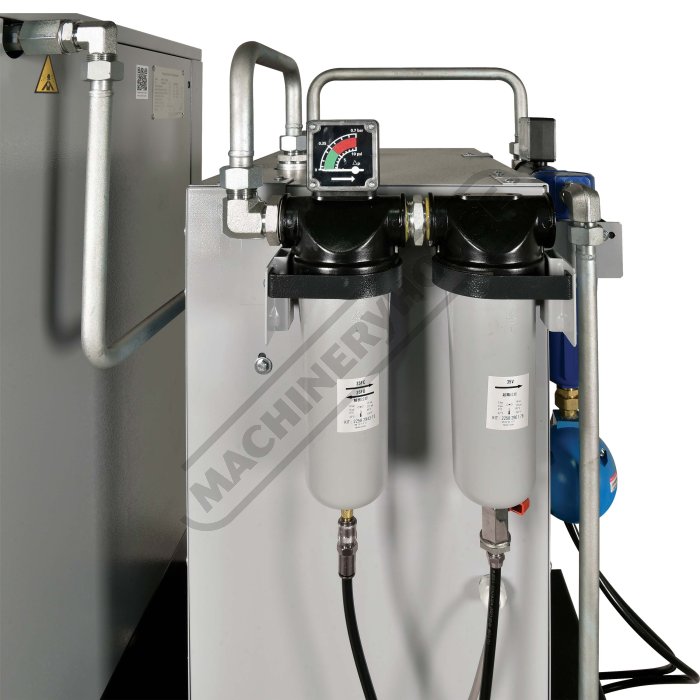

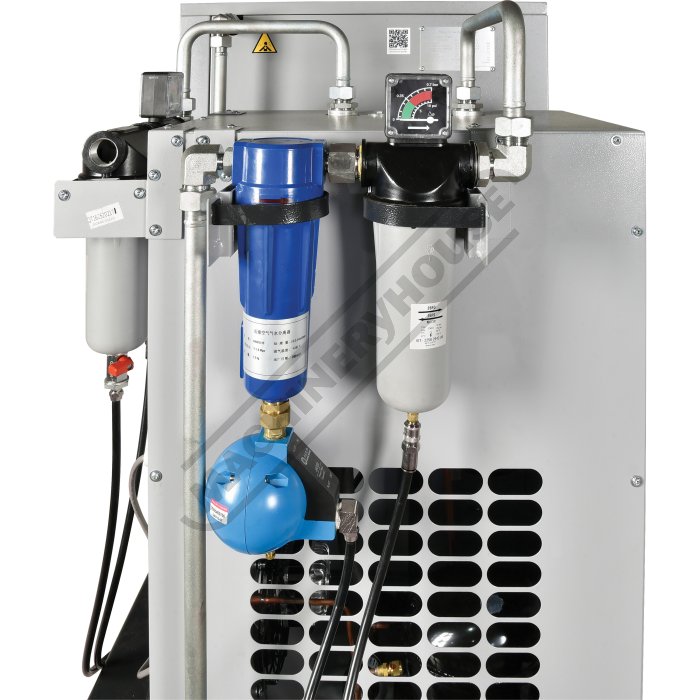

  • Refrigerated Air Dryer, Pre Filter and Post Filter fitted as standard for clean oil-less air supply
  • 500L Tank
  • Australian Standard Certified for high pressure vessels
Includes
  • Pre Filter
  • Post Filter

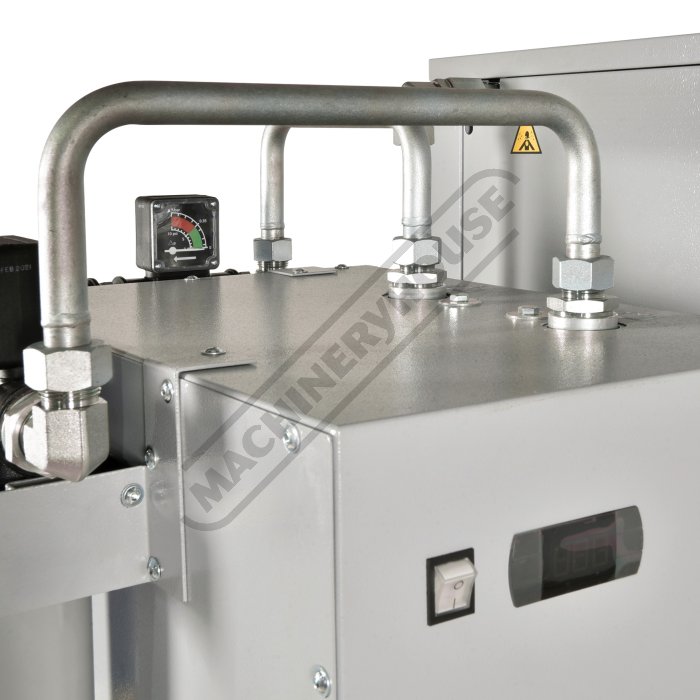

  • Refrigerated Air Dryer
  • Variable Speed Drive Touch Screen Controller
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • (LPM / CFM)Free Air Delivery
  • (LPM / CFM)Air Displacement
  • (Yes / No)Includes Air Dryer System
  • (bar)Standard Operating Pressure
  • (Litre)Air Receiver Tank
  • (dBA)Noise Level
  • (Type)Transmission Drive
  • (kW / hp)Motor power
  • (V / Amps)Motor Voltage
  • (mm)Dimensions (L x W x H)
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • On Sale - Special Order Rotary Screw Air Compressor CPS 500 VS 200
  • Compare
  • Wishlist
  • C5410
  • CPS 500 VS 200
  • 498 / 17.5
  • ~
  • No
  • 10
  • 200
  • 60
  • ~
  • 4.0 / 5.5
  • 415
  • 1440 x 615 x 1320
  • 153
  • $6,050.00
  • $6,655.00
  • ADD TO CART
  • On Sale Rotary Screw Air Compressor CPS 900 VS 200
  • Compare
  • Wishlist
  • C5411
  • CPS 900 VS 200
  • 848 / 29.9
  • ~
  • No
  • 10
  • 200
  • 63
  • Variable Speed
  • 7.5 / 10
  • 415
  • 1440 x 615 x 1320
  • 153
  • $6,850.00
  • $7,535.00
  • ADD TO CART
  • On Sale Rotary Screw Air Compressor CPM3/10T
  • Compare
  • Wishlist
  • C5403
  • CPM3/10T
  • 10.4
  • ~
  • No
  • 10
  • 200
  • 65
  • Belt Drive
  • 2.25 / 3
  • 240 / 15
  • 2000 x 1200 x 1900
  • 165
  • $7,600.00
  • $8,360.00
  • ADD TO CART
  • On Sale Rotary Screw Pilot Air Compressor PAC4-RM
  • Compare
  • Wishlist
  • C5341
  • PAC4-RM
  • 486 / 17.1
  • ~
  • No
  • 10
  • 150
  • 60
  • Belt Drive
  • 4 / 5.5
  • 415
  • 1260 x 480 x 1350
  • 180
  • $8,450.00
  • $9,295.00
  • ADD TO CART
  • On Sale Rotary Screw Pilot Air Compressor & Integrated Air Dryer PAC4-RM-D
  • Compare
  • Wishlist
  • C5342
  • PAC4-RM-D
  • 486 / 17.1
  • ~
  • Yes
  • 10
  • 268
  • 60
  • Belt Drive
  • 4 / 5.5
  • 415
  • 1500 x 600 x 1510
  • 220
  • $11,150.00
  • $12,265.00
  • ADD TO CART
  • On Sale Rotary Screw Pilot Air Compressor PAC5-RM
  • Compare
  • Wishlist
  • C5351
  • PAC5-RM
  • 648 / 22.9
  • ~
  • No
  • 10
  • 268
  • 64
  • Belt Drive
  • 5.5 / 7.5
  • 415
  • 1260 x 480 x 1350
  • 182
  • $9,050.00
  • $9,955.00
  • ADD TO CART
  • On Sale Rotary Screw Pilot Air Compressor & Integrated Air Dryer PAC5-RM-D
  • Compare
  • Wishlist
  • C5352
  • PAC5-RM-D
  • 648 / 22.9
  • ~
  • Yes
  • 10
  • 268
  • 64
  • Belt Drive
  • 5.5 / 7.5
  • 415
  • 1500 x 600 x 1510
  • 222
  • $11,800.00
  • $12,980.00
  • ADD TO CART
  • On Sale Rotary Screw Pilot Air Compressor PAC7.5-RM
  • Compare
  • Wishlist
  • C5361
  • PAC7.5-RM
  • 1002 / 35.3
  • ~
  • No
  • 10
  • 268
  • 68
  • Belt Drive
  • 7.5 / 10
  • 415
  • 1500 x 650 x 1650
  • 275
  • $10,700.00
  • $11,770.00
  • ADD TO CART
  • On Sale Rotary Screw Air Compressor & Integrated Air Dryer CPM10/10TD
  • Compare
  • Wishlist
  • C5404
  • CPM10/10TD
  • 35
  • ~
  • Yes
  • 10
  • 500
  • 65
  • Belt Drive
  • 7.5 / 10
  • 415
  • 2090 x 820 x 1700
  • 550
  • $11,950.00
  • $13,145.00
  • ADD TO CART
  • On Sale Rotary Screw Pilot Air Compressor & Integrated Air Dryer PAC7.5-RM-D/500
  • Compare
  • Wishlist
  • C5362
  • PAC7.5-RM-D/500
  • 1002 / 35.3
  • ~
  • Yes
  • 10
  • 500
  • 68
  • Belt Drive
  • 7.5 / 10
  • 415
  • 1900 x 720 x 1800
  • 320
  • $12,850.00
  • $14,135.00
  • ADD TO CART
  • On Sale - Special Order Rotary Screw Pilot Air Compressor PAC11-RM
  • Compare
  • Wishlist
  • C5371
  • PAC11-RM
  • 1500 / 53
  • ~
  • No
  • 10
  • 268
  • 69
  • Belt Drive
  • 11 / 15
  • 415
  • 1500 x 650 x 1650
  • 290
  • $11,500.00
  • $12,650.00
  • ADD TO CART
  • On Sale Rotary Screw Air Compressor & Integrated Air Dryer CPM15/10TD
  • Compare
  • Wishlist
  • C5405
  • CPM15/10TD
  • 50
  • ~
  • Yes
  • 10
  • 500
  • 69
  • Belt Drive
  • 11 / 15
  • 415
  • 2090 x 820 x 1700
  • 615
  • $12,450.00
  • $13,695.00
  • ADD TO CART
  • On Sale Rotary Screw Pilot Air Compressor & Integrated Air Dryer PAC11-RM-D
  • Compare
  • Wishlist
  • C5372
  • PAC11-RM-D
  • 1500 / 53
  • ~
  • Yes
  • 10
  • 500
  • 69
  • Belt Drive
  • 11 / 15
  • 415
  • 1900 x 720 x 1800
  • 340
  • $15,100.00
  • $16,610.00
  • ADD TO CART
  • On Sale Rotary Screw Pilot Air Compressor PAC15-RM
  • Compare
  • Wishlist
  • C5381
  • PAC15-RM
  • 1848 / 65.3
  • ~
  • No
  • 10
  • 268
  • 70
  • Belt Drive
  • 15 / 20
  • 415
  • 1500 x 650 x 1650
  • 300
  • $12,250.00
  • $13,475.00
  • ADD TO CART
  • On Sale Rotary Screw Air Compressor & Integrated Air Dryer CPM20/10TD
  • Compare
  • Wishlist
  • C5406
  • CPM20/10TD
  • 59.3
  • ~
  • Yes
  • 10
  • 500
  • 71
  • Belt Drive
  • 15 / 20
  • 415
  • 2090 x 820 x 1700
  • 630
  • $12,990.00
  • $14,289.00
  • ADD TO CART
  • On Sale Rotary Screw Pilot Air Compressor & Integrated Air Dryer PAC15-RM-D
  • Compare
  • Wishlist
  • C5382
  • PAC15-RM-D
  • 1848 / 65.3
  • ~
  • Yes
  • 10
  • 500
  • 70
  • Belt Drive
  • 15 / 20
  • 415
  • 1900 x 720 x 1800
  • 355
  • $16,300.00
  • $17,930.00
  • ADD TO CART
  • On Sale High Pressure Rotary Screw Compressor for Fiber Laser Cutting EPM 15
  • Compare
  • Wishlist
  • C5400
  • EPM-15
  • 1360 / 48 (1.4 m3/min)
  • ~
  • Yes
  • 15.5
  • 500
  • 70
  • Direct Drive
  • 15 / 20
  • 415 / 40 (3PH+PE+N)
  • ~
  • 587
  • $18,450.00
  • $20,295.00
  • ADD TO CART
  • On Sale High Pressure Rotary Screw Compressor for Fiber Laser Cutting EPM 22
  • Compare
  • Wishlist
  • C5401
  • EPM-22
  • 2140 / 76 (2.1 m3/min)
  • ~
  • Yes
  • 15.5
  • 500
  • 70
  • Direct Drive
  • 22 / 30
  • 415 / 63 (3PH+PE+N)
  • ~
  • 657
  • $19,950.00
  • $21,945.00
  • ADD TO CART
