K72-250 - 4 Jaw Independent Lathe Chuck
Ø250mm
Back Plate Mount
C2551 of 4
Front View2 of 4
Back Plate Mount3 of 4
Included Accessory4 of 4
Order Code: C255
ex-gst
inc-gst
$
320.00
$
352.00
1 Year Warranty
Description
K72-250 - 4 Jaw Independent Lathe Chuck
Ø250mm
Back Plate Mount
Overview
Manufactured from High Strength semi steel and precision machined
Jaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened
Jaws are case-hardened to minimise wear
Operating screws are made from alloy steel and case-hardened
Features
- Front Mounting
Compare Product Range
Specifications
| ORDER CODE | C255 |
|---|---|
| Chuck Size | Ø250 |
| (mm)External Jaw Range | 160 - 250 |
| (mm)Internal Jaw Range | 5 - 118 |
| (rpm)Speed | 1500 |

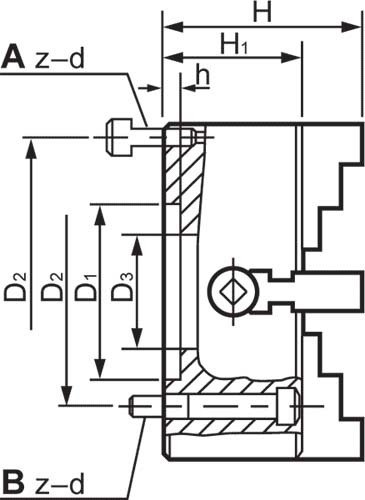

| (mm)D1 | 110 |
| (mm)D2 | 130 |
| (mm)D3 | 100 |
| (mm)H1 | 80 |
| (mm)h | 6 |
| (mm)z-d | 4 - M12 |
| (kg)Nett Weight | 23 |
Packaging
| Box | Length (m) | Width (m) | Height (m) | Gross Weight (kg) |
|---|---|---|---|---|
| 1 | 0.320 | 0.320 | 0.210 | 24.00 |
