BR-16E-36 - Bead Roller - Motorised

1.6mm Mild Steel Thickness Capacity

Package Deal

B8790K 1 of 13

BR-16E-36 Bead Roller, Baileigh Industrial (B8790) 2 of 13

BR-16E-36LT Bead Roller, Baileigh Industrial (B8680) 3 of 13

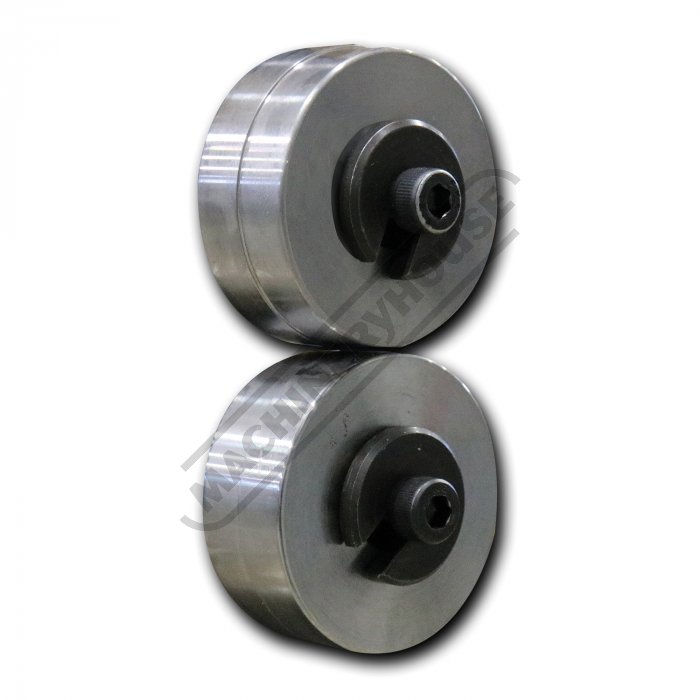

B8659 - BEAD ROLLER SET 0.5" BEAD 4 of 13

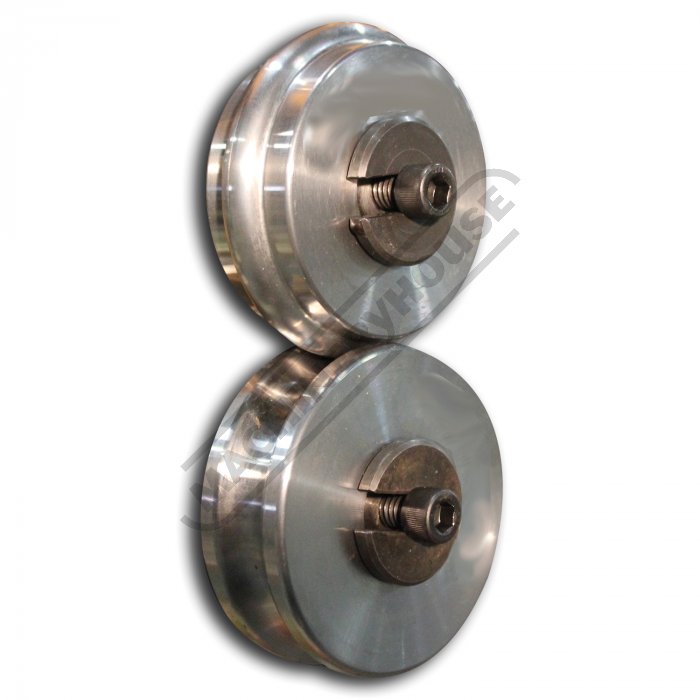

B8658 - BEAD ROLLER SET 0.375" BEAD 5 of 13

B8655 - BEAD ROLLER SET 0.125" BEAD 6 of 13

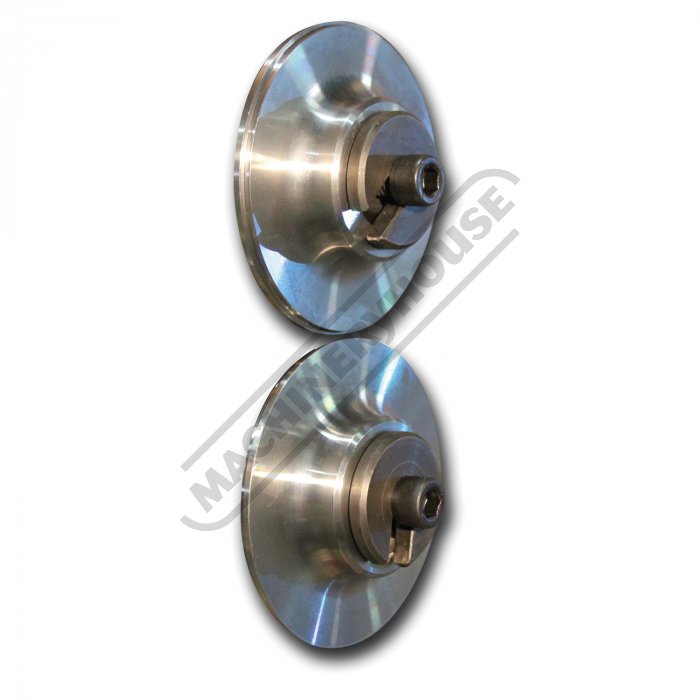

B8652 - BEAD ROLLER SET 0.50" NARROW 7 of 13

B8650 - BEAD ROLLER SET 0.025" STEP 8 of 13

B8790 9 of 13

Bottom Die can slide in or out 10 of 13

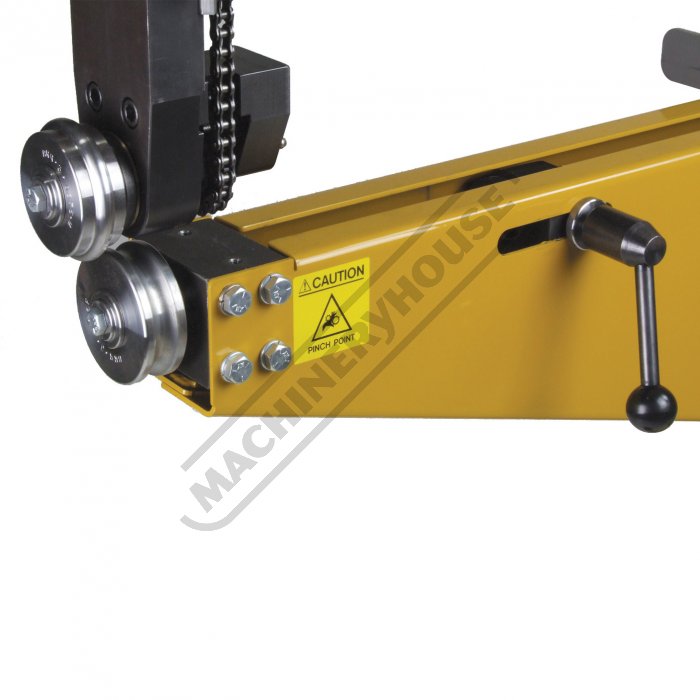

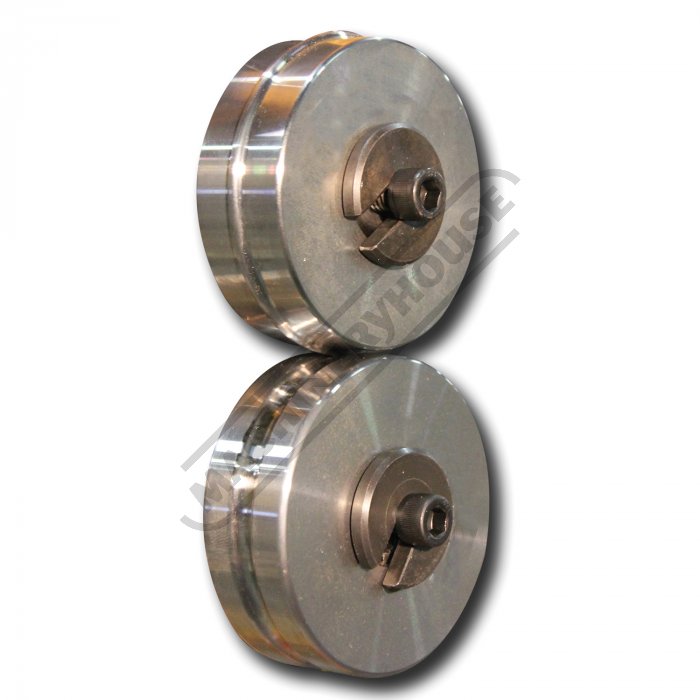

Dies Close Up 11 of 13

Depth Stop 12 of 13

Forming Depth Adjustment 13 of 13

BAILEIGH

Discontinued

Order Code: B8790K

240V / 10A
1 Year Warranty

Made in U.S.A

Sorry, this Product is no longer available
Click Here To View All Swage-Jennys & Bead Rollers

Compare

Wishlist

Description Specifications Compare Accessories Downloads

Description

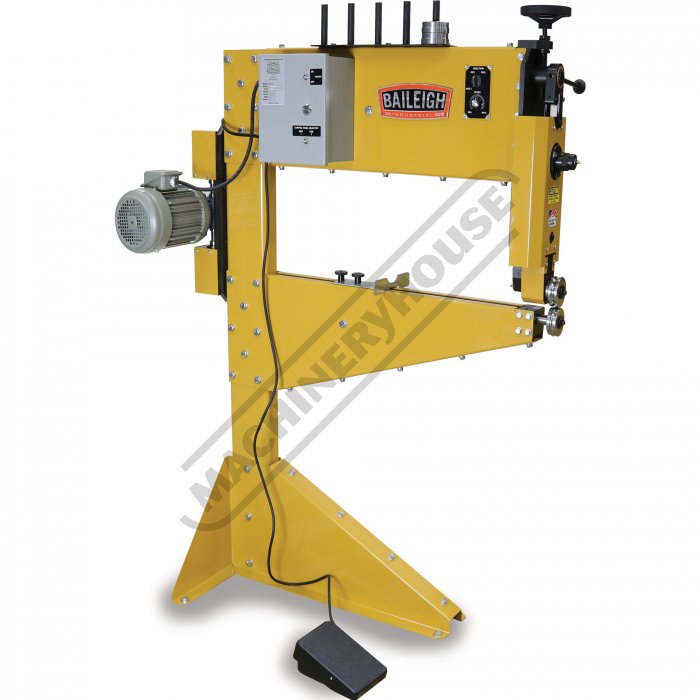

BR-16E-36 - Bead Roller - Motorised

1.6mm Mild Steel Thickness Capacity

Package Deal

Overview

Made of rigid steel, this bead roller combines all the best features in one package. It offers a quick-release top die, adjustable shaft, variable-speed pedal, depth stops, and more.

Features

Made in the USA
1.6mm mild steel maximum capacity
914mm throat depth enables you to work on the middle of large panels
Industrial 0.5hp motor runs on 240-volt power. Plug it into any household outlet
Both rolls are driven. Chain drive on the top roll prevents slippage
Variable-speed foot pedal lets you slow down your feed rate for more delicate work
You can change the RPM of the rolls in real time by turning the dial on the side or lock the rolls at a constant speed
Rollers can run forward or in reverse, so you can go over a pattern as needed
Left and right-hand controls are the same on both sides of the machine

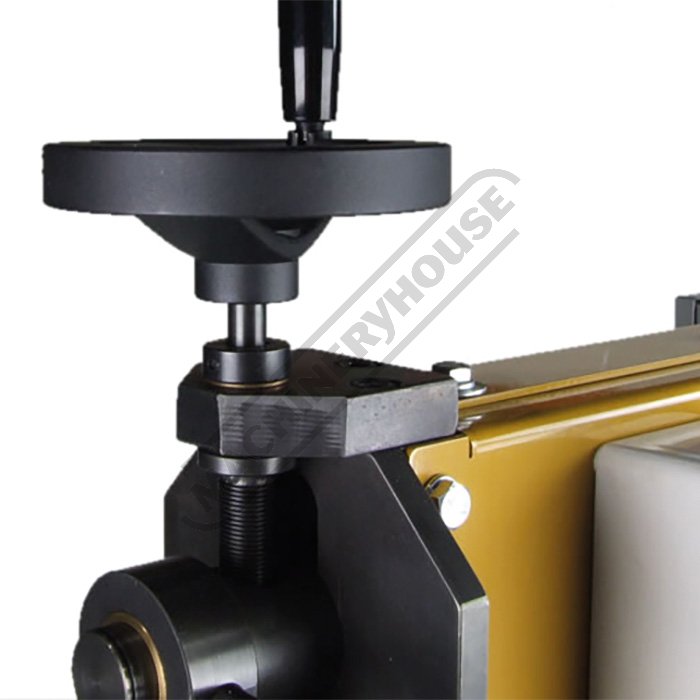

Adjust the forming depth by turning a hand wheel just above the working area
Quick-release top die can open and close without altering the depth pressure
You can begin or end a design in the middle of the panel and not worry if the depth is set correctly

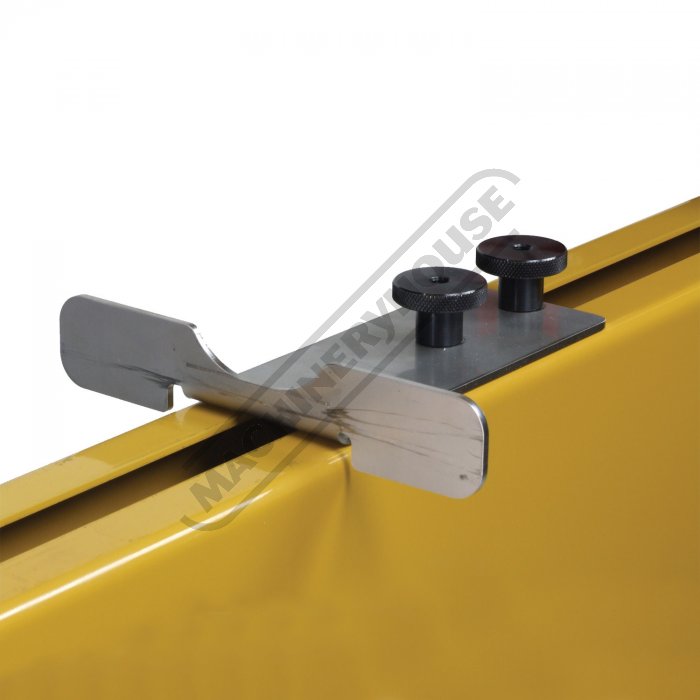

Depth stop allows you to easily make straight, repeatable beads
Comes standard with a 1/4" (6.35mm) round bead tooling set and a 3/64" (1.27mm) step roll set
Shaft is compatible with standard tooling. You could reuse rolls from another brand
We stock a range of roll sets. See our bead roller dies for the BR-16E-36

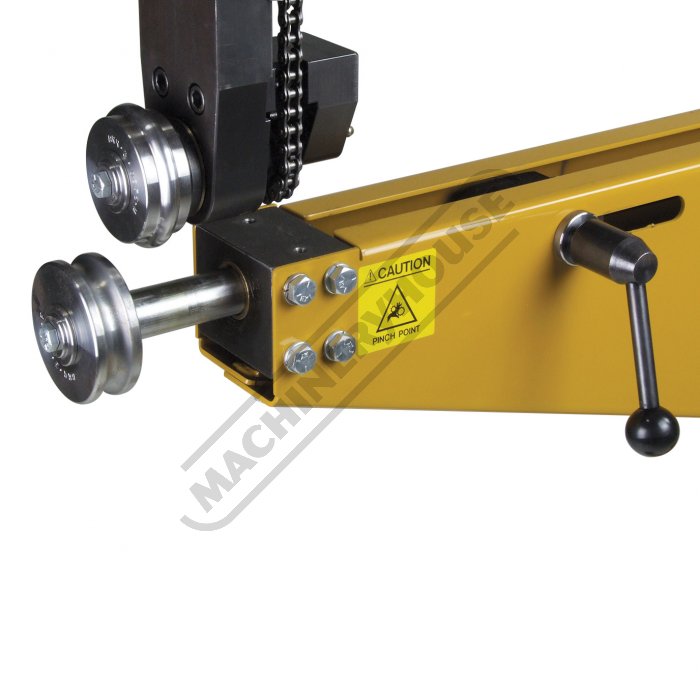

Bottom die can slide in or out, so you can create custom profiles by varying the offset
All friction points turn on bronze bushings that last for decades. Grease fittings allow for convenient maintenance
Heavy steel frame ensures accurate beads over many years of use and helps prevent flex

Includes

1/4" (6.35mm) Round Bead Die Set
3/64" (1.27mm) Step Roll Set
BR16E - .025" - Step Roll Set
BR16E - .050" - Narrow Art Roll Set
BR16E - .125" - Round Bead Roll Set
BR16E - .375" - Round Bead Roll Set
BR16E - Tipping Roll Set

Specifications

Compare Product Range

Specifications

ORDER CODE	B8790K
MODEL	BR-16E-36
(Type)Machine	Bead Roller - Motrised
(mm / Gauge)Mild Steel - Thickness Capacity	1.6 / 16
(mm / Gauge)Aluminium - Thickness Capacity	1.6 / 16
(mm)Throat Depth Maximum	914
(rpm)Output Drive Speed	0 - 100
(kW / hp)Motor Power	0.375 / 0.5
(V / amp)Voltage / Amperage	240
(kg)Nett Weight	137
