BR-16E-36LT - Bead Roller - Motorised

1.6mm Mild Steel Thickness Capacity

Package Deal

B8680K 1 of 12

BR-16E-36LT Bead Roller, Baileigh Industrial (B8680) 2 of 12

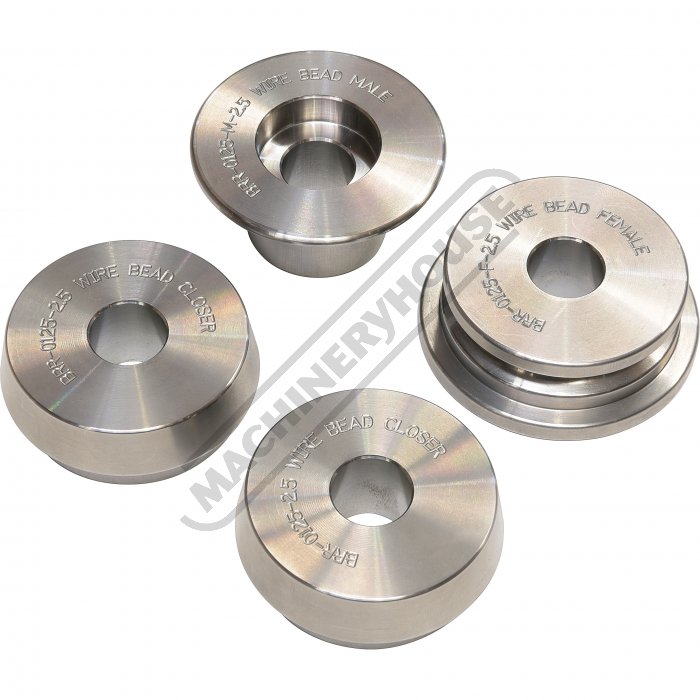

B8829 BEAD ROLLER SET 1/8" WIRE BEAD 3 of 12

B8826 BEAD ROLLER SET 5/32" RADIUS 4 of 12

B8823 BEAD ROLLER SET 45 DEGREE STEP 5 of 12

B8821 BEAD ROLLER SET 0.375" ROUND 6 of 12

B8811 BEAD ROLLER SET 0.375" ROUND 7 of 12

B8805 BEAD ROLLER SET 0.125" ROUND 8 of 12

B8800 BEAD ROLLER SET 0.025" STEP 9 of 12

B8680 10 of 12

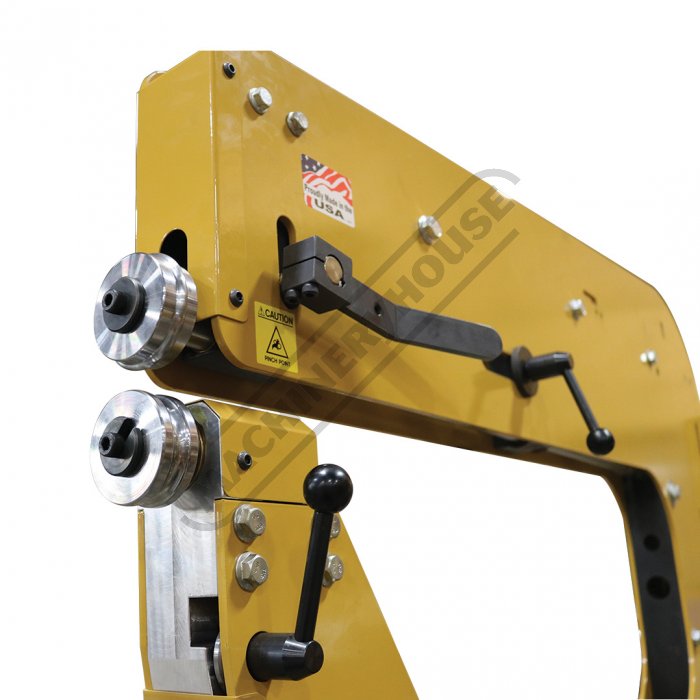

Insert 1 11 of 12

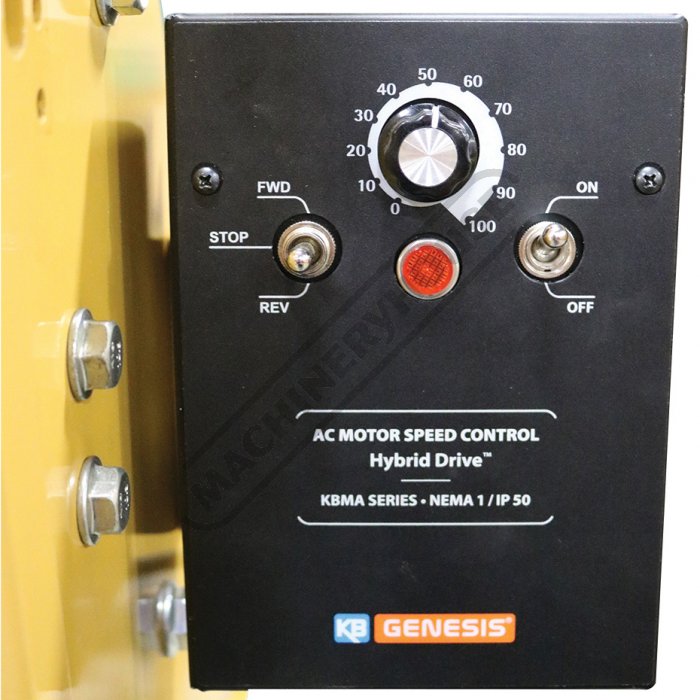

Insert 2 12 of 12

BAILEIGH

Discontinued

Order Code: B8680K

240V / 10A
1 Year Warranty

Made in U.S.A

Sorry, this Product is no longer available
Click Here To View All Swage-Jennys & Bead Rollers

Compare

Wishlist

Description Specifications Compare Accessories Downloads

Description

BR-16E-36LT - Bead Roller - Motorised

1.6mm Mild Steel Thickness Capacity

Package Deal

Overview

This bead roller’s open concept design gives you extra working area. Add beads to bent panels and large sheets for auto or air-plane projects. Foot pedal controls leave your hands free.

Features

Maximum capacity of 1.6mm mild steel
914mm throat depth allows you to reach the center of 1828mm pieces
Variable-speed pedal lets you press harder to go faster, or roll more slowly for detailed patterns
You can also lock the rolls at a constant speed if you choose
Integrated adjustable depth stop makes it simple to create and repeat perfectly straight beads
Quick-release die maintains consistent forming depth, even if you open and close it
You can begin or end a design in the middle of a panel without worrying if the depth is set correctly
Adjust the forming depth with an easily accessible handwheel just above the working area
Bottom die slides in or out. By changing the offset, you can create custom profiles from standard dies
Includes 1/4" (6.35mm) round bead die set and 3/64" (1.27mm) step roll set
Many Baileigh bead roller dies are available. See our tooling for the BR-16E-36LT
This electric bead roller accepts standard die sets. It’s compatible with most tooling for similar machines
All friction points turn on long-lasting bronze bushings with grease fittings
Rigid steel construction reduces flex and ensures accurate beads over many years of production

Includes

1/4" (6.35mm) round bead die set
3/64" (1.27mm) step roll set
BR16ELT - .025" - Step Roll Set
BR16ELT - .125" - Round Bead Roll Set
BR16ELT - .375" - Round Bead Roll Set
BR16ELT - .375" - Flat Bead Roll Set
BR16ELT - 45 DEGREE - Step Roll Set
BR16ELT - 5/32" - Radius Tank Roll Set
BRR-0125-2.5-WB-SET - 1/8" - Wire Bead Set

Specifications

Compare Product Range

Specifications

ORDER CODE	B8680K
MODEL	BR-16E-36LT
(Type)Machine	Bead Roller - Motrised
(mm / Gauge)Mild Steel - Thickness Capacity	1.6 / 16
(mm / Gauge)Aluminium - Thickness Capacity	1.6 / 16
(mm)Throat Depth Maximum	914
(rpm)Output Drive Speed	0 - 100
(kW / hp)Motor Power	0.375 / 0.5
(V / amp)Voltage / Amperage	240
(kg)Nett Weight	137
