Compact CNC Plasma Cutting Table
  • 1 of 18
    P9000
  • 2 of 18
    SWIFTY Left View
  • 3 of 18
    SWIFTY 600 Package
  • 4 of 18
    Front View
  • 5 of 18
    Plasma Gantry
  • 6 of 18
    Torch
  • 7 of 18
    Torch Front View
  • 8 of 18
    Breakaway Head
  • 9 of 18
    Material Clamps
  • 10 of 18
    Water Table
  • 11 of 18
    Water Table Side View
  • 12 of 18
    Control Unit
  • 13 of 18
    Data Input
  • 14 of 18
    Control Unit Rear View
  • 15 of 18
    UNIMIG RAZERCUT 45
  • 16 of 18
    UNIMIG RAZERCUT 45 Front View
  • 17 of 18

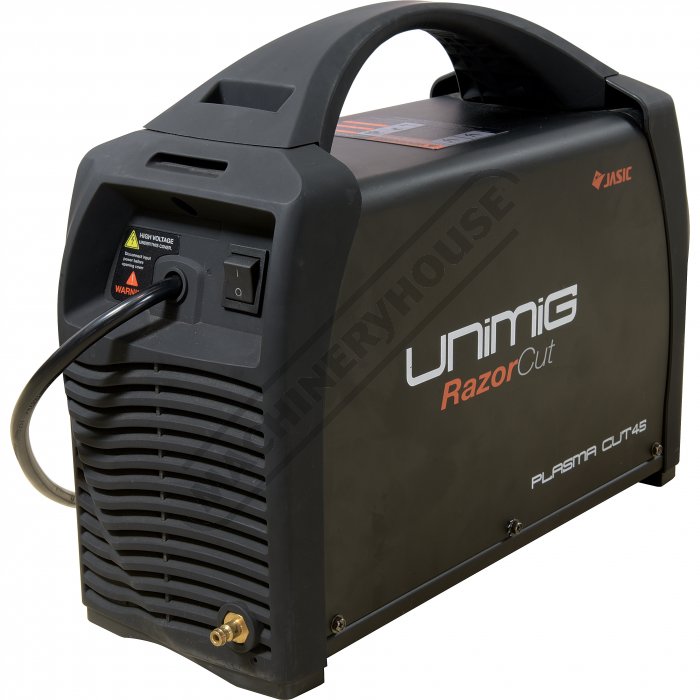

    UNIMIG RAZERCUT 45 Rear View
  • 18 of 18

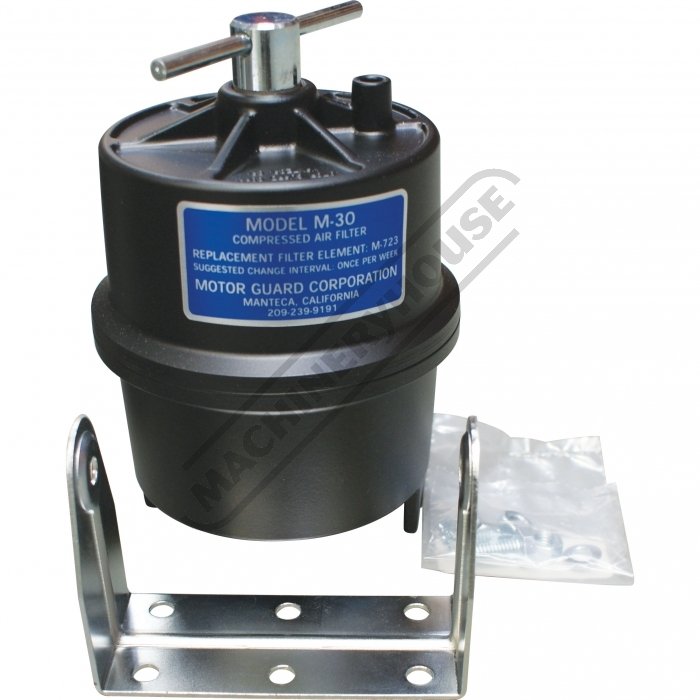

    M-30 Air Filter C492
Order Code: P9000
SWIFTY - Compact CNC Plasma Cutting Table (240V)
Water Tray System, Unimig Razor Cut 45
Cuts up to 8mm
SWIFTY
ORDER CODE
P9000
MODEL
SWIFTY
Cutting Table Capacity (mm)
610 x 610
Thickness Cutting Capacity - Mild Steel (mm)
8
Plasma Cutting Unit
Unimig Razor Cut 45
Current Output (amp)
20 - 45
Duty Cycle (Typical)
25% @ 45A

100% @ 22.5A
Fume Management (Type)
Water Tray System
Cutting Gas (Type)
Compressed Air
Plasma Unit Input Voltage (V)
240V
Plasma Unit Input Amperage (amp)
15
Description
Swifty - CNC Plasma 610 x 610mm Cutting Table and Unimig Razor 45 plasma to cut up to 8mm.

Swifty is a compact new CNC plasma cutting machine with big capabilities. It’s versatile, portable and easy to use opening up a world of possibilities and offering great value for smaller workshops.

All that is required to operate the Swifty is an air compressor and a laptop, giving the freedom to work wherever you wish.


Overview Plasma power source
The RAZORCUT45 is an inverter-based Plasma cutting machine produced using the latest in IGBT technology. This machine is reliable, robust and stacked with features that you can expect from a quality Plasma Cutter. The RAZORCUT45 produces a high temperature plasma stream providing effortless cutting of all electrically conductive materials including steel, cast Iron, stainless steel, copper, aluminium brass etc.

• Latest IGBT Inverter Technology
• Safe Euro torch connection
• High quality Plasma machine torch
• Industrial application
• Tolerant to variable power supply
• In-built Air Regulator with preset air pressure
• Suitable to cut all electrically conductive materials
• Light weight and compact
• Strong metal housing, with plastic front and rear covers
Features
  • 240V power supply
  • Up to 8mm pierce and cutting capacity
  • 610 x 610 cutting area
  • Water tray for efficient control of sparks and fumes
  • Smooth motion linear V wheels
  • Multi position torch height control
  • Magnetic breakaway head eliminates damage to torch and improves safety
  • Swifty CNC software is standard, Conversion of any DXF drawing file to Swifty machine code, the standard machine includes a 2D parametric library
Includes
  • Swifty CNC cutting table
  • Swift CNC software
  • Unimig Razor 45 plasma unit
  • Air filter for plasma (C492)

Product Brochure

Swifty Brochure
974.4 KB
Swifty User Guide v1.3
9.89 MB
