On Sale
Order Code: K148
ex-gst
inc-gst
$ 3,800.00
$ 4,180.00
$ 3,450.00
$ 3,795.00
240V / 10A
1 Year Warranty
Finance Available
Description

TU-3008G-16M - Opti-Turn Lathe & Mill Drill Combination Package Deal

300 x 700mm
Included BF-16AV Mill Head
Overview

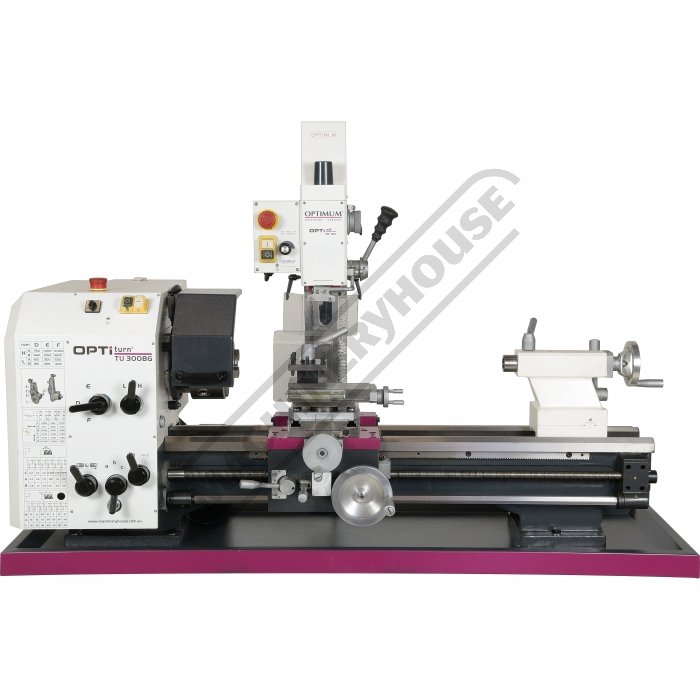

TU-3008G-16M Combination Lathe & Mill-Drill consist of TU-3008G bench lathe & BF-16AV mill head

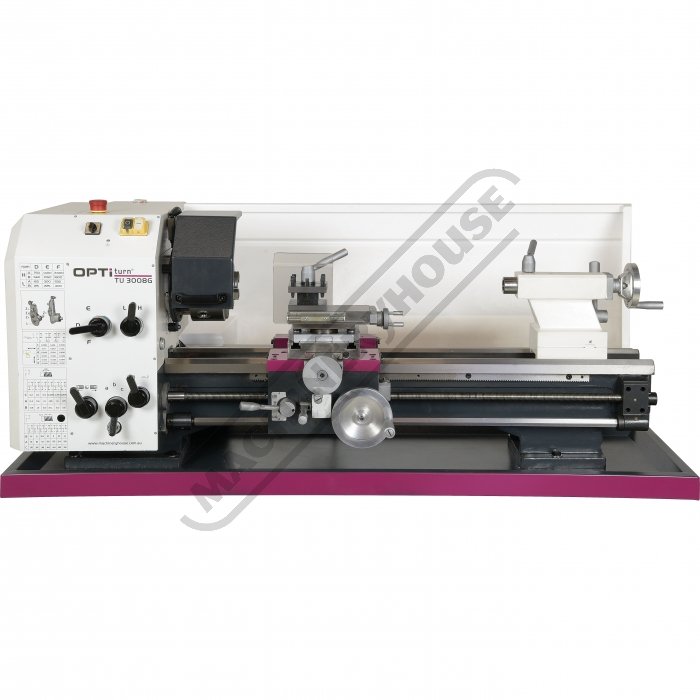

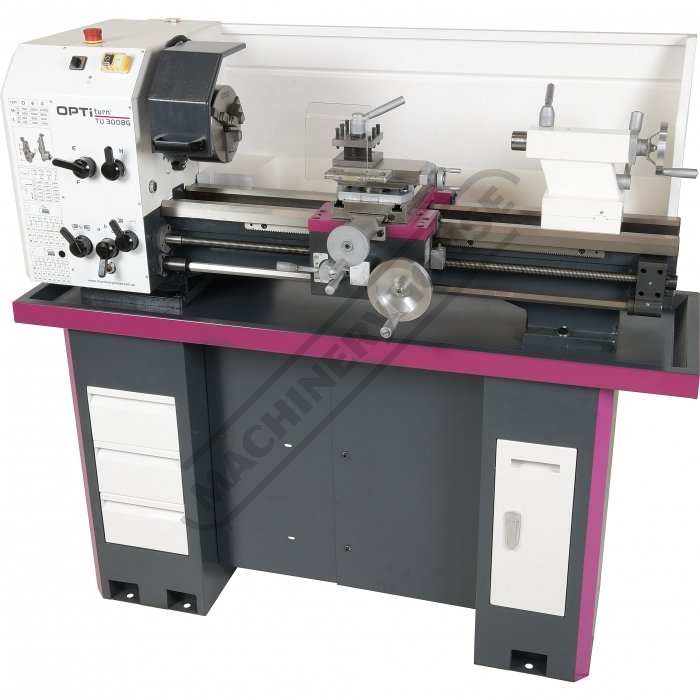

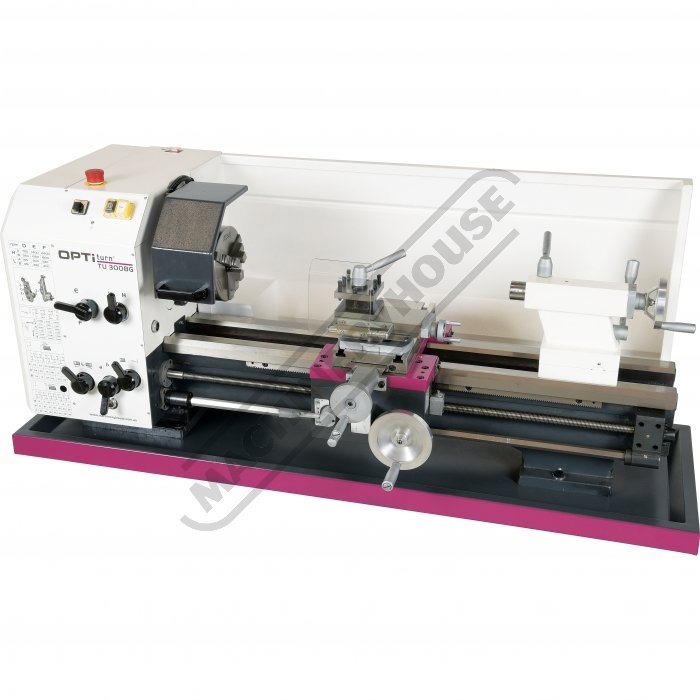

This new TU-3008G model geared head lathe of very modern design has many convenient facilities ideal for the enthusiastic model engineer for small component manufacturer. A very rigid 180mm cast iron bed width, induction hardened and ground slideways gives a high level of precision turning. The lathe capacity is 700mm between the centres and 300mm swing over the bed and with a generous 38mm spindle bore allowing larger stock to be placed through the headstock. The workhorse that drives this lathe has an upgraded powerful 2hp (1.5kW) motor providing smooth running.

Other very useful features included are cross and longitudinal power feeds that's not normally found of small conventional lathes, quick lock tailstock and both metric and imperial thread cutting, ranging from 8-56 tpi or 0.2-3.5mm pitch. Also included are a 4-way indexing tool post with 16mm tool shank capacity, fine adjustment on the tailstock for taper turning and the rear splash guard. A 160mm 3-jaw chuck with reverse jaws is also supplied.
Features
  • LATHE: TU-3008G
  • Geared headstock for quick change of 12 spindle speeds 125-2400rpm
  • Ribbed prism bed made of grey cast iron
  • Inductively hardened and ground bed guideways

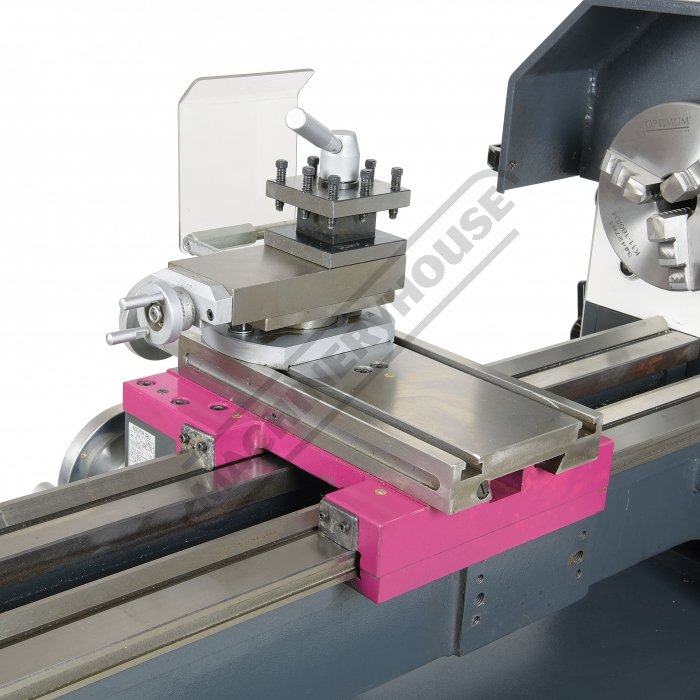

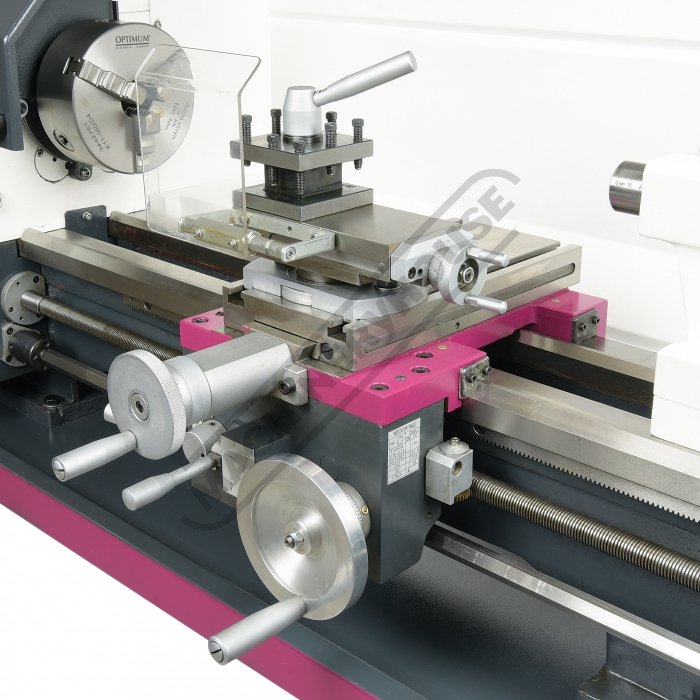

  • Automatic cross & longitudinal power feeds
  • Spindle nose accuracy 0.009mm
  • 3 Jaw chuck running accuracy 0.04mm
  • D1-4 camlock spindle for quick chuck changes
  • Forward & reverse spindle direction switch
  • Oils sight glass on head-stock & gearbox
  • Change gears for metric and imperial thread cutting
  • Enclosed feed and threading gearbox
  • Belt cover with tamper proof safety micro switch
  • Heavy duty rotating safety chuck guard with micro switch
  • Sliding tool post safety guard

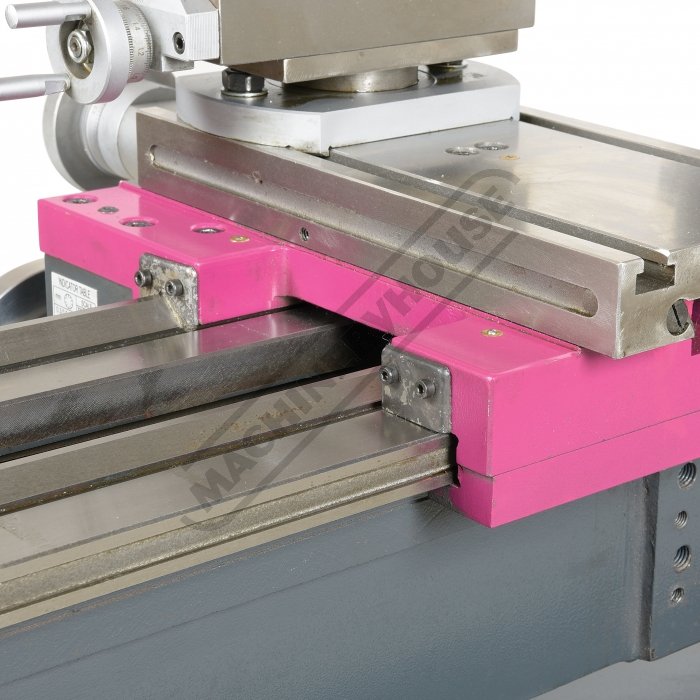

  • Cross slide and bed length designed to adapt Optimum DRO scales

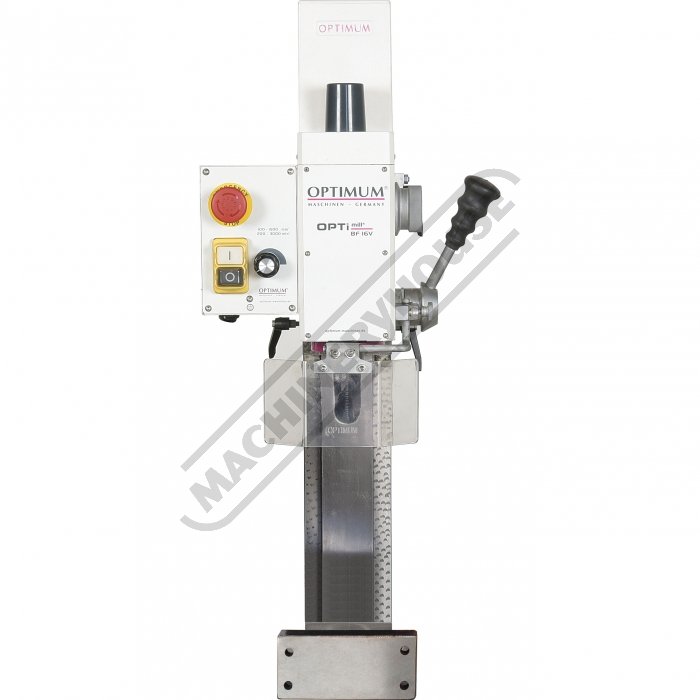

  • MILL: BF-16AV
  • Electronic infinitely variable speed (100-3000rpm)

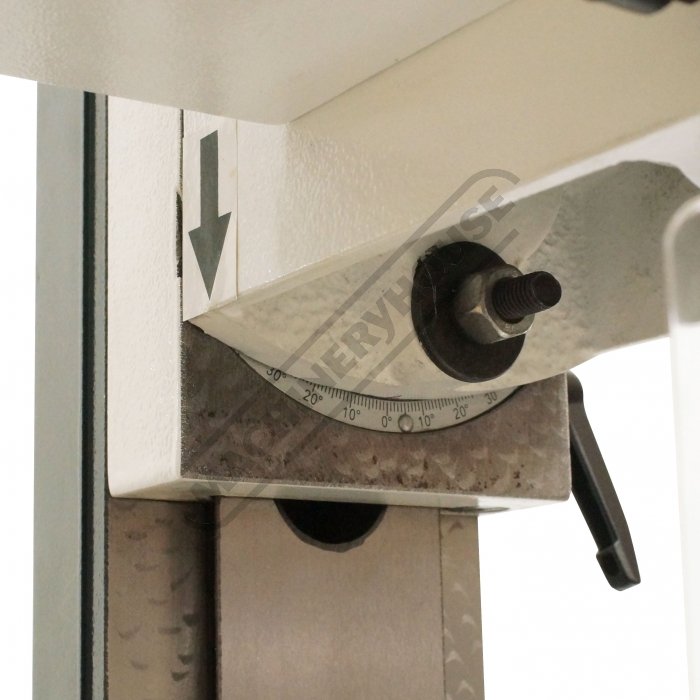

  • Tilting head to ±90º from vertical
  • 3MT spindle taper

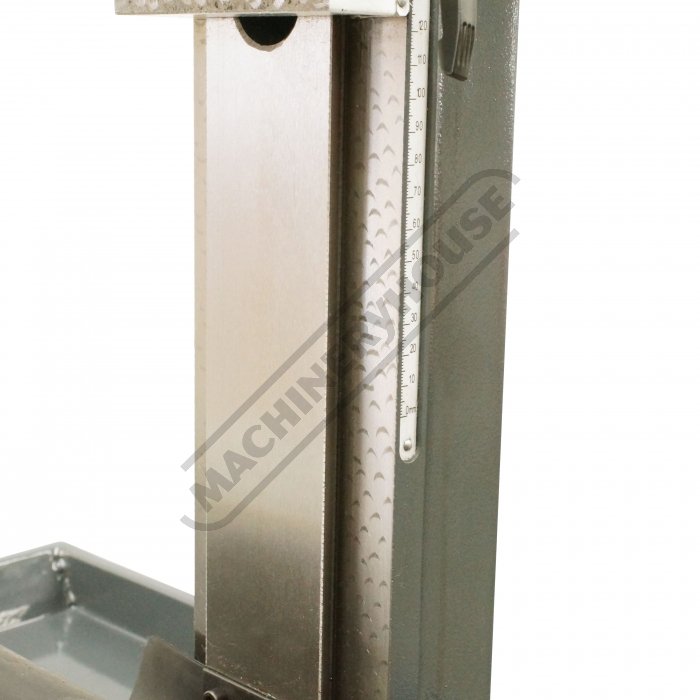

  • Adjustable dovetail slideway on Z-Axis
  • Heavy duty cast iron body and base for better stability
  • 2-speed gearbox (high/low) drive system to maximise torque
  • IP54 with low-voltage release switch
  • Scale collars for all axis are adjustable
  • Adjustable drill length stop
  • Metric dial graduations

  • Note: The lathe rear splash tray is required to be removed to fit Mill Head Attachment

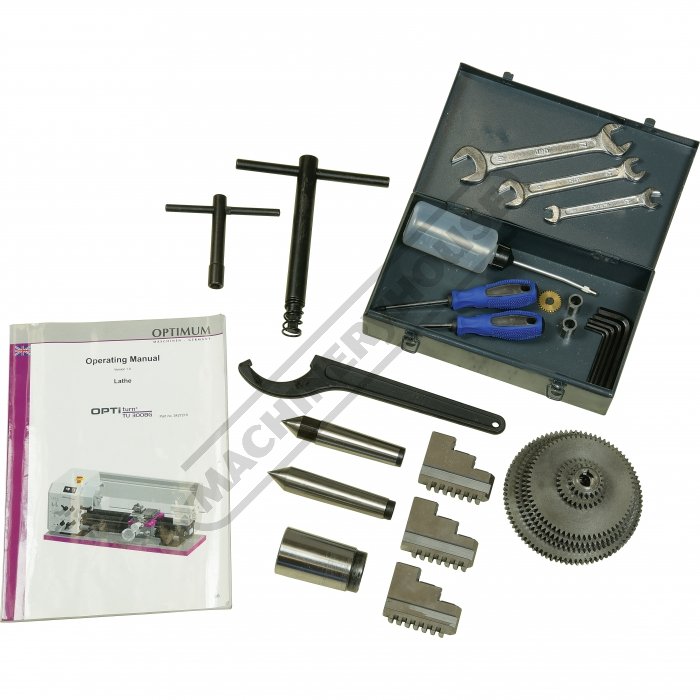

Includes
  • LATHE: TU-3008G
  • 160mm 3 jaw chuck with reverse jaws
  • Change gears for metric & Imperial thread cutting
  • Chuck guard
  • Toolpost guard
  • 2 dead centres
  • 3-jaw chuck with reversible jaws
  • Swarf drip tray
  • Rear splash guard


  • MILL: BF-16AV
  • 3MT x JT6 drill chuck arbor
  • Safety cutter guard
  • Bracket kit for optional digital readout
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • KIT Includes
  • Lathe Specifications
  • (mm)Tool Height To Suit
  • (mm)Distance Between Centres
  • (mm)Swing Over Bed
  • (mm)Swing Over Cross Slide
  • (mm)Centre Height
  • (mm)Spindle Bore
  • Spindle Nose Type
  • (mm)Bed Width
  • (MT)Headstock Taper
  • (MT)Tailstock Taper
  • (mm)Cross Slide Travel
  • (mm)Compound Slide Travel
  • Leadscrew
  • (mm/rev)Longitudinal Feed (Z-Axis)
  • Cross Feed (X-Axis)
  • (mm)Metric Thread Range
  • (TPI)Imperial Thread Range
  • (mm)Three Jaw Chuck Size
  • Four Jaw Chuck Size
  • (No. / rpm)Spindle Speeds
  • (kW / hp)Motor Power - Lathe
  • (V / amp)Voltage / Amperage - Lathe
  • Mill Specifications
  • (MT)Spindle Taper
  • Column Type
  • (± Deg)Swivel Head (Left ~ Right)
  • (mm)Vertical Travel (Z-Axis)
  • (mm)Drilling Capacity
  • (mm)End Milling Capacity
  • (mm)Face Milling Capacity
  • (No. / rpm)Spindle Speeds Vertical
  • (kW / hp)Motor Power - Mill
  • (V / amp)Voltage / Amperage - Mill
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • On SaleK146
  • Compare
  • Wishlist
  • K146
  • TU-2506V-16M
  • TU-2506V & BF-16AV
  • LATHE SPECIFICATIONS
  • 12
  • 550
  • 250
  • 150
  • 125
  • 26
  • Fixed
  • 135
  • 4
  • 2
  • 110
  • 70
  • Metric
  • 0.07 - 0.4
  • ~
  • 0.2 - 3.5
  • 8 - 56
  • 125
  • Optional
  • Variable (150 - 2500)
  • 1.2 / 1.6
  • 240 / 10
  • MILL SPECIFICATIONS
  • 3
  • Dovetail
  • ±90
  • 210
  • 16
  • 20
  • 63
  • Variable (100-3000)
  • 0.5 / 0.66
  • 240 / 10
  • 225
  • $2,270.00
  • $2,497.00
  • ADD TO CART
  • On SaleK147
  • Compare
  • Wishlist
  • K147
  • TU-2506V-20M
  • TU-2506V & BF-20AV
  • LATHE SPECIFICATIONS
  • 12
  • 550
  • 250
  • 150
  • 125
  • 26
  • Fixed
  • 135
  • 4
  • 2
  • 110
  • 70
  • Metric
  • 0.07 - 0.4
  • ~
  • 0.2 - 3.5
  • 8 - 56
  • 125
  • Optional
  • Variable (150 - 2500)
  • 1.2 / 1.6
  • 240 / 10
  • MILL SPECIFICATIONS
  • 3
  • Dovetail
  • ±90
  • 280
  • 16
  • 20
  • 63
  • Variable (90-3000)
  • 0.85 / 1.13
  • 240 / 10
  • 259
  • $2,390.00
  • $2,629.00
  • ADD TO CART
  • On SaleK148
  • Compare
  • Wishlist
  • K148
  • TU-3008G-16M
  • TU-3008G & BF-16AV
  • LATHE SPECIFICATIONS
  • 16
  • 700
  • 300
  • 190
  • 150
  • 38
  • D1-4
  • 180
  • 5
  • 3
  • 150
  • 65
  • Metric
  • 0.085 - 0.83
  • 0.01 ~0.10
  • 0.2 - 3.5
  • 8 - 56"
  • 160
  • Optional
  • 12 (125 - 2400)
  • 1.5 / 2
  • 240 / 10
  • MILL SPECIFICATIONS
  • 3
  • Dovetail
  • ±90
  • 210
  • 16
  • 20
  • 63
  • Variable (100-3000)
  • 0.5 / 0.66
  • 240 / 10
  • 347
  • $3,450.00
  • $3,795.00
  • ADD TO CART
  • On SaleK149
  • Compare
  • Wishlist
  • K149
  • TU-3008G-20M
  • TU-3008G & BF-20AV
  • LATHE SPECIFICATIONS
  • 16
  • 700
  • 300
  • 190
  • 150
  • 38
  • D1-4
  • 180
  • 5
  • 3
  • 150
  • 65
  • Metric
  • 0.085 - 0.83
  • 0.01 ~0.10
  • 0.2 - 3.5
  • 8 - 56"
  • 160
  • Optional
  • 12 (125 - 2400)
  • 1.5 / 2
  • 240 / 10
  • MILL SPECIFICATIONS
  • 3
  • Dovetail
  • ±90
  • 280
  • 16
  • 20
  • 63
  • Variable (90-3000)
  • 0.85 / 1.13
  • 240 / 10
  • 383
  • $3,580.00
  • $3,938.00
  • ADD TO CART
