Hydraulic Engine Crane
  • 1 of 20
  • 2 of 20
  • 3 of 20
    Shown Folded Up
  • 4 of 20
    Shown With Beam down
  • 5 of 20
    Beam Fully up
  • 6 of 20
    Beam Fully Up and Extended
  • 7 of 20
    Front View
  • 8 of 20
    Rear View
  • 9 of 20
  • 10 of 20
    Boom Adjustable Settings
  • 11 of 20
    Push Handle
  • 12 of 20
    Slide Out Beam
  • 13 of 20
    Lifting Chain
  • 14 of 20
    Hand Operated Pump
  • 15 of 20
    Double Action Pump
  • 16 of 20
    Ram Release Valve
  • 17 of 20
    Fold Up Legs Release Pins
  • 18 of 20
    Fold Up Legs with Pins
  • 19 of 20
    Swivel Wheels
  • 20 of 20
    Operating Instructions
Order Code: A350
HC-1T - Hydraulic Engine Crane
Engine Crane
Engine Crane Capacity (Tonne)
Engine Crane Operation (Type)
Nett Weight (kg)
This engine crane has a 8 tonne long stroke lifting ram and double acting pump with a maximum load capacity of 1000kg. It quickly folds up designed to save space in the workshop. Very simple to use manual hydraulic operation via a double acting pump equipped with automatic safety valve to control the lowering speed.

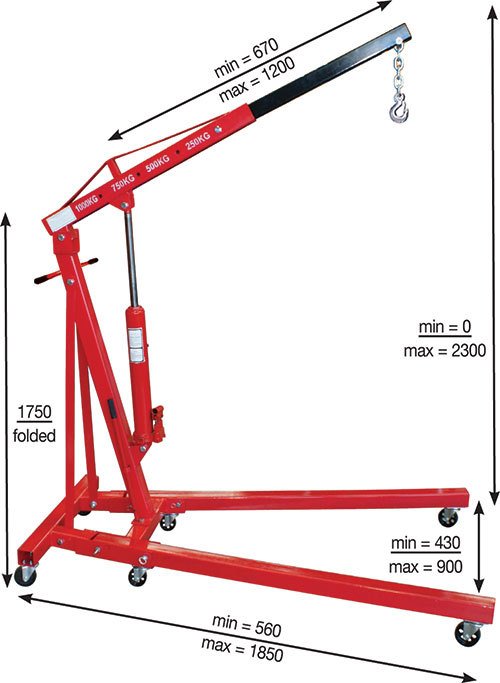

The jib extends to the desired lifting capacity of 250kg, 500kg, 750kg or 1000kg secured by a single locking pin. Mounted on 6 swivel castor wheels & T-bar handle for excellent manoeuvrability around the workshop. The lifting range is 0-2300mm so an engine can be lifted clear out of the engine bay with little effort. With great stability of its wide legs, this crane can also be used to lift machines or other heavy items, making for an excellent piece of equipment for the workshop or warehouse.
  • Ideal for automotive, light engineering and general workshop
  • Adjustable boom in four positions for lifting
  • Outrigger legs easily folded up for transport or storage
  • Six cast steel swivel castor wheels allow easy mobility
  • Double action pump on hydraulic 8 tonne lifting ram
  • T-bar handle with grips on rear of hoist allows greater manoeuvrability control
  • Supplied with a short lifting chain & hook with safety latch
  • Tested to 2 Tonne

Product Brochure
Instructions Manual
610.83 KB
Select your Postcode & Suburb to estimate the delivery fee for this product.
Postcode & Suburb:
Freight is estimated from the nearest branch that has stock available.
Our delivery contractors operate Monday to Friday only, excluding public holidays.
All orders are processed in order of payment receipt.
Our aim is to despatch your goods as quickly as possible, however despatch times may take longer than our standard 3 to 5 day service during peak periods or according to stock levels, if this is the case we will advise you before processing your order.
More questions? Visit our delivery information page

  • HC-1T (A350)
Engine Crane Capacity (Tonne)
Engine Crane Operation (Type)
Engine Stand Capacity (kg)
Trolley Jack Capacity (Tonne)
Axle Stand Capacity - Each (Tonne)
Mechanics Creeper Capacity (kg)
Nett Weight (kg)
Price (ex GST)
Price (inc GST)

Spare Parts Ordering
To assist you in ordering your Spare Part to suit Hafco Machinery simply select from the list below, if your part is not listed below please view “Parts List PDF” to identify your part required (if provided) then simply click the "SEND PARTS REQUEST" Button and fill in the required details. Our Spare Parts and Service Department will contact you as quickly as possible. If you need further assistance please contact us.
Parts List
422.64 KB
